Model #LAT9416AAQ Official Maytag washer/dryer

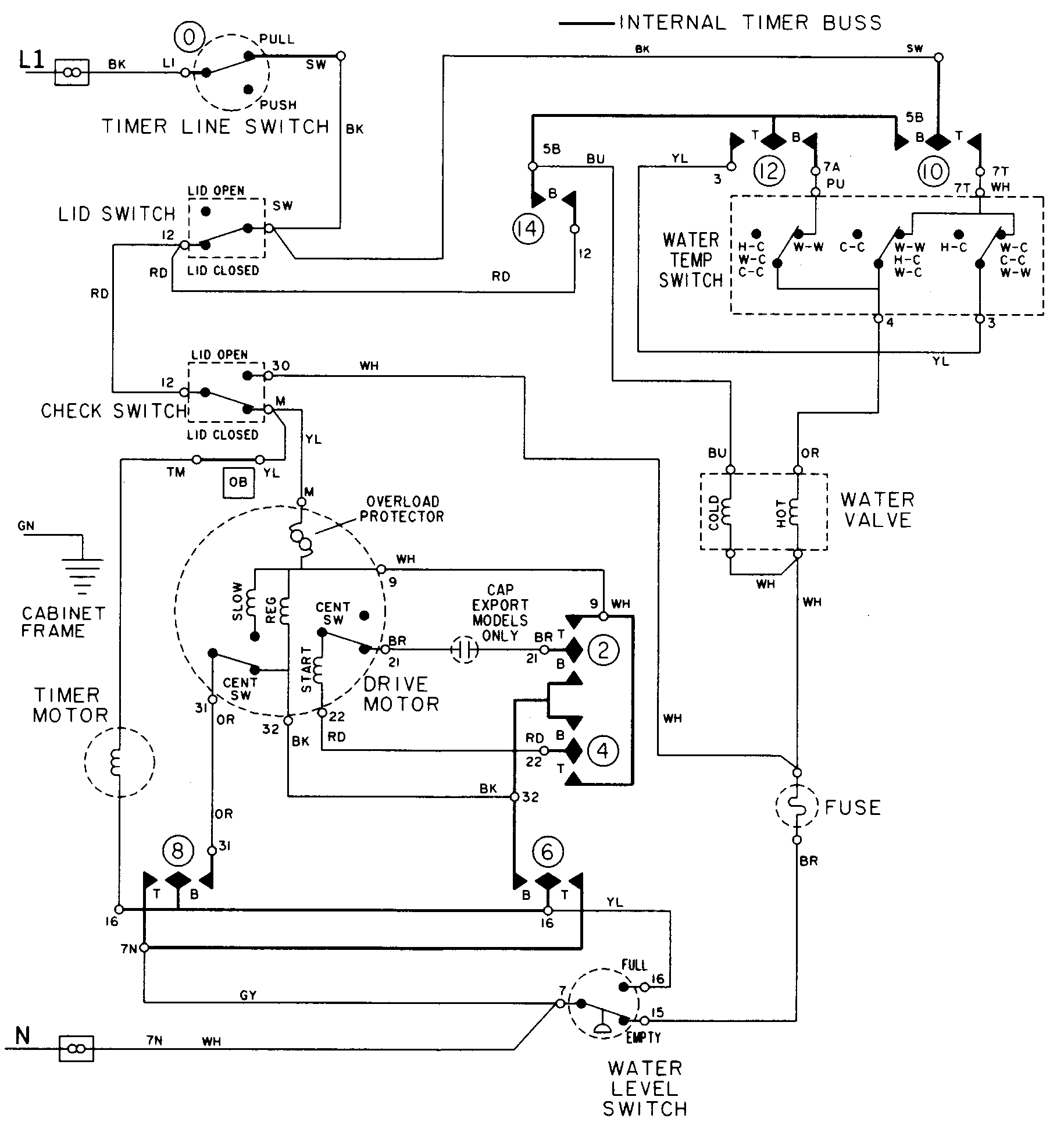

Here are the diagrams and repair parts for Maytag LAT9416AAQ washer/dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 231 parts

    Appliance Adhesive Sealant#15

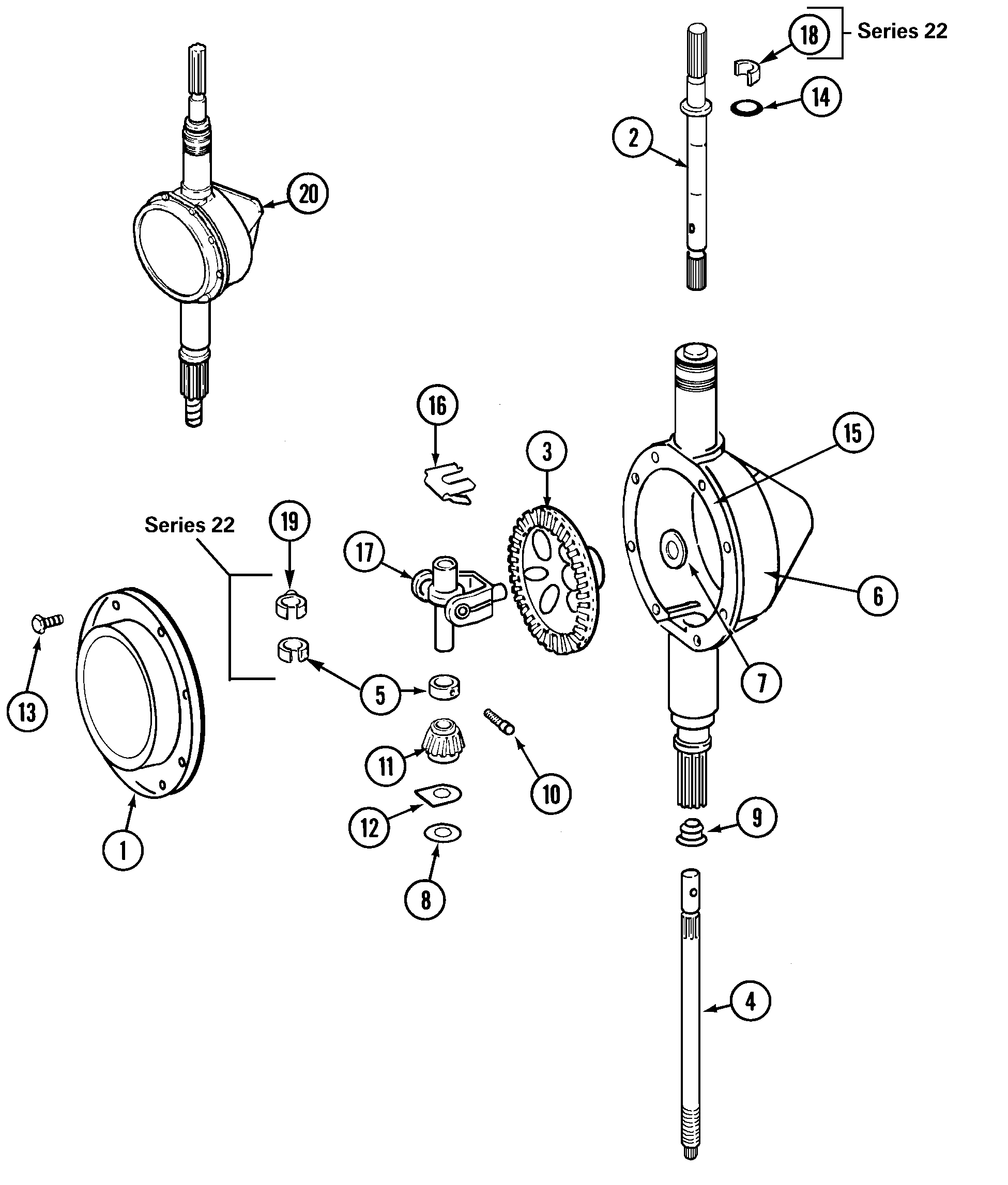

    Transmission (9416) Diagram

    Silastic,adh

    Part #058700
    Replaced by #W10841140
    ?
    Manufacturer substitution
    This part replaces 058700. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $14.99 |
    12% OFF
    Phone Price: $16.99
    Laundry Appliance Door Switch Kit#15

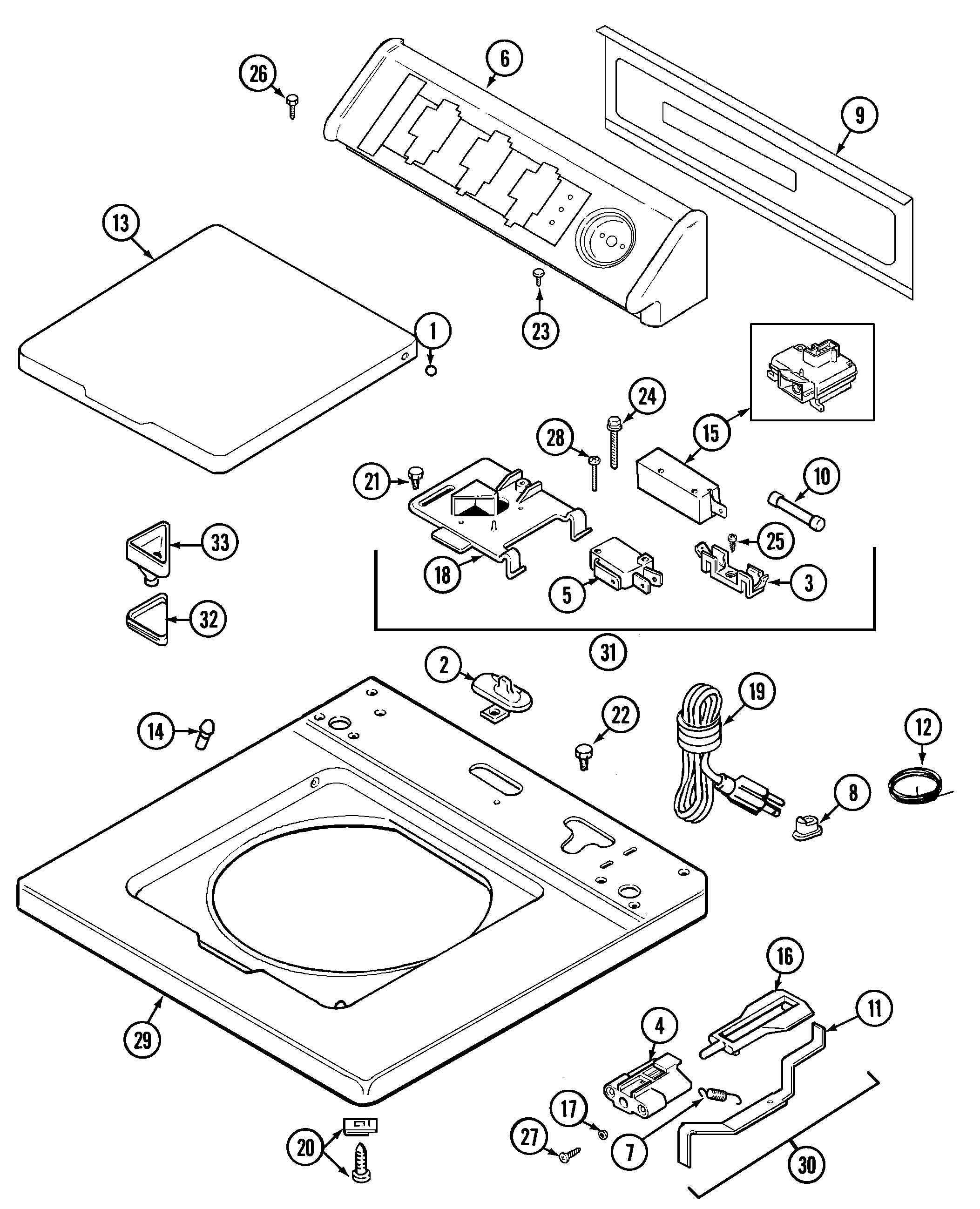

    Top (9416) Diagram

    Lid switch

    Part #205415
    Replaced by #W10820036
    ?
    Manufacturer substitution
    This part replaces 205415. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $27.04 |
    18% OFF
    MSRP: $33.00
    Washer Tub Bearing Kit#20

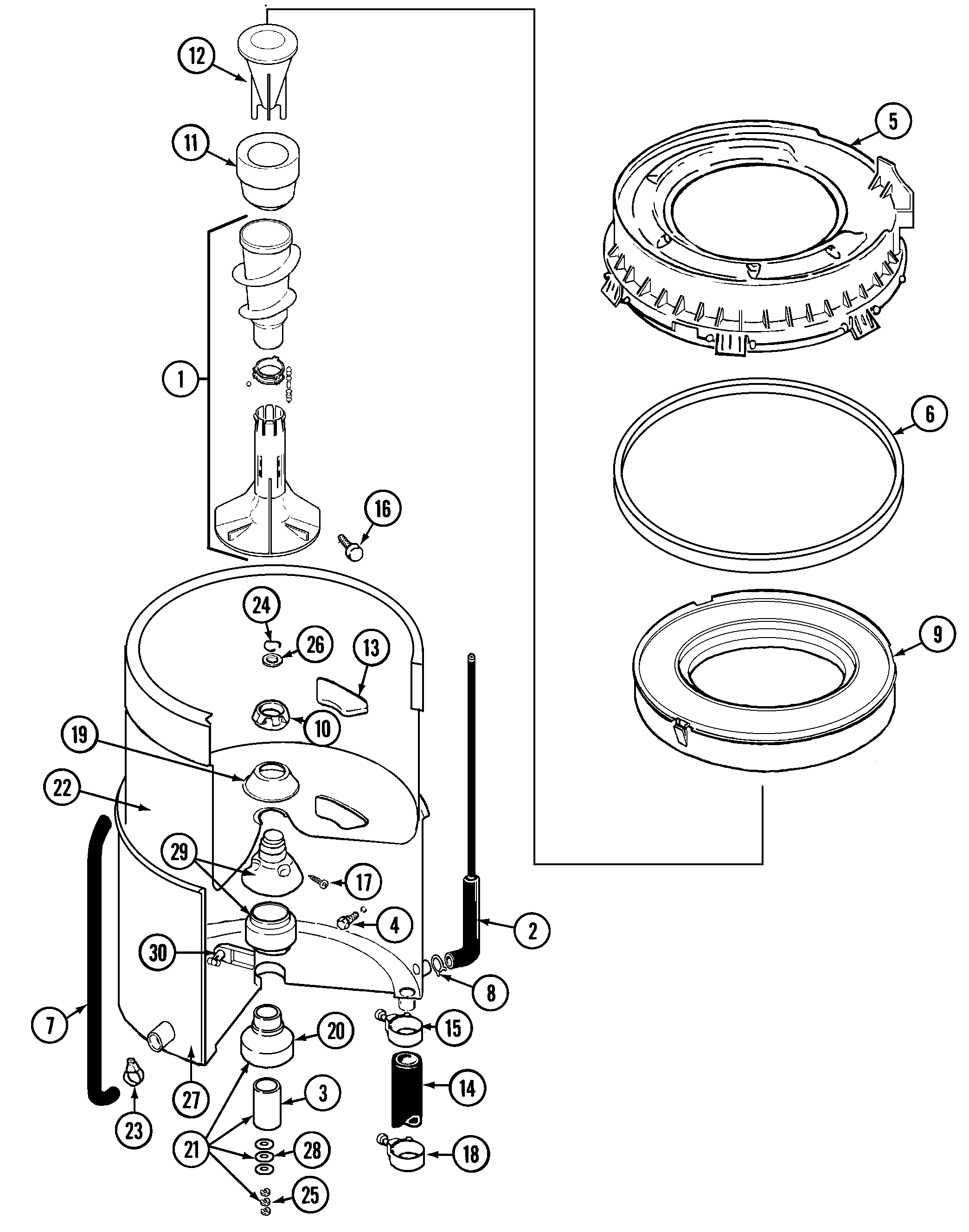

    Tub (9416) Diagram

    Tub bearing

    Part #200824
    Replaced by #6-2040130
    ?
    Manufacturer substitution
    This part replaces 200824. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $53.81 |
    30% OFF
    MSRP: $77.00
    Washer Tub Bearing Kit#21

    Tub (9416) Diagram

    Tub bearing

    Part #204013
    Replaced by #6-2040130
    ?
    Manufacturer substitution
    This part replaces 204013. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $53.81 |
    30% OFF
    MSRP: $77.00
    Washer Hose Clamp

    See All Related Diagrams

    Hose clamp

    Part #22001640
    Replaced by #WP285655
    ?
    Manufacturer substitution
    This part replaces 22001640. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $6.49 |
    13% OFF
    Phone Price: $7.49
    Washer Hose Clamp#8

    Tub (9416) Diagram

    Clamp

    Part #211641
    Replaced by #WP285655
    ?
    Manufacturer substitution
    This part replaces 211641. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $6.49 |
    13% OFF
    Phone Price: $7.49
    Dryer Timer Knob#11

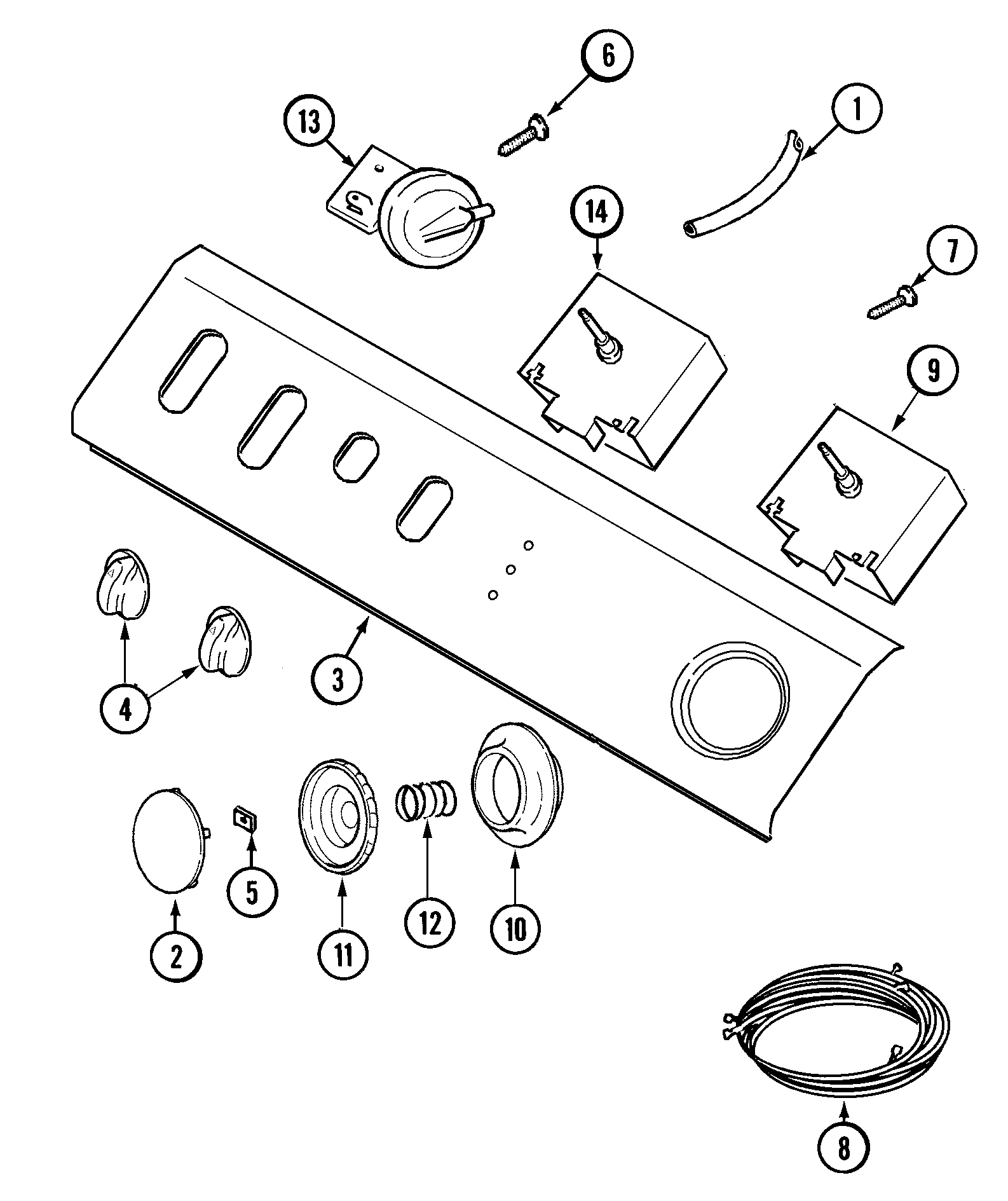

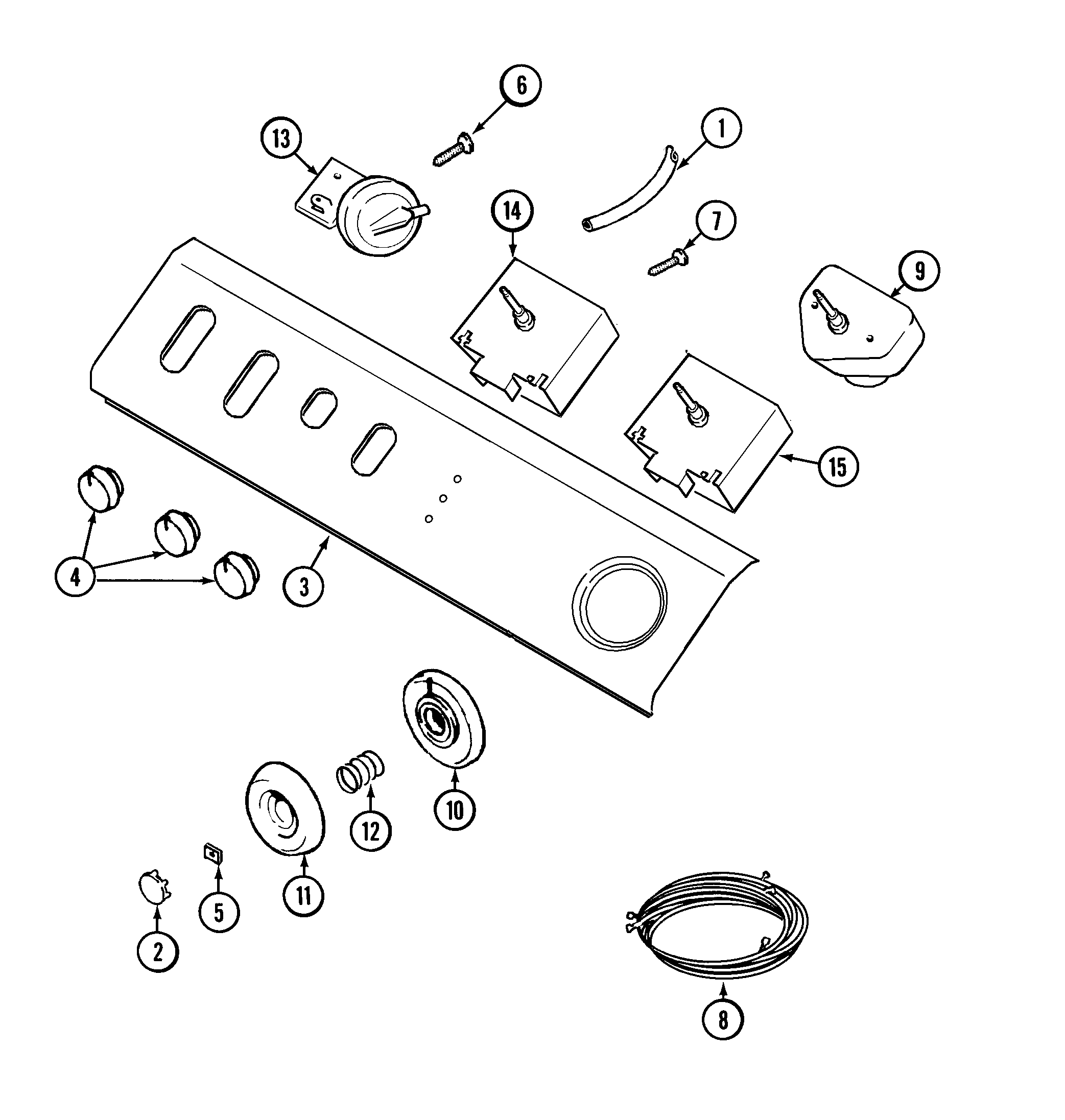

    Control panel (9416) Diagram

    Dryer timer knob

    Part #22001659
    Replaced by #WP22001659
    ?
    Manufacturer substitution
    This part replaces 22001659. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $25.39 |
    16% OFF
    Phone Price: $30.39

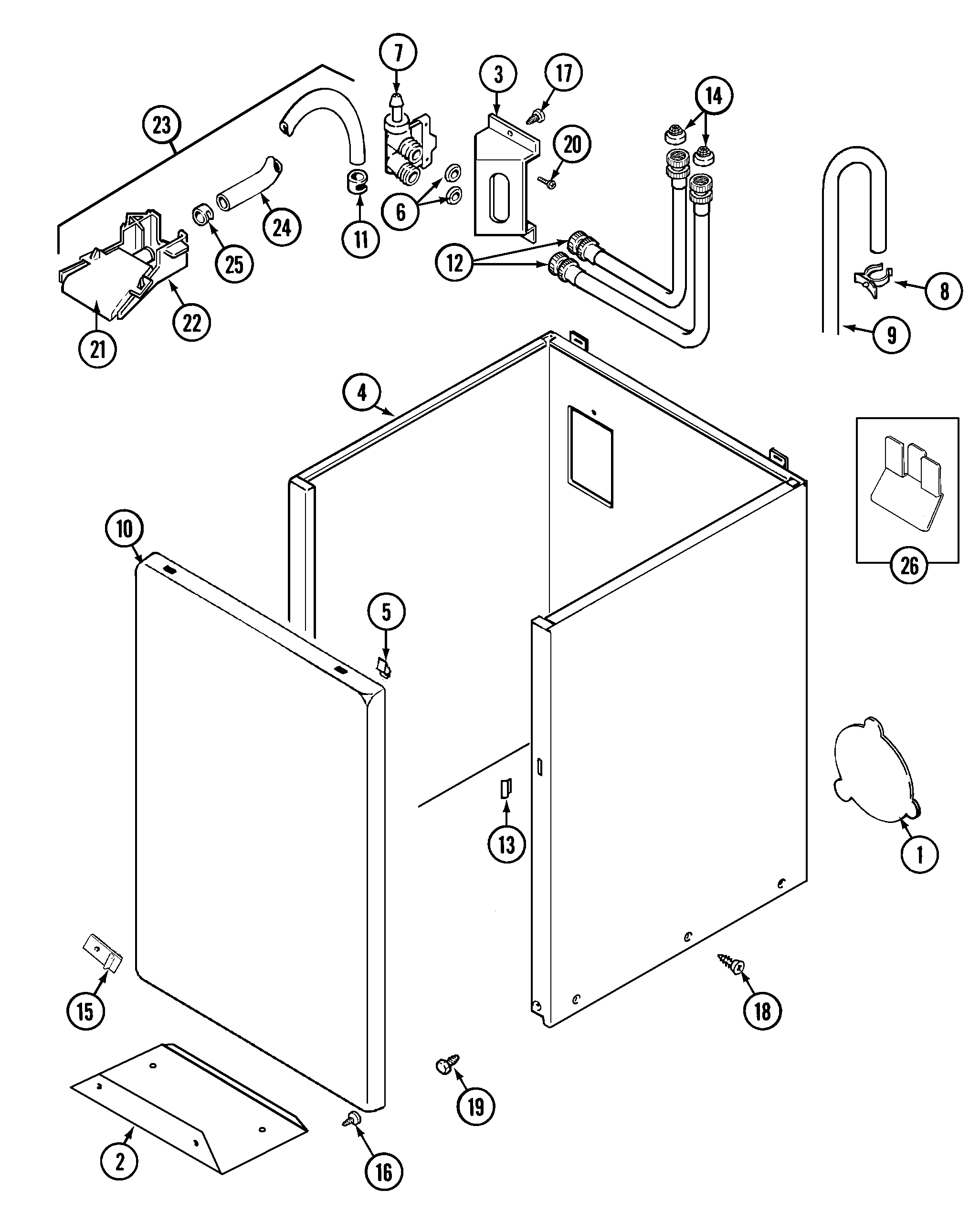

    Washer Water Inlet Valve

    See All Related Diagrams

    Washer water inlet valve

    Part #22001274
    Replaced by #WP22001274
    ?
    Manufacturer substitution
    This part replaces 22001274. Substitute parts can look different from the original.
    In Stock
    $86.30 |
    28% OFF
    MSRP: $120.00
    Washer Tub Fill Nozzle

    See All Related Diagrams

    Washer tub fill nozzle

    Part #22001304
    Replaced by #WP22001304
    ?
    Manufacturer substitution
    This part replaces 22001304. Substitute parts can look different from the original.
    In Stock
    $43.49 |
    10% OFF
    Phone Price: $48.49
    Washer Agitator#1

    Tub (9416) Diagram

    Washer agitator

    Part #22001821
    In Stock
    $171.49 |
    6% OFF
    Phone Price: $181.49
