Model #62067310 Official Kenmore stainless steel immersible coffee maker

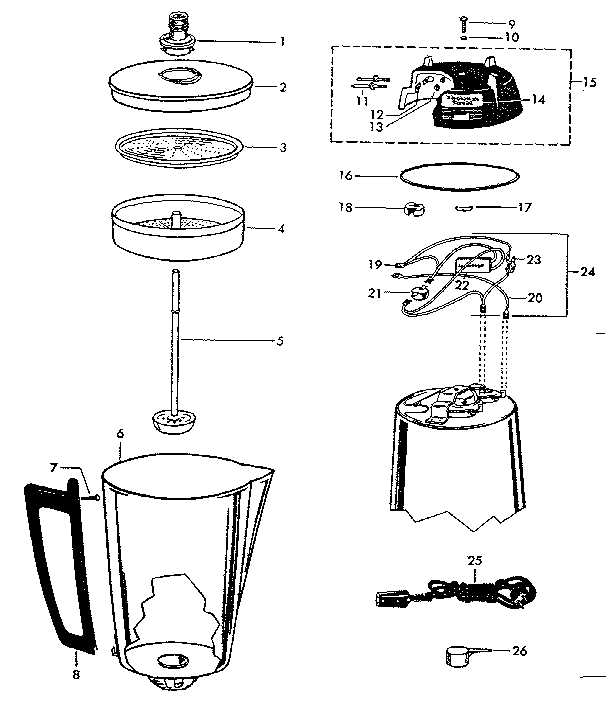

Here are the diagrams and repair parts for Kenmore 62067310 stainless steel immersible coffee maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 26 parts

Mounting Nut#13

Replacement parts Diagram

Mounting nut

Part #21071

The manufacturer no longer makes this part, and there's no substitute part

Cap#18

Replacement parts Diagram

Cap

Part #32120

The manufacturer no longer makes this part, and there's no substitute part

Heater#22

Replacement parts Diagram

Heater

Part #35056

The manufacturer no longer makes this part, and there's no substitute part

O-Ring#10

Replacement parts Diagram

O-ring

Part #33037

The manufacturer no longer makes this part, and there's no substitute part

Thermostat#21

Replacement parts Diagram

Thermostat

Part #34023

The manufacturer no longer makes this part, and there's no substitute part

Pin#11

Replacement parts Diagram

Pin

Part #95274

The manufacturer no longer makes this part, and there's no substitute part

Screw#7

Replacement parts Diagram

Screw

Part #24155

The manufacturer no longer makes this part, and there's no substitute part

Wiring Assembly#24

Replacement parts Diagram

Wiring assembly

Part #95876

The manufacturer no longer makes this part, and there's no substitute part

Coffee Scoop#26

Replacement parts Diagram

Coffee scoop

Part #49318

The manufacturer no longer makes this part, and there's no substitute part

Lamp Assembly#23

Replacement parts Diagram

Lamp assembly

Part #95332

The manufacturer no longer makes this part, and there's no substitute part
