Model # DWD210G TYPE 1 Official DeWalt drill/driver

Here are the diagrams and repair parts for Official DeWalt DWD210G-TYPE-1 drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Field N047997SV
#2

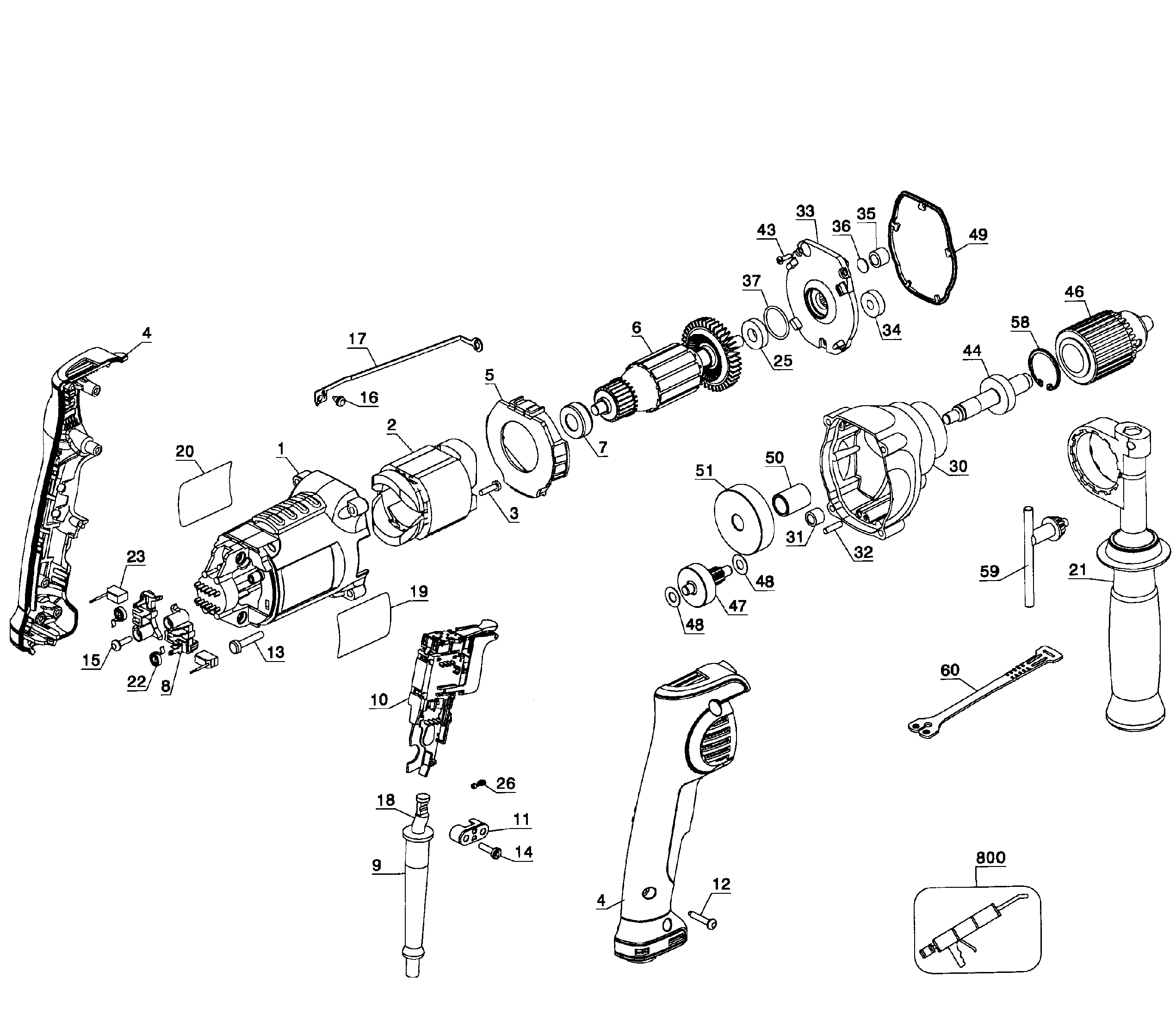

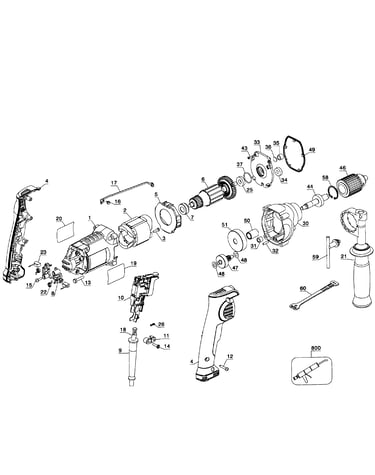

Drill driver diagram

Field

Part #N047997SV

The manufacturer no longer makes this part, and there's no substitute part

Screw N068183
#3

Drill driver diagram

Screw

Part #N068183

The manufacturer no longer makes this part, and there's no substitute part

Bearing 391032-00
#7

Drill driver diagram

Bearing

Part #391032-00

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 659027-01
#20

Drill driver diagram

Nameplate

Part #659027-01

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring 087692-00
#58

Drill driver diagram

Retaining ring

Part #087692-00

The manufacturer no longer makes this part, and there's no substitute part

Brush Hold 653892-01
#8

Drill driver diagram

Brush hold

Part #653892-01

The manufacturer no longer makes this part, and there's no substitute part

O-ring 99014-04
#37

Drill driver diagram

O-ring

Part #99014-04

The manufacturer no longer makes this part, and there's no substitute part

Gear Case 654296-00
#30

Drill driver diagram

Gear case

Part #654296-00

The manufacturer no longer makes this part, and there's no substitute part

Ground Str 653665-00
#17

Drill driver diagram

Ground str

Part #653665-00

The manufacturer no longer makes this part, and there's no substitute part

Thrust Dis 652185-00
#36

Drill driver diagram

Thrust dis

Part #652185-00

The manufacturer no longer makes this part, and there's no substitute part
