Lifestyler
Weight System

Model #374156270 Official Lifestyler weight bench

Here are the diagrams and repair parts for Lifestyler 374156270 weight bench, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

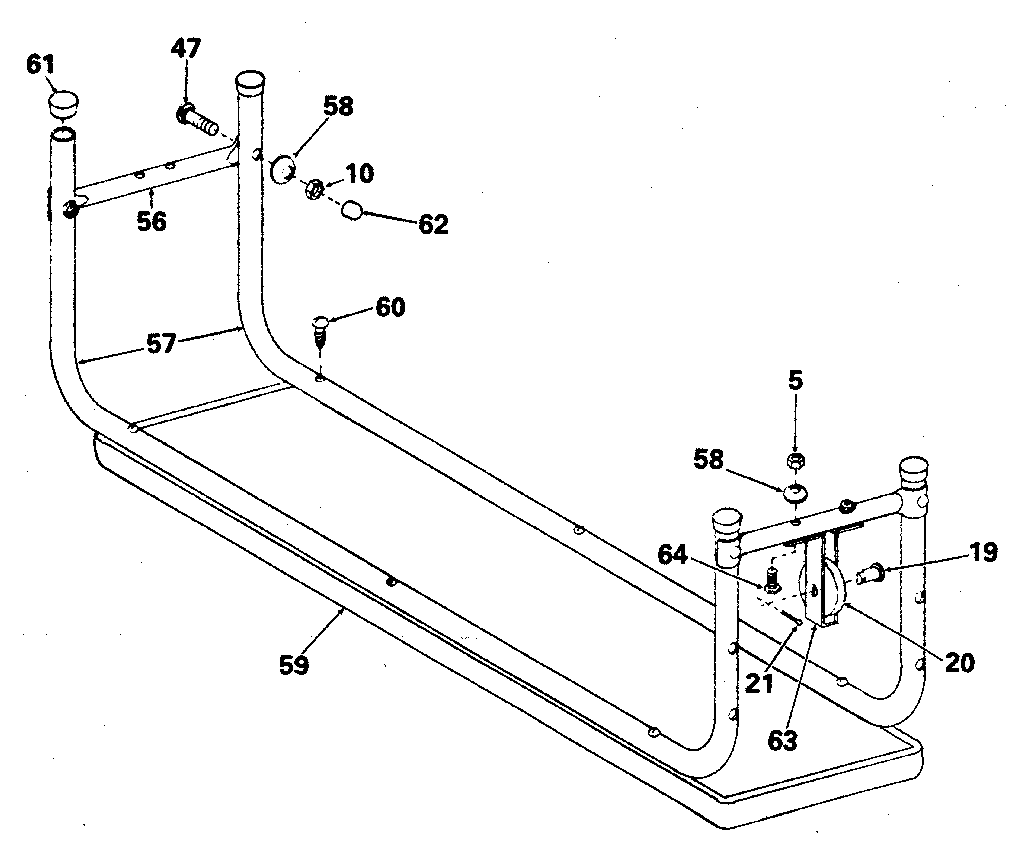

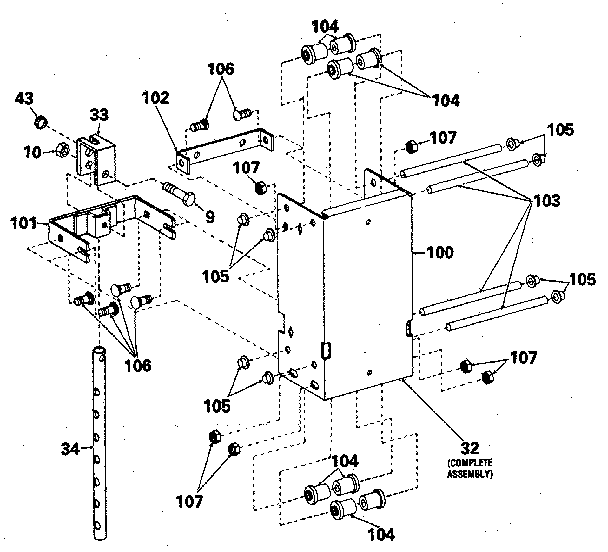

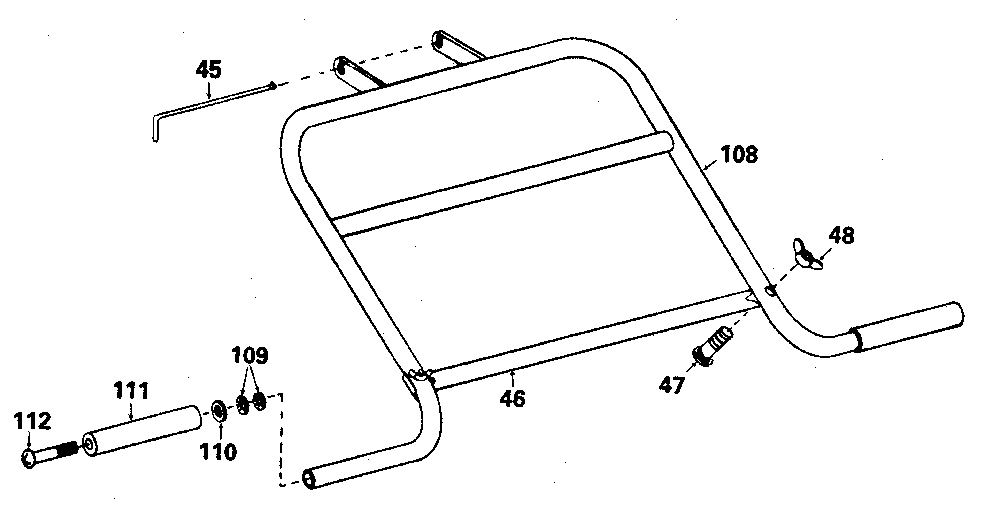

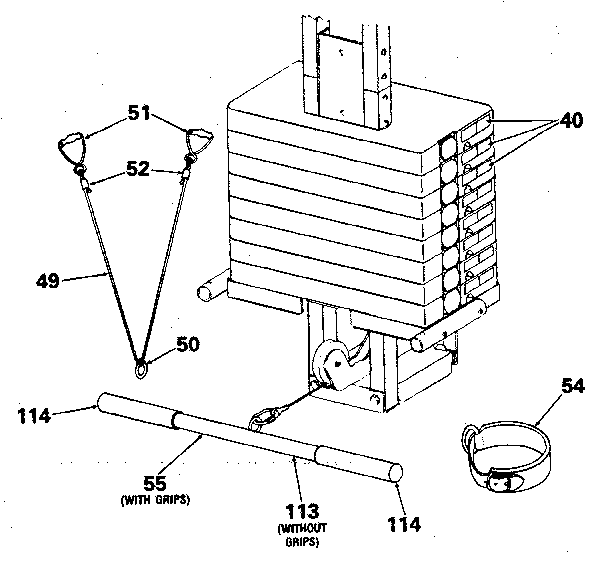

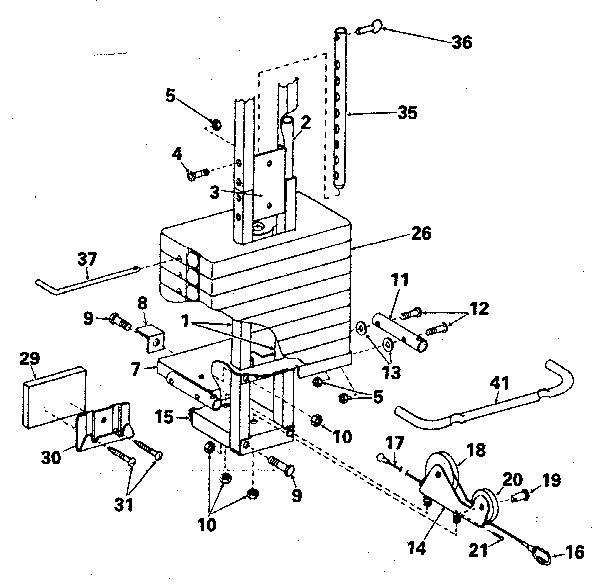

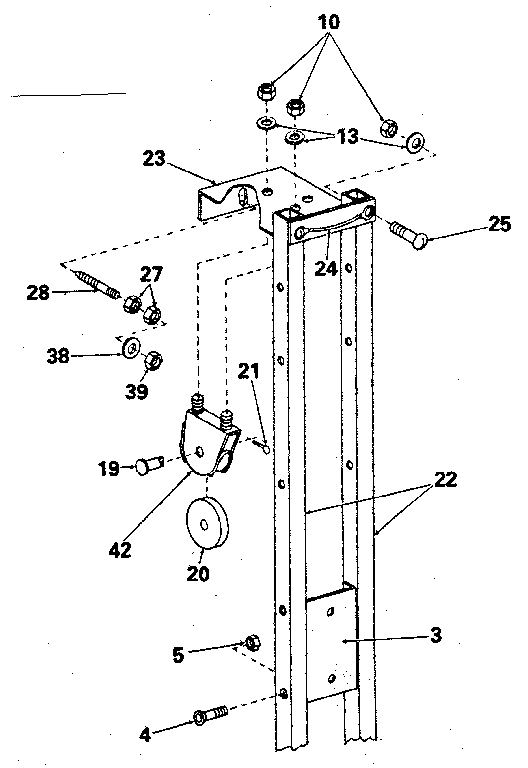

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 99 parts

Washer

#38

All parts Diagram

Washer

Part #26003200

The manufacturer no longer makes this part, and there's no substitute part

Wing Nut

#48

All parts Diagram

Wing nut

Part #25001400

The manufacturer no longer makes this part, and there's no substitute part

Bolt

#25

All parts Diagram

Bolt

Part #21002900

The manufacturer no longer makes this part, and there's no substitute part

Washer

#13

All parts Diagram

Washer

Part #26000400

The manufacturer no longer makes this part, and there's no substitute part

Bolt

#9

All parts Diagram

Bolt

Part #22002800

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut

See All Related Diagrams

Lock nut

Part #25011100

The manufacturer no longer makes this part, and there's no substitute part

Bolt

#80

All parts Diagram

Bolt

Part #23000100

The manufacturer no longer makes this part, and there's no substitute part

Washer

#110

All parts Diagram

Washer

Part #26002200

The manufacturer no longer makes this part, and there's no substitute part

Cotter Pin

#21

All parts Diagram

Cotter pin

Part #29099500

The manufacturer no longer makes this part, and there's no substitute part

Bolt

#64

All parts Diagram

Bolt

Part #22001400

The manufacturer no longer makes this part, and there's no substitute part
