Model # KUWO24LSBX14 Official KitchenAid wine cellar

Here are the diagrams and repair parts for Official KitchenAid KUWO24LSBX14 wine cellar, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 116 parts  |
Screw W10204865
#15

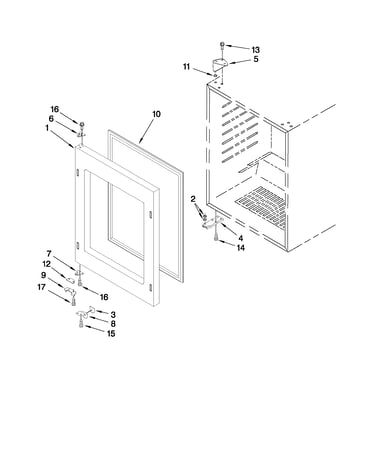

Door parts diagram

Screw

Part #W10204865

Replaced by #W10837731

?
Manufacturer substitution
This part replaces W10204865. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Wine Cooler Temperature Control Thermostat W10163278
#32

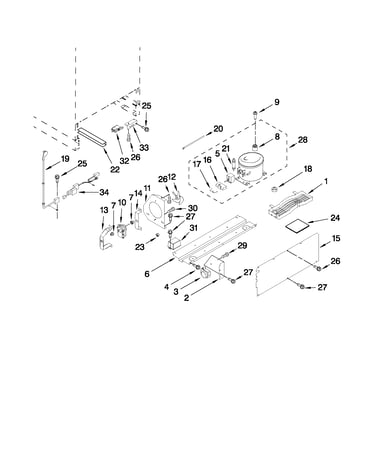

Unit parts diagram

Wine cooler temperature control thermostat

Part #W10163278

$93.24 |
7% OFF MSRP : $100.00
In Stock
Condenser Motor W10299090
#10

Unit parts diagram

Condenser motor

Part #W10299090

Replaced by #WPW10299090

?
Manufacturer substitution
This part replaces W10299090. Substitute parts can look different from the original.
$121.29 |
13% OFF MSRP : $140.00
In Stock
Screw 4344832
Screw

Part #4344832

Replaced by #W11380570

?
Manufacturer substitution
This part replaces 4344832. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
Fan Blade W10299081
Fan blade

Part #W10299081

Replaced by #WPW10299081

?
Manufacturer substitution
This part replaces W10299081. Substitute parts can look different from the original.
$42.92 |
10% OFF Phone Price : $47.92
In Stock
Grommet 4344779
#8

Unit parts diagram

Grommet

Part #4344779

Replaced by #WP4344779

?
Manufacturer substitution
This part replaces 4344779. Substitute parts can look different from the original.
This item is not returnable
$4.89
In Stock
Bracket 4344864
#33

Unit parts diagram

Bracket

Part #4344864

$13.12
In Stock
Sensor W10238026
#19

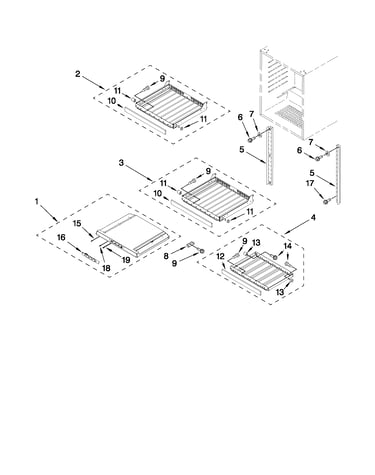

Shelf parts diagram

Sensor

Part #W10238026

$58.79 |
8% OFF Phone Price : $63.79
In Stock
Support 4344821
#23

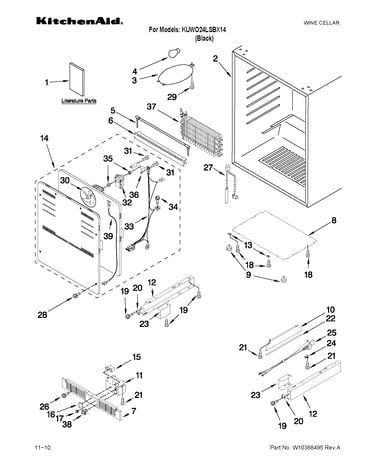

Cabinet parts diagram

Support

Part #4344821

$50.20
In Stock
Wine Cooler Door Hinge Washer 4344760
#11

Door parts diagram

Wine cooler door hinge washer

Part #4344760

$13.90
In Stock
