Dyson
Upright Vacuum

Model #DC50 Official Dyson vacuum

Here are the diagrams and repair parts for Dyson DC50 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

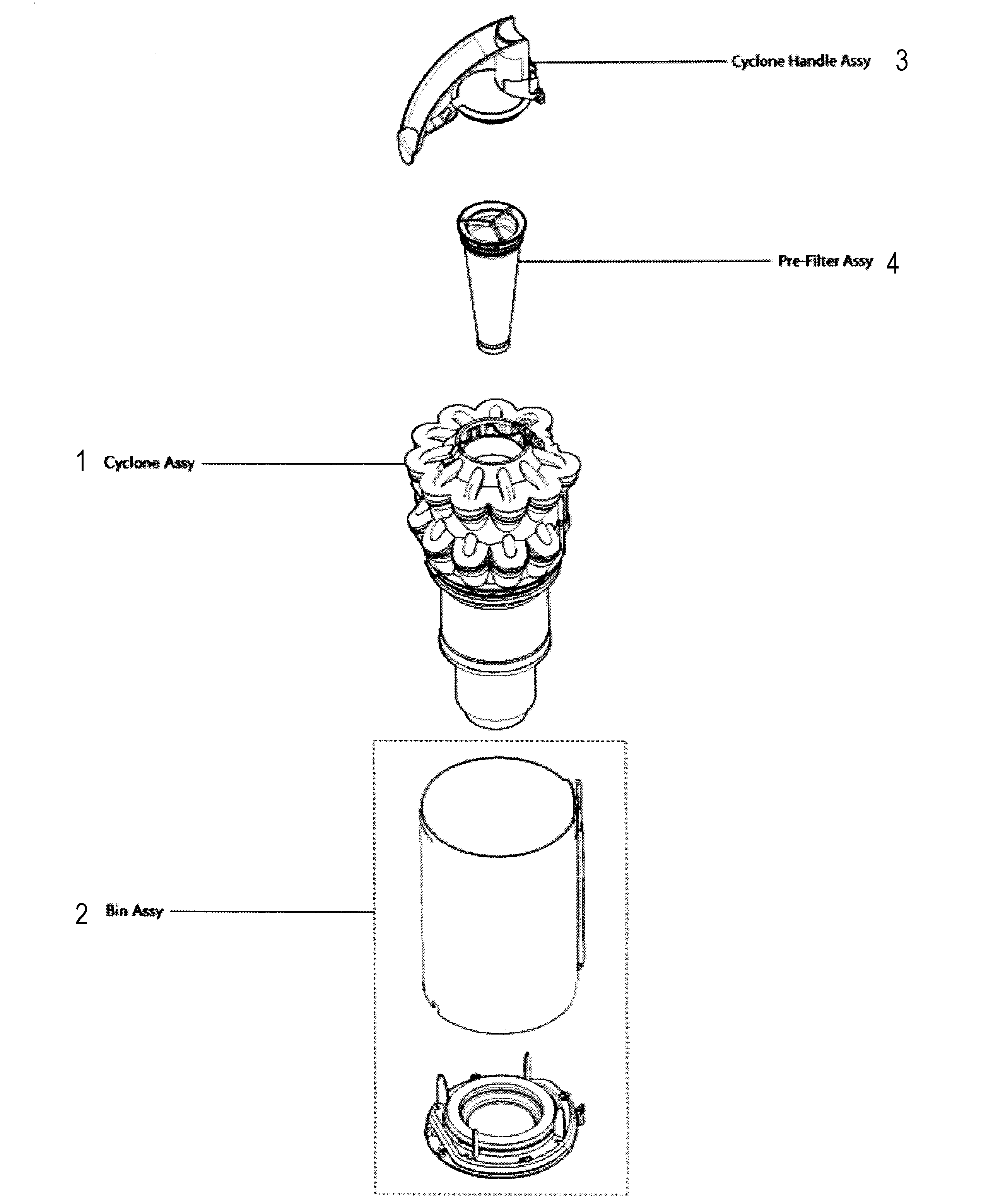

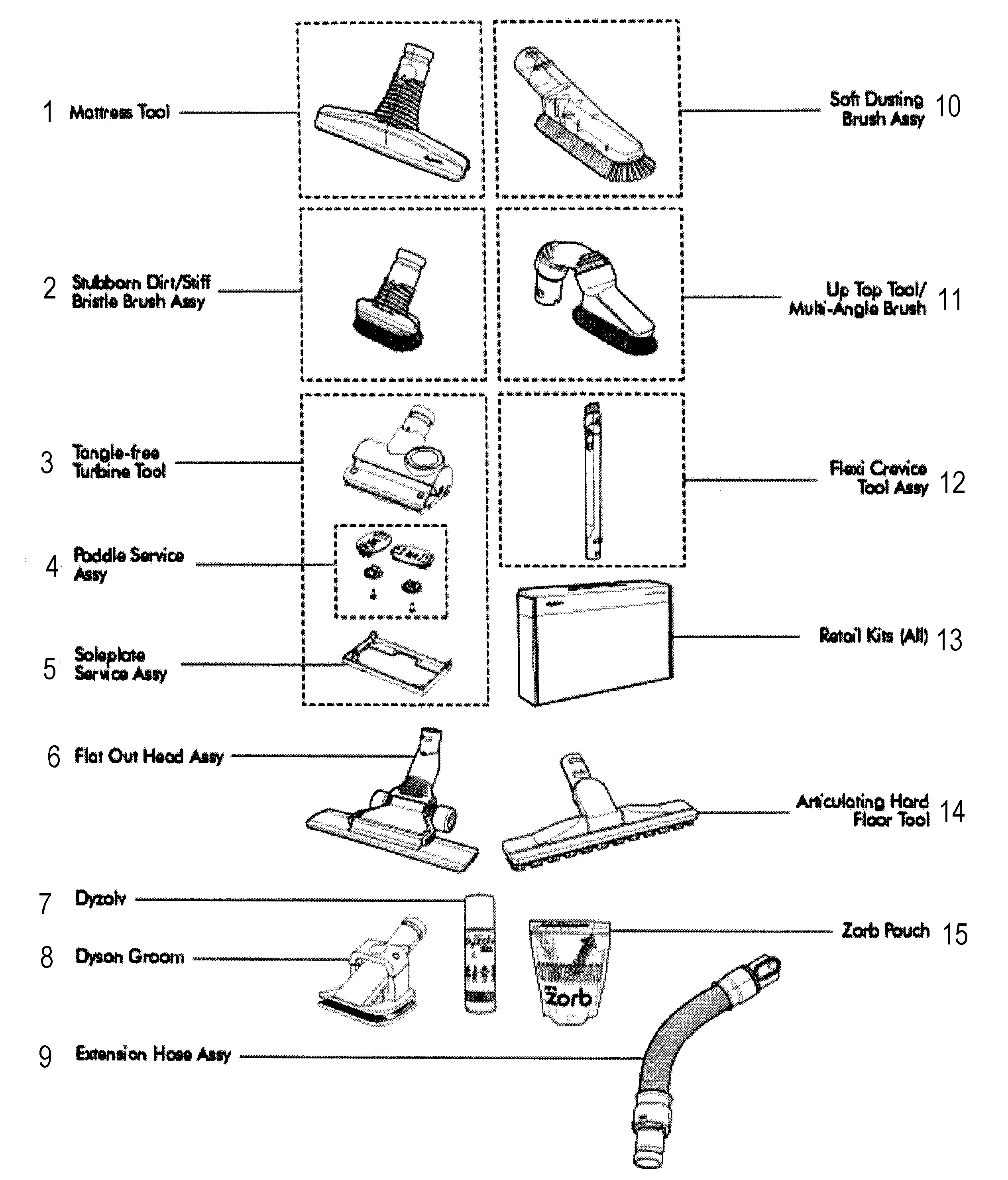

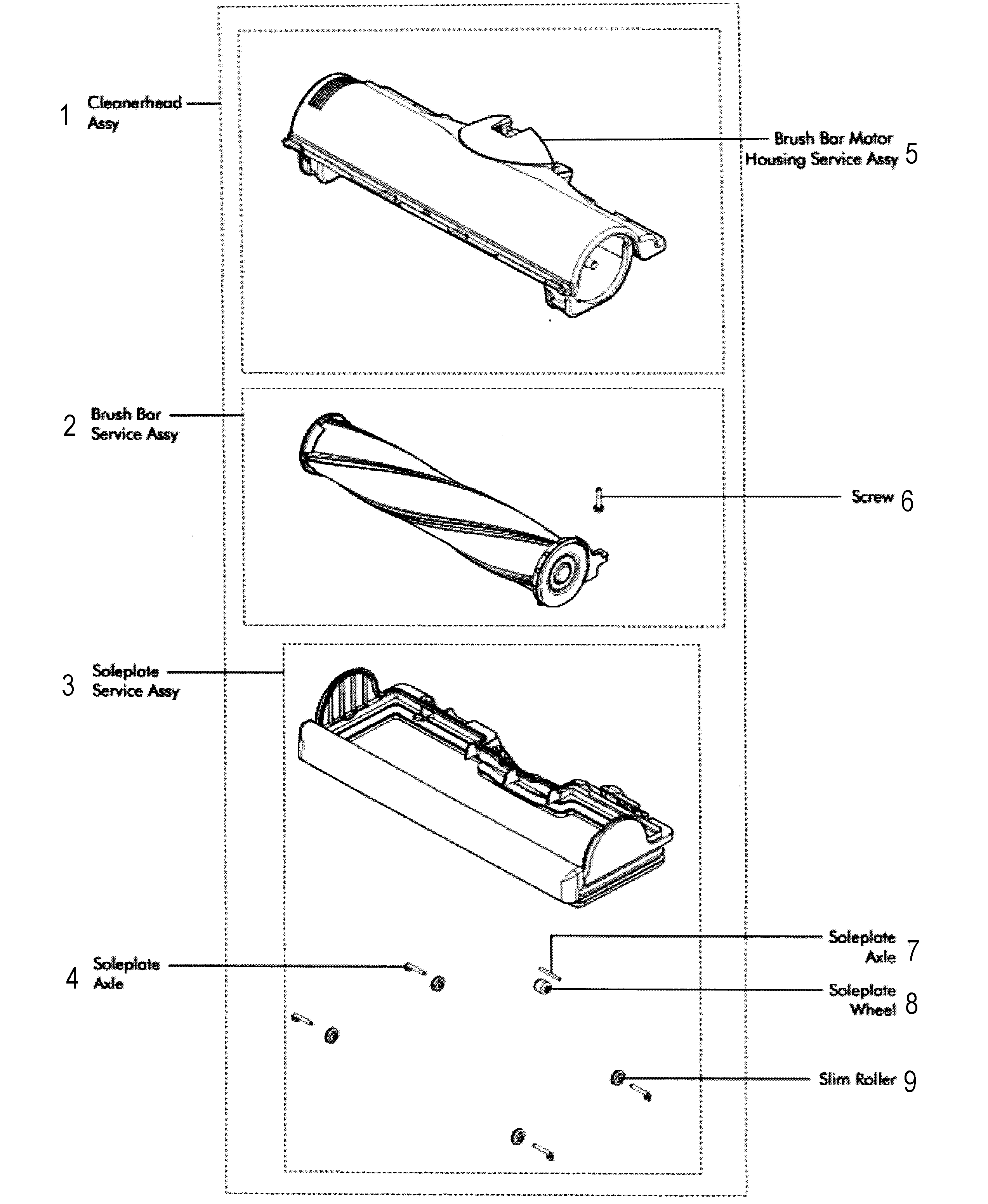

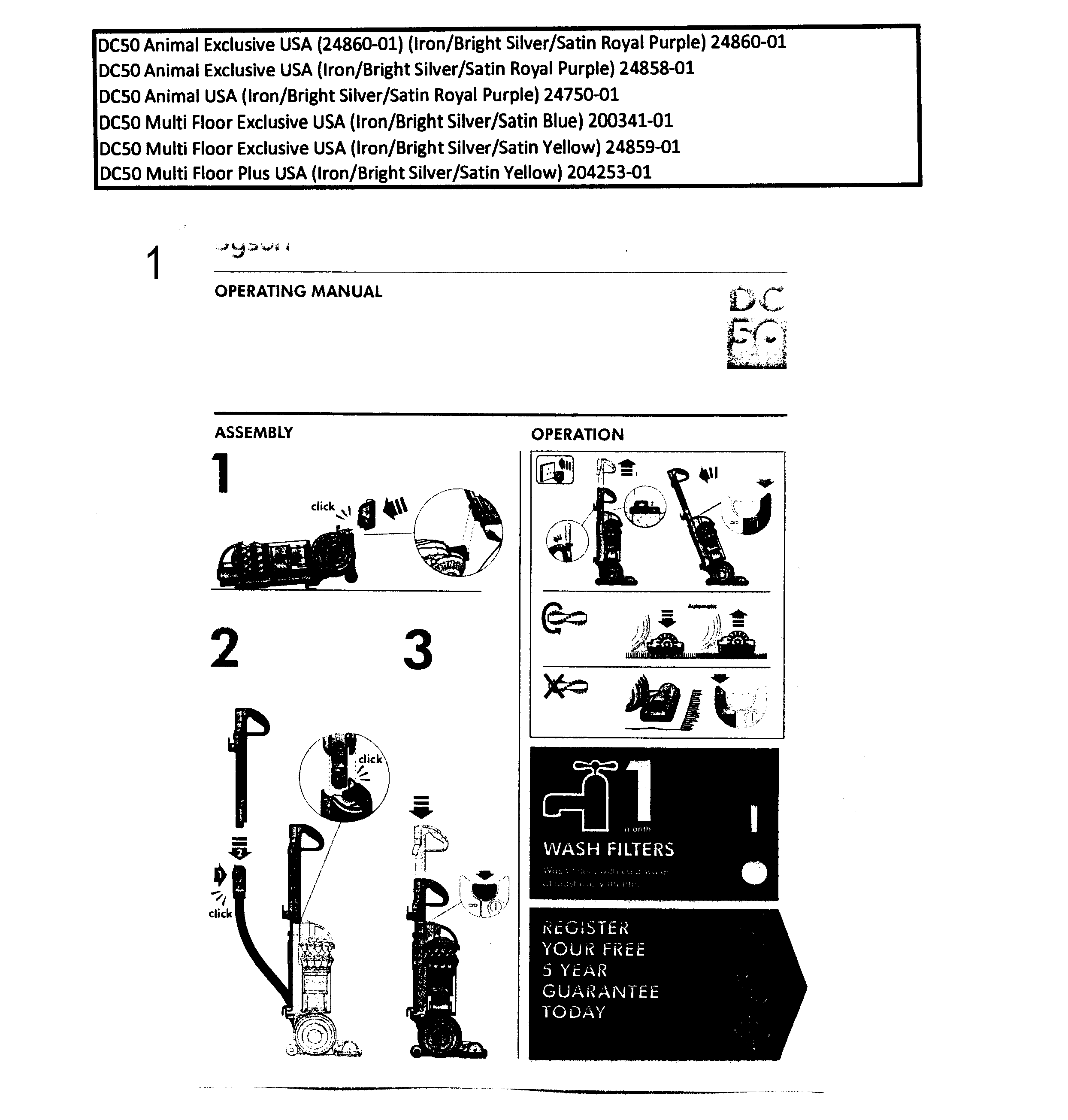

Owner’s manual

Showing 10 of 83 parts

Glamour Ca#17

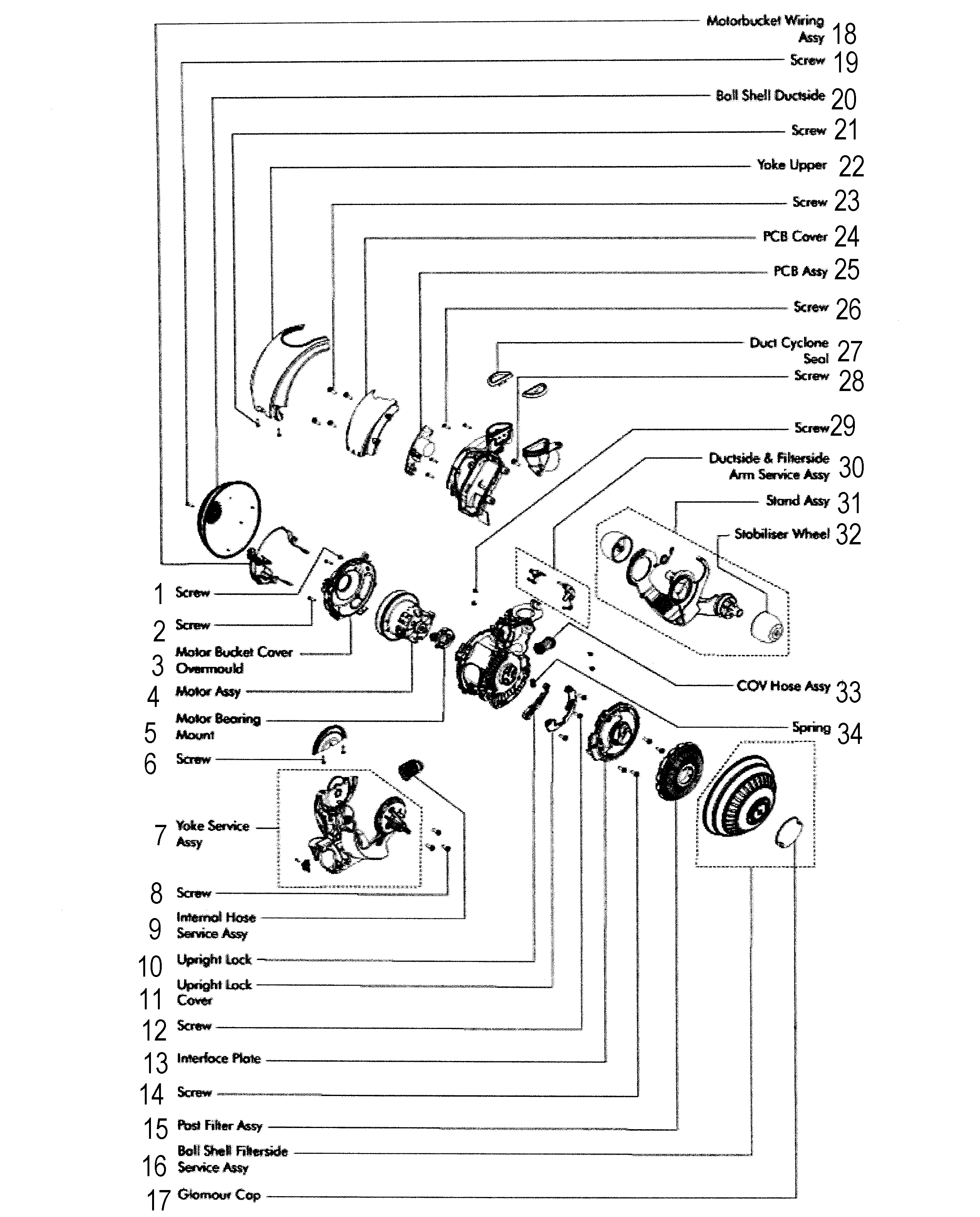

Motor asy Diagram

Glamour ca

Part #921348-01

The manufacturer no longer makes this part, and there's no substitute part

Wheel#32

Motor asy Diagram

Wheel

Part #965102-01

The manufacturer no longer makes this part, and there's no substitute part

Wiring Motor#18

Motor asy Diagram

Wiring motor

Part #965101-02

The manufacturer no longer makes this part, and there's no substitute part

Motor Cover#3

Motor asy Diagram

Motor cover

Part #965100-01

The manufacturer no longer makes this part, and there's no substitute part

Protector#11

Main assy Diagram

Protector

Part #965075-01

The manufacturer no longer makes this part, and there's no substitute part

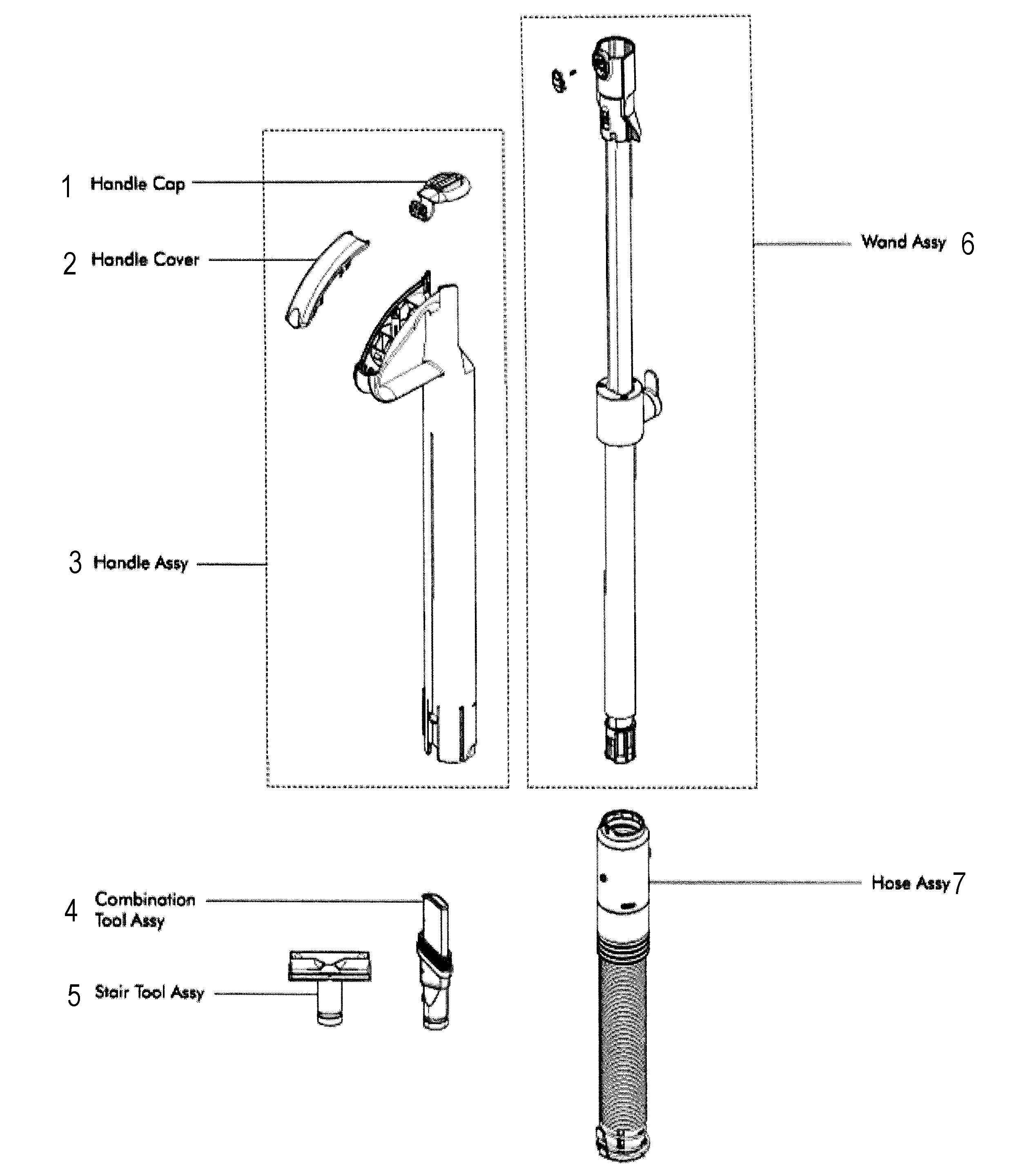

Handle Cap#1

Hose assy Diagram

Handle cap

Part #965096-01

The manufacturer no longer makes this part, and there's no substitute part

Spring#34

Motor asy Diagram

Spring

Part #965090-01

The manufacturer no longer makes this part, and there's no substitute part

Lock#10

Motor asy Diagram

Lock

Part #965148-01

The manufacturer no longer makes this part, and there's no substitute part

Shell Duct#20

Motor asy Diagram

Shell duct

Part #925769-01

The manufacturer no longer makes this part, and there's no substitute part

Duct Seal#27

Motor asy Diagram

Duct seal

Part #965088-01

The manufacturer no longer makes this part, and there's no substitute part
