Model # UH60010 Official Hoover vacuum

Here are the diagrams and repair parts for Official Hoover UH60010 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 120 parts  |

Vacuum Beater Bar Belt (replaces 11041084, 38520835) 38528035
#12

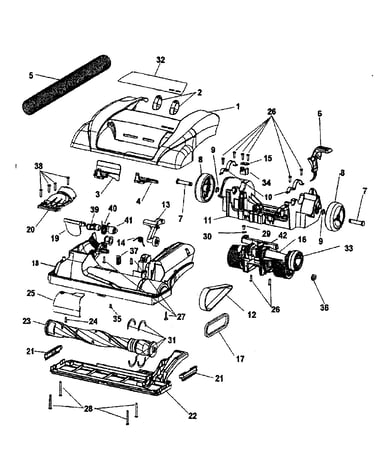

Base diagram

Vacuum beater bar belt (replaces 11041084, 38520835)

Part #38528035

This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Vacuum Screw 21447121
#28

Base diagram

Vacuum screw

Part #21447121

The manufacturer no longer makes this part, and there's no substitute part

Tube 66661205
#15

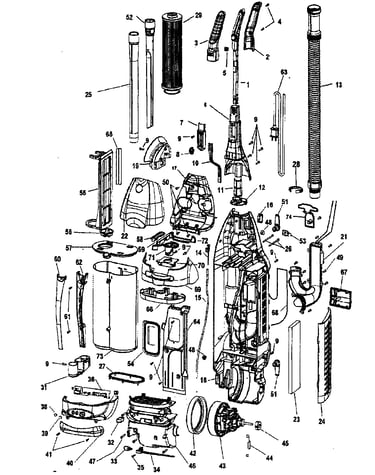

Main body diagram

Tube

Part #66661205

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Screw 21447246
#26

Main body diagram

Carpet cleaner screw

Part #21447246

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Dust Valve Rear Arm 38719048
#41

Base diagram

Vacuum dust valve rear arm

Part #38719048

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21447242
Vacuum screw

Part #21447242

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Idler Arm Lock 36143004
#4

Base diagram

Vacuum idler arm lock

Part #36143004

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hepa Filter (replaces 43611042) 40140201
#29

Main body diagram

Vacuum hepa filter (replaces 43611042)

Part #40140201

The manufacturer no longer makes this part, and there's no substitute part

Tool Holder 36433157
#17

Main body diagram

Tool holder

Part #36433157

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 51438036
#32

Base diagram

Nameplate

Part #51438036

The manufacturer no longer makes this part, and there's no substitute part
