Model #WCC31430AR00 Official Whirlpool 30" electric built-in cooktop

Here are the diagrams and repair parts for Whirlpool WCC31430AR00 30" electric built-in cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

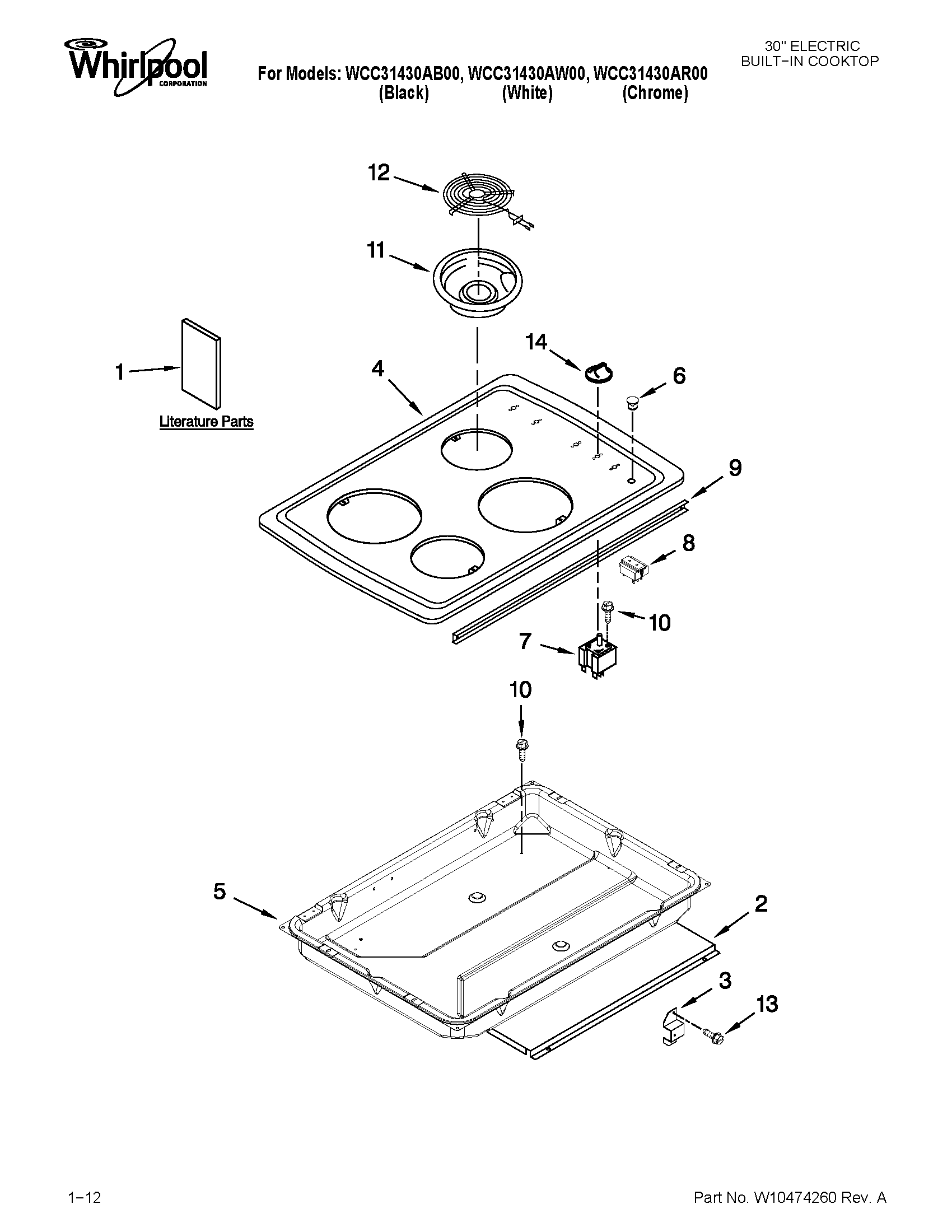

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 27 parts

Range Drip Pan, 8-in (Chrome) (replaces W10196405)#11A

Cooktop parts Diagram

Bowl-drip

Part #7725P054-60
Replaced by #WPW10196405
?
Manufacturer substitution
This part replaces 7725P054-60. Substitute parts can look different from the original.
BEST SELLER
In Stock
$8.09 |
33% OFF
MSRP: $12.00
Range Drip Pan (replaces 241341, 242637, 244403, 256691, 305837K, 306796, 3150246RW, 4164381, 4165495, 4165520, 4320551, 4396092, 52515, 74001212, 7725P053-60, 83148357, 83150246, 832634, 834622, 834753)#11

Cooktop parts Diagram

Bowl-drip

Part #7725P053-60
Replaced by #W10196406RW
?
Manufacturer substitution
This part replaces 7725P053-60. Substitute parts can look different from the original.
BEST SELLER
In Stock
$12.95 |
13% OFF
Phone Price: $14.95
Range Surface Element Control Switch (replaces 7403P239-60)#7

Cooktop parts Diagram

Switch

Part #7403P372-60
Replaced by #WP7403P239-60
?
Manufacturer substitution
This part replaces 7403P372-60. Substitute parts can look different from the original.
In Stock
$47.96 |
10% OFF
Was: $53.29
Stand Mixer Screw, #10-24 x 1/4-in#10

Cooktop parts Diagram

Screw

Part #7101P336-60
Replaced by #WP4159193
?
Manufacturer substitution
This part replaces 7101P336-60. Substitute parts can look different from the original.
This item is not returnable
In Stock
$5.06 |
17% OFF
Phone Price: $6.06
Range Coil Surface Element, 6-in#12

Cooktop parts Diagram

Cooktop coil element, 6-in

Part #W10345412
Replaced by #WPW10259868
?
Manufacturer substitution
This part replaces W10345412. Substitute parts can look different from the original.
In Stock
$77.30 |
10% OFF
Was: $85.89
Range Indicator Light Lens#6

Cooktop parts Diagram

In Stock
$30.49
Cooking Appliance Safer Cooking Guide#1B

Cooktop parts Diagram

In Stock
$10.09 |
17% OFF
Phone Price: $12.09
Main Top#4B

Cooktop parts Diagram

Cooktop main top

Part #W10457743
Replaced by #WPW10457743
?
Manufacturer substitution
This part replaces W10457743. Substitute parts can look different from the original.
In Stock
$228.40
Screw#13

Cooktop parts Diagram

Screw

Part #7101P448-60
Replaced by #910187
?
Manufacturer substitution
This part replaces 7101P448-60. Substitute parts can look different from the original.
In Stock
$8.49 |
11% OFF
Phone Price: $9.49
Main Top#4

Cooktop parts Diagram

Cooktop main top

Part #W10457738
Replaced by #WPW10457738
?
Manufacturer substitution
This part replaces W10457738. Substitute parts can look different from the original.
In Stock
$263.31
