JVC
Digital Camcorder

Model #GZ-HM1SUS Official JVC camcorder

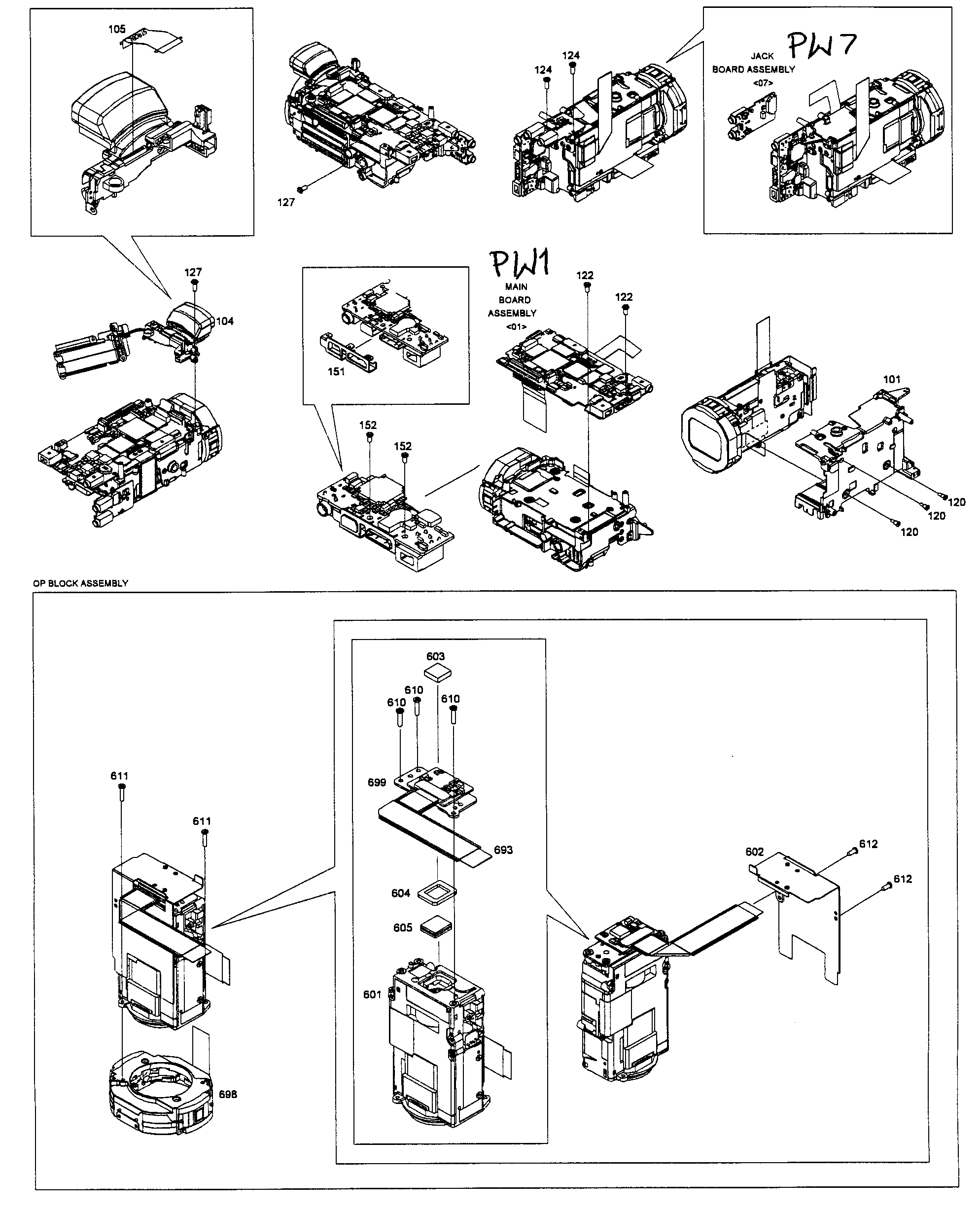

Here are the diagrams and repair parts for JVC GZ-HM1SUS camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 122 parts

Integrated Circuit#NI

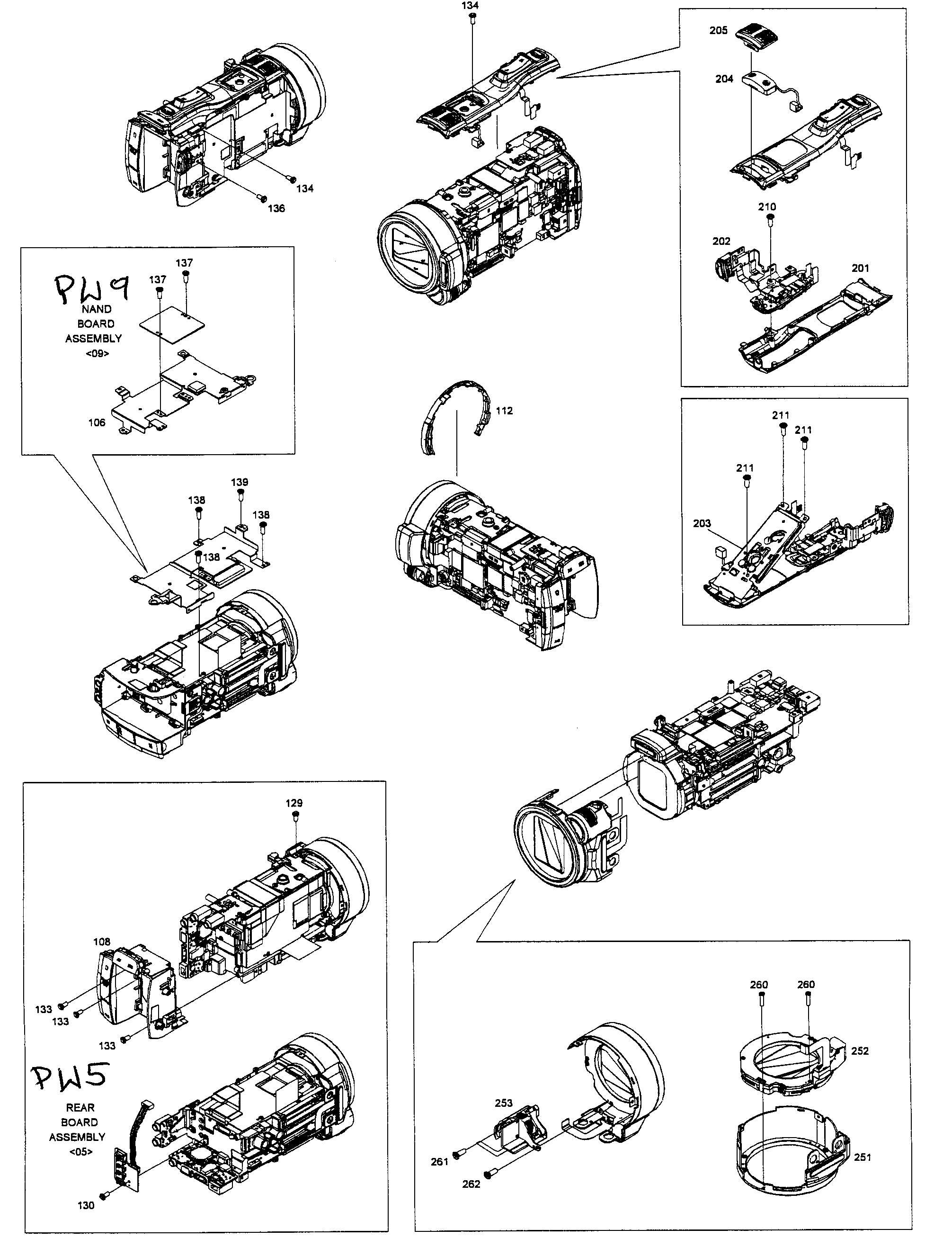

Cabinet 1 Diagram

Integrated circuit

Part #YCBCJVSNS8031X

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit#NI

Cabinet 1 Diagram

Integrated circuit

Part #BA10324AFV-X

The manufacturer no longer makes this part, and there's no substitute part

Light Guide#308

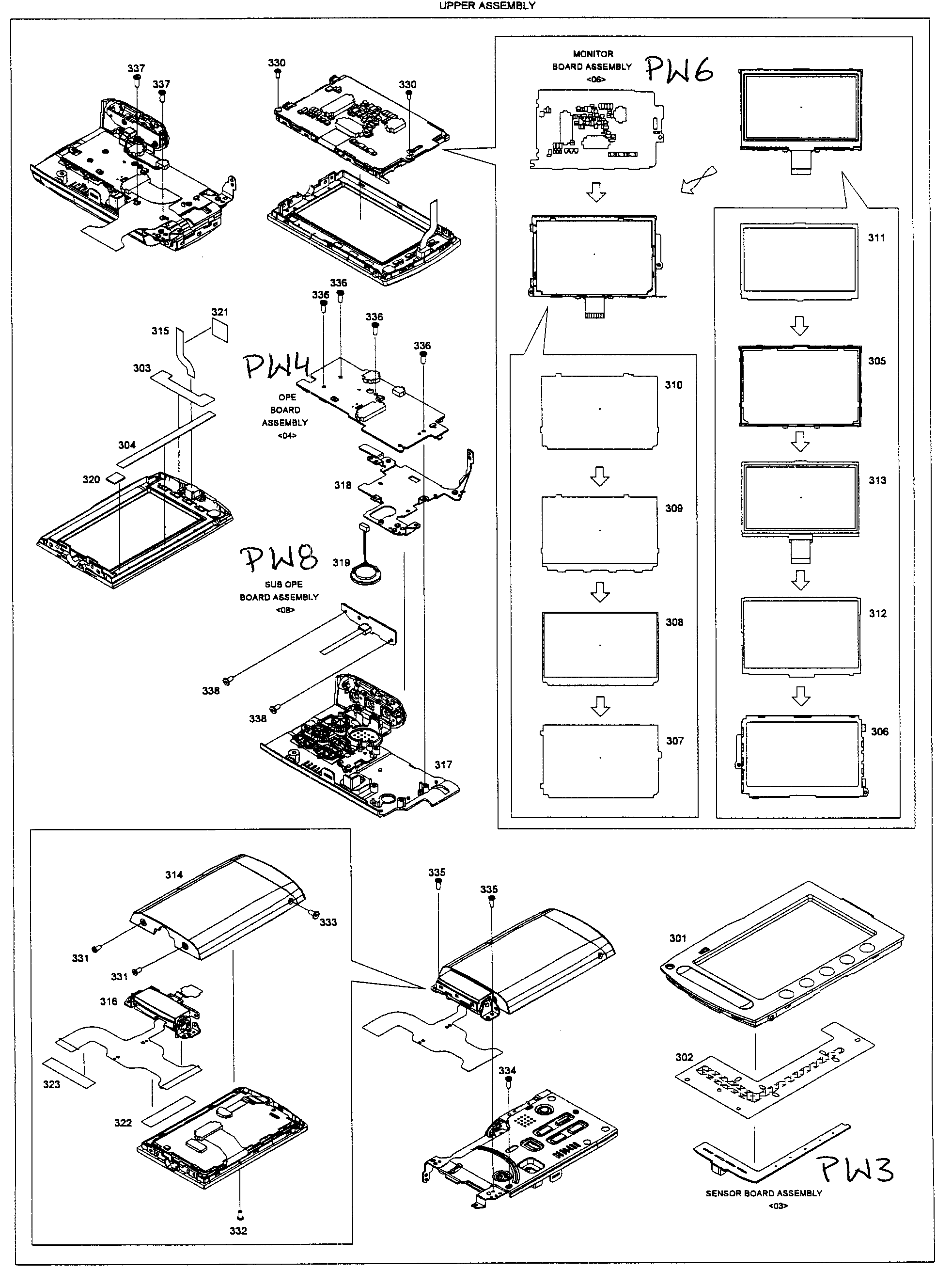

Lcd assy Diagram

Light guide

Part #LY36939-001A

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit#NI

Cabinet 1 Diagram

Integrated circuit

Part #CP7126AT-X

The manufacturer no longer makes this part, and there's no substitute part

Manual Dial#253

Cabinet 1 Diagram

Manual dial

Part #LY22078-001B

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit#NI

Cabinet 1 Diagram

Integrated circuit

Part #TC74VHCT04AFKX

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit#NI

Cabinet 1 Diagram

Integrated circuit

Part #NJM3414AV-X

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit#NI

Cabinet 1 Diagram

Integrated circuit

Part #NJU7008F3-X

The manufacturer no longer makes this part, and there's no substitute part

Fpc#315

Lcd assy Diagram

Fpc

Part #QAL1038-001

The manufacturer no longer makes this part, and there's no substitute part

Resistor#NI

Cabinet 1 Diagram

Resistor

Part #NRSA6AJ-471W

The manufacturer no longer makes this part, and there's no substitute part
