Model #05X16A-010 Official White-Rodgers electronic air cleaner

Here are the diagrams and repair parts for White-Rodgers 05X16A-010 electronic air cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

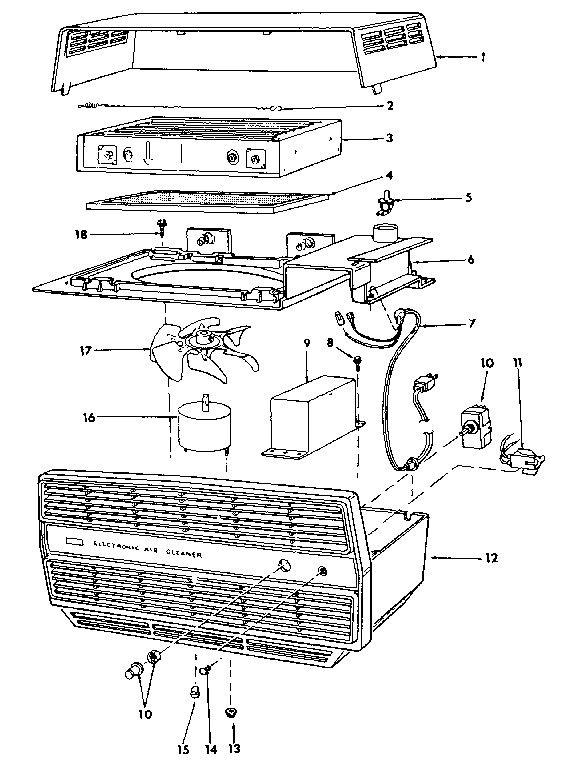

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 19 parts

Base#12

Replacement parts Diagram

Base

Part #F145-0394

The manufacturer no longer makes this part, and there's no substitute part

Screw#18

Replacement parts Diagram

Screw

Part #9422590

The manufacturer no longer makes this part, and there's no substitute part

Screw#8

Replacement parts Diagram

Screw

Part #9417476

The manufacturer no longer makes this part, and there's no substitute part

Collector Cell#3

Replacement parts Diagram

Collector cell

Part #F145-0388

The manufacturer no longer makes this part, and there's no substitute part

Cover#1

Replacement parts Diagram

Cover

Part #F145-0386

The manufacturer no longer makes this part, and there's no substitute part

Wire#2

Replacement parts Diagram

Wire

Part #F145-0387

The manufacturer no longer makes this part, and there's no substitute part

On-off Switc#10

Replacement parts Diagram

On-off switc

Part #F145-0397

The manufacturer no longer makes this part, and there's no substitute part

Nut#13

Replacement parts Diagram

Nut

Part #9420465

The manufacturer no longer makes this part, and there's no substitute part

Power Pak#9

Replacement parts Diagram

Power pak

Part #F145-0393

The manufacturer no longer makes this part, and there's no substitute part

Foot#15

Replacement parts Diagram

Foot

Part #F145-0395

The manufacturer no longer makes this part, and there's no substitute part
