Reciprocating Saw

Model # 315172040 Official Craftsman sabre saw

Here are the diagrams and repair parts for Official Craftsman 315172040 sabre saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |
Gear W/pins 990451-002
#19

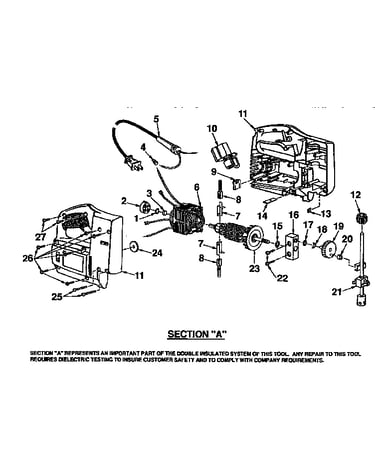

Field and armature assembly diagram

Gear w/pins

Part #990451-002

The manufacturer no longer makes this part, and there's no substitute part

Screw 615644-003
#8

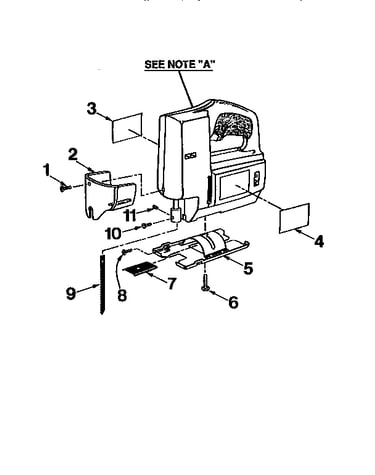

Base assembly diagram

Screw

Part #615644-003

The manufacturer no longer makes this part, and there's no substitute part

Wire Connctr 623173-001
#4

Field and armature assembly diagram

Wire connctr

Part #623173-001

The manufacturer no longer makes this part, and there's no substitute part

1/2 In. Cutter (item No. 9-25413) (standard Hardware Item-may Be Purchased Locally) N/P
#9

Base assembly diagram

1/2 in. cutter (item no. 9-25413) (standard hardware item-may be purchased locally)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Brush Tube 612255-001
#7

Field and armature assembly diagram

Brush tube

Part #612255-001

The manufacturer no longer makes this part, and there's no substitute part

Cord 990494-005
#5

Field and armature assembly diagram

Cord

Part #990494-005

The manufacturer no longer makes this part, and there's no substitute part

Stator Pad 623552-001
#24

Field and armature assembly diagram

Stator pad

Part #623552-001

The manufacturer no longer makes this part, and there's no substitute part

Bushing 713513-837
#3

Field and armature assembly diagram

Bushing

Part #713513-837

The manufacturer no longer makes this part, and there's no substitute part

Field 990803-001
#6

Field and armature assembly diagram

Field

Part #990803-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 990705-011
#26

Field and armature assembly diagram

Screw

Part #990705-011

The manufacturer no longer makes this part, and there's no substitute part
