Model #113241691 - CRAFTSMAN Deluxe 10-inch flex drive table saw

Arbor and blade assembly - 57 part(s) included

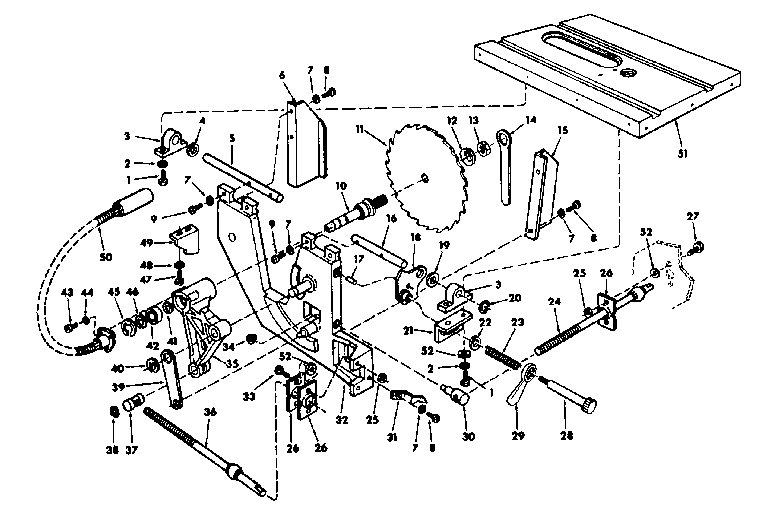

Arbor and blade assembly

Part List	View all part info

Diagram #

Part name

1	Screw 5pk
2	Washer 8pk
3	Support, bearing
4	Washer, .505 x 47/64 x 1/16
5	Rod, cradle
6	Guard, rear
7	Washer 8pk
8	Screw 8pk
9	Taptite scrw
10	Arbor assembly
11	Blade
12	Collar, blade
13	Nut
14	Arbor wrench
15	Guard, front
16	Rod, cradle
17	Pin, drive 1/4 x 5/8 (standard hardware item - ...
18	Plate, stop
19	Spacer, .505 x 3/4 x 1/4
20	Nut, push 1/2
21	Bracket, lock
22	Washer 8pk
23	Spring
24	Lockwasher, external, 3/8 (standard hardware it...
25	Stop nut
26	Retainer, bearing
27	Screw 8pk
28	Bowed retaining ring
29	Handle, clamp screw
30	Nut, bevel pivot
31	Indicator, bevel
32	Cradle assembly (includes key no. 17)
33	Bolt, rd. hd. short square neck 10-32 x 5/8
34	Nut, push 3/8 (if this part is removed, discard...
35	Housing, arbor
36	Shaft assembly, elevation
37	Nut, elevation
38	Ret ring
39	Link
40	Retainer
41	Ring 5pk
42	Bearing
43	Screw 8pk
44	Washer 8pk
45	Ring, retaining 1-3/8
46	Ring 2pk
47	Screw 5pk
48	Washer 8pk
49	Bracket, stop
50	Flex shaft
51	Table
52	Washer 8pk
Not on diagram	Owners manual
Not on diagram	Bag of loose parts
Not on diagram	Bag of loose parts
Not on diagram	Bag of loose parts
Not on diagram	Bag of loose parts for legs

Rollover image to view larger

View full size

Print diagram print

Part Info
Diagram #		Part name	Price
0 1 on diagram	Image not available	Screw 5pk Number: STD523110 Size: 1.20L x 2.30W x 0.50H Manufacturer authorized substitution: STD523110 may differ in appearance, but is a functional equivalent to prior parts.	$2.16 In stock Quantity: Add to cart
0 2 on diagram	Image not available	Washer 8pk Number: STD551131 Size: 0.30L x 0.50W x 0.20H Manufacturer authorized substitution: STD551131 may differ in appearance, but is a functional equivalent to prior parts.	$2.16 In stock Quantity: Add to cart
0 3 on diagram	Image not available	Support, bearing Number: 62885 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 4 on diagram	Image not available	Washer, .505 x 47/64 x 1/16 Number: 60537 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 5 on diagram	Image not available	Rod, cradle Number: 62883 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 6 on diagram	Image not available	Guard, rear Number: 62870 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 7 on diagram	Image not available	Washer 8pk Number: STD551210 Size: 1.30L x 0.50W x 1.30H Manufacturer authorized substitution: STD551210 may differ in appearance, but is a functional equivalent to prior parts.	$2.16 In stock Quantity: Add to cart
0 8 on diagram	Image not available	Screw 8pk Number: STD601103 Size: 2.30L x 1.80W x 0.30H Manufacturer authorized substitution: STD601103 may differ in appearance, but is a functional equivalent to prior parts.	$2.16 In stock Quantity: Add to cart
0 9 on diagram	Image not available	Taptite scrw Number: STD511110 Manufacturer authorized substitution: STD511110 may differ in appearance, but is a functional equivalent to prior parts.	$2.16 In stock Quantity: Add to cart
0 10 on diagram	Image not available	Arbor assembly Number: 62897 Size: 5.75L x 2.00W x 2.00H Color: Silver Material: Metal We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 11 on diagram	Image not available	Blade Number: 60175 Substitution: 9-26810 Manufacturer authorized substitution: 9-26810 may differ in appearance, but is a functional equivalent to prior parts including 60175.	$13.99 In stock Quantity: Add to cart
0 12 on diagram	Image not available	Collar, blade Number: 62498 Size: 2.00L x 2.00W x 0.12H Color: Black Material: Metal	$7.49 In stock Quantity: Add to cart
0 13 on diagram		Nut Number: 6362 Size: 1.25L x 1.25W x 0.37H Color: Silver Material: Metal	$7.49 In stock Quantity: Add to cart
0 14 on diagram		Arbor wrench Number: 3540 Size: 9.50L x 1.75W x 0.06H Color: Black Material: Metal	$9.99 In stock Quantity: Add to cart
0 15 on diagram	Image not available	Guard, front Number: 62869 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 16 on diagram	Image not available	Rod, cradle Number: 62882 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 17 on diagram	Image not available	Pin, drive 1/4 x 5/8 (standard hardware item - ... Number: 814579 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 18 on diagram	Image not available	Plate, stop Number: 62880 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 19 on diagram	Image not available	Spacer, .505 x 3/4 x 1/4 Number: 60535 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 20 on diagram	Image not available	Nut, push 1/2 Number: 62878 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 21 on diagram	Image not available	Bracket, lock Number: 62862 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 22 on diagram	Image not available	Washer 8pk Number: STD551031 Size: 1.60L x 1.50W x 0.80H Manufacturer authorized substitution: STD551031 may differ in appearance, but is a functional equivalent to prior parts.	$2.99 In stock Quantity: Add to cart
0 23 on diagram	Image not available	Spring Number: 37828	$2.16 In stock Quantity: Add to cart
0 24 on diagram	Image not available	Lockwasher, external, 3/8 (standard hardware it... Number: 62896	$13.49 In stock Quantity: Add to cart
0 25 on diagram	Image not available	Stop nut Number: STD541411 Size: 2.50L x 0.80W x 0.30H Manufacturer authorized substitution: STD541411 may differ in appearance, but is a functional equivalent to prior parts.	$2.16 In stock Quantity: Add to cart
0 26 on diagram	Image not available	Retainer, bearing Number: 62881 Size: 1.00L x 1.00W x 1.00H	$2.16 In stock Quantity: Add to cart
0 27 on diagram	Image not available	Screw 8pk Number: STD601103 Size: 2.30L x 1.80W x 0.30H Manufacturer authorized substitution: STD601103 may differ in appearance, but is a functional equivalent to prior parts.	$2.16 In stock Quantity: Add to cart
0 28 on diagram	Image not available	Bowed retaining ring Number: 37829 Size: 6.00L x 0.75W x 0.75H Color: Black Material: Metal	$7.09 In stock Quantity: Add to cart
0 29 on diagram	Image not available	Handle, clamp screw Number: 18 Size: 3.62L x 1.12W x 1.12H Color: Silver Material: Metal	$5.99 In stock Quantity: Add to cart
0 30 on diagram	Image not available	Nut, bevel pivot Number: 62876	$5.49 In stock Quantity: Add to cart
0 31 on diagram	Image not available	Indicator, bevel Number: 62872	$2.16 In stock Quantity: Add to cart
0 32 on diagram	Image not available	Cradle assembly (includes key no. 17) Number: 62893 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 33 on diagram	Image not available	Bolt, rd. hd. short square neck 10-32 x 5/8 Number: 60536 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 34 on diagram	Image not available	Nut, push 3/8 (if this part is removed, discard... Number: 60240 Size: 0.75L x 0.75W x 0.12H Color: Black Material: Metal	$3.49 In stock Quantity: Add to cart
0 35 on diagram	Image not available	Housing, arbor Number: 62871	$85.99 In stock Quantity: Add to cart
0 36 on diagram	Image not available	Shaft assembly, elevation Number: 62895 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 37 on diagram	Image not available	Nut, elevation Number: 62877 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 38 on diagram	Image not available	Ret ring Number: 63054 Substitution: STD587075 Size: 1.00L x 0.60W x 0.20H Manufacturer authorized substitution: STD587075 may differ in appearance, but is a functional equivalent to prior parts including 63054.	$9.99 In stock Quantity: Add to cart
0 39 on diagram	Image not available	Link Number: 62874	$2.16 In stock Quantity: Add to cart
0 40 on diagram	Image not available	Retainer Number: 6527 Substitution: STD585075 Size: 1.40L x 1.40W x 0.20H Manufacturer authorized substitution: STD585075 may differ in appearance, but is a functional equivalent to prior parts including 6527.	$4.99 In stock Quantity: Add to cart
0 41 on diagram	Image not available	Ring 5pk Number: STD581062 Size: 1.50L x 1.00W x 0.30H Manufacturer authorized substitution: STD581062 may differ in appearance, but is a functional equivalent to prior parts.	$3.99 In stock Quantity: Add to cart
0 42 on diagram	Image not available	Bearing Number: 3509 Size: 1.37L x 1.37W x 0.43H Color: Silver Material: Metal	$15.19 In stock Quantity: Add to cart
0 43 on diagram	Image not available	Screw 8pk Number: STD601103 Size: 2.30L x 1.80W x 0.30H Manufacturer authorized substitution: STD601103 may differ in appearance, but is a functional equivalent to prior parts.	$2.16 In stock Quantity: Add to cart
0 44 on diagram	Image not available	Washer 8pk Number: STD551210 Size: 1.30L x 0.50W x 1.30H Manufacturer authorized substitution: STD551210 may differ in appearance, but is a functional equivalent to prior parts.	$2.16 In stock Quantity: Add to cart
0 45 on diagram	Image not available	Ring, retaining 1-3/8 Number: 38879 Size: 1.62L x 1.62W x 0.06H Color: Yellow Material: Metal	$3.99 In stock Quantity: Add to cart
0 46 on diagram	Image not available	Ring 2pk Number: 37158 Substitution: STD590062 Size: 1.20L x 1.20W x 0.30H Manufacturer authorized substitution: STD590062 may differ in appearance, but is a functional equivalent to prior parts including 37158.	$4.49 In stock Quantity: Add to cart
0 47 on diagram	Image not available	Screw 5pk Number: 60078 Substitution: STD523105 Size: 3.00L x 1.70W x 0.60H Manufacturer authorized substitution: STD523105 may differ in appearance, but is a functional equivalent to prior parts including 60078.	$2.16 In stock Quantity: Add to cart
0 48 on diagram	Image not available	Washer 8pk Number: STD551131 Size: 0.30L x 0.50W x 0.20H Manufacturer authorized substitution: STD551131 may differ in appearance, but is a functional equivalent to prior parts.	$2.16 In stock Quantity: Add to cart
0 49 on diagram	Image not available	Bracket, stop Number: 62865 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 50 on diagram	Image not available	Flex shaft Number: 62884 Size: 33.00L x 1.37W x 1.37H Color: Black Material: Metal	$90.59 In stock Quantity: Add to cart
0 51 on diagram	Image not available	Table Number: 62887 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 52 on diagram	Image not available	Washer 8pk Number: STD551012 Size: 3.00L x 0.60W x 0.50H Manufacturer authorized substitution: STD551012 may differ in appearance, but is a functional equivalent to prior parts.	$2.16 In stock Quantity: Add to cart
0 Not on diagram	Image not available	Owners manual Number: 62965 Size: 11.00L x 8.37W x 0.12H Color: White Material: Paper	$7.49 In stock Quantity: Add to cart
0 Not on diagram	Image not available	Bag of loose parts Number: 62891 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 Not on diagram	Image not available	Bag of loose parts Number: 62951 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 Not on diagram	Image not available	Bag of loose parts Number: 62890 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 Not on diagram	Image not available	Bag of loose parts for legs Number: 62752 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
