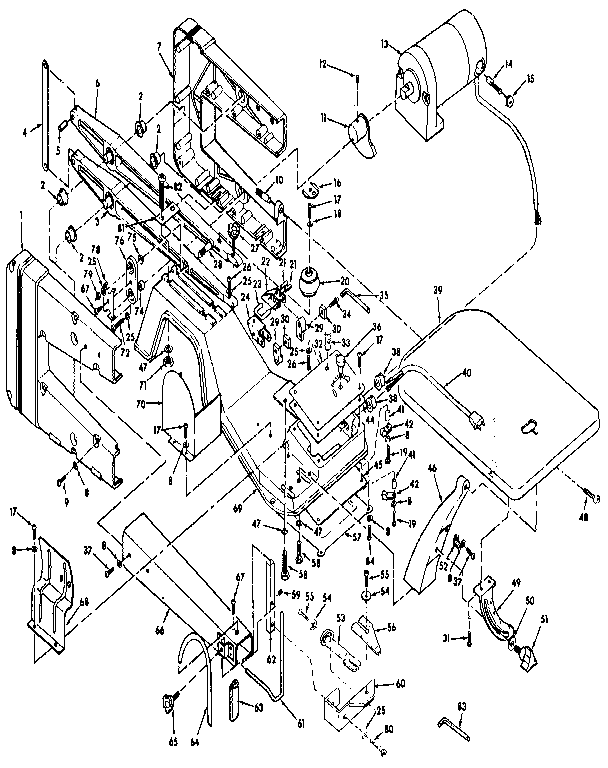

Model #113236180 - CRAFTSMAN Scroll saw

Unit - 83 part(s) included

Unit

Part List	View all part info

Diagram #

Part name

1	Arm cover, left
2	Bushing
3	Arm, lower w/pivot
4	Connector
5	Pin roll m6 x 25
6	Arm, upper w/pivot
7	Arm cover, right
8	Washer
9	Screw pan hd. m4 x 0.7-28 (see notes comment 1)
10	Pin, knurled
11	Counterweight
12	Screw, hex soc, set m6 x 1.0-6
13	Motor (see notes comment 2)
14	Brush and spring
15	Cap, brush holder
16	Cap, upper blower
17	Screw, pan hd. m4 x 0.7-6 (see notes comment 1)
18	Washer
19	Screw pan hd. m4 x 0.7-25 (see notes comments 1)
20	Blower
21	Pin, roll 4mm x 16
22	Bracket
23	Key, "u" type
24	Bracket
25	Lock washer
26	Screw
27	Knob
28	Screw
29	Holder, blade
30	Nut, blade
31	Screw
32	Plate, control
33	Post, lock
34	Screw
35	Wrench
36	Knob, switch
37	Screw, pan cross. m4 x 0.7-8
38	Grommet
39	Table
40	Cord w/plug
41	Spacer
42	Clamp, cord (see notes comment 3)
44	Gasket
45	Board, printed circuit (see notes comment 3)
46	Support
47	Lock washer
48	Screw, soc. cap m6 x 1.0-30
49	Bracket, tilt
50	Washer 8pk
51	Knob
52	Indicator
53	Spring, hold-down
54	Flate washer
55	Screw, hex soc cap, m5 x 0.8-8
56	Support
57	Cover, lower
58	Capacitor screw
59	Set screw (m5 x .08-5 mm socket) (standard hard...
60	Support
61	Guard, blade
62	Support
63	Holder, hose
64	Hose
65	Knob
66	Cover, arm
67	Screw, pan hd. ty "ab" m4 x 1.6-7
68	Guard
69	Base
70	Guard, eccentric
71	Hex nut
72	Screw, soc. cap m5 x 0.8-16
74	Spacer
75	Spacer
76	Link, arm
78	Cover, link
79	Screw
80	Screw
81	Retainer, bolt
82	Bolt
83	Wrench
84	Screw. pan cross m4 x 0.7-8 (see notes comments 1)
Not on diagram	Manual
Not on diagram	Bag of parts

Rollover image to view larger

View full size

Print diagram print

Part Info
Diagram #		Part name	Price
0 1 on diagram	Image not available	Arm cover, left Number: 819266	$34.49 In stock Quantity: Add to cart
0 2 on diagram	Image not available	Bushing Number: 819232 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 3 on diagram	Image not available	Arm, lower w/pivot Number: 819290-1	$23.49 In stock Quantity: Add to cart
0 4 on diagram	Image not available	Connector Number: 819223	$7.49 In stock Quantity: Add to cart
0 5 on diagram	Image not available	Pin roll m6 x 25 Number: 813249-152 Substitution: 813249-155 Color: Black Material: Metal Manufacturer authorized substitution: 813249-155 may differ in appearance, but is a functional equivalent to prior parts including 813249-152.	$2.49 In stock Quantity: Add to cart
0 6 on diagram	Image not available	Arm, upper w/pivot Number: 819290	$23.49 In stock Quantity: Add to cart
0 7 on diagram	Image not available	Arm cover, right Number: 819265	$34.49 In stock Quantity: Add to cart
0 8 on diagram	Image not available	Washer Number: STD852004 Manufacturer authorized substitution: STD852004 may differ in appearance, but is a functional equivalent to prior parts.	$2.16 In stock Quantity: Add to cart
0 9 on diagram	Image not available	Screw pan hd. m4 x 0.7-28 (see notes comment 1) Number: 817450-3	$2.16 In stock Quantity: Add to cart
0 10 on diagram	Image not available	Pin, knurled Number: 819214	$3.49 In stock Quantity: Add to cart
0 11 on diagram	Image not available	Counterweight Number: 819230	$9.99 In stock Quantity: Add to cart
0 12 on diagram	Image not available	Screw, hex soc, set m6 x 1.0-6 Number: 818471 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 13 on diagram	Image not available	Motor (see notes comment 2) Number: 819271 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 14 on diagram	Image not available	Brush and spring Number: 819220 Substitution: 820322 Color: Black Material: Carbon Manufacturer authorized substitution: 820322 may differ in appearance, but is a functional equivalent to prior parts including 819220.	$15.19 In stock Quantity: Add to cart
0 15 on diagram	Image not available	Cap, brush holder Number: 819219 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 16 on diagram	Image not available	Cap, upper blower Number: 819250 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 17 on diagram	Image not available	Screw, pan hd. m4 x 0.7-6 (see notes comment 1) Number: 46-57529-3	Call for availability (800) 252-1698
0 18 on diagram	Image not available	Washer Number: 818042 Substitution: STD851004 Manufacturer authorized substitution: STD851004 may differ in appearance, but is a functional equivalent to prior parts including 818042.	$2.16 In stock Quantity: Add to cart
0 19 on diagram	Image not available	Screw pan hd. m4 x 0.7-25 (see notes comments 1) Number: 816743-2 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 20 on diagram	Image not available	Blower Number: 819249 Color: Black Material: Rubber	$10.99 In stock Quantity: Add to cart
0 21 on diagram	Image not available	Pin, roll 4mm x 16 Number: 813249-104	$2.16 In stock Quantity: Add to cart
0 22 on diagram	Image not available	Bracket Number: 819226	$2.99 In stock Quantity: Add to cart
0 23 on diagram	Image not available	Key, "u" type Number: 819225 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 24 on diagram	Image not available	Bracket Number: 819227	$7.99 In stock Quantity: Add to cart
0 25 on diagram	Image not available	Lock washer Number: STD852005 Manufacturer authorized substitution: STD852005 may differ in appearance, but is a functional equivalent to prior parts.	$2.16 In stock Quantity: Add to cart
0 26 on diagram	Image not available	Screw Number: 821389-1	$2.16 In stock Quantity: Add to cart
0 27 on diagram	Image not available	Knob Number: 819291	$3.99 In stock Quantity: Add to cart
0 28 on diagram	Image not available	Screw Number: 818469-5 Substitution: 820379-4 Manufacturer authorized substitution: 820379-4 may differ in appearance, but is a functional equivalent to prior parts including 818469-5.	$2.16 In stock Quantity: Add to cart
0 29 on diagram	Image not available	Holder, blade Number: 819229 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 30 on diagram	Image not available	Nut, blade Number: 819228 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 31 on diagram	Image not available	Screw Number: 818470-2 Substitution: 823069 Color: Silver Material: Metal Manufacturer authorized substitution: 823069 may differ in appearance, but is a functional equivalent to prior parts including 818470-2.	$2.16 In stock Quantity: Add to cart
0 32 on diagram	Image not available	Plate, control Number: 819254 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 33 on diagram	Image not available	Post, lock Number: 819255	$4.49 In stock Quantity: Add to cart
0 34 on diagram	Image not available	Screw Number: 818469-4 Color: Black Material: Metal	$2.99 In stock Quantity: Add to cart
0 35 on diagram	Image not available	Wrench Number: 813317-6 Color: Black Material: Metal	$2.16 In stock Quantity: Add to cart
0 36 on diagram	Image not available	Knob, switch Number: 819292	$5.49 In stock Quantity: Add to cart
0 37 on diagram	Image not available	Screw, pan cross. m4 x 0.7-8 Number: 821390-3 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 38 on diagram	Image not available	Grommet Number: 819293	$2.16 In stock Quantity: Add to cart
0 39 on diagram	Image not available	Table Number: 819257 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 40 on diagram	Image not available	Cord w/plug Number: 819294 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 41 on diagram	Image not available	Spacer Number: 819245 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 42 on diagram	Image not available	Clamp, cord (see notes comment 3) Number: 819246	$2.16 In stock Quantity: Add to cart
0 44 on diagram	Image not available	Gasket Number: 819256 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 45 on diagram	Image not available	Board, printed circuit (see notes comment 3) Number: 819295 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 46 on diagram	Image not available	Support Number: 819262	$17.49 In stock Quantity: Add to cart
0 47 on diagram	Image not available	Lock washer Number: STD852006 Manufacturer authorized substitution: STD852006 may differ in appearance, but is a functional equivalent to prior parts.	$2.16 In stock Quantity: Add to cart
0 48 on diagram	Image not available	Screw, soc. cap m6 x 1.0-30 Number: 818469-9 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 49 on diagram	Image not available	Bracket, tilt Number: 819221	$2.99 In stock Quantity: Add to cart
0 50 on diagram	Image not available	Washer 8pk Number: STD551025 Manufacturer authorized substitution: STD551025 may differ in appearance, but is a functional equivalent to prior parts.	$2.16 In stock Quantity: Add to cart
0 51 on diagram	Image not available	Knob Number: 819296	$4.49 In stock Quantity: Add to cart
0 52 on diagram	Image not available	Indicator Number: 819222	$2.16 In stock Quantity: Add to cart
0 53 on diagram	Image not available	Spring, hold-down Number: 820303	$6.49 In stock Quantity: Add to cart
0 54 on diagram	Image not available	Flate washer Number: STD851005 Manufacturer authorized substitution: STD851005 may differ in appearance, but is a functional equivalent to prior parts.	$2.16 In stock Quantity: Add to cart
0 55 on diagram	Image not available	Screw, hex soc cap, m5 x 0.8-8 Number: 818469-7 Substitution: 820379-1 Color: Black Material: Metal Manufacturer authorized substitution: 820379-1 may differ in appearance, but is a functional equivalent to prior parts including 818469-7.	$2.39 In stock Quantity: Add to cart
0 56 on diagram	Image not available	Support Number: 819238	$3.49 In stock Quantity: Add to cart
0 57 on diagram	Image not available	Cover, lower Number: 819247	$4.99 In stock Quantity: Add to cart
0 58 on diagram	Image not available	Capacitor screw Number: STD833020 Manufacturer authorized substitution: STD833020 may differ in appearance, but is a functional equivalent to prior parts.	$2.16 In stock Quantity: Add to cart
0 59 on diagram	Image not available	Set screw (m5 x .08-5 mm socket) (standard hard... Number: 818471-6	$2.16 In stock Quantity: Add to cart
0 60 on diagram	Image not available	Support Number: 819237	$4.49 In stock Quantity: Add to cart
0 61 on diagram	Image not available	Guard, blade Number: 819242 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 62 on diagram	Image not available	Support Number: 819241	$5.49 In stock Quantity: Add to cart
0 63 on diagram	Image not available	Holder, hose Number: 819252	$2.49 In stock Quantity: Add to cart
0 64 on diagram	Image not available	Hose Number: 819248 Color: White Material: Plastic We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 65 on diagram	Image not available	Knob Number: 819240	$2.49 In stock Quantity: Add to cart
0 66 on diagram	Image not available	Cover, arm Number: 819244	$19.49 In stock Quantity: Add to cart
0 67 on diagram	Image not available	Screw, pan hd. ty "ab" m4 x 1.6-7 Number: 819186-3	Call for availability (800) 252-1698
0 68 on diagram	Image not available	Guard Number: 819243 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 69 on diagram	Image not available	Base Number: 819264	$66.99 In stock Quantity: Add to cart
0 70 on diagram	Image not available	Guard, eccentric Number: 819217 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 71 on diagram	Image not available	Hex nut Number: STD840610 Manufacturer authorized substitution: STD840610 may differ in appearance, but is a functional equivalent to prior parts.	$2.16 In stock Quantity: Add to cart
0 72 on diagram	Image not available	Screw, soc. cap m5 x 0.8-16 Number: 818469 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 74 on diagram	Image not available	Spacer Number: 819235	$2.16 In stock Quantity: Add to cart
0 75 on diagram	Image not available	Spacer Number: 819234	$2.16 In stock Quantity: Add to cart
0 76 on diagram	Image not available	Link, arm Number: 819224	$7.99 In stock Quantity: Add to cart
0 78 on diagram	Image not available	Cover, link Number: 819233	$2.16 In stock Quantity: Add to cart
0 79 on diagram	Image not available	Screw Number: STD840508 Manufacturer authorized substitution: STD840508 may differ in appearance, but is a functional equivalent to prior parts.	$2.16 In stock Quantity: Add to cart
0 80 on diagram	Image not available	Screw Number: 818469-8 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 81 on diagram	Image not available	Retainer, bolt Number: 819236	$2.16 In stock Quantity: Add to cart
0 82 on diagram	Image not available	Bolt Number: 818472-1	$2.16 In stock Quantity: Add to cart
0 83 on diagram	Image not available	Wrench Number: 813317-7	$2.99 In stock Quantity: Add to cart
0 84 on diagram	Image not available	Screw. pan cross m4 x 0.7-8 (see notes comments 1) Number: 821390-3
0 Not on diagram	Image not available	Manual Number: SP5367 Color: White Material: Paper Ground shipment only available for this item.	$7.49 In stock Quantity: Add to cart
0 Not on diagram	Image not available	Bag of parts Number: 508299 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
