502256180 Craftsman Riding mower & tractor

Grass catcher asm. parts list

# Craftsman Sears 30 inch riding mower - Grass catcher asm. parts ... (14 parts)

View full size Print diagram

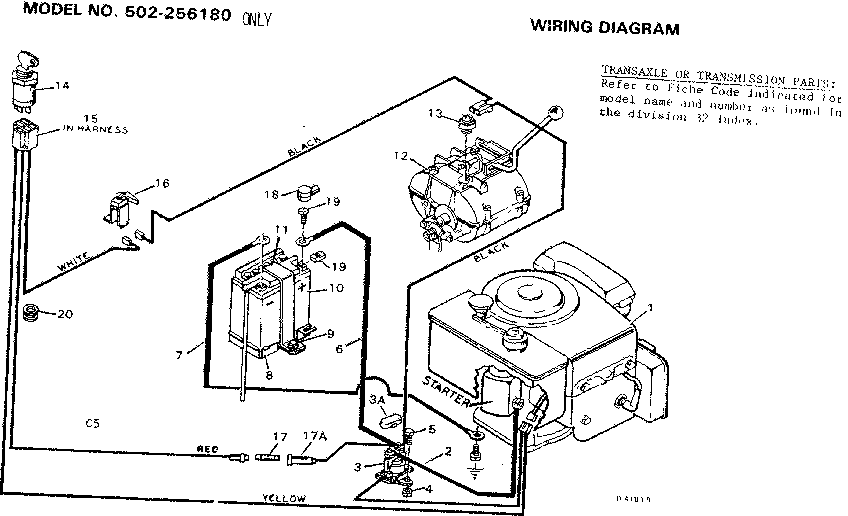

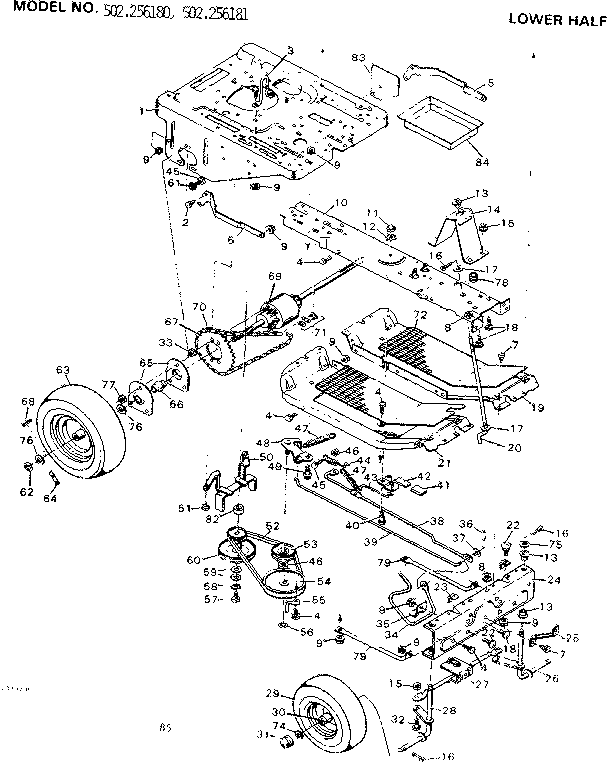

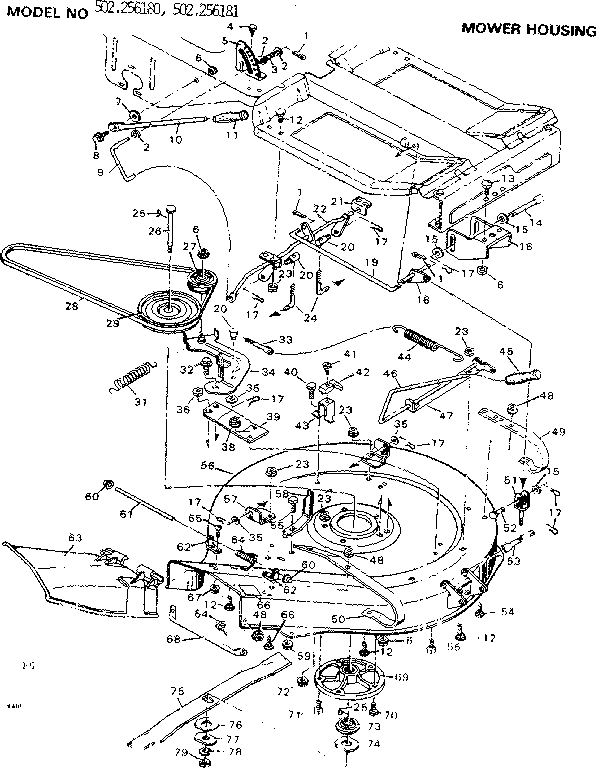

Other diagrams for this model

50 on diagram	Plate PART NUMBER: 54054E			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

51 on diagram	Plate c PART NUMBER: 54056E			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

52 on diagram	Plate PART NUMBER: 54057E			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

53 on diagram	Screw 5pk PART NUMBER: STD522506 Substitution: STD522506 Learn why This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including STD522506.			$3.16 In stock
	This item is not returnable.			Qty: Add to cart
	View important details Screw 5pk PART NUMBER: STD522506 Substitution: STD522506 This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including STD522506. This item is not returnable. View full details
	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

54 on diagram	1/4-20 hex lock nut PART NUMBER: STD541425 Substitution: STD541425 Learn why This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including STD541425.			$3.29 In stock Qty Included: 1
	This item is not returnable.			Qty: Add to cart
	View important details 1/4-20 hex lock nut PART NUMBER: STD541425 Substitution: STD541425 This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including STD541425. This item is not returnable. View full details
	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

55 on diagram	Plate PART NUMBER: 54113E			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

56 on diagram	Plate PART NUMBER: 54114Z			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

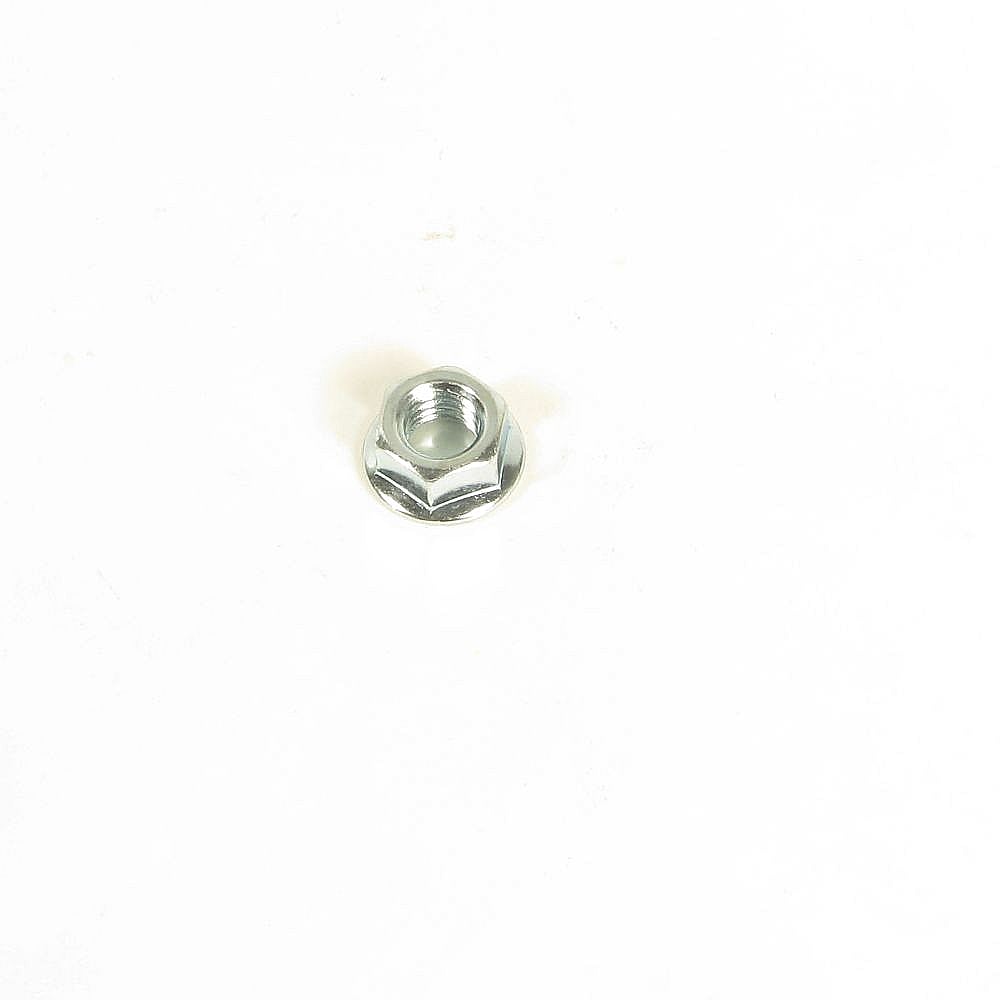

Not on diagram	Nut.38-16 fl PART NUMBER: 15X85 Substitution: 015X68MA Learn why This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including 15X85.			$2.16 In stock
	This item is not returnable.			Qty: Add to cart
	View important details Nut.38-16 fl PART NUMBER: 15X85 Substitution: 015X68MA This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including 15X85. This item is not returnable. View full details
	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

Not on diagram	Tie (ards) PART NUMBER: 32618 Substitution: 032618MA Learn why This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including 32618.			$2.55 In stock
	This item is not returnable.			Qty: Add to cart
	View important details Tie (ards) PART NUMBER: 32618 Substitution: 032618MA This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including 32618. This item is not returnable. View full details
	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

Not on diagram	Bolt PART NUMBER: 23664			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

Not on diagram	Bags PART NUMBER: 24871			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

Not on diagram	Manual PART NUMBER: F-6329			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

Not on diagram	Manual PART NUMBER: F-6715			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

Not on diagram	Warranty tag PART NUMBER: F-9229			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0
