11024944300 Kenmore Washer

Top and cabinet parts

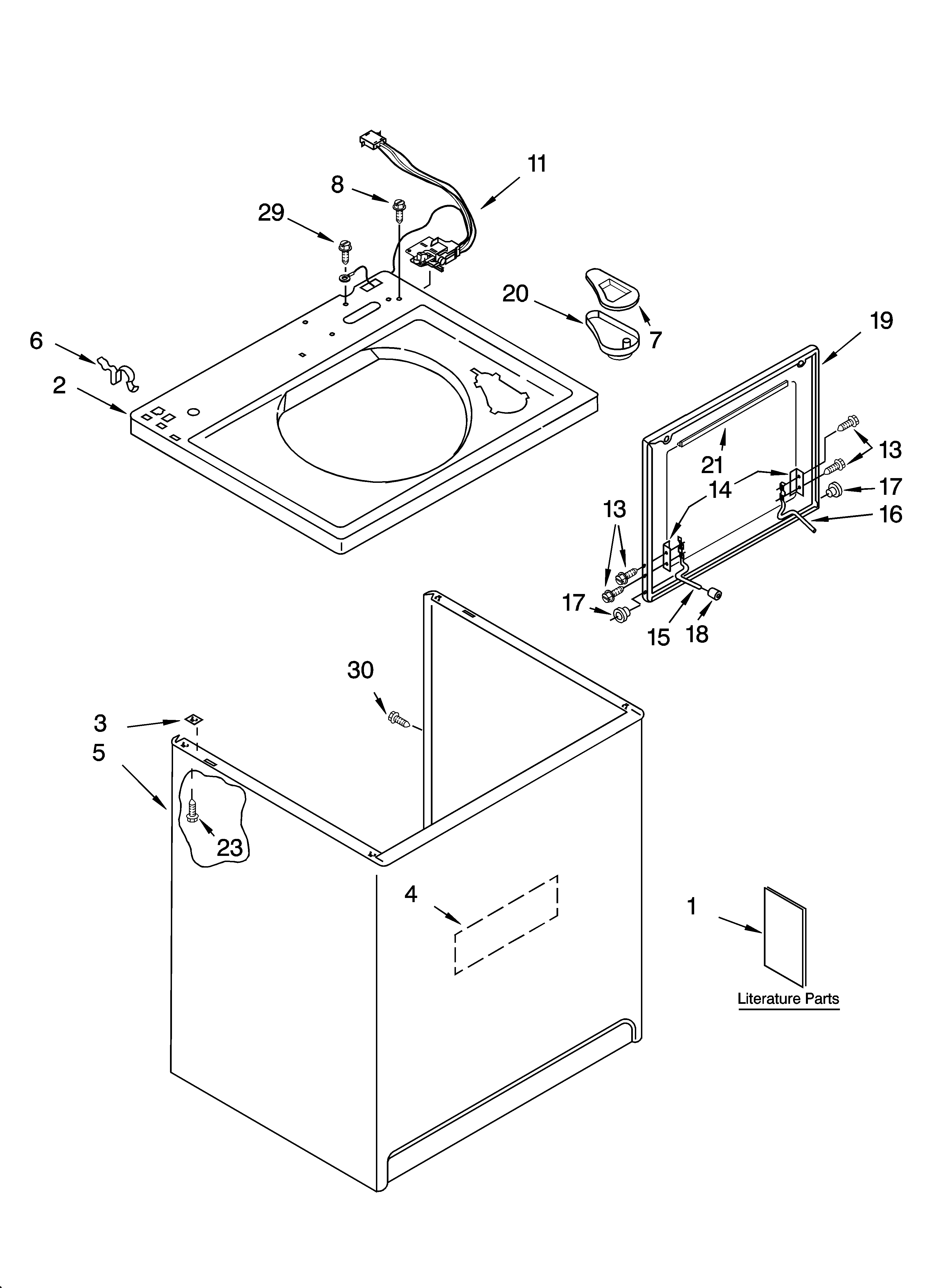

# Kenmore Automatic washer - Top and cabinet parts (35 parts)

View full size Print diagram

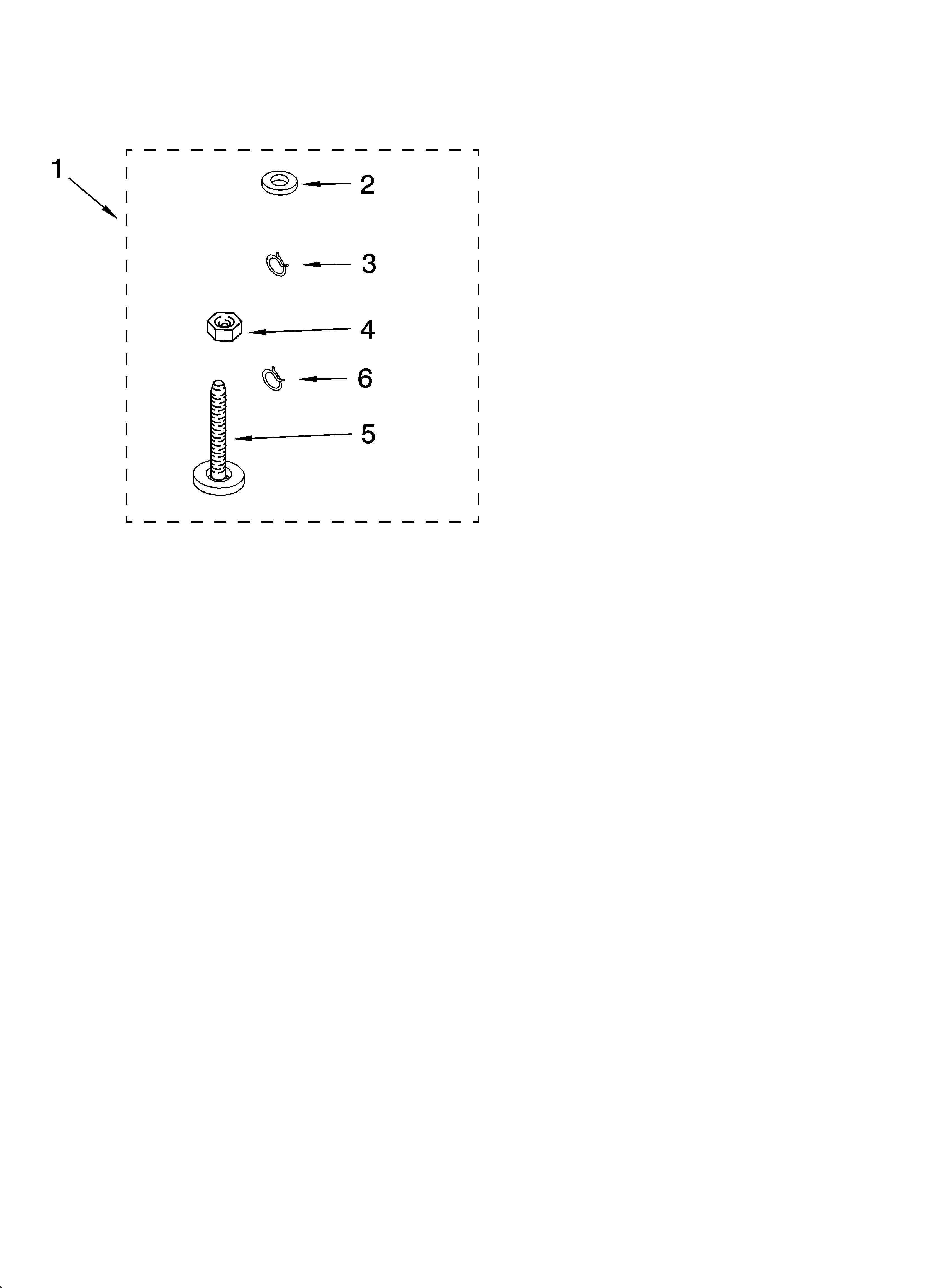

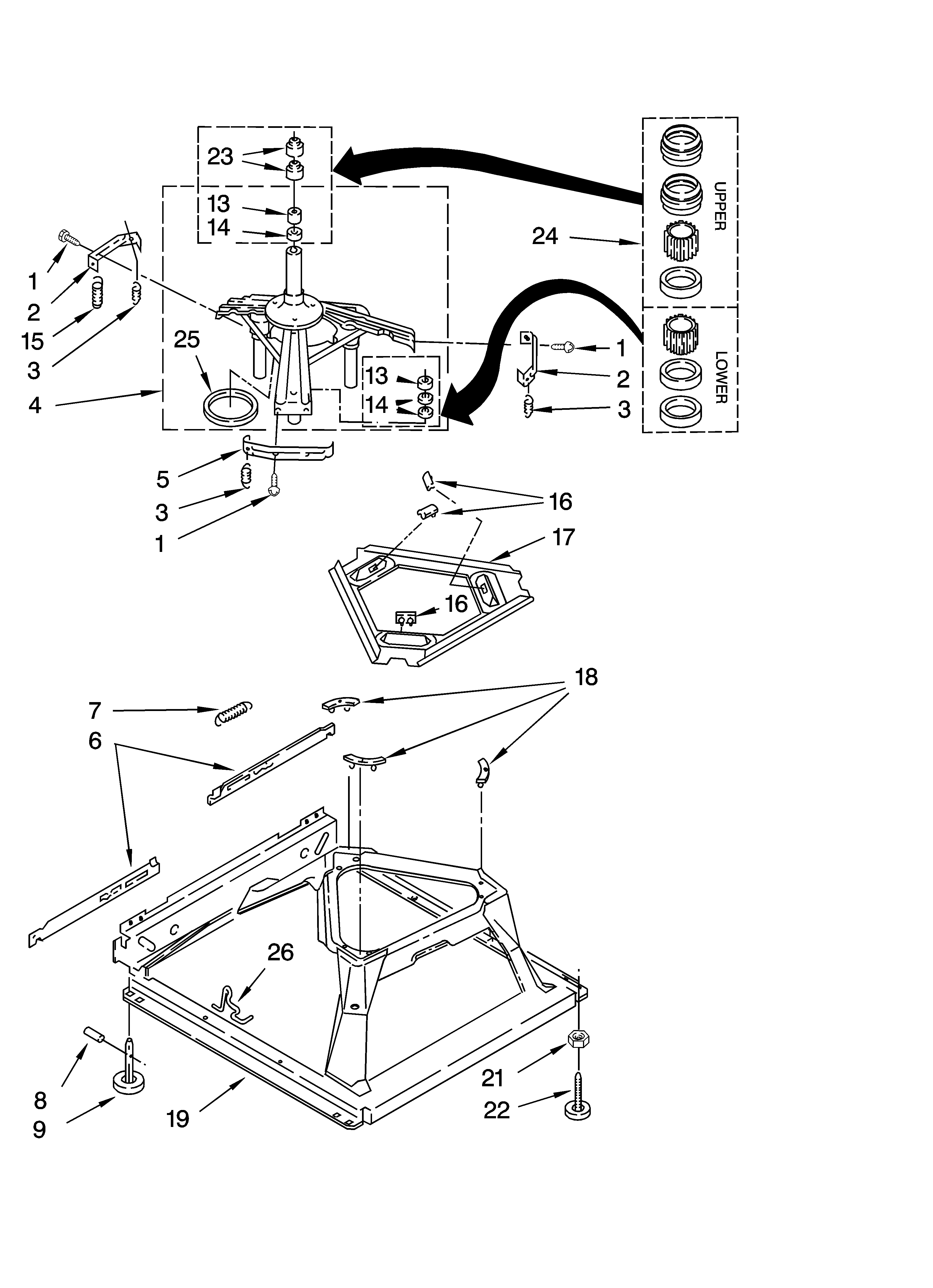

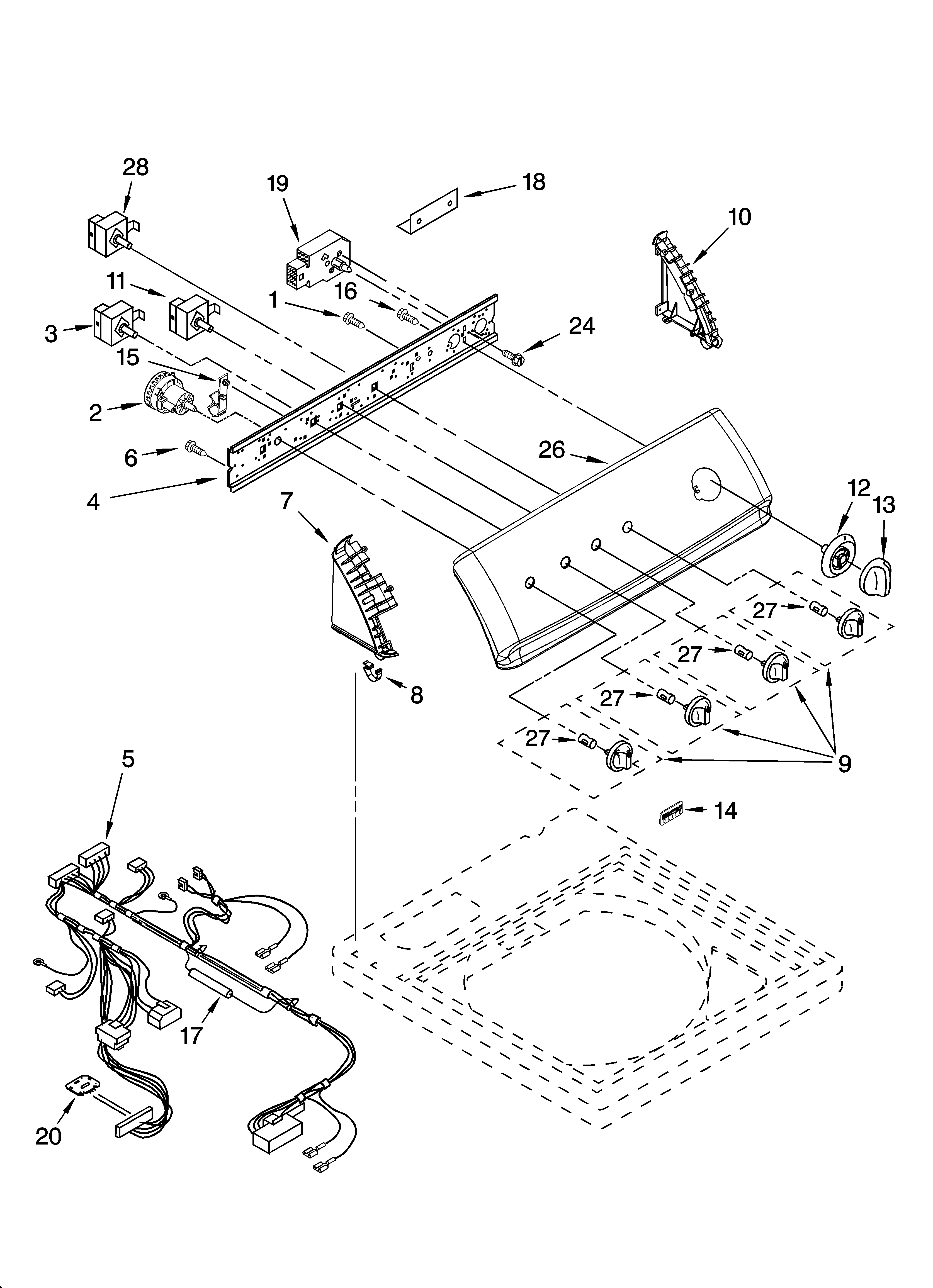

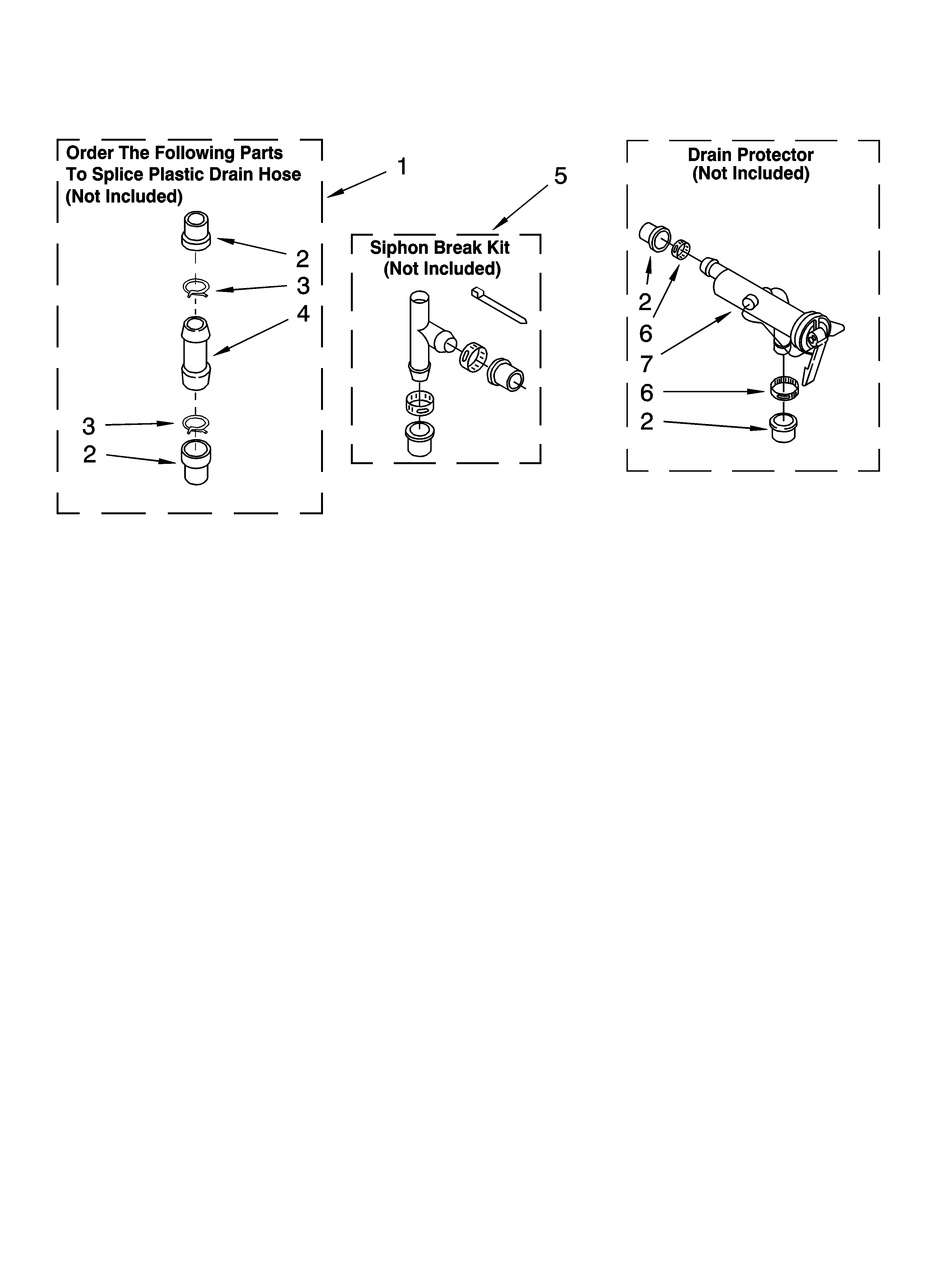

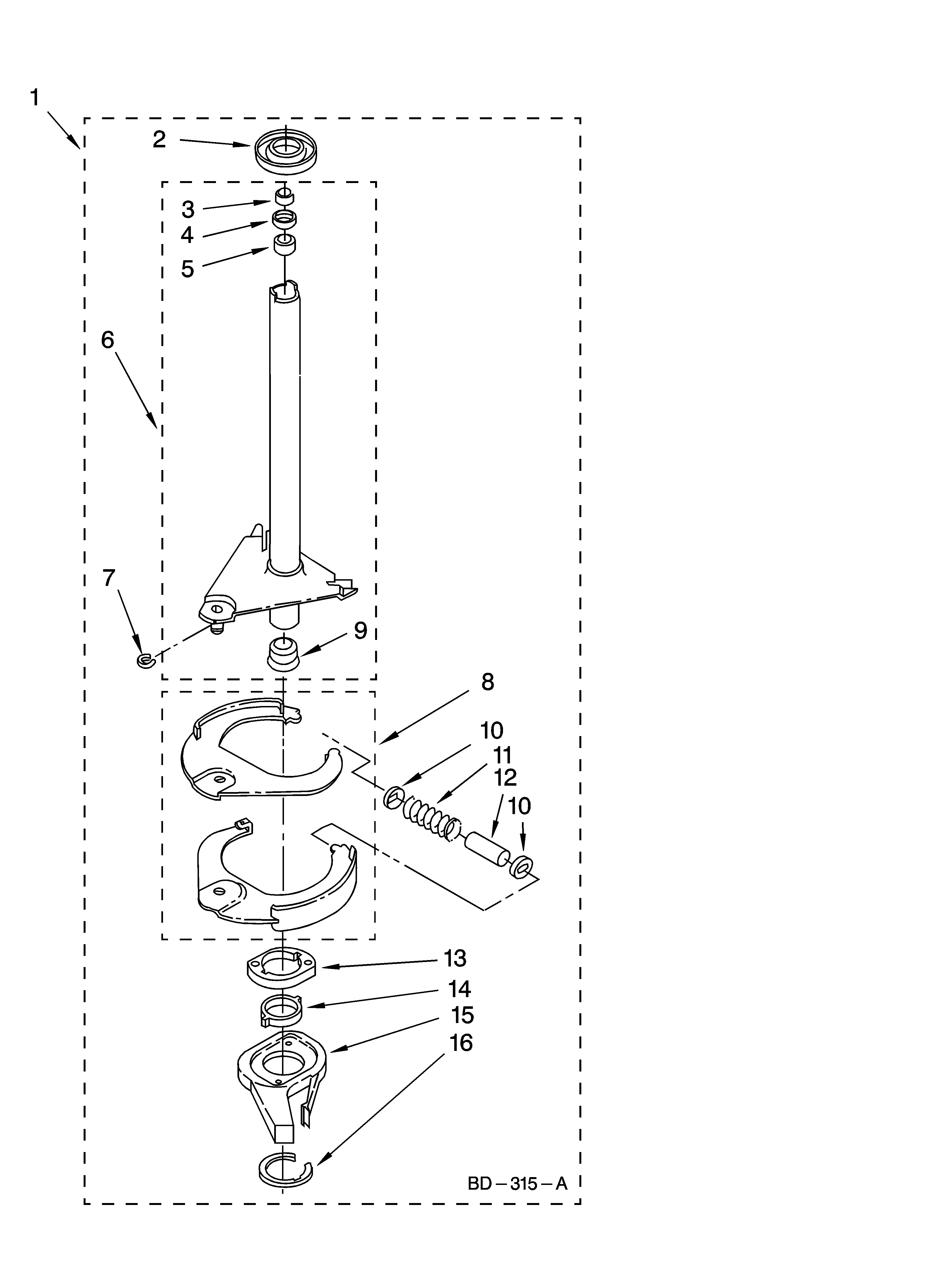

Other diagrams for this model

1 on diagram	Owners manual PART NUMBER: LIT8537202			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

1A on diagram	Laundry guid PART NUMBER: LIT8537394			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

1B on diagram	Wiring diagram PART NUMBER: LIT8541112 Substitution: 8541112 Learn why This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including LIT8541112.
	This item is not returnable.
	View important details Wiring diagram PART NUMBER: LIT8541112 Substitution: 8541112 This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including LIT8541112. This item is not returnable. Technician Required for Ordering. For assistance please contact 1-800-4MY-HOME or click here to schedule an appointment SHIPPING RESTRICTIONS Only ground shipment is available for this item. View full details
	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

1C on diagram	Energy guide PART NUMBER: LIT8528460 Substitution: 8528460 Learn why This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including LIT8528460.			$4.10 In stock
	This item is not returnable.			Qty: Add to cart
	View important details Energy guide PART NUMBER: LIT8528460 Substitution: 8528460 This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including LIT8528460. This item is not returnable. View full details
	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

1D on diagram	Parts list PART NUMBER: LIT8537382			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

1E on diagram	Engine PART NUMBER: N/P			Contact customer support for availability. Contact Customer Support for part availability Additional research is required before ordering this part. Please call Customer Support at 1-800-252-1698 for assistance. For fastest service, please have available the model and serial number of your product, as well as the part number you are requesting. Please inform the Customer Support agent that a "research request" is required for the desired part.
	This item is not returnable.			Call 1-800-252-1698
	View important details Following may be purchased do-it-yourself repai... PART NUMBER: N/P This item is not returnable.
	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

1F on diagram	Repair manul PART NUMBER: LIT4314044 Substitution: 4314044L Learn why This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including LIT4314044.			$21.08 In stock
				Qty: Add to cart
	View important details Repair manul PART NUMBER: LIT4314044 Substitution: 4314044L This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including LIT4314044. View full details
	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

2 on diagram	Top PART NUMBER: 8541294			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

2A on diagram	Top PART NUMBER: 8541295			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

2B on diagram	Top PART NUMBER: 8541296			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

3 on diagram	Cabinet spacer PART NUMBER: 62750			$5.66 In stock Qty Included: 1
	This item is not returnable.			Qty: Add to cart

	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

4 on diagram	Sound absorber, cabinet PART NUMBER: 3349654 Substitution: 3976348 Learn why This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including 3349654.			$6.53 In stock
	This item is not returnable.			Qty: Add to cart
	View important details Sound absorber, cabinet PART NUMBER: 3349654 Substitution: 3976348 This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including 3349654. This item is not returnable. View full details
	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

5 on diagram	Cabnt w PART NUMBER: 63424			Too Large to ship. Contact customer support for availability Contact Customer Support for part availability Additional research is required before ordering this part. Please call Customer Support at 1-800-252-1698 for assistance. For fastest service, please have available the model and serial number of your product, as well as the part number you are requesting. Please inform the Customer Support agent that a "research request" is required for the desired part.
				Call 1-800-252-1698
	View important details Cabnt w PART NUMBER: 63424 Contact Customer Support for availability at 1-800-252-1698. View full details
	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

5A on diagram	Cabinet PART NUMBER: 3954357			$205.62 In stock
				Qty: Add to cart

	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

5B on diagram	Cabinet PART NUMBER: 3953669			Too Large to ship. Contact customer support for availability Contact Customer Support for part availability Additional research is required before ordering this part. Please call Customer Support at 1-800-252-1698 for assistance. For fastest service, please have available the model and serial number of your product, as well as the part number you are requesting. Please inform the Customer Support agent that a "research request" is required for the desired part.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

6 on diagram	Clip PART NUMBER: 62780			$5.43 In stock
	This item is not returnable.			Qty: Add to cart

	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

7 on diagram	Cover PART NUMBER: 8055325			$5.28 In stock
	This item is not returnable.			Qty: Add to cart

	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

8 on diagram	Screw, lid switch PART NUMBER: 3400611			$5.29 In stock
	This item is not returnable.			Qty: Add to cart

	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

11 on diagram	Lid switch PART NUMBER: 8054980			$23.09 In stock
				Qty: Add to cart

	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

13 on diagram	Lid hinge mounting screw PART NUMBER: 355274 Substitution: W10119828 Learn why This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including 355274.			$4.02 In stock
	This item is not returnable.			Qty: Add to cart
	View important details Lid hinge mounting screw PART NUMBER: 355274 Substitution: W10119828 This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including 355274. This item is not returnable. View full details
	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

14 on diagram	Pad, lid hinge PART NUMBER: 21097			$4.94 In stock
	This item is not returnable.			Qty: Add to cart

	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

15 on diagram	Hinge PART NUMBER: 8055257			$10.03 In stock
				Qty: Add to cart

	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

16 on diagram	Hinge PART NUMBER: 8055256			$9.54 In stock
				Qty: Add to cart

	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

17 on diagram	Bearing, lid hinge PART NUMBER: 8319539			$5.28 In stock
	This item is not returnable.			Qty: Add to cart

	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

18 on diagram	Bumper, lid hinge PART NUMBER: 19119			$5.29 In stock
	This item is not returnable.			Qty: Add to cart

	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

19 on diagram	Lid PART NUMBER: 8526149 Substitution: 3957575 Learn why This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including 8526149.			$100.46 In stock
				Qty: Add to cart
	View important details Lid PART NUMBER: 8526149 Substitution: 3957575 This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including 8526149. View full details
	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

19A on diagram	Lid PART NUMBER: 8526151 Substitution: 3957577 Learn why This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including 8526151.			$129.49 In stock
				Qty: Add to cart
	View important details Lid PART NUMBER: 8526151 Substitution: 3957577 This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including 8526151. View full details
	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

19B on diagram	Lid PART NUMBER: 8526150 Substitution: 3957576 Learn why This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including 8526150.			$96.99 In stock
				Qty: Add to cart
	View important details Lid PART NUMBER: 8526150 Substitution: 3957576 This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including 8526150. View full details
	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

20 on diagram	Dispenser PART NUMBER: 8519517			$27.08 In stock
				Qty: Add to cart

	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

21 on diagram	Seal PART NUMBER: 8054939			$19.72 In stock
				Qty: Add to cart

	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

21A on diagram	Lid seal PART NUMBER: 8283532			$16.44 In stock
				Qty: Add to cart

	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

23 on diagram	Screw PART NUMBER: 3390631			$4.53 In stock
	This item is not returnable.			Qty: Add to cart

	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

29 on diagram	Screw PART NUMBER: 3351614			$5.29 In stock
	This item is not returnable.			Qty: Add to cart

	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

30 on diagram	Screw PART NUMBER: 3357011 Substitution: 308685 Learn why This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including 3357011.			$5.36 In stock
	This item is not returnable.			Qty: Add to cart
	View important details Screw PART NUMBER: 3357011 Substitution: 308685 This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including 3357011. This item is not returnable. View full details
	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

Not on diagram	Washer magic PART NUMBER: WX10X10201			$8.99 In stock
				Qty: Add to cart

	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0
