Craftsman Router Parts

315275110 Craftsman Router

Base assembly

# Craftsman Electronic plunge router - Base assembly (77 parts)

View full size Print diagram

Other diagrams for this model

1 on diagram	Ret ring PART NUMBER: 622167-028			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

2 on diagram	Spring PART NUMBER: 970738-002			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

3 on diagram	Stop plug PART NUMBER: 970742-001			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

4 on diagram	Clamp bolt PART NUMBER: 974433-001			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

5 on diagram	Keyed washer PART NUMBER: 970743-001			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

6 on diagram	Screw PART NUMBER: 970740-001			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

7 on diagram	Washer PART NUMBER: 931744-006 Substitution: STD551025 Learn why This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including 931744-006.			$3.29 In stock
	This item is not returnable.			Qty: Add to cart
	View important details Washer PART NUMBER: 931744-006 Substitution: STD551025 This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including 931744-006. This item is not returnable. View full details
	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

8 on diagram	Nut 8pk PART NUMBER: 622171-055 Substitution: STD541125 Learn why This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including 622171-055.			$3.29 In stock
	This item is not returnable.			Qty: Add to cart
	View important details Nut 8pk PART NUMBER: 622171-055 Substitution: STD541125 This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including 622171-055. This item is not returnable. View full details
	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

9 on diagram	L. actuator PART NUMBER: 970760-001			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

10 on diagram	Cover PART NUMBER: 970758-001			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

11 on diagram	Posilock label PART NUMBER: 971094-001			$2.16 In stock
	This item is not returnable.			Qty: Add to cart

	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

12 on diagram	Actuator PART NUMBER: 970762-001			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

13 on diagram	Spring PART NUMBER: 970736-001			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

14 on diagram	Screw PART NUMBER: 617966-030 Substitution: 617966030 Learn why This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including 617966-030.			$3.16 In stock
	This item is not returnable.			Qty: Add to cart
	View important details Screw PART NUMBER: 617966-030 Substitution: 617966030 This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including 617966-030. This item is not returnable. View full details
	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

15 on diagram	Br. cap PART NUMBER: 970764-001			$2.16 In stock
	This item is not returnable.			Qty: Add to cart

	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

16 on diagram	Assembly brush PART NUMBER: 970875-001			$6.95 In stock
	This item is not returnable.			Qty: Add to cart

	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

17 on diagram	Data plate PART NUMBER: 974013-001			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

18 on diagram	Logo plate PART NUMBER: 974015-001			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

19 on diagram	Collect nut PART NUMBER: 973844-001			$14.24 In stock
				Qty: Add to cart

	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

20 on diagram	Indicator PART NUMBER: 970770-001			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

21 on diagram	Washer PART NUMBER: 931744-063			$2.16 In stock
	This item is not returnable.			Qty: Add to cart

	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

22 on diagram	Washer PART NUMBER: 703493-820			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

23 on diagram	Ret. plate PART NUMBER: 970720-202			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

24 on diagram	Screw PART NUMBER: 622931-008			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

25 on diagram	Comp. spring PART NUMBER: 970734-001			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

26 on diagram	Adj. knob PART NUMBER: 970717-002			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

27 on diagram	Lock knob PART NUMBER: 970715-002			$3.99 In stock
	This item is not returnable.			Qty: Add to cart

	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

28 on diagram	Sp. washer PART NUMBER: 622347-017			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

29 on diagram	Ret. ring PART NUMBER: 622167-070			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

30 on diagram	Stop bar PART NUMBER: 970718-002			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

31 on diagram	Pinion PART NUMBER: 970719-001			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

32 on diagram	Ring kit PART NUMBER: 989177-000			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

33 on diagram	Depth knob PART NUMBER: 970866-002 Substitution: 200438006 Learn why This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including 970866-002.			$23.68 In stock
				Qty: Add to cart
	View important details Depth knob PART NUMBER: 970866-002 Substitution: 200438006 This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including 970866-002. View full details
	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

34 on diagram	Comp sprng PART NUMBER: 971137-001 Substitution: 671271-001 Learn why This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including 971137-001.			$2.16 In stock
	This item is not returnable.			Qty: Add to cart
	View important details Comp sprng PART NUMBER: 971137-001 Substitution: 671271-001 This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including 971137-001. This item is not returnable. View full details
	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

35 on diagram	Nut 8pk PART NUMBER: 607406-005 Substitution: STD541037 Learn why This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including 607406-005.			$3.29 In stock
	This item is not returnable.			Qty: Add to cart
	View important details Nut 8pk PART NUMBER: 607406-005 Substitution: STD541037 This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including 607406-005. This item is not returnable. View full details
	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

36 on diagram	Washer PART NUMBER: 706382-817			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

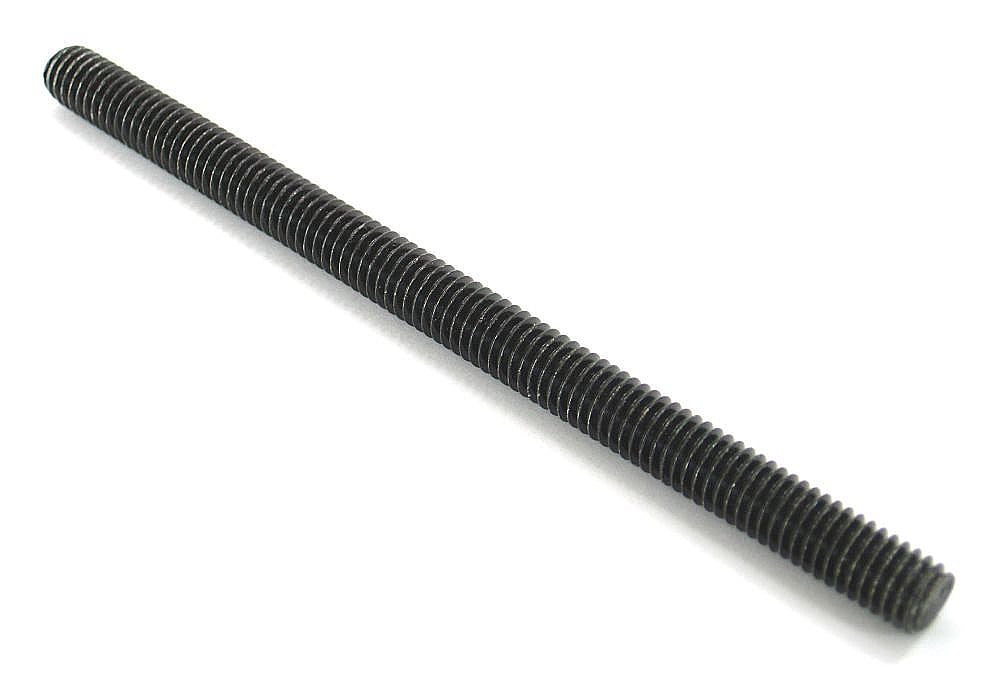

37 on diagram	Rod PART NUMBER: 970732-001			$2.16 In stock
	This item is not returnable.			Qty: Add to cart

	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

38 on diagram	C. shield PART NUMBER: 970864-001			$2.94 In stock
	This item is not returnable.			Qty: Add to cart

	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

39 on diagram	Flat-head screw PART NUMBER: 614658-010 Substitution: STD510803 Learn why This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including 614658-010.			$3.29 In stock
	This item is not returnable.			Qty: Add to cart
	View important details Flat-head screw PART NUMBER: 614658-010 Substitution: STD510803 This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including 614658-010. This item is not returnable. View full details
	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

40 on diagram	Subbase PART NUMBER: 970865-001			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

41 on diagram	Screw PART NUMBER: 622183-042			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

42 on diagram	Base assembly PART NUMBER: 970755-204			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

43 on diagram	Compression spring PART NUMBER: 970772-001			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

44 on diagram	Ball PART NUMBER: 967711-000			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

45 on diagram	Depth stop block (turret) PART NUMBER: 970722-005			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

46 on diagram	Nut 8pk PART NUMBER: 705404-801 Substitution: STD541010 Learn why This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including 705404-801.			$2.16 In stock
	This item is not returnable.			Qty: Add to cart
	View important details Nut 8pk PART NUMBER: 705404-801 Substitution: STD541010 This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including 705404-801. This item is not returnable. View full details
	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

47 on diagram	Screw (no. 10-24 x 1/2 in. cap soc. hd.)(see no... PART NUMBER: 940021-006			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

48 on diagram	Washer PART NUMBER: 706239-830			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

49 on diagram	Spring washer PART NUMBER: 622347-019			$2.16 In stock
	This item is not returnable.			Qty: Add to cart

	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

50 on diagram	Shoulder screw PART NUMBER: 970712-001			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

51 on diagram	Dust boot PART NUMBER: 970741-001			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

52 on diagram	Compression spring PART NUMBER: 970754-001			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

53 on diagram	Guide pin PART NUMBER: 970723-001			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

54 on diagram	Collett assy PART NUMBER: 974252-003			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

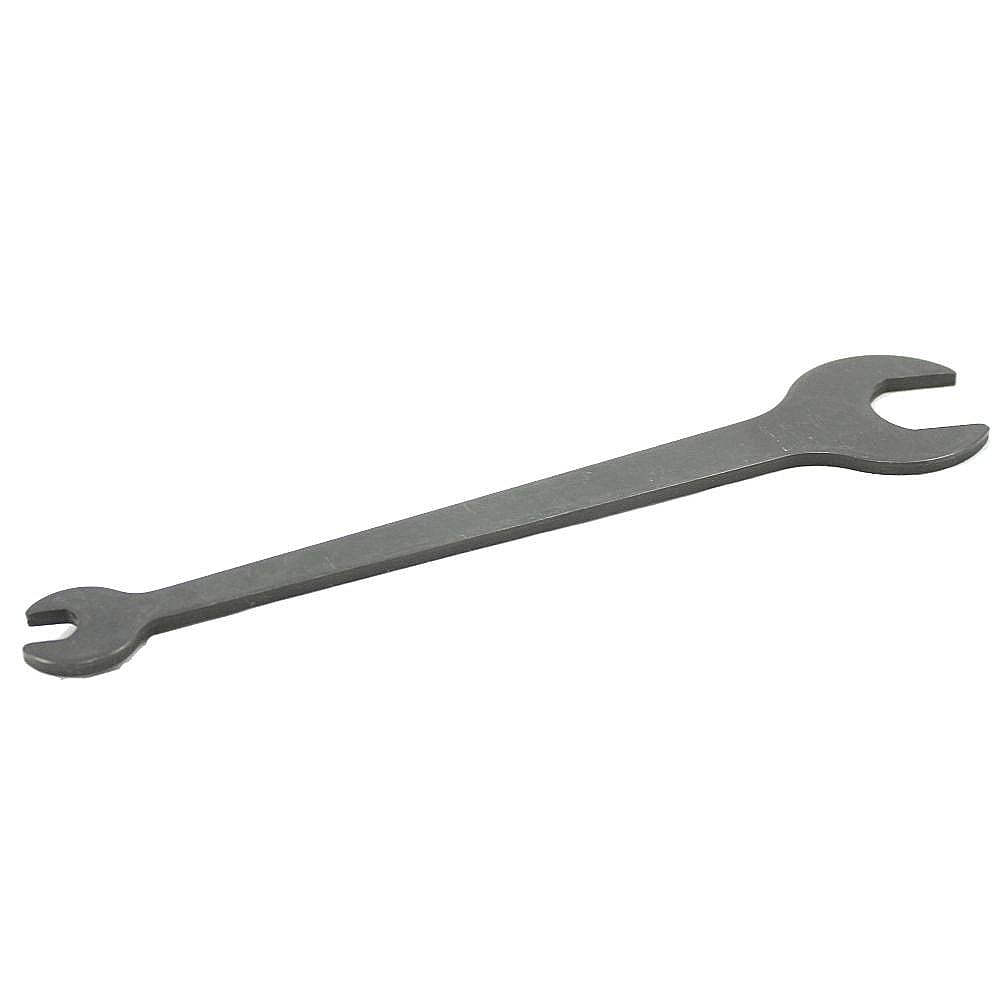

55 on diagram	Wrench PART NUMBER: 971121-001 Substitution: 974518-002 Learn why This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including 971121-001.			$6.56 In stock
	This item is not returnable.			Qty: Add to cart
	View important details Wrench PART NUMBER: 971121-001 Substitution: 974518-002 This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including 971121-001. This item is not returnable. View full details
	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

56 on diagram	Knob screw PART NUMBER: 970729-001			$2.99 In stock
	This item is not returnable.			Qty: Add to cart

	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

57 on diagram	Rol. guide PART NUMBER: 971705-001			$4.92 In stock
	This item is not returnable.			Qty: Add to cart

	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

58 on diagram	Sl. plate PART NUMBER: 971706-001			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

59 on diagram	Wing bolt PART NUMBER: 971308-001			$2.16 In stock
	This item is not returnable.			Qty: Add to cart

	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

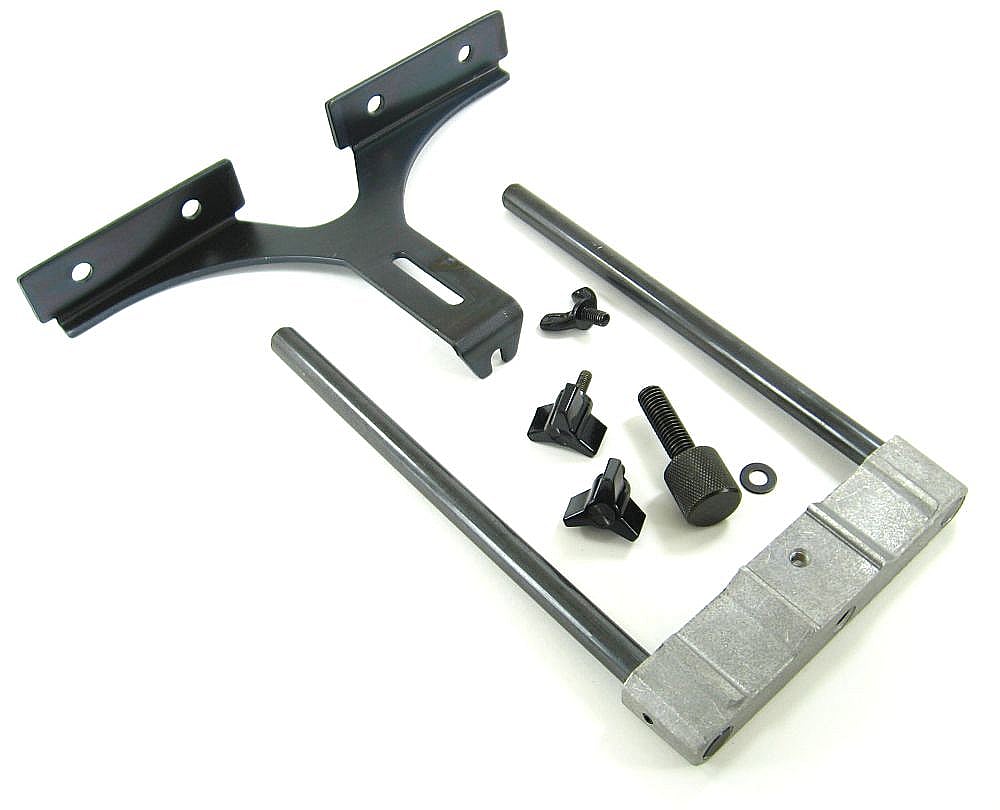

60 on diagram	Edge guide PART NUMBER: 969355-001			$10.30 In stock
				Qty: Add to cart

	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

61 on diagram	Guide hldr. PART NUMBER: 971311-001			$14.64 In stock
				Qty: Add to cart

	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

62 on diagram	Adjusting knob PART NUMBER: 971309-001			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

63 on diagram	Screw 8pk PART NUMBER: 606066-006 Substitution: STD601103 Learn why This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including 606066-006.			$3.16 In stock
	This item is not returnable.			Qty: Add to cart
	View important details Screw 8pk PART NUMBER: 606066-006 Substitution: STD601103 This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including 606066-006. This item is not returnable. View full details
	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

64 on diagram	G. bushing PART NUMBER: 971306-001			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

65 on diagram	Ret. ring PART NUMBER: 622167-071			$2.16 In stock
	This item is not returnable.			Qty: Add to cart

	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

66 on diagram	Shoulder screw PART NUMBER: 974096-001			$3.16 In stock
	This item is not returnable.			Qty: Add to cart

	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

67 on diagram	Retainer PART NUMBER: 607896-001			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

68 on diagram	Collet assy PART NUMBER: 974252-005			$16.32 In stock
				Qty: Add to cart

	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

69 on diagram	Guide bushing with nut (1/4 i. x 5/16 in.)(see ... PART NUMBER: 060721-630			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

70 on diagram	Gide bushing with nut (1/4 in. x 3/8 in.)(see n... PART NUMBER: 060721-530			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

71 on diagram	Guide bushing with nut (1/2 in. x 5/8 in.)(see ... PART NUMBER: 060721-430			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

72 on diagram	Bshing w/nut PART NUMBER: 060721-030			$13.62 In stock
				Qty: Add to cart

	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

73 on diagram	Guide bushing adapter (see note 3) PART NUMBER: 972160-001			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

74 on diagram	Adapter PART NUMBER: 969359-001			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

75 on diagram	Roller asy PART NUMBER: 969357-002			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

76 on diagram	Holder PART NUMBER: 972421-000			We're sorry. This item is no longer available.


	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0

Not on diagram	Owners man PART NUMBER: 972000-290R			$6.41 In stock
	This item is not returnable.			Qty: Add to cart
	View important details Owners man PART NUMBER: 972000-290R This item is not returnable. SHIPPING RESTRICTIONS Only ground shipment is available for this item. View full details
	Loading more information... We're sorry. Something has gone wrong on our end. Try your request again View full details
0
