WHIRLPOOL | Model #LA5700XMW0 | AUTOMATIC WASHER | DRIVE

Loading...

Back

Select the part you need.

Model #LA5700XMW0 - WHIRLPOOL Automatic washer

Drive - 96 part(s) included

Drive

Part List	View all part info

Diagram #

Part name

1	Nut 8pk
2	Cover, gusset (l.r.)
2A	Cover, gusset (r.r.)
2B	Cover, gusset (l.f.)
3	Ball, suspension (6)
4	Rod, suspension (3)
5	Baseplate & centerpost
6	Screw
7	Brace, baseplate
8	Nut 8pk
9	Magnet, control
9A	Magnet, 240 volt (use w/model 3la5700xmw0)
10	Screw, taper end
11	Cam bar guide
12	Bar cam
13	Drive belt
14	Thumb screw
15	Brake spring
16	Bar cam
17	Plunger
18	Rivet
19	Spring
20	Basket drive & brake (for further breakdown ref...
21	Bearing
22	Washer
23	Pin, roll
24	Roller, basket clutch shaft
25	Shaft
26	Gearcase (for further breakdown refer to page 10)
27	Pad, gusset cover (4)
28	Seal
29	Bolt, 5/16 x 1 (3)
29A	Carr bolt
29B	Carr bolt
30	Shaft
31	Gasket, tub (7)
32	Bearing
33	Seal
34	Clip
35	Retainer
36	Bearing
37	Screw
38	Pulley
39	Locknut, 3/8-16
40	Bracket, motor mounting
41	Nut (4)
42	Grommet
43	Pulley, motor (60 hz.)
43A	Pulley, motor (50 hz.)
44	Shield, motor (upper)
45	Washer, motor mounting (4) (use w/362190 & 3572...
46	Mtrbrkt
46A	Motor, 50 hz. (general electric) (start switch ...
46B	Motor, 50 hz. (218 volts) (emerson) (use w/mode...
47	189-227m125v
48	Clamp
49	Screw
50	Bearing
51	Bolt
52	Bracket, motor mounting
53	Nut, 3/8-16
55	Shield, motor
56	Switch, motor start (use w/emerson motor)
56A	Switch, motor start (use w/general electric motor)
57	Wire, jumper (use w/357282 motor)
58	Brace, manifold (1)
58A	Brace, motor (1)
59	Spacer, stud & gearcase
60	Screw cap
61	Bearing
Not on diagram	Appliance touch-up paint - platinum (single bot...
Not on diagram	Appliance touch-up paint - toast (single bottle)
Not on diagram	Appliance touch-up paint - gold harvest (single...
Not on diagram	Appliance touch-up paint - almond
Not on diagram	Appliance touch-up paint - white (single bottle)
Not on diagram	Spray
Not on diagram	Spray
Not on diagram	Spray
Not on diagram	Paint, bulk (1 qt.) (white (uncut))
Not on diagram	Paint
Not on diagram	Spray
Not on diagram	Paint to
Not on diagram	Spray
Not on diagram	Spray
Not on diagram	Label, energy guide (suds)
Not on diagram	Label, energy guide (non-suds)
Not on diagram	Guide, laundry
Not on diagram	Guide, use & care (use w/models 2la5700xmw0 & 3...
Not on diagram	Guide, use & care
Not on diagram	List, repair parts
Not on diagram	Instructions, installation (use w/models 2la570...
Not on diagram	Sheet, installation instructions
Not on diagram	Thinner (1 gal.)
Not on diagram	Leveler (thinner)
Not on diagram	Platinum (uncut)
Not on diagram	Golden harvest (uncut)

Rollover image to view larger

View full size

Print diagram print

Part Info
Diagram #		Part name	Price
0 1 on diagram	Image not available	Nut 8pk Number: 90984 Substitution: STD541031 Size: 1.00L x 1.20W x 0.30H Manufacturer authorized substitution: STD541031 may differ in appearance, but is a functional equivalent to prior parts including 90984.	$2.16 In stock Quantity: Add to cart
0 2 on diagram	Image not available	Cover, gusset (l.r.) Number: 352143 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 2A on diagram	Image not available	Cover, gusset (r.r.) Number: 94114 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 2B on diagram	Image not available	Cover, gusset (l.f.) Number: 353230 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 3 on diagram	Image not available	Ball, suspension (6) Number: 91073 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 4 on diagram	Image not available	Rod, suspension (3) Number: 82584 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 5 on diagram	Image not available	Baseplate & centerpost Number: 358949 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 6 on diagram	Image not available	Screw Number: 98062 Substitution: 3400516 Size: 1.00L x 0.75W x 0.75H Manufacturer authorized substitution: 3400516 may differ in appearance, but is a functional equivalent to prior parts including 98062.	$5.38 In stock Quantity: Add to cart
0 7 on diagram	Image not available	Brace, baseplate Number: 353301 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 8 on diagram	Image not available	Nut 8pk Number: 96101 Substitution: STD541531 Size: 1.90L x 1.80W x 0.30H Manufacturer authorized substitution: STD541531 may differ in appearance, but is a functional equivalent to prior parts including 96101.	$2.16 In stock Quantity: Add to cart
0 9 on diagram	Image not available	Magnet, control Number: 365998 Substitution: 84867 Size: 4.75L x 4.25W x 5.88H Manufacturer authorized substitution: 84867 may differ in appearance, but is a functional equivalent to prior parts including 365998.	$31.99 In stock Quantity: Add to cart
0 9A on diagram	Image not available	Magnet, 240 volt (use w/model 3la5700xmw0) Number: 86920 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 10 on diagram	Image not available	Screw, taper end Number: 16135 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 11 on diagram	Image not available	Cam bar guide Number: 95462 Size: 7.50L x 4.87W x 0.50H	$12.50 In stock Quantity: Add to cart
0 12 on diagram		Bar cam Number: 354838 Substitution: 350532 Size: 10.25L x 1.00W x 0.12H Manufacturer authorized substitution: 350532 may differ in appearance, but is a functional equivalent to prior parts including 354838.	$21.69 In stock Quantity: Add to cart

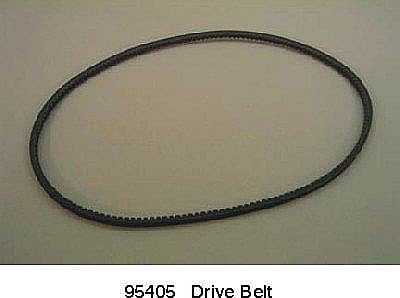

0 13 on diagram		Drive belt Number: 95405 Size: 6.00L x 5.62W x 1.50H	$24.33 Backordered Quantity: Add to cart
0 14 on diagram	Image not available	Thumb screw Number: 98001 Substitution: STD622505 Size: 1.90L x 1.30W x 0.70H Manufacturer authorized substitution: STD622505 may differ in appearance, but is a functional equivalent to prior parts including 98001.	$2.16 In stock Quantity: Add to cart
0 15 on diagram	Image not available	Brake spring Number: 94726 Size: 4.00L x 1.00W x 0.25H	$2.20 In stock Quantity: Add to cart
0 16 on diagram	Image not available	Bar cam Number: 18642 Size: 9.25L x 1.00W x 0.12H	$19.03 In stock Quantity: Add to cart
0 17 on diagram	Image not available	Plunger Number: 84866 Substitution: 350384 Size: 3.00L x 2.12W x 0.75H Manufacturer authorized substitution: 350384 may differ in appearance, but is a functional equivalent to prior parts including 84866.	$29.99 In stock Quantity: Add to cart
0 18 on diagram	Image not available	Rivet Number: 354959 Substitution: 285132 Size: 3.00L x 4.00W x 0.12H Manufacturer authorized substitution: 285132 may differ in appearance, but is a functional equivalent to prior parts including 354959.	$5.03 In stock Quantity: Add to cart
0 19 on diagram	Image not available	Spring Number: 17261 Size: 2.75L x 0.75W x 0.50H	$4.07 In stock Quantity: Add to cart
0 20 on diagram	Image not available	Basket drive & brake (for further breakdown ref... Number: 358364 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 21 on diagram	Image not available	Bearing Number: 358586 Substitution: 350920 Size: 1.75L x 1.75W x 1.25H Manufacturer authorized substitution: 350920 may differ in appearance, but is a functional equivalent to prior parts including 358586.	$7.13 In stock Quantity: Add to cart
0 22 on diagram	Image not available	Washer Number: 90315 Size: 0.75L x 0.75W x 0.12H	$4.20 In stock Quantity: Add to cart
0 23 on diagram	Image not available	Pin, roll Number: 90532 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 24 on diagram	Image not available	Roller, basket clutch shaft Number: 92119	$2.16 In stock Quantity: Add to cart
0 25 on diagram	Image not available	Shaft Number: 359460 Substitution: 285068 Manufacturer authorized substitution: 285068 may differ in appearance, but is a functional equivalent to prior parts including 359460.	$44.49 In stock Quantity: Add to cart
0 26 on diagram		Gearcase (for further breakdown refer to page 10) Number: 362901 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 27 on diagram	Image not available	Pad, gusset cover (4) Number: 352434 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 28 on diagram		Seal Number: 356934 Size: 1.50L x 1.50W x 1.00H	$4.93 In stock Quantity: Add to cart
0 29 on diagram	Image not available	Bolt, 5/16 x 1 (3) Number: 126358 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 29A on diagram	Image not available	Carr bolt Number: 126211 Substitution: STD533107 Size: 0.50L x 0.80W x 0.10H Manufacturer authorized substitution: STD533107 may differ in appearance, but is a functional equivalent to prior parts including 126211.	$2.16 In stock Quantity: Add to cart
0 29B on diagram	Image not available	Carr bolt Number: 353770 Substitution: STD533110 Size: 0.20L x 1.00W x 0.60H Manufacturer authorized substitution: STD533110 may differ in appearance, but is a functional equivalent to prior parts including 353770.	$2.16 In stock Quantity: Add to cart
0 30 on diagram	Image not available	Shaft Number: 98048 Substitution: STD623112 Size: 2.70L x 1.20W x 0.30H Manufacturer authorized substitution: STD623112 may differ in appearance, but is a functional equivalent to prior parts including 98048.	$2.16 In stock Quantity: Add to cart
0 31 on diagram	Image not available	Gasket, tub (7) Number: 17235 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 32 on diagram	Image not available	Bearing Number: 54207 Substitution: 8546455 Size: 2.00L x 1.00W x 2.00H Manufacturer authorized substitution: 8546455 may differ in appearance, but is a functional equivalent to prior parts including 54207.	$9.64 In stock Quantity: Add to cart
0 33 on diagram	Image not available	Seal Number: 660943 Substitution: 359449 Size: 1.50L x 1.50W x 0.25H Manufacturer authorized substitution: 359449 may differ in appearance, but is a functional equivalent to prior parts including 660943.	$6.06 In stock Quantity: Add to cart
0 34 on diagram	Image not available	Clip Number: 16515 Size: 1.00L x 1.00W x 0.03H	$4.41 In stock Quantity: Add to cart
0 35 on diagram	Image not available	Retainer Number: 356444 Size: 0.75L x 0.75W x 0.50H	$5.03 In stock Quantity: Add to cart
0 36 on diagram	Image not available	Bearing Number: 358585 Substitution: 350920 Size: 1.75L x 1.75W x 1.25H Manufacturer authorized substitution: 350920 may differ in appearance, but is a functional equivalent to prior parts including 358585.	$7.13 In stock Quantity: Add to cart
0 37 on diagram	Image not available	Screw Number: 355345 Size: 0.50L x 0.25W x 0.25H	$4.20 In stock Quantity: Add to cart
0 38 on diagram		Pulley Number: 360840 Size: 6.62L x 6.43W x 7.68H	$94.77 In stock Quantity: Add to cart
0 39 on diagram	Image not available	Locknut, 3/8-16 Number: 96016 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 40 on diagram	Image not available	Bracket, motor mounting Number: 85286 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 41 on diagram	Image not available	Nut (4) Number: 98023 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 42 on diagram	Image not available	Grommet Number: 19138	$2.16 In stock Quantity: Add to cart
0 43 on diagram	Image not available	Pulley, motor (60 hz.) Number: 357514 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 43A on diagram	Image not available	Pulley, motor (50 hz.) Number: 93219 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 44 on diagram	Image not available	Shield, motor (upper) Number: 356217 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 45 on diagram	Image not available	Washer, motor mounting (4) (use w/362190 & 3572... Number: 92217 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 46 on diagram	Image not available	Mtrbrkt Number: 660198 Substitution: 285222 Size: 13.37L x 6.62W x 7.25H Manufacturer authorized substitution: 285222 may differ in appearance, but is a functional equivalent to prior parts including 660198.	$127.88 In stock Quantity: Add to cart
0 46A on diagram	Image not available	Motor, 50 hz. (general electric) (start switch ... Number: 362190 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 46B on diagram	Image not available	Motor, 50 hz. (218 volts) (emerson) (use w/mode... Number: 357282 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 47 on diagram		189-227m125v Number: 357021 Substitution: STD376118 Size: 1.60L x 1.50W x 3.60H Manufacturer authorized substitution: STD376118 may differ in appearance, but is a functional equivalent to prior parts including 357021.	$5.49 In stock Quantity: Add to cart
0 48 on diagram	Image not available	Clamp Number: 357030 Size: 1.50L x 0.87W x 1.87H	$5.03 In stock Quantity: Add to cart
0 49 on diagram	Image not available	Screw Number: 9420601 Substitution: 3390631 Size: 1.10L x 1.00W x 1.00H Manufacturer authorized substitution: 3390631 may differ in appearance, but is a functional equivalent to prior parts including 9420601.	$4.31 In stock Quantity: Add to cart
0 50 on diagram	Image not available	Bearing Number: 354195 Substitution: 359397 Size: 1.50L x 1.50W x 0.75H Manufacturer authorized substitution: 359397 may differ in appearance, but is a functional equivalent to prior parts including 354195.	$13.97 In stock Quantity: Add to cart
0 51 on diagram	Image not available	Bolt Number: 98537 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 52 on diagram	Image not available	Bracket, motor mounting Number: 93549 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 53 on diagram	Image not available	Nut, 3/8-16 Number: 95721 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 55 on diagram	Image not available	Shield, motor Number: 357571 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 56 on diagram	Image not available	Switch, motor start (use w/emerson motor) Number: 362738 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 56A on diagram	Image not available	Switch, motor start (use w/general electric motor) Number: 359642 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 57 on diagram	Image not available	Wire, jumper (use w/357282 motor) Number: 370950 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 58 on diagram	Image not available	Brace, manifold (1) Number: 351500 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 58A on diagram	Image not available	Brace, motor (1) Number: 351499 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 59 on diagram	Image not available	Spacer, stud & gearcase Number: 16062 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 60 on diagram	Image not available	Screw cap Number: 90877 Substitution: STD623720 Size: 3.00L x 1.50W x 0.60H Manufacturer authorized substitution: STD623720 may differ in appearance, but is a functional equivalent to prior parts including 90877.	$2.16 In stock Quantity: Add to cart
0 61 on diagram		Bearing Number: 285134 Size: 4.25L x 2.75W x 2.00H	$27.74 In stock Quantity: Add to cart
0 Not on diagram		Appliance touch-up paint - platinum (single bot... Number: 72113 Size: 2.37L x 1.00W x 1.00H Color: Platinum	$8.56 In stock Quantity: Add to cart
0 Not on diagram		Appliance touch-up paint - toast (single bottle) Number: 72112 Size: 2.37L x 1.00W x 1.00H Color: Toast	$3.99 In stock Quantity: Add to cart
0 Not on diagram		Appliance touch-up paint - gold harvest (single... Number: 72110 Size: 2.50L x 1.00W x 1.00H Color: Gold harvest	$5.09 In stock Quantity: Add to cart
0 Not on diagram		Appliance touch-up paint - almond Number: 72107 Size: 2.37L x 1.00W x 1.00H Color: Almond	$8.34 In stock Quantity: Add to cart
0 Not on diagram		Appliance touch-up paint - white (single bottle) Number: 72017 Size: 2.37L x 1.12W x 1.12H Color: White	$8.27 In stock Quantity: Add to cart
0 Not on diagram		Spray Number: 261890 Size: 2.62L x 2.62W x 7.75H Color: Gold harvest	$10.70 In stock Quantity: Add to cart
0 Not on diagram		Spray Number: 350956 Size: 7.87L x 2.75W x 2.75H Color: Almond	$10.46 In stock Quantity: Add to cart
0 Not on diagram		Spray Number: 350930 Size: 7.87L x 2.75W x 2.75H Color: White	$10.46 In stock Quantity: Add to cart
0 Not on diagram	Image not available	Paint, bulk (1 qt.) (white (uncut)) Number: 799344 Size: 4.50L x 4.50W x 5.00H Color: White Manufacturer authorized substitution: 799344 may differ in appearance, but is a functional equivalent to prior parts.	$77.88 In stock Quantity: Add to cart
0 Not on diagram	Image not available	Paint Number: 978883 Size: 4.50L x 4.50W x 5.00H Color: Almond Manufacturer authorized substitution: 978883 may differ in appearance, but is a functional equivalent to prior parts.	$71.36 In stock Quantity: Add to cart
0 Not on diagram	Image not available	Spray Number: 350938 Size: 2.50L x 2.50W x 7.75H Color: Gray	$10.45 In stock Quantity: Add to cart
0 Not on diagram	Image not available	Paint to Number: 285367 Size: 4.25L x 4.25W x 5.00H	$87.99 In stock Quantity: Add to cart
0 Not on diagram	Image not available	Spray Number: 285366 Size: 8.12L x 2.62W x 2.62H Color: Platinum	$11.24 In stock Quantity: Add to cart
0 Not on diagram	Image not available	Spray Number: 285365 Size: 2.62L x 2.62W x 7.75H Color: Toast	$11.24 In stock Quantity: Add to cart
0 Not on diagram	Image not available	Label, energy guide (suds) Number: 386179	Call for availability (800) 252-1698
0 Not on diagram	Image not available	Label, energy guide (non-suds) Number: 386164	Call for availability (800) 252-1698
0 Not on diagram	Image not available	Guide, laundry Number: 385238	Call for availability (800) 252-1698
0 Not on diagram	Image not available	Guide, use & care (use w/models 2la5700xmw0 & 3... Number: 385026	Call for availability (800) 252-1698
0 Not on diagram	Image not available	Guide, use & care Number: 385025	Call for availability (800) 252-1698
0 Not on diagram	Image not available	List, repair parts Number: 384807	Call for availability (800) 252-1698
0 Not on diagram	Image not available	Instructions, installation (use w/models 2la570... Number: 383975	Call for availability (800) 252-1698
0 Not on diagram	Image not available	Sheet, installation instructions Number: 378953	Call for availability (800) 252-1698
0 Not on diagram	Image not available	Thinner (1 gal.) Number: 799351 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 Not on diagram	Image not available	Leveler (thinner) Number: 350941 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 Not on diagram	Image not available	Platinum (uncut) Number: 285368 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
0 Not on diagram	Image not available	Golden harvest (uncut) Number: 261891 We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.
