Select the part you need.

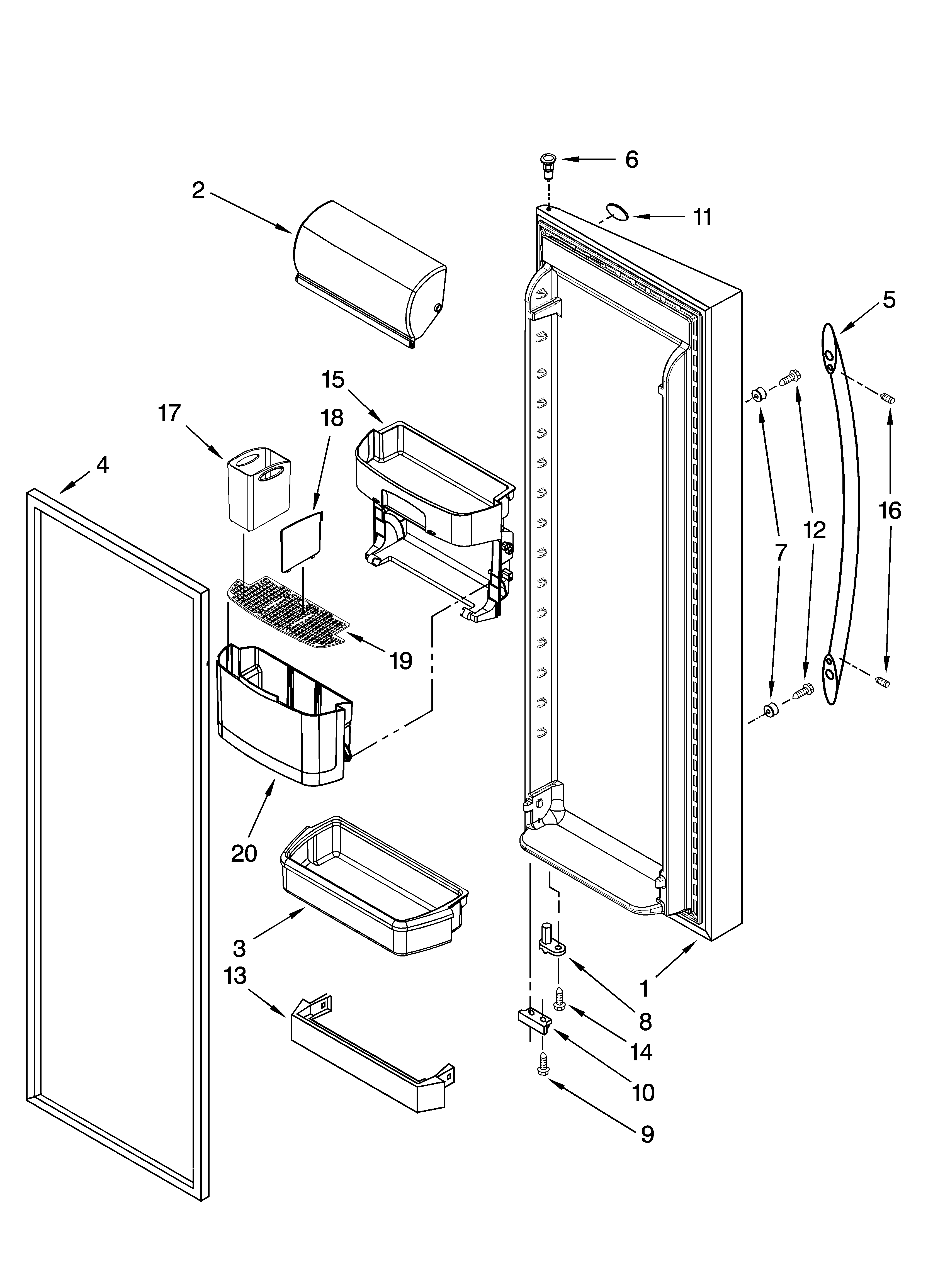

Model #10657864800 - KENMORE ELITE Refrigerator

Rollover image to view larger

View full size Print diagramprint

Part Info
Diagram #   Part name Price
1 on diagram
Refrigerator door (includes item 6) (white)
Number:
2325211W
Substitution:
L2325211W
Size:
73.50L x 23.50W x 11.75H

Manufacturer authorized substitution: L2325211W may differ in appearance, but is a functional equivalent to prior parts including 2325211W.

$484.94 In stock
1A on diagram
Refrigerator door (includes item 6) (bisque)
Number:
2325211T
Substitution:
L2325211T

Manufacturer authorized substitution: L2325211T may differ in appearance, but is a functional equivalent to prior parts including 2325211T.

$484.94 In stock
1B on diagram
Refrigerator door (includes item 6) (black)
Number:
2325211B
Substitution:
L2325211B

Manufacturer authorized substitution: L2325211B may differ in appearance, but is a functional equivalent to prior parts including 2325211B.

$484.94 In stock
1C on diagram
Stainless door panel
Number:
2325211LA
Substitution:
L2325211LA

Manufacturer authorized substitution: L2325211LA may differ in appearance, but is a functional equivalent to prior parts including 2325211LA.

$484.94 In stock
1D on diagram
Refrigerator door (includes item 6) (stainless ...
Number:
2325211SA
Substitution:
L2325211SA
Size:
73.00L x 23.50W x 12.00H

Manufacturer authorized substitution: L2325211SA may differ in appearance, but is a functional equivalent to prior parts including 2325211SA.

$484.94 In stock
2 on diagram
Compartment door
Number:
2256101
Size:
15.25L x 5.18W x 5.37H
$29.32 In stock
3 on diagram
Cantilever bin
Number:
W10160952
Size:
6.00L x 5.00W x 6.00H
$13.13 Backordered
4 on diagram
Freezer door gasket
Number:
2309600
Substitution:
2159073
Size:
63.00L x 1.00W x 19.75H

Manufacturer authorized substitution: 2159073 may differ in appearance, but is a functional equivalent to prior parts including 2309600.

$123.35 In stock
4A on diagram
Freezer door gasket
Number:
2309653
Substitution:
2159081
Size:
62.37L x 19.75W x 1.00H

Manufacturer authorized substitution: 2159081 may differ in appearance, but is a functional equivalent to prior parts including 2309653.

$82.94 In stock
4B on diagram
Gasket-fip
Number:
2327161
Substitution:
W10136732

Manufacturer authorized substitution: W10136732 may differ in appearance, but is a functional equivalent to prior parts including 2327161.

$120.78 In stock
5 on diagram
Handle
Number:
W10175880
$48.14 In stock
5A on diagram
Handle
Number:
W10167220
$48.14 In stock
5B on diagram
Handle
Number:
W10167221
$48.14 In stock
5C on diagram
Handle
Number:
W10155178
Substitution:
W10210941
Size:
31.10L x 3.50W x 0.75H

Manufacturer authorized substitution: W10210941 may differ in appearance, but is a functional equivalent to prior parts including W10155178.

$61.15 In stock
6 on diagram
Thimble-top
Number:
2200087

We're sorry. This part is no longer available. No alternate or substitute part has been recommended by the manufacturer.

7 on diagram
Screw
Number:
2326259
Substitution:
W10170540

Manufacturer authorized substitution: W10170540 may differ in appearance, but is a functional equivalent to prior parts including 2326259.

$4.62 In stock
8 on diagram
Door cam
Number:
2182178
Substitution:
2182179
Size:
1.62L x 1.25W x 0.87H

Manufacturer authorized substitution: 2182179 may differ in appearance, but is a functional equivalent to prior parts including 2182178.

$5.20 In stock
9 on diagram
Screw
Number:
489420
Substitution:
489483
Size:
0.75L x 0.37W x 0.37H

Manufacturer authorized substitution: 489483 may differ in appearance, but is a functional equivalent to prior parts including 489420.

$5.03 In stock
10 on diagram
Bracket
Number:
2200082
Size:
1.75L x 2.70W x 1.00H
$5.03 In stock
10A on diagram
Bracket
Number:
2200082B
Size:
3.13L x 1.00W x 1.13H
$7.09 In stock
11 on diagram
Nameplate
Number:
13056601
Call for availability
(800) 252-1698
12 on diagram
Screw (3)
Number:
488208
Substitution:
488163
Size:
0.25L x 0.25W x 1.12H

Manufacturer authorized substitution: 488163 may differ in appearance, but is a functional equivalent to prior parts including 488208.

$5.28 In stock
13 on diagram
Trivet
Number:
2309941
$6.24 In stock
14 on diagram
Screw
Number:
3400012
Size:
0.62L x 0.37W x 0.37H
$5.03 In stock
15 on diagram
Bin assy - fruit fruit
Number:
W10159681
$66.52 In stock
16 on diagram
Screw
Number:
W10010140
Size:
0.37L x 0.25W x 0.25H
$5.28 In stock
17 on diagram
Bin
Number:
W10159644
$10.97 In stock
18 on diagram
Divider, bin (2)
Number:
W10159645
$17.84 In stock
19 on diagram
Strainer bin, fruit
Number:
W10159643
$4.71 In stock
20 on diagram
Bin
Number:
W10159666
Size:
18.62L x 9.62W x 11.62H
$44.26 In stock
