Kenmore
Faucet Water Filter

Model # 625347120 Official Kenmore home drinking water system

Here are the diagrams and repair parts for Official Kenmore 625347120 home drinking water system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Water Softener Filter Screen (replaces Ws03x10015, Ws3x10015) 7095030
#46

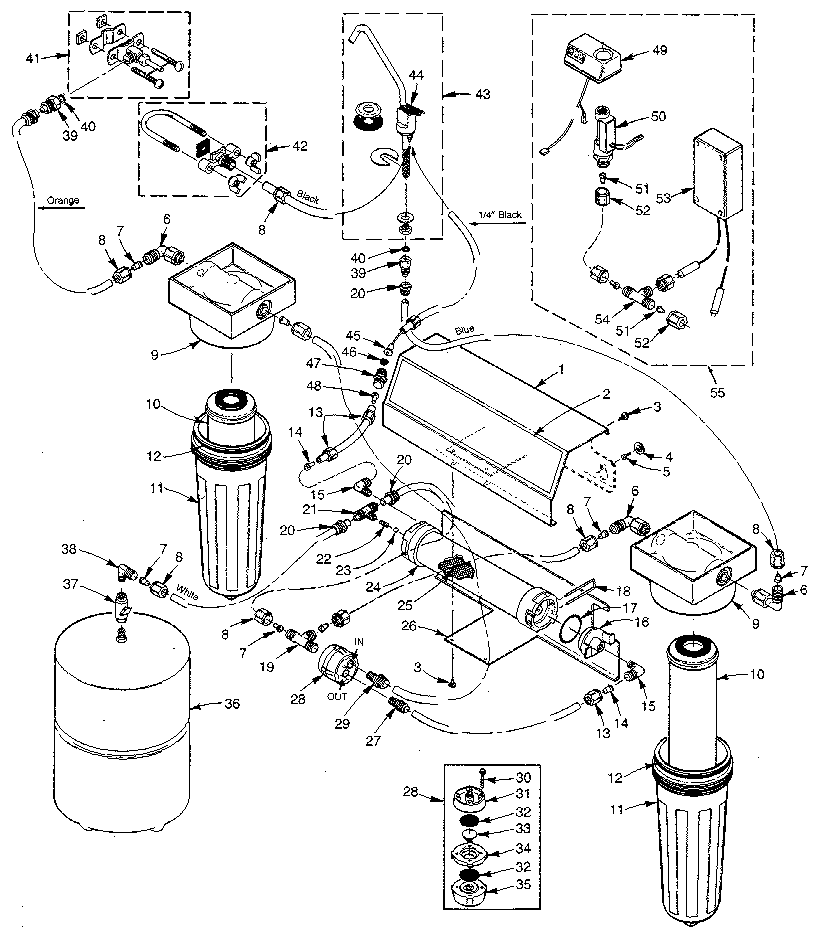

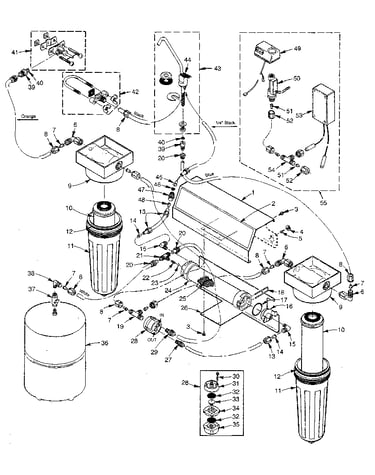

Undersink reverse osmosis diagram

Water softener filter screen (replaces ws03x10015, ws3x10015)

Part #7095030

BEST SELLER
$24.59 |
17% OFF Phone Price : $29.59
In Stock
Reverse Osmosis System Valve Diaphragm (replaces 7005750, 7063693, Ws22x10009) 7099296
#32

Undersink reverse osmosis diagram

Reverse osmosis system valve diaphragm (replaces 7005750, 7063693, ws22x10009)

Part #7099296

This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
In Stock
Shutoff Valv 7100429
#37

Undersink reverse osmosis diagram

Shutoff valv

Part #7100429

Replaced by #7251034

?
Manufacturer substitution
This part replaces 7100429. Substitute parts can look different from the original.
$44.49 |
10% OFF Phone Price : $49.49
In Stock
Mem Crtridge 42-34988
#25

Undersink reverse osmosis diagram

Mem crtridge

Part #42-34988

Replaced by #7221217

?
Manufacturer substitution
This part replaces 42-34988. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$100.09 |
9% OFF Phone Price : $110.09
In Stock
Tube Insert 9021501
#14

Undersink reverse osmosis diagram

Tube insert

Part #9021501

Replaced by #7131331

?
Manufacturer substitution
This part replaces 9021501. Substitute parts can look different from the original.
This item is not returnable
$4.62
In Stock
Nut Tube 9043201
#20

Undersink reverse osmosis diagram

Nut tube

Part #9043201

Replaced by #7207920

?
Manufacturer substitution
This part replaces 9043201. Substitute parts can look different from the original.
This item is not returnable
$19.69 |
9% OFF Phone Price : $21.69
In Stock
Tubing Insert 9021500
Tubing insert

Part #9021500

Replaced by #7131349

?
Manufacturer substitution
This part replaces 9021500. Substitute parts can look different from the original.
$8.19 |
11% OFF Phone Price : $9.19
In Stock
Sump 7065394
#11

Undersink reverse osmosis diagram

Sump

Part #7065394

$62.99
In Stock
Bracket 7103118
#26

Undersink reverse osmosis diagram

Bracket

Part #7103118

$24.99
In Stock
Check Ball 9000702
#23

Undersink reverse osmosis diagram

Check ball

Part #9000702

This item is not returnable
$2.49
In Stock
