GE
Wine & Beverage Cooler

Model # ZIW30GNZAII Official GE wine cooler

Here are the diagrams and repair parts for Official GE ZIW30GNZAII wine cooler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

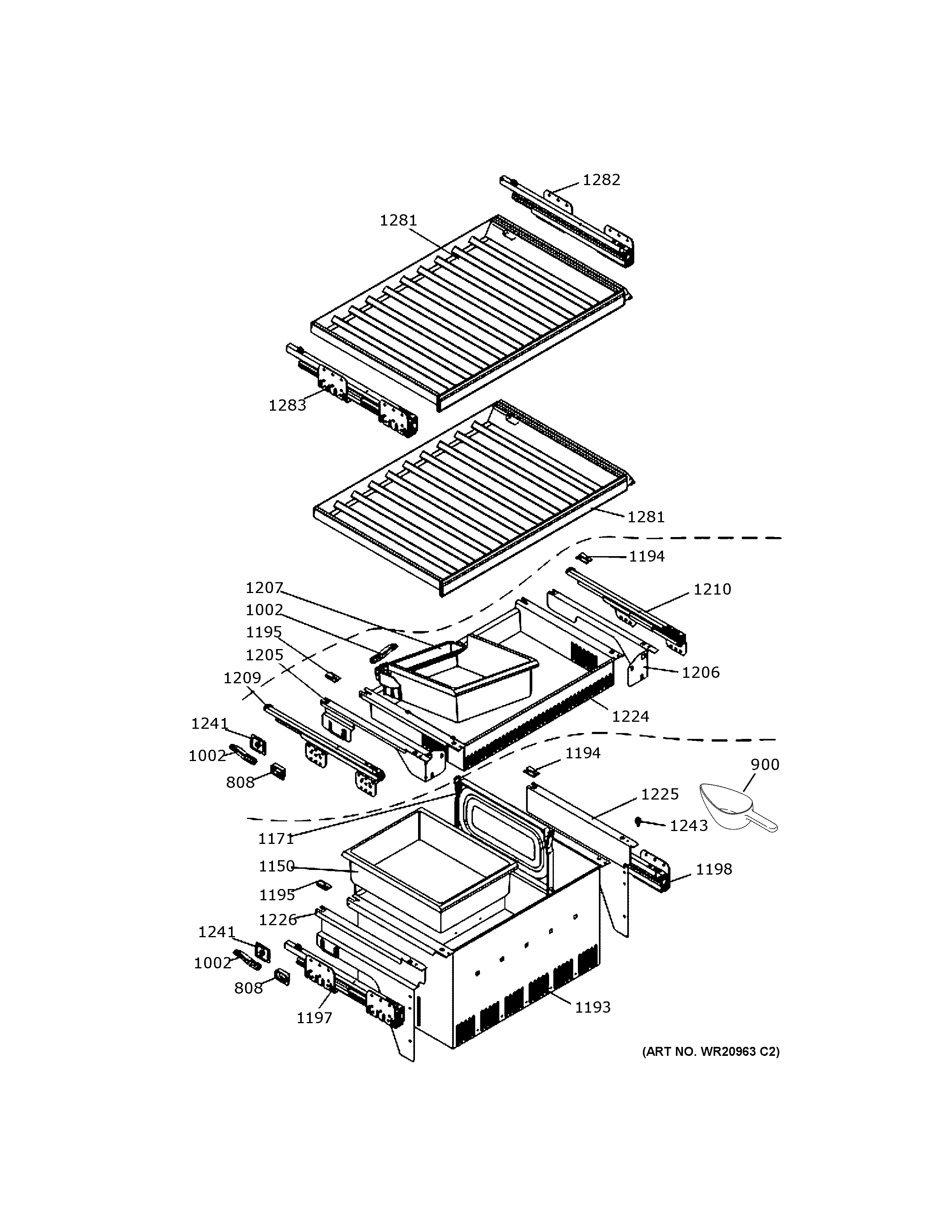

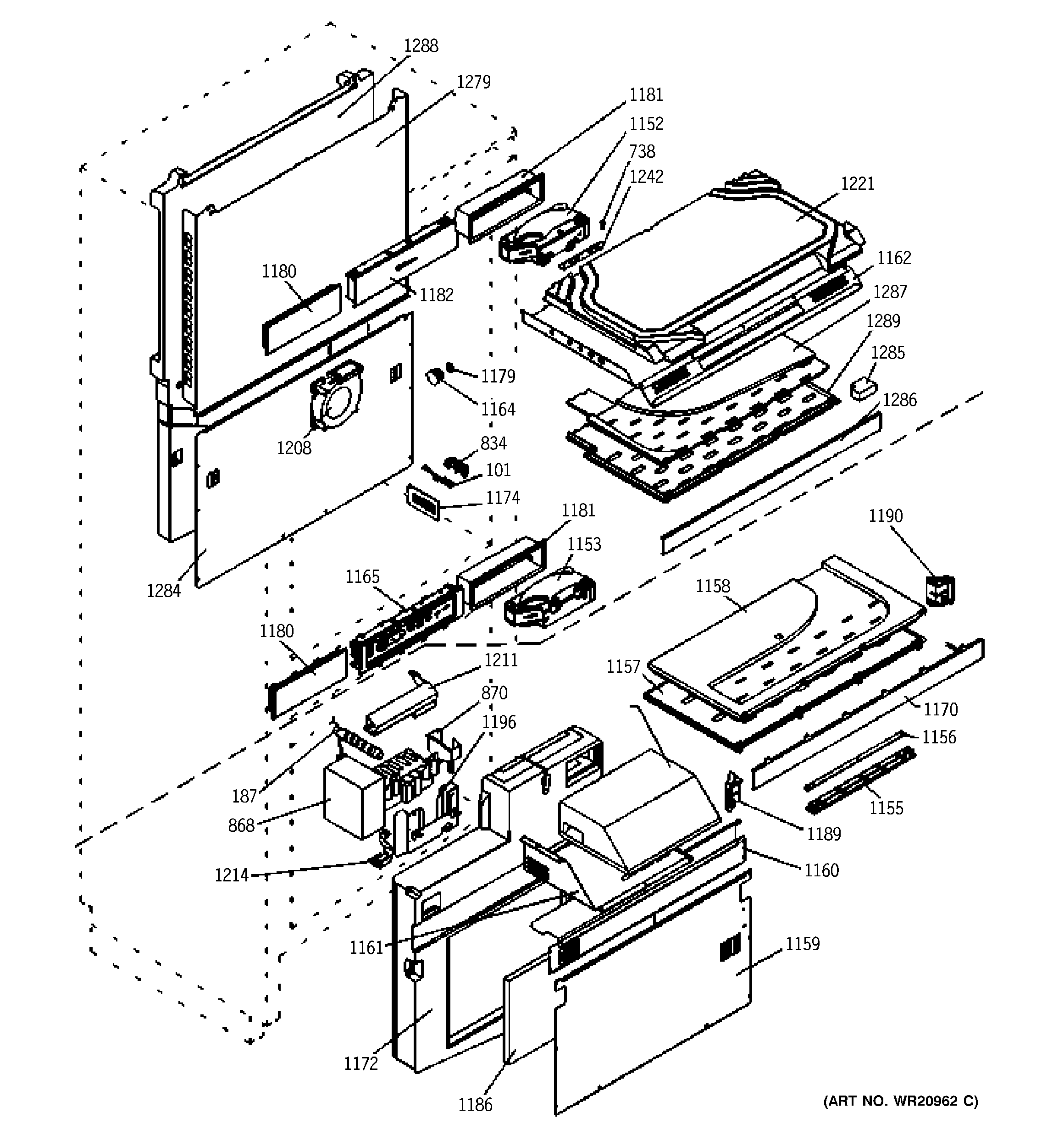

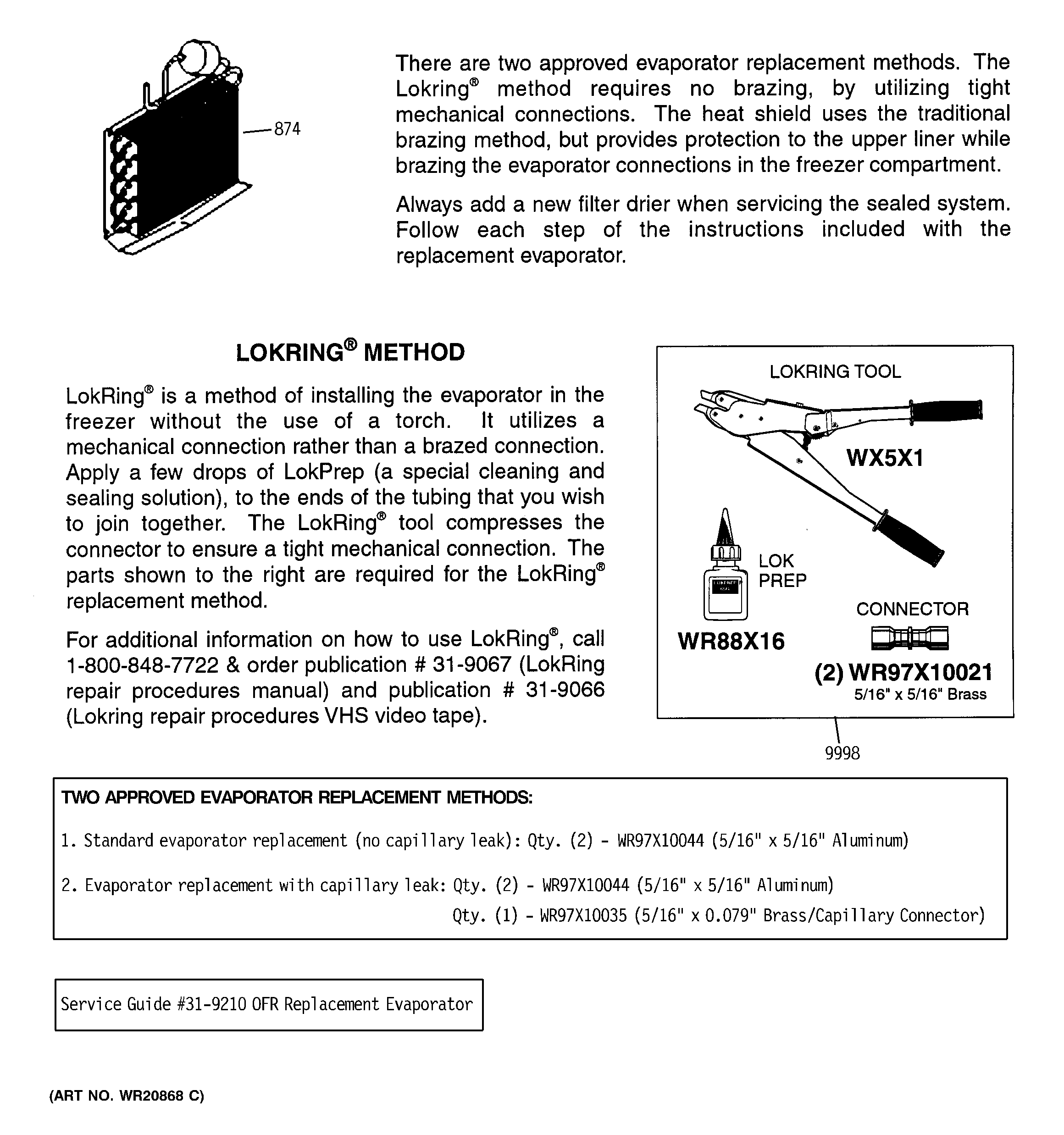

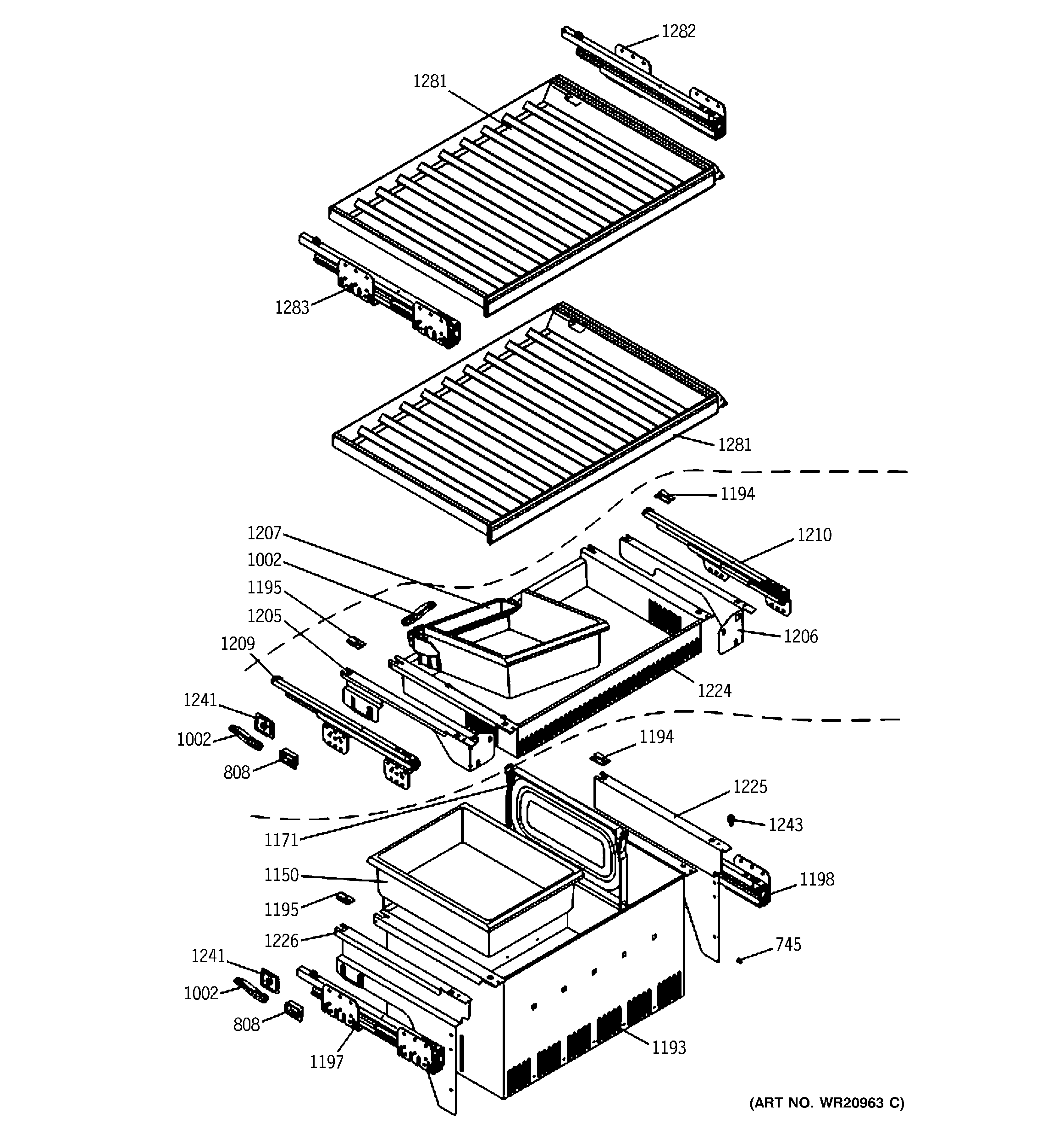

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 112 parts  |
Refrigerator Door Gasket WR24X10270
Refrigerator door gasket

Part #WR24X10270

Replaced by #WR24X32132

?
Manufacturer substitution
This part replaces WR24X10270. Substitute parts can look different from the original.
$180.60
In Stock
Heater, Drai WR02X13470
Heater, drai

Part #WR02X13470

$137.34 |
7% OFF Phone Price : $147.34
In Stock
Refrigerator Defrost Thermal Fuse WR23X10704
Refrigerator defrost thermal fuse

Part #WR23X10704

$162.35 |
6% OFF Phone Price : $172.35
In Stock
Refrigerator Condenser Fan WR60X10338
#602

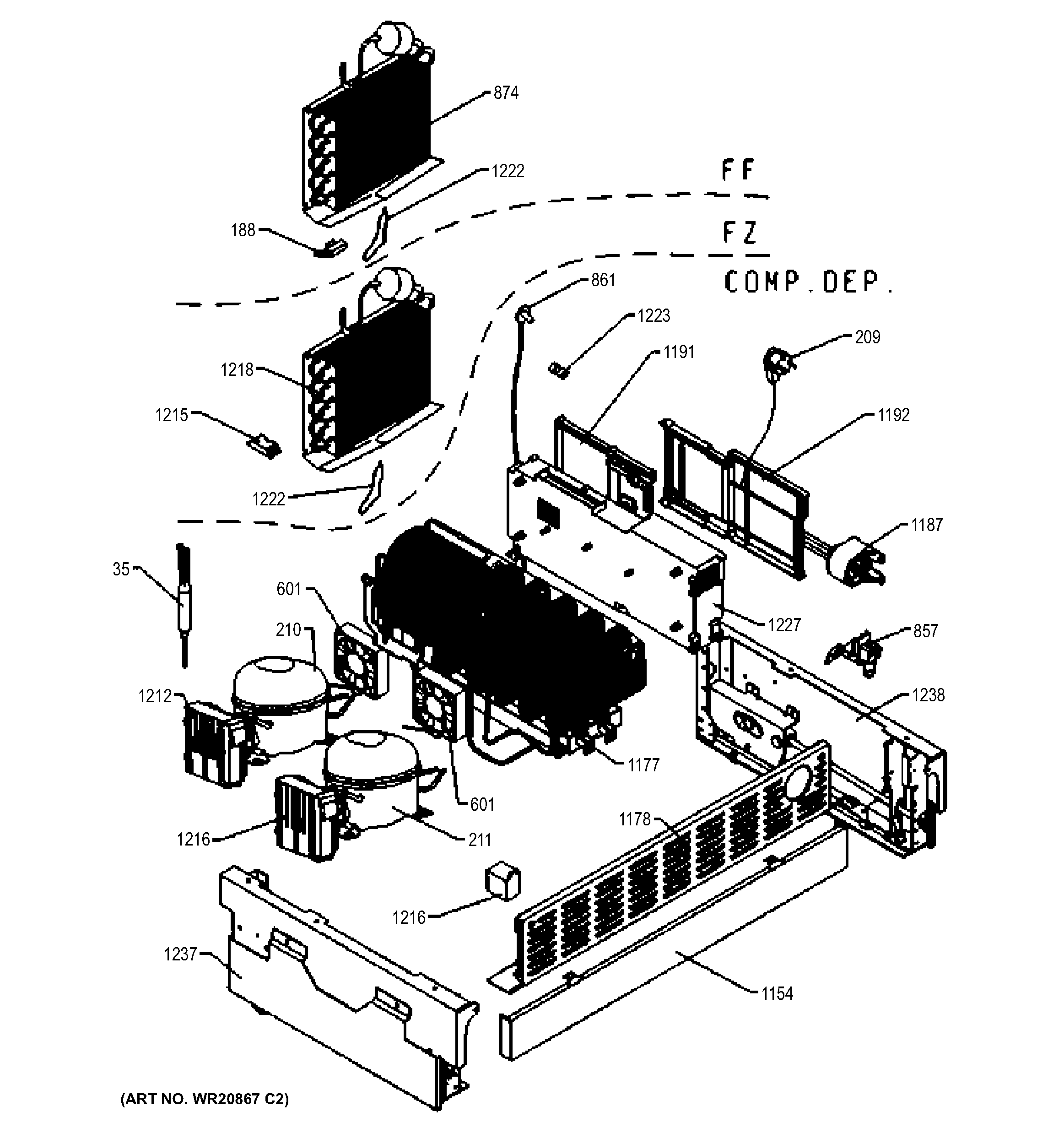

Machine compartment diagram

Refrigerator condenser fan

Part #WR60X10338

$347.73
In Stock
Refrigerator Freezer Door Gasket WR24X10271
#337

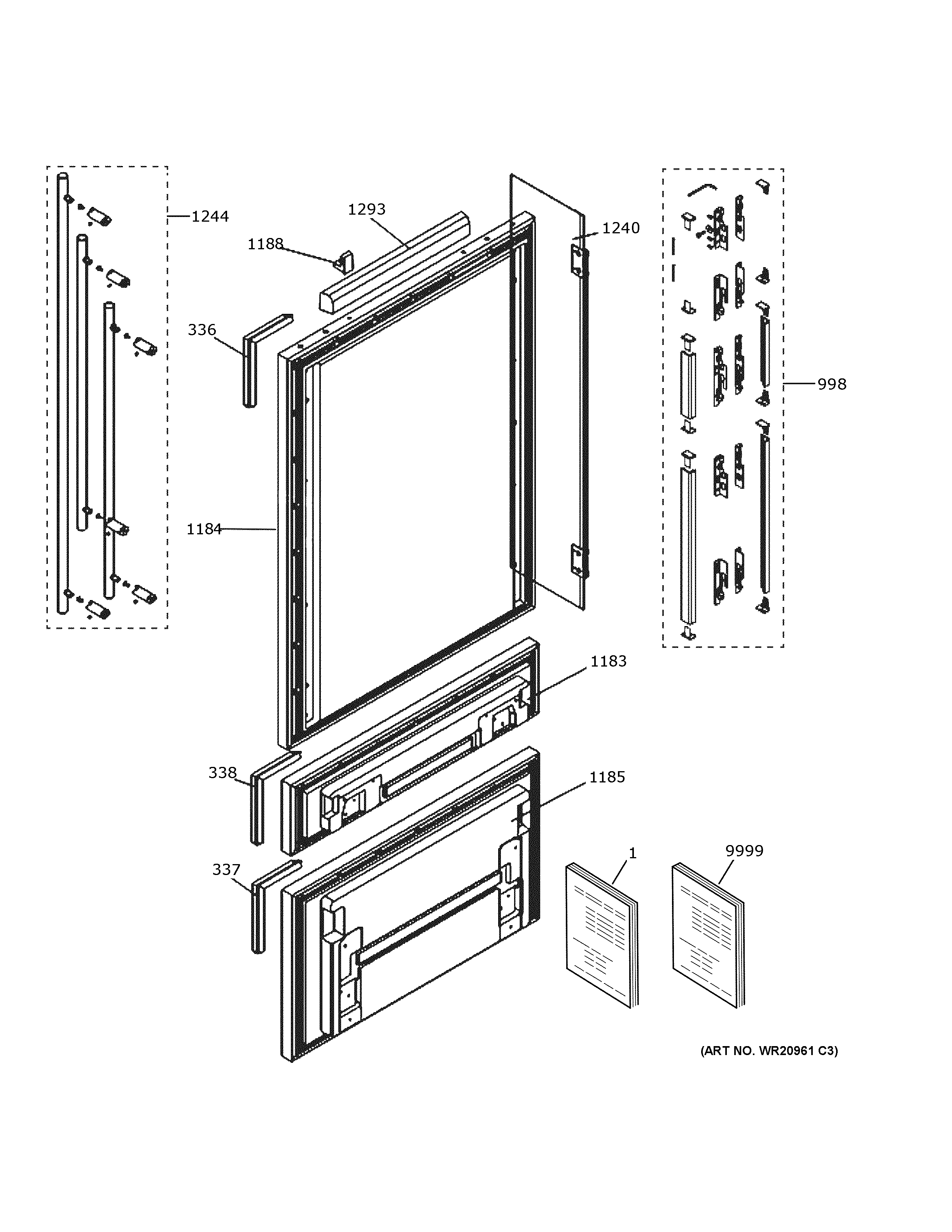

Doors diagram

Refrigerator freezer door gasket

Part #WR24X10271

Replaced by #WR24X32133

?
Manufacturer substitution
This part replaces WR24X10271. Substitute parts can look different from the original.
$123.90
In Stock
Temperature Sensor WR55X10457
Temperature sensor

Part #WR55X10457

Replaced by #WR55X10409

?
Manufacturer substitution
This part replaces WR55X10457. Substitute parts can look different from the original.
$54.14 |
8% OFF Phone Price : $59.14
In Stock
363 R600 Kit WR86X10074
#9999

Doors diagram

363 r600 kit

Part #WR86X10074

Replaced by #WR98X50

?
Manufacturer substitution
This part replaces WR86X10074. Substitute parts can look different from the original.
$68.60
In Stock
Cover-back P WR17X12966
Cover-back p

Part #WR17X12966

$140.28
In Stock
Hinge Cover WR13X10917
Hinge cover

Part #WR13X10917

$35.00
In Stock
Drawer Lock WR02X13461
Drawer lock

Part #WR02X13461

$39.44
In Stock
