Model # GNPR48L00 Official GE water system

Here are the diagrams and repair parts for Official GE GNPR48L00 water system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Control Assembly WS21X10022
#3

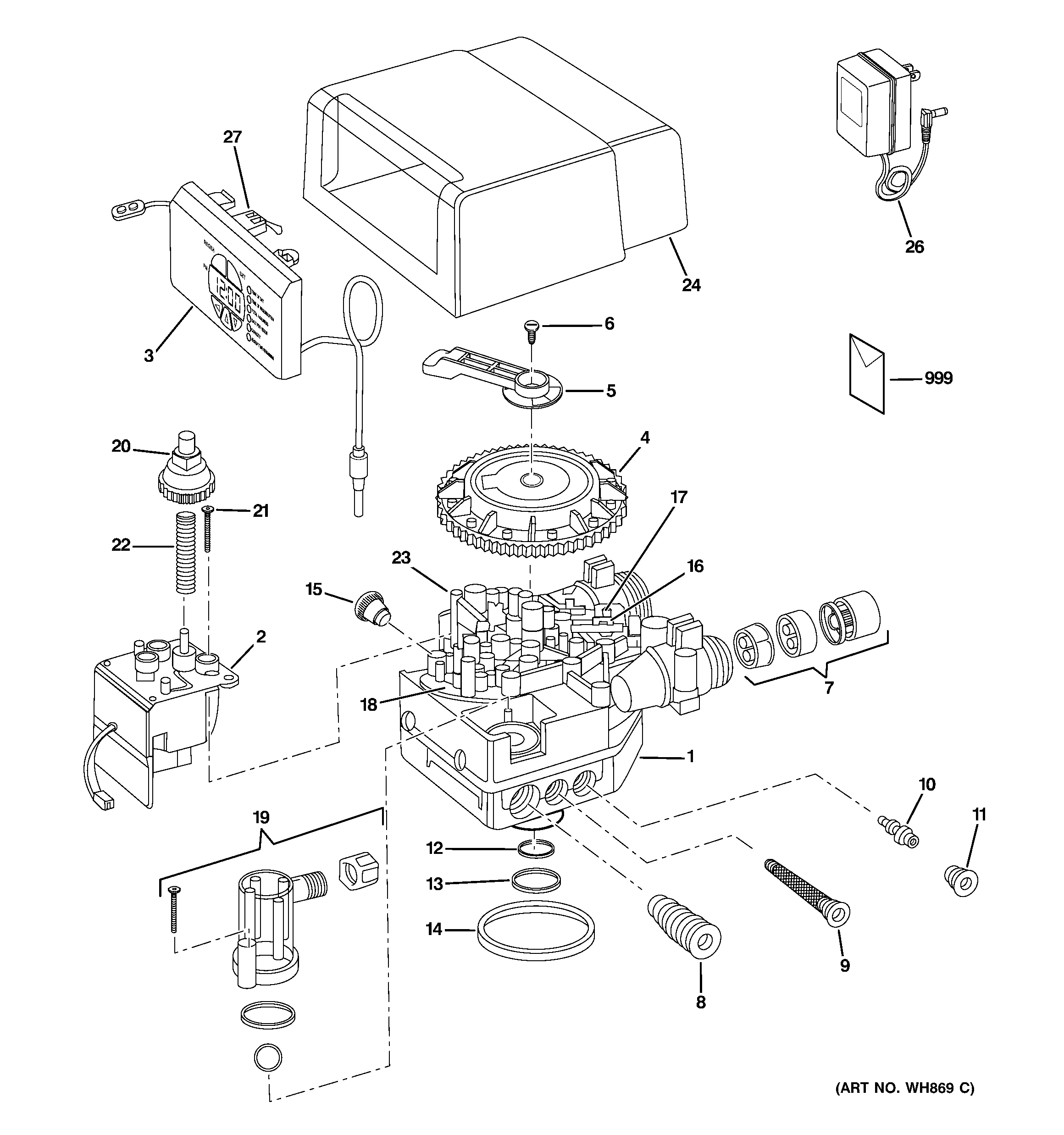

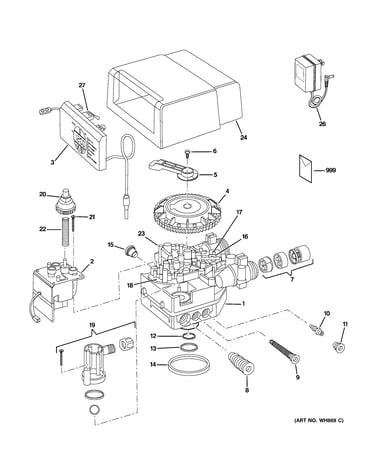

Controls & pump diagram

Control assembly

Part #WS21X10022

$849.99
In Stock
12x48 Resin Tank WS32X10027
#32

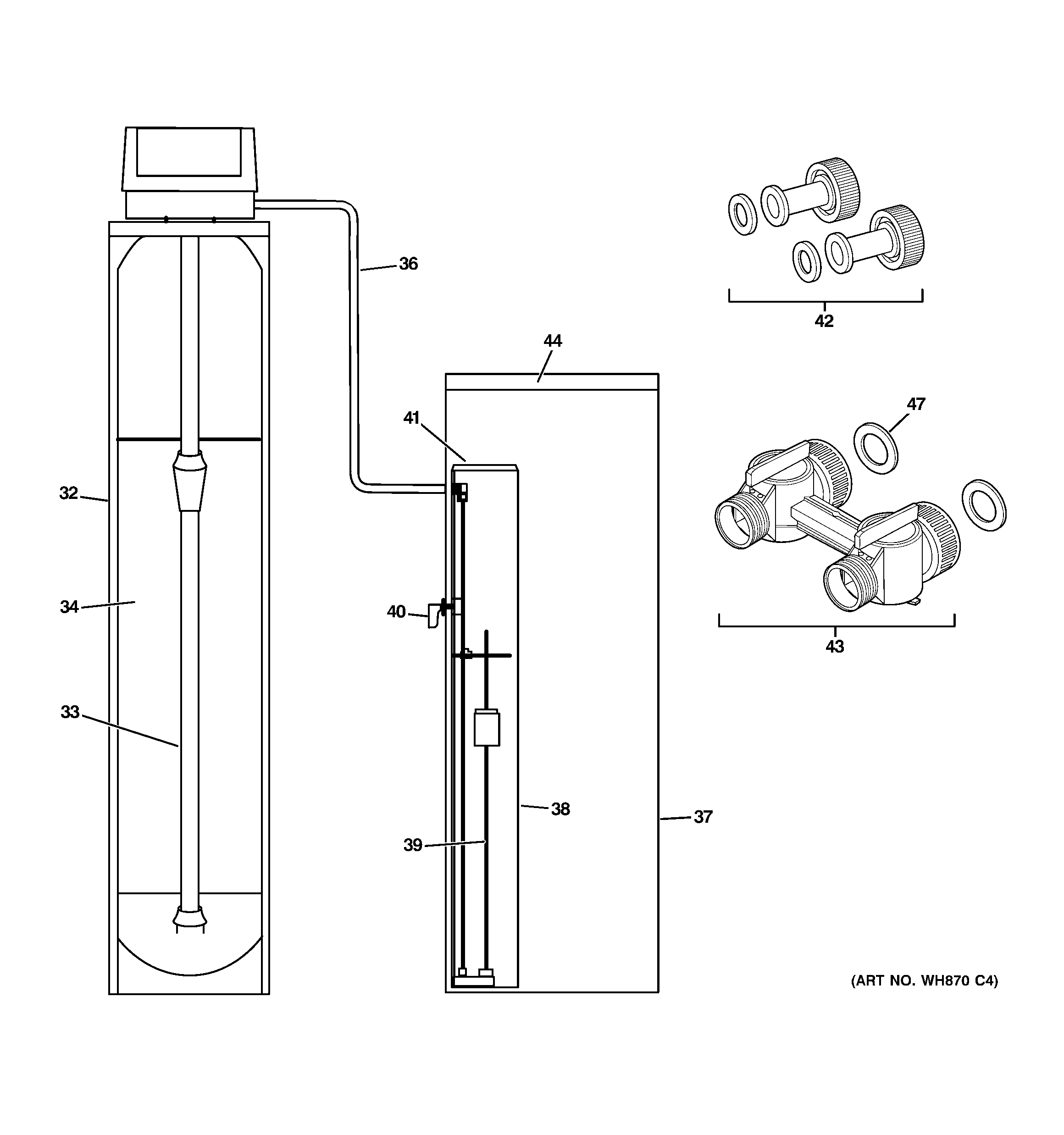

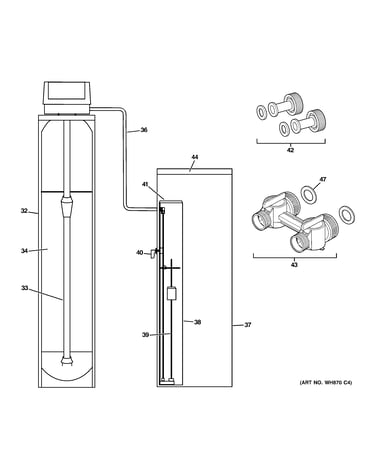

Body parts diagram

12x48 resin tank

Part #WS32X10027

The manufacturer no longer makes this part, and there's no substitute part

Spring WS03X10053
#22

Controls & pump diagram

Spring

Part #WS03X10053

The manufacturer no longer makes this part, and there's no substitute part

Screw 10-32 X 1/2 WS02X10037
#6

Controls & pump diagram

Screw 10-32 x 1/2

Part #WS02X10037

The manufacturer no longer makes this part, and there's no substitute part

Resin Media 1.5 Cuft WS01X10016
#34

Body parts diagram

Resin media 1.5 cuft

Part #WS01X10016

The manufacturer no longer makes this part, and there's no substitute part

Injector Asm - 4 Bumps WS15X10059
#10

Controls & pump diagram

Injector asm - 4 bumps

Part #WS15X10059

The manufacturer no longer makes this part, and there's no substitute part

Injector Screen Asm WS15X10056
#9

Controls & pump diagram

Injector screen asm

Part #WS15X10056

The manufacturer no longer makes this part, and there's no substitute part

1" Copper Tail Piece WS60X10015
#42

Body parts diagram

1" copper tail piece

Part #WS60X10015

The manufacturer no longer makes this part, and there's no substitute part

Drive Gear WS26X10017
#20

Controls & pump diagram

Drive gear

Part #WS26X10017

The manufacturer no longer makes this part, and there's no substitute part

Top Plate Screw WS02X10039
#23

Controls & pump diagram

Top plate screw

Part #WS02X10039

The manufacturer no longer makes this part, and there's no substitute part
