Model # 28761521 Official Kenmore two-wheel utility trailer

Here are the diagrams and repair parts for Official Kenmore 28761521 two-wheel utility trailer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Trs Hd Screw 157772
#40

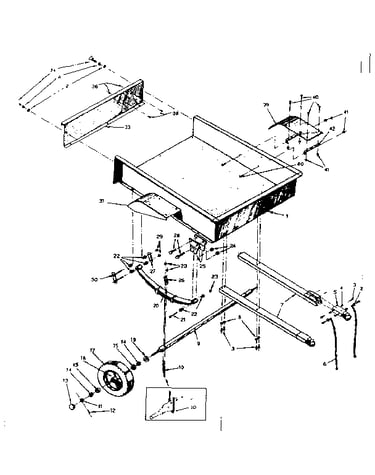

Unit diagram

Trs hd screw

Part #157772

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer 120388
#2

Unit diagram

Flat washer

Part #120388

The manufacturer no longer makes this part, and there's no substitute part

Nut 9413447
#41

Unit diagram

Nut

Part #9413447

The manufacturer no longer makes this part, and there's no substitute part

Tire 7160001
#17

Unit diagram

Tire

Part #7160001

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 120233
#3

Unit diagram

Cap screw

Part #120233

The manufacturer no longer makes this part, and there's no substitute part

Axle With Spindles N/P

#NI

All parts diagram

Axle with spindles

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Cap 3477
#13

Unit diagram

Cap

Part #3477

The manufacturer no longer makes this part, and there's no substitute part

Tailgate Asm 5631003
#33

Unit diagram

Tailgate asm

Part #5631003

The manufacturer no longer makes this part, and there's no substitute part

Nut 120375
#36

Unit diagram

Nut

Part #120375

The manufacturer no longer makes this part, and there's no substitute part

Shackle Bar 6751001
#27

Unit diagram

Shackle bar

Part #6751001

The manufacturer no longer makes this part, and there's no substitute part
