Model # AFII85 Official Beckett furnace burner

Here are the diagrams and repair parts for Official Beckett AFII85 furnace burner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Stop Screw: Replacement Kit 51483
#7

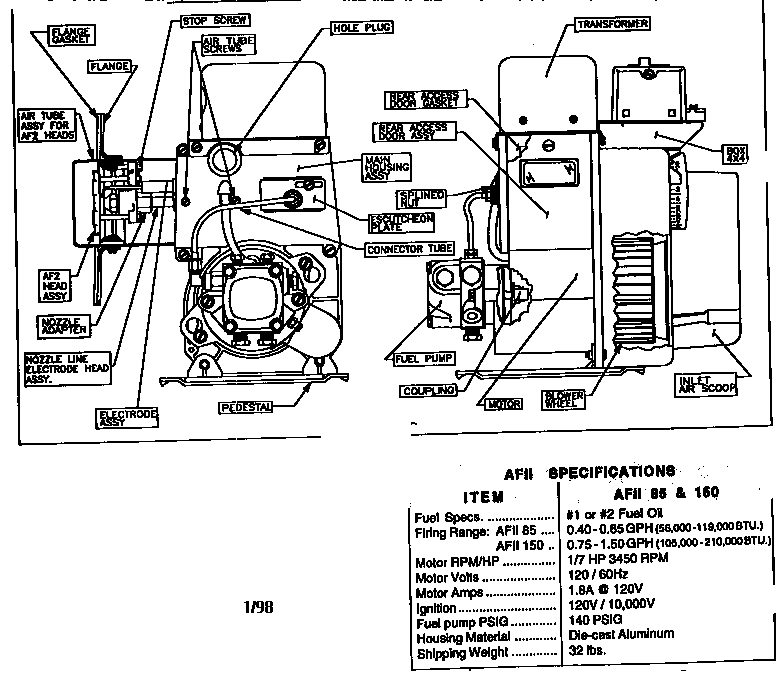

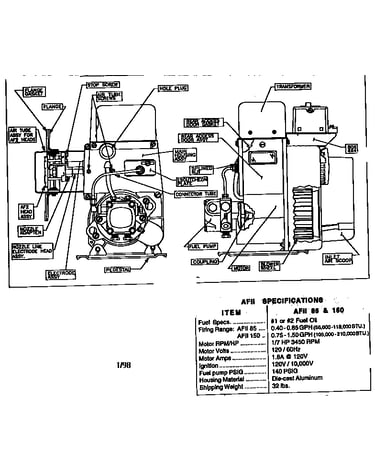

Unit parts diagram

Stop screw: replacement kit

Part #51483

The manufacturer no longer makes this part, and there's no substitute part

Connector Tube Assembly Pump To Nozzle Line 5394
#9

Unit parts diagram

Connector tube assembly pump to nozzle line

Part #5394

The manufacturer no longer makes this part, and there's no substitute part

Electrode 51670U
#5

Unit parts diagram

Electrode

Part #51670U

The manufacturer no longer makes this part, and there's no substitute part

Escutcheon Plate: Af11 Blank 31623
#6

Unit parts diagram

Escutcheon plate: af11 blank

Part #31623

The manufacturer no longer makes this part, and there's no substitute part

Main Housing Assembly: Af11 150 51476
#19A

Unit parts diagram

Main housing assembly: af11 150

Part #51476

The manufacturer no longer makes this part, and there's no substitute part

Flange Kit: Adjustable 3-1/2" Id With Gasket 51480
#8

Unit parts diagram

Flange kit: adjustable 3-1/2" id with gasket

Part #51480

The manufacturer no longer makes this part, and there's no substitute part

Motor: 1/7 Hp, 3450 Rpm 115/60 21444
#20

Unit parts diagram

Motor: 1/7 hp, 3450 rpm 115/60

Part #21444

The manufacturer no longer makes this part, and there's no substitute part

Blower Wheel: Af11 85, 4-1/4" 2" Strip 21439
#2

Unit parts diagram

Blower wheel: af11 85, 4-1/4" 2" strip

Part #21439

The manufacturer no longer makes this part, and there's no substitute part

Clip 31582
#12

Unit parts diagram

Clip

Part #31582

The manufacturer no longer makes this part, and there's no substitute part

Flange Gasket 31658
#10

Unit parts diagram

Flange gasket

Part #31658

The manufacturer no longer makes this part, and there's no substitute part
