Table Saw

Model # 36-600 Official Delta table saw

Here are the diagrams and repair parts for Official Delta 36-600 table saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

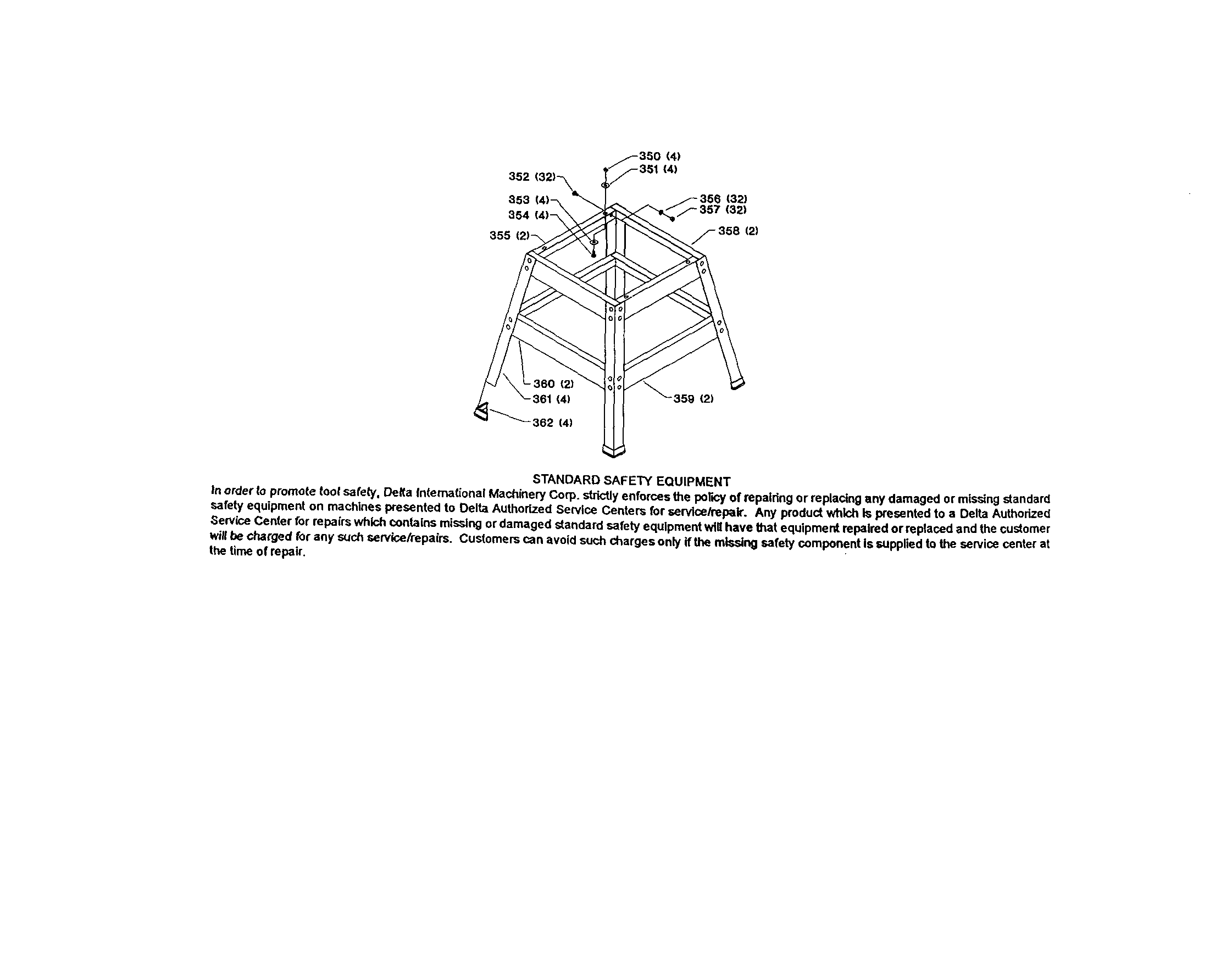

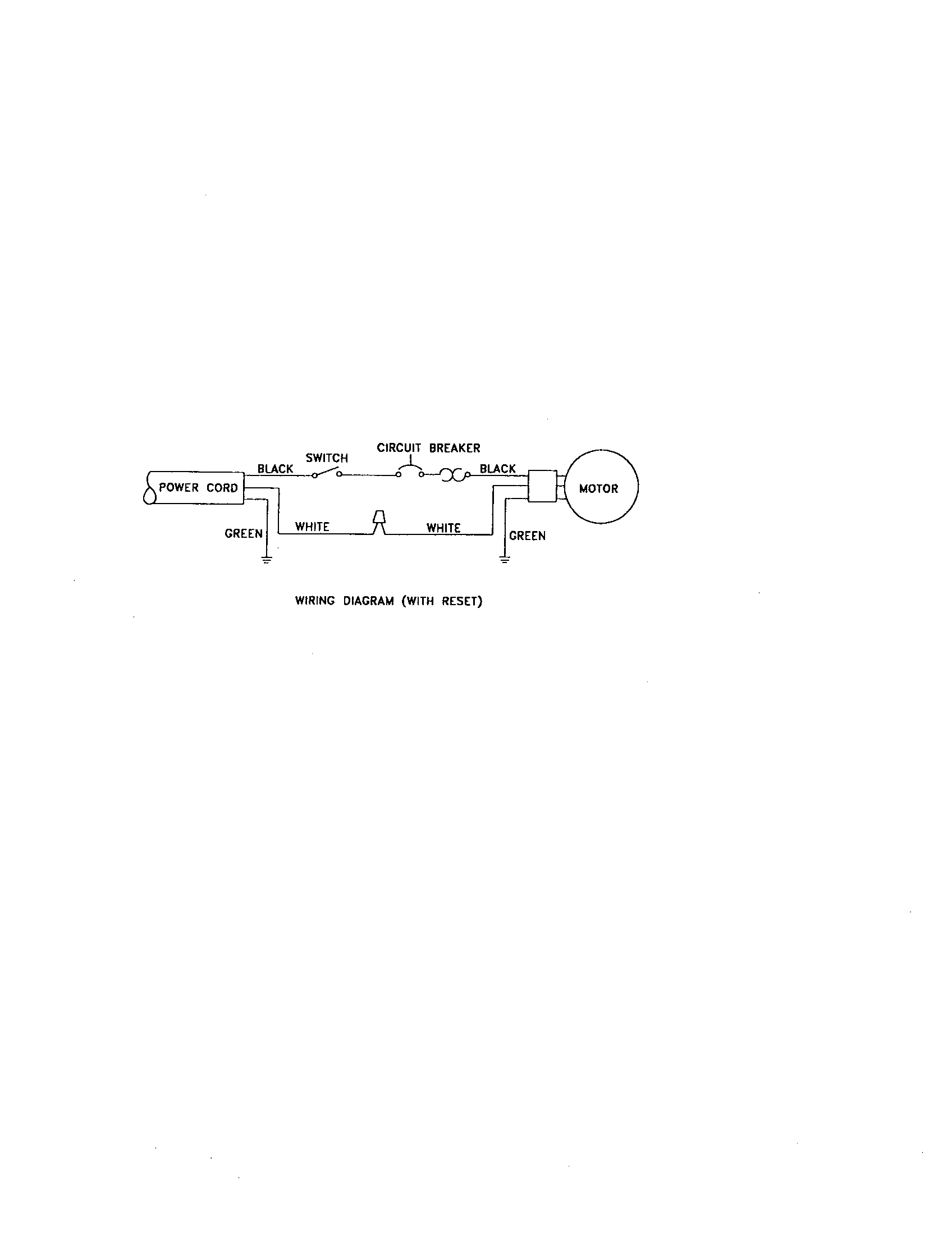

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 181 parts  |
Washer 904-02-010-1703
Washer

Part #904-02-010-1703

The manufacturer no longer makes this part, and there's no substitute part

Plate 1345234
#161

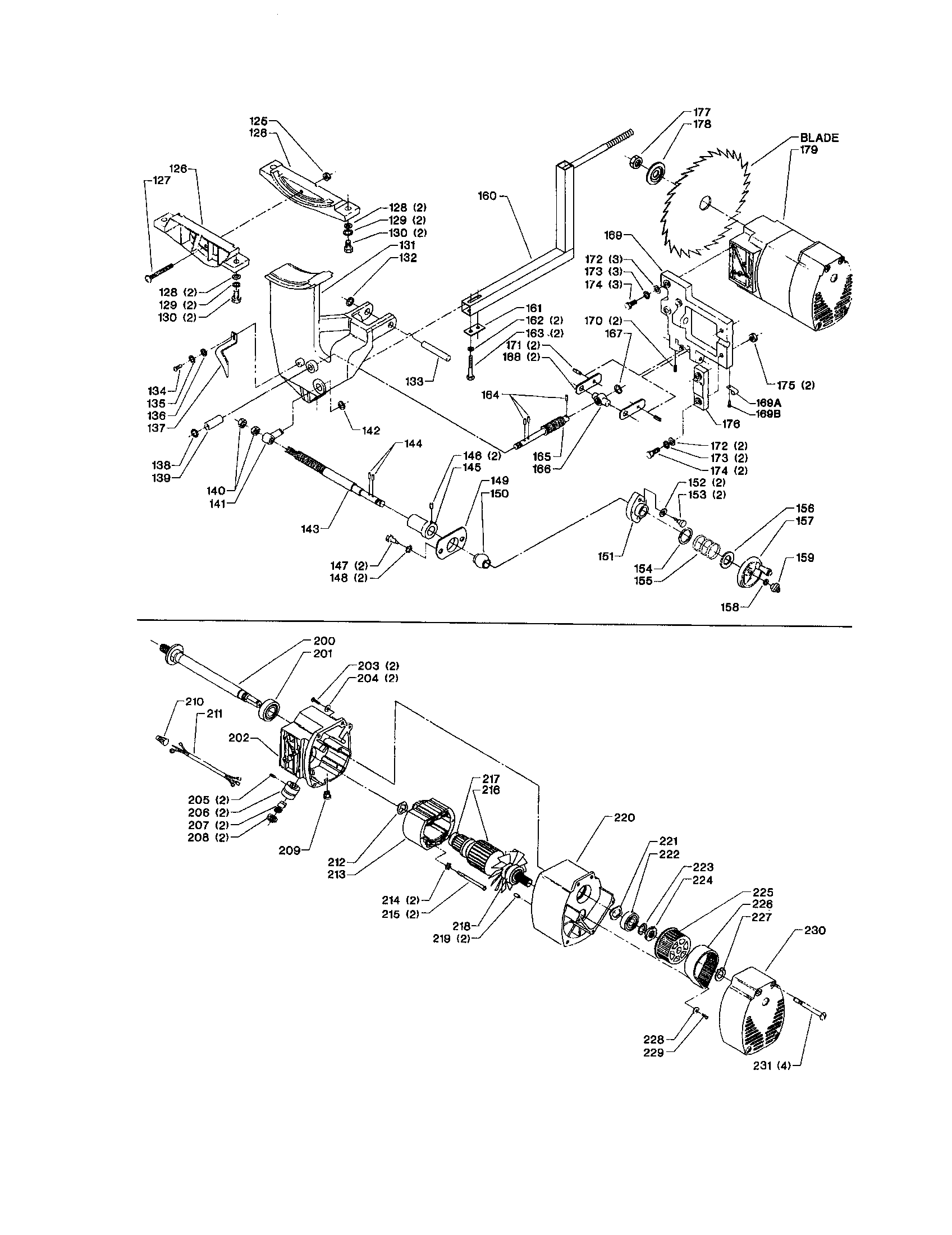

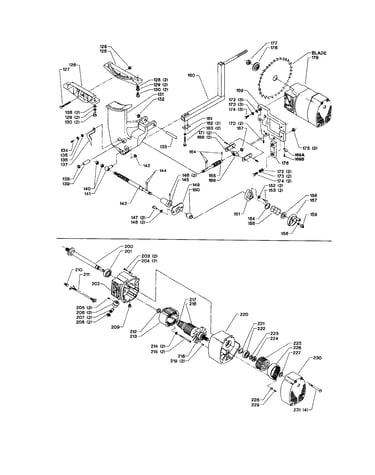

Blade/armature diagram

Plate

Part #1345234

The manufacturer no longer makes this part, and there's no substitute part

Table 1348723
#15

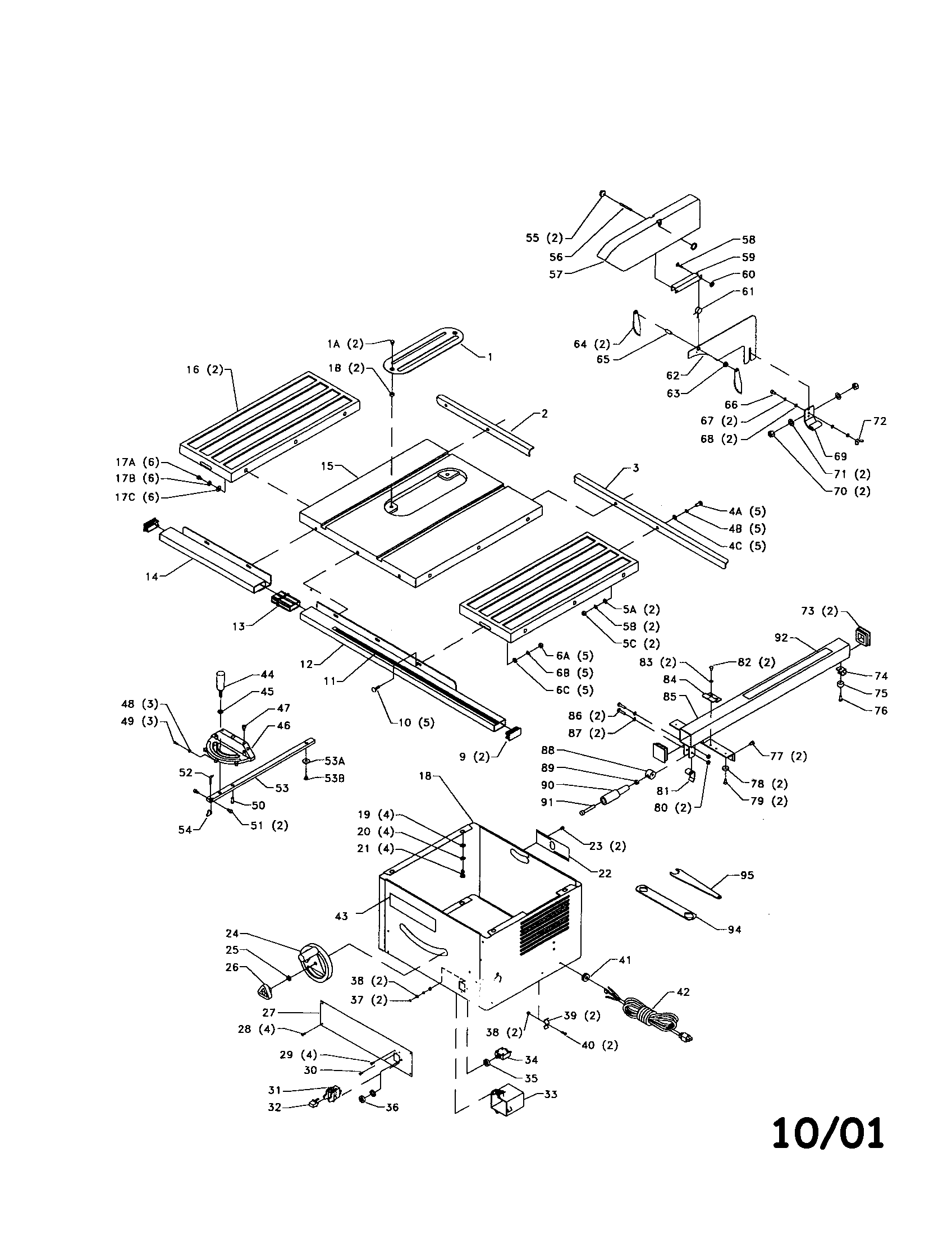

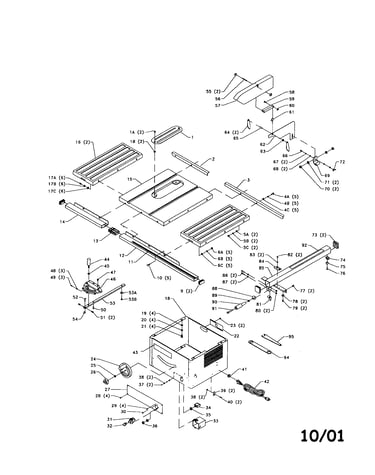

10" motorized table saw diagram

Table

Part #1348723

The manufacturer no longer makes this part, and there's no substitute part

Washer 1313226
#1B

10" motorized table saw diagram

Washer

Part #1313226

The manufacturer no longer makes this part, and there's no substitute part

Pan Hd Scr 1313306
#147

Blade/armature diagram

Pan hd scr

Part #1313306

The manufacturer no longer makes this part, and there's no substitute part

Pointer 1348744
#84

10" motorized table saw diagram

Pointer

Part #1348744

The manufacturer no longer makes this part, and there's no substitute part

Washer 1313289
#132

Blade/armature diagram

Washer

Part #1313289

The manufacturer no longer makes this part, and there's no substitute part

Spring Pin 1310311
#65

10" motorized table saw diagram

Spring pin

Part #1310311

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 1310055
Set screw

Part #1310055

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Elevating Nut 1313296
#166

Blade/armature diagram

Table saw elevating nut

Part #1313296

The manufacturer no longer makes this part, and there's no substitute part
