Canister Vacuum

Model # S3655050 Official Hoover canister vacuum

Here are the diagrams and repair parts for Official Hoover S3655050 canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

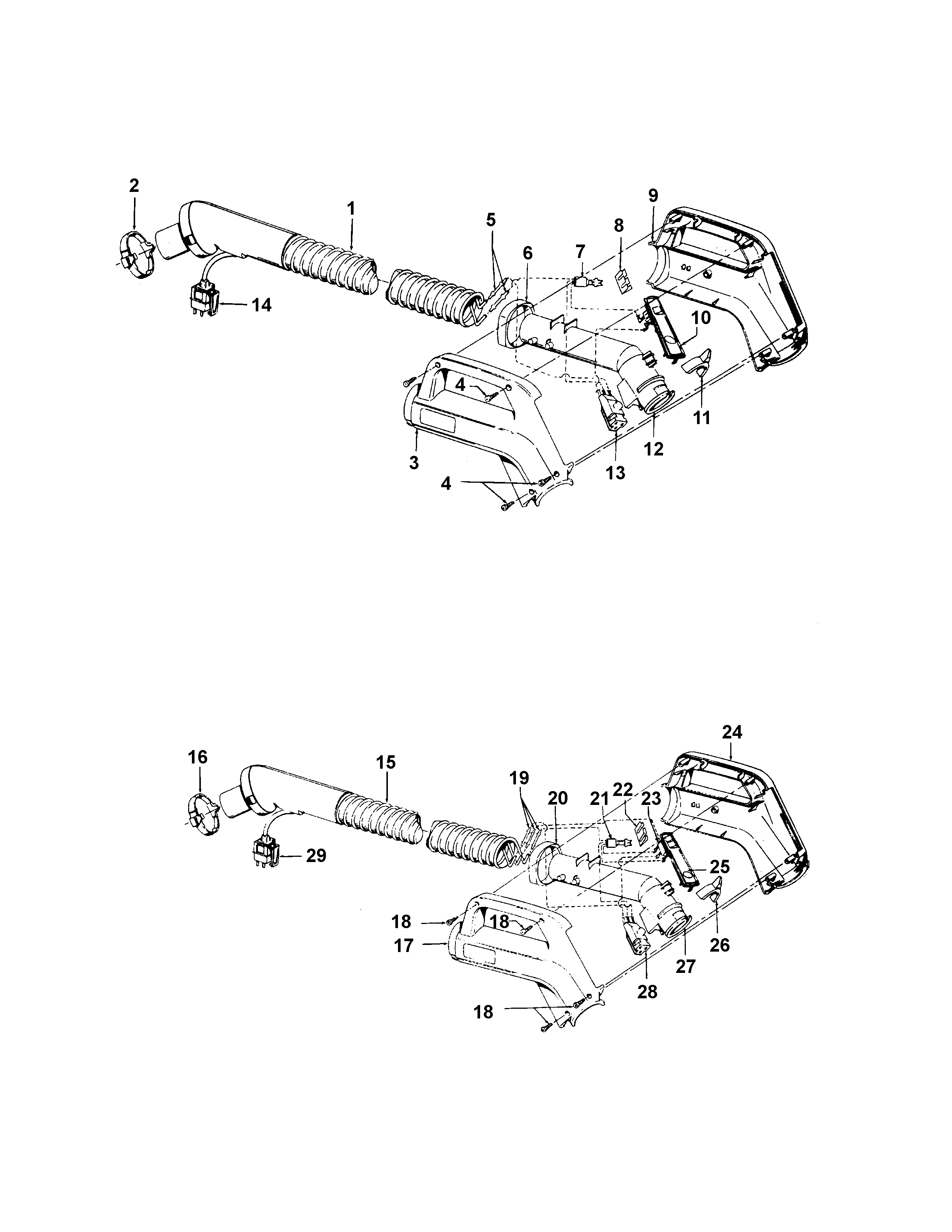

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 138 parts  |
Turbine Tool 49129020
#12

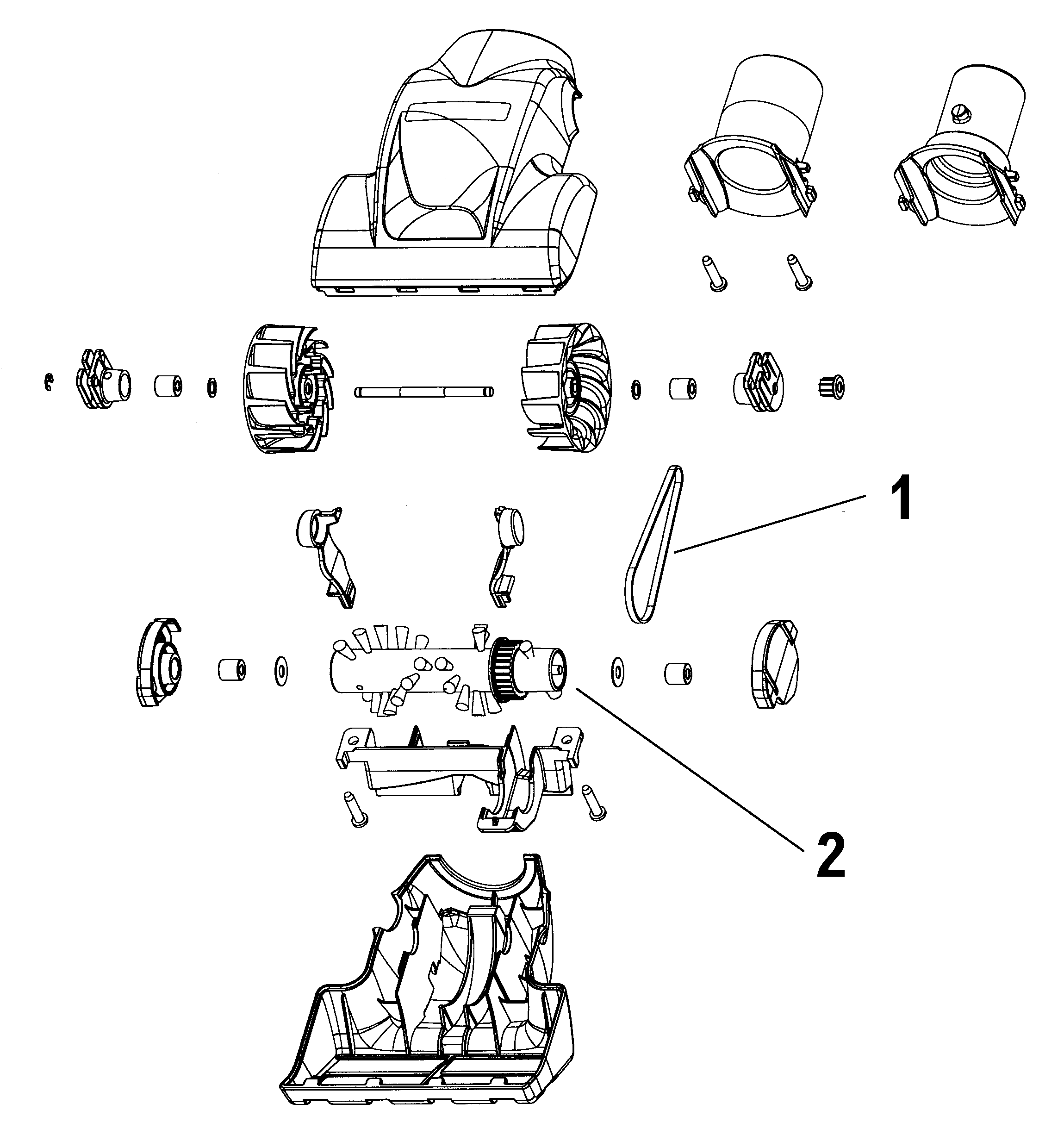

Turbinehandtool diagram

Turbine tool

Part #49129020

The manufacturer no longer makes this part, and there's no substitute part

Speed Clip 21378159
#61

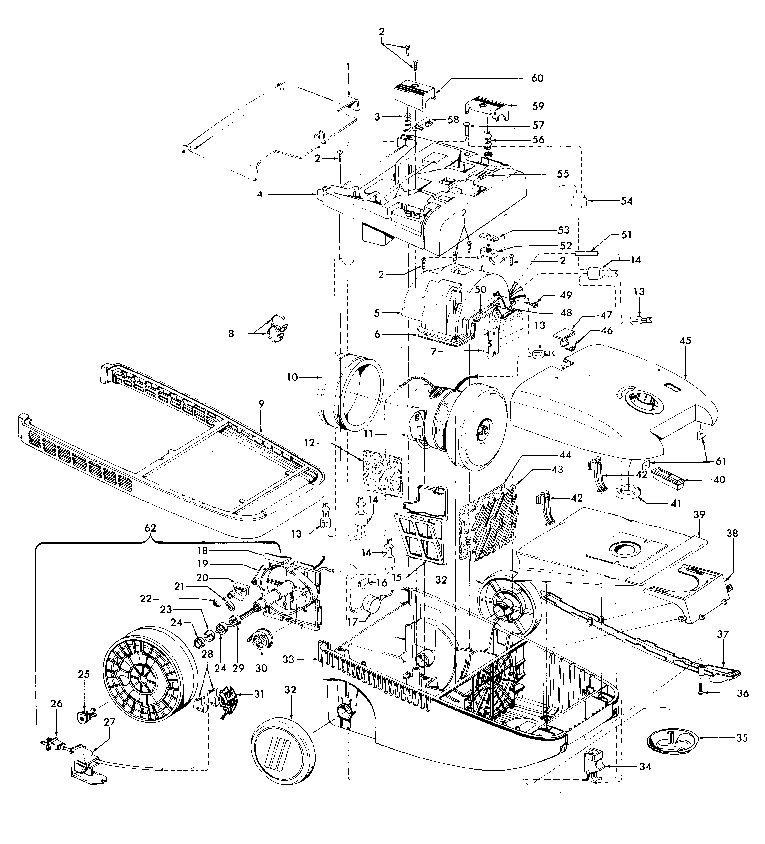

Cordreel, mainhousing, cleaningtools diagram

Speed clip

Part #21378159

The manufacturer no longer makes this part, and there's no substitute part

Armature 44765241
#8A

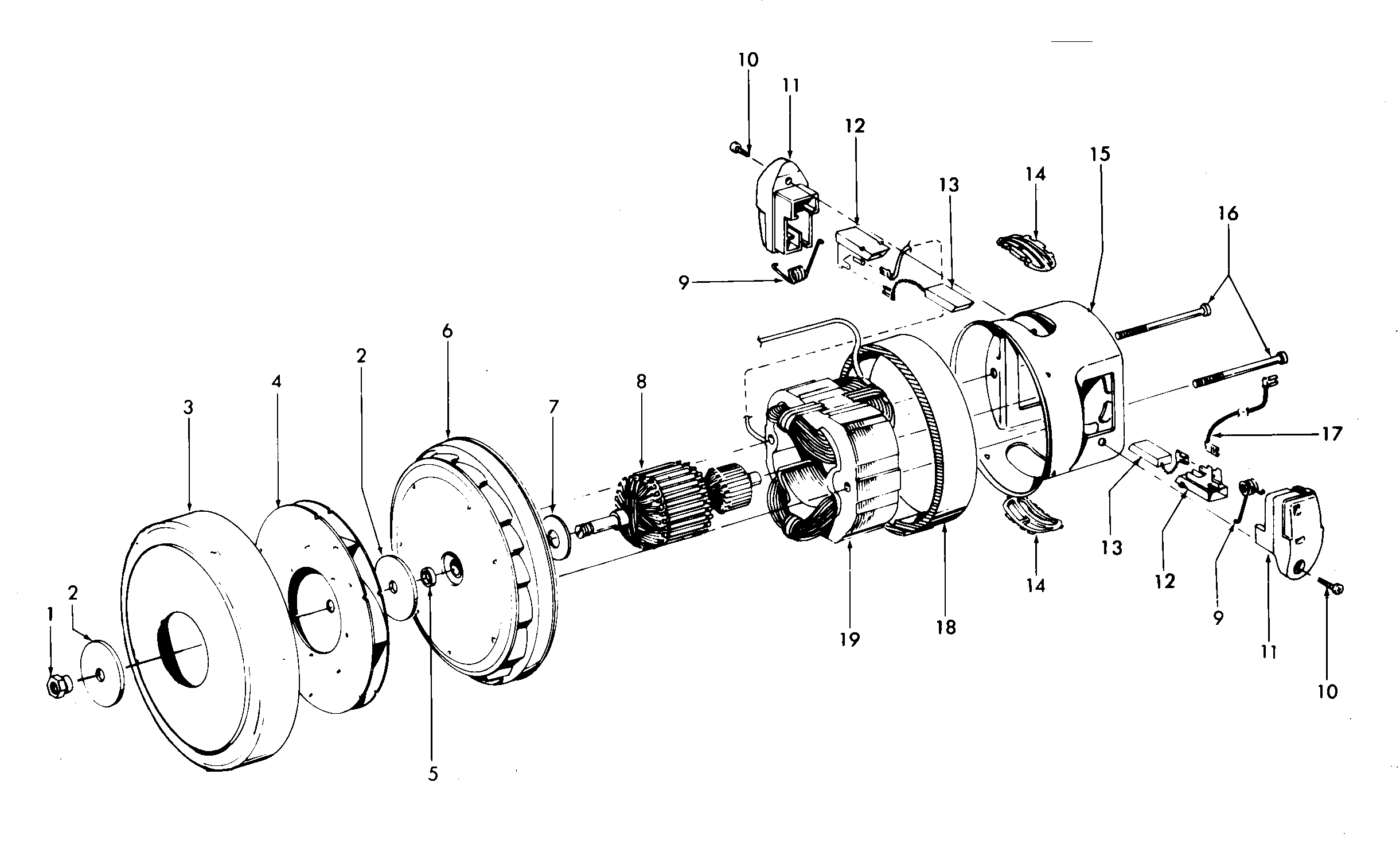

Motor assembly diagram

Armature

Part #44765241

The manufacturer no longer makes this part, and there's no substitute part

Receptacle 46326082
#34A

Cordreel, mainhousing, cleaningtools diagram

Receptacle

Part #46326082

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Light Bulb 27317307
#4

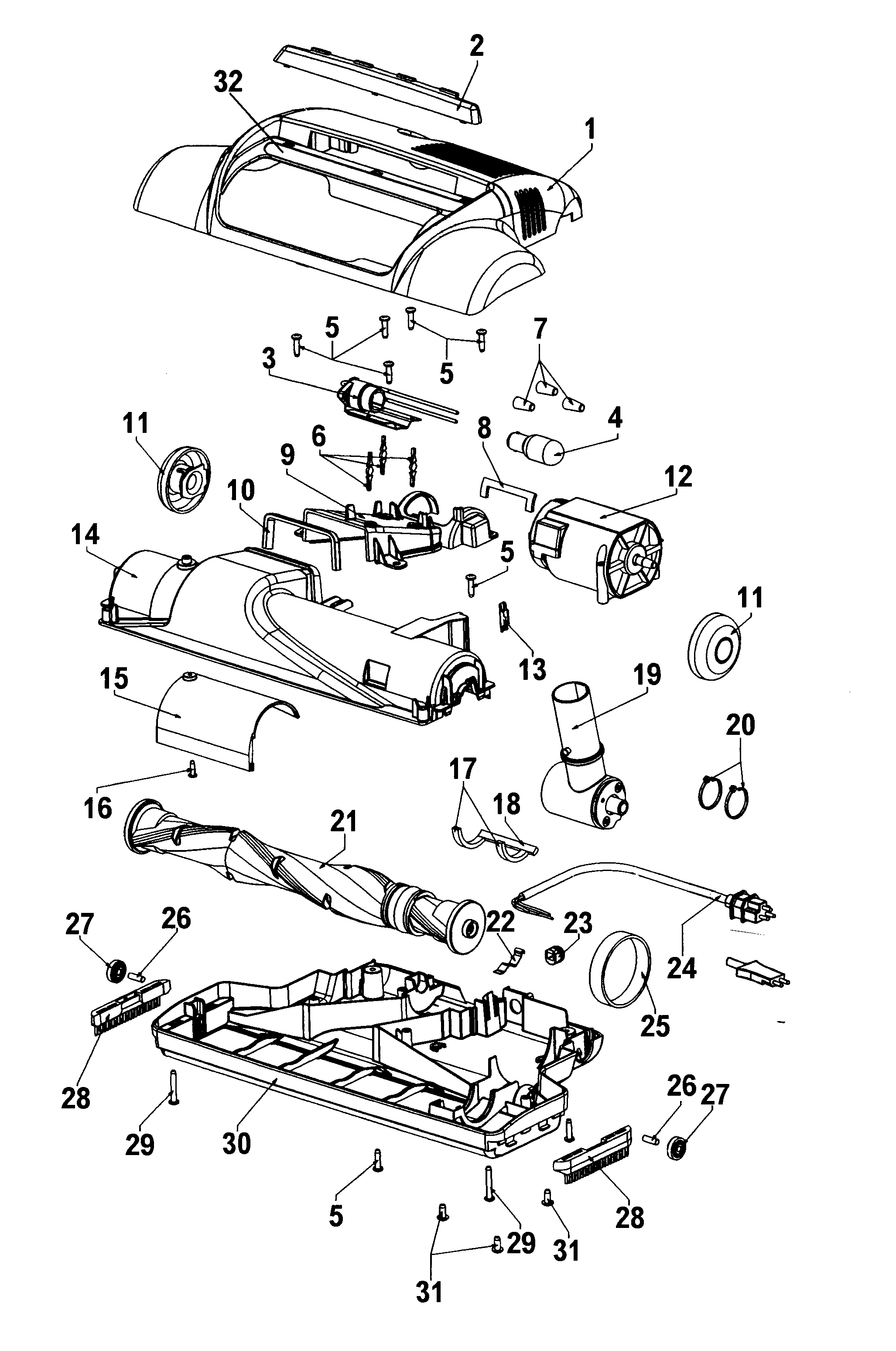

Powerednozzle, agitator diagram

Vacuum light bulb

Part #27317307

The manufacturer no longer makes this part, and there's no substitute part

Connect 38632012
#18

Turbinehandtool diagram

Connect

Part #38632012

The manufacturer no longer makes this part, and there's no substitute part

Hood 37253330
#1C

Powerednozzle, agitator diagram

Hood

Part #37253330

The manufacturer no longer makes this part, and there's no substitute part

Detent Spring 35276008
#22

Powerednozzle, agitator diagram

Detent spring

Part #35276008

The manufacturer no longer makes this part, and there's no substitute part

Fan 43551008
#4

Motor assembly diagram

Fan

Part #43551008

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21447217
#2

Cordreel, mainhousing, cleaningtools diagram

Vacuum screw

Part #21447217

The manufacturer no longer makes this part, and there's no substitute part
