Model # KECC056RBL00 Official KitchenAid cooktop

Here are the diagrams and repair parts for Official KitchenAid KECC056RBL00 cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |

Polish 3191048
#NI

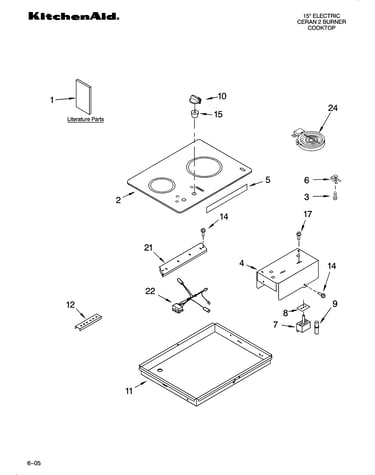

Cooktop parts, miscellaneous parts diagram

Polish

Part #3191048

Replaced by #W10355051

?
Manufacturer substitution
This part replaces 3191048. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89
16% OFF Phone Price : $12.89
In Stock
Screw 3196537
#14

Cooktop parts, miscellaneous parts diagram

Screw

Part #3196537

Replaced by #WP3196557

?
Manufacturer substitution
This part replaces 3196537. Substitute parts can look different from the original.
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Cooktop Element Control Switch 3191050
#7

Cooktop parts, miscellaneous parts diagram

Cooktop element control switch

Part #3191050

Replaced by #WP3191050

?
Manufacturer substitution
This part replaces 3191050. Substitute parts can look different from the original.
$79.39
7% OFF Phone Price : $85.39
In Stock
Mounting Bracket 4455917
#12

Cooktop parts, miscellaneous parts diagram

Mounting bracket

Part #4455917

Replaced by #8186533

?
Manufacturer substitution
This part replaces 4455917. Substitute parts can look different from the original.
$32.89
15% OFF Phone Price : $38.89
In Stock
Cooktop Element Control Switch Seal 3183956
#24B

Cooktop parts, miscellaneous parts diagram

Cooktop element control switch seal

Part #3183956

This item is not returnable
$31.09
16% OFF Phone Price : $37.09
In Stock
Indicator Light 3192612
#22

Cooktop parts, miscellaneous parts diagram

Indicator light

Part #3192612

In Stock
Conduit 4456511
#NI

Cooktop parts, miscellaneous parts diagram

Conduit

Part #4456511

In Stock
Support 3192721
#21

Cooktop parts, miscellaneous parts diagram

Support

Part #3192721

In Stock
Spring 9759094
#6

Cooktop parts, miscellaneous parts diagram

Spring

Part #9759094

This item is not returnable
In Stock
Cooking Appliance 14-gauge Splicing Wire, 200-degree C (red) 242831
#NI

Cooktop parts, miscellaneous parts diagram

Cooking appliance 14-gauge splicing wire, 200-degree c (red)

Part #242831

In Stock
