Craftsman
Power Nailer

Model # 836272320 Official Craftsman electric nailer

Here are the diagrams and repair parts for Official Craftsman 836272320 electric nailer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Screw G M4 BMS0040161
#9

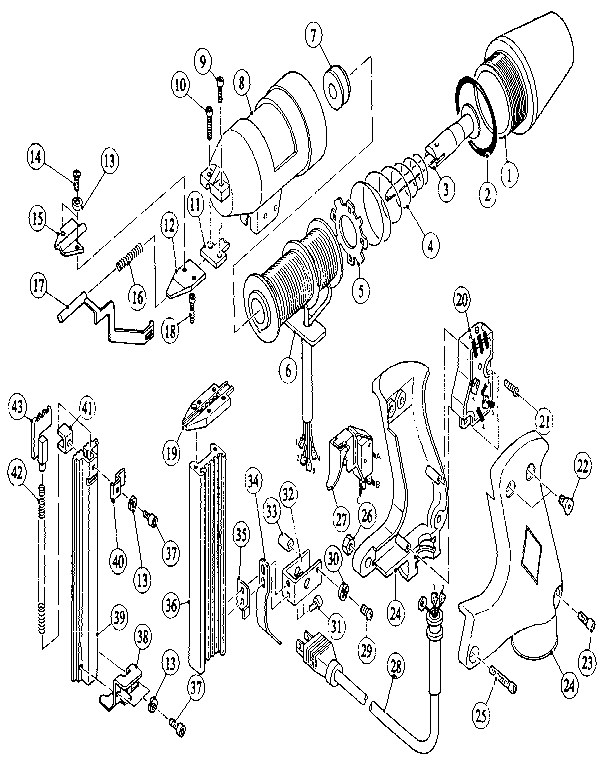

Unit parts diagram

Screw g m4

Part #BMS0040161

The manufacturer no longer makes this part, and there's no substitute part

Cover Slot DCA0060030
#12

Unit parts diagram

Cover slot

Part #DCA0060030

The manufacturer no longer makes this part, and there's no substitute part

Stop Lever DCA0150000
#34

Unit parts diagram

Stop lever

Part #DCA0150000

The manufacturer no longer makes this part, and there's no substitute part

Body DKA0000070
#8

Unit parts diagram

Body

Part #DKA0000070

The manufacturer no longer makes this part, and there's no substitute part

Buffer DHG0010040
#7

Unit parts diagram

Buffer

Part #DHG0010040

The manufacturer no longer makes this part, and there's no substitute part

Washer BMD0020010
#30

Unit parts diagram

Washer

Part #BMD0020010

The manufacturer no longer makes this part, and there's no substitute part

Setting Ir DCA0040020
#5

Unit parts diagram

Setting ir

Part #DCA0040020

The manufacturer no longer makes this part, and there's no substitute part

Plastic Ha DPA0040002
#24

Unit parts diagram

Plastic ha

Part #DPA0040002

The manufacturer no longer makes this part, and there's no substitute part

Driver Set ET-0040050
#3

Unit parts diagram

Driver set

Part #ET-0040050

The manufacturer no longer makes this part, and there's no substitute part

O-ring BPA0010020
#2

Unit parts diagram

O-ring

Part #BPA0010020

The manufacturer no longer makes this part, and there's no substitute part
