Bissell
Upright Vacuum

Model # 3910 Official Bissell vacuum

Here are the diagrams and repair parts for Official Bissell 3910 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |

Plate Case 2032326
#32

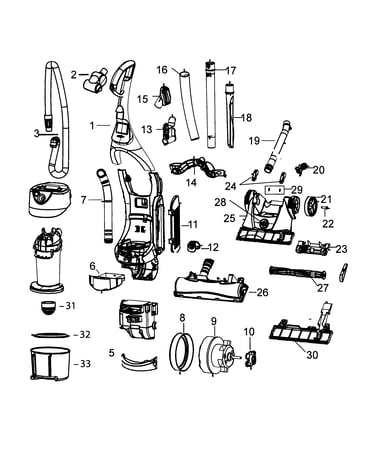

Main assy diagram

Plate case

Part #2032326

The manufacturer no longer makes this part, and there's no substitute part

Tray 2032335
#6

Main assy diagram

Tray

Part #2032335

The manufacturer no longer makes this part, and there's no substitute part

Hose Clip 2032308
#12

Main assy diagram

Hose clip

Part #2032308

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle Release Pedal 2032374
#30

Main assy diagram

Vacuum handle release pedal

Part #2032374

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor 2032320
#9

Main assy diagram

Vacuum motor

Part #2032320

The manufacturer no longer makes this part, and there's no substitute part

Dirt Cup 2032330
#33B

Main assy diagram

Dirt cup

Part #2032330

The manufacturer no longer makes this part, and there's no substitute part

Case Drum 2032357
#26

Main assy diagram

Case drum

Part #2032357

The manufacturer no longer makes this part, and there's no substitute part

Grille 2032317
#11

Main assy diagram

Grille

Part #2032317

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Grille Top 2032415
#31

Main assy diagram

Vacuum grille top

Part #2032415

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Height Adjustment Knob 2032348
#28

Main assy diagram

Vacuum height adjustment knob

Part #2032348

The manufacturer no longer makes this part, and there's no substitute part
