Admiral
Electric Range

Model # LER3330AAB Official Admiral electric freestanding range

Here are the diagrams and repair parts for Official Admiral LER3330AAB electric freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

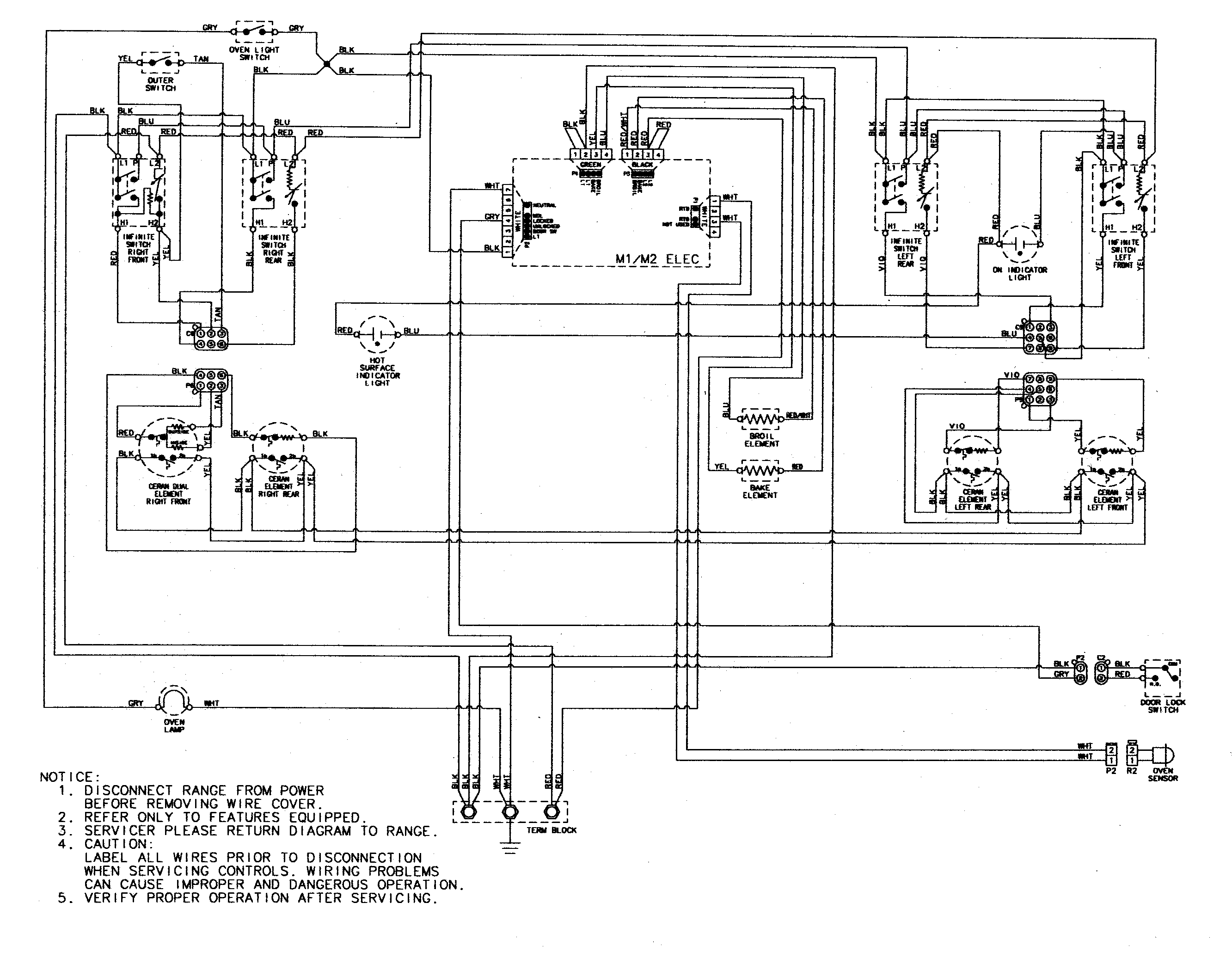

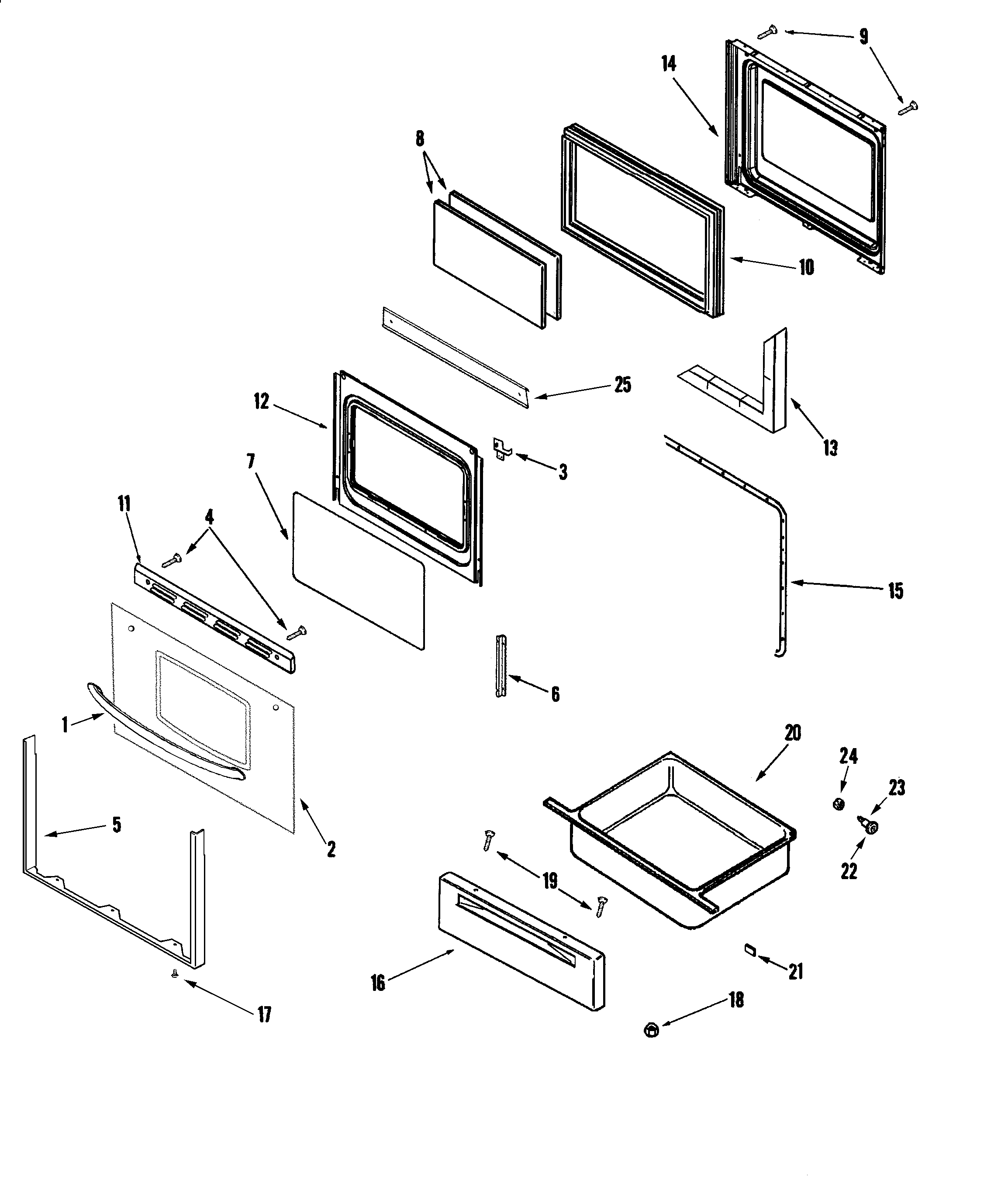

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 153 parts  |
Oven Bulb 7407P103-60
#8

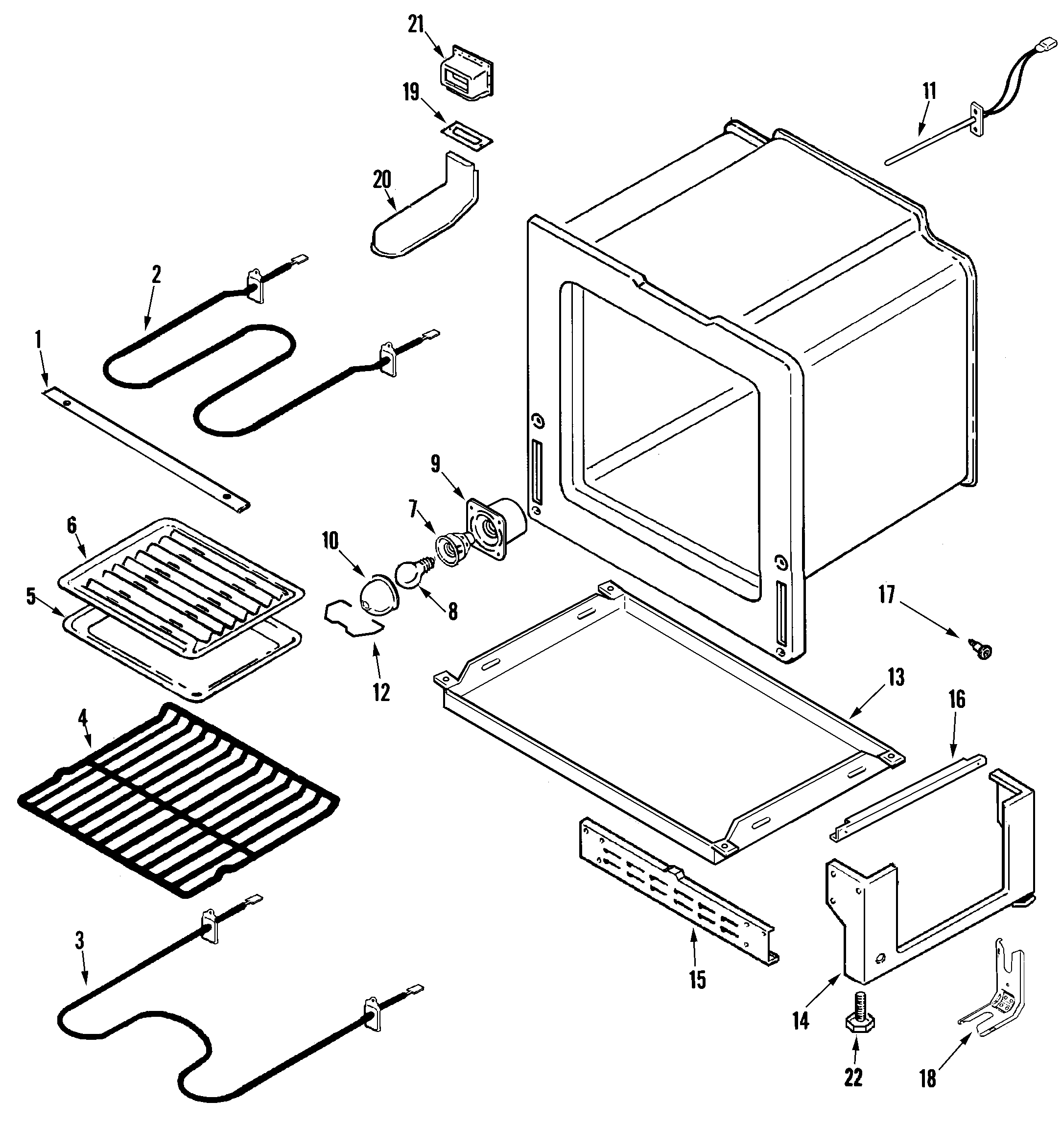

Oven/base diagram

Oven bulb

Part #7407P103-60

Replaced by #40A15

?
Manufacturer substitution
This part replaces 7407P103-60. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Terminal Block 7401P039-60
#16

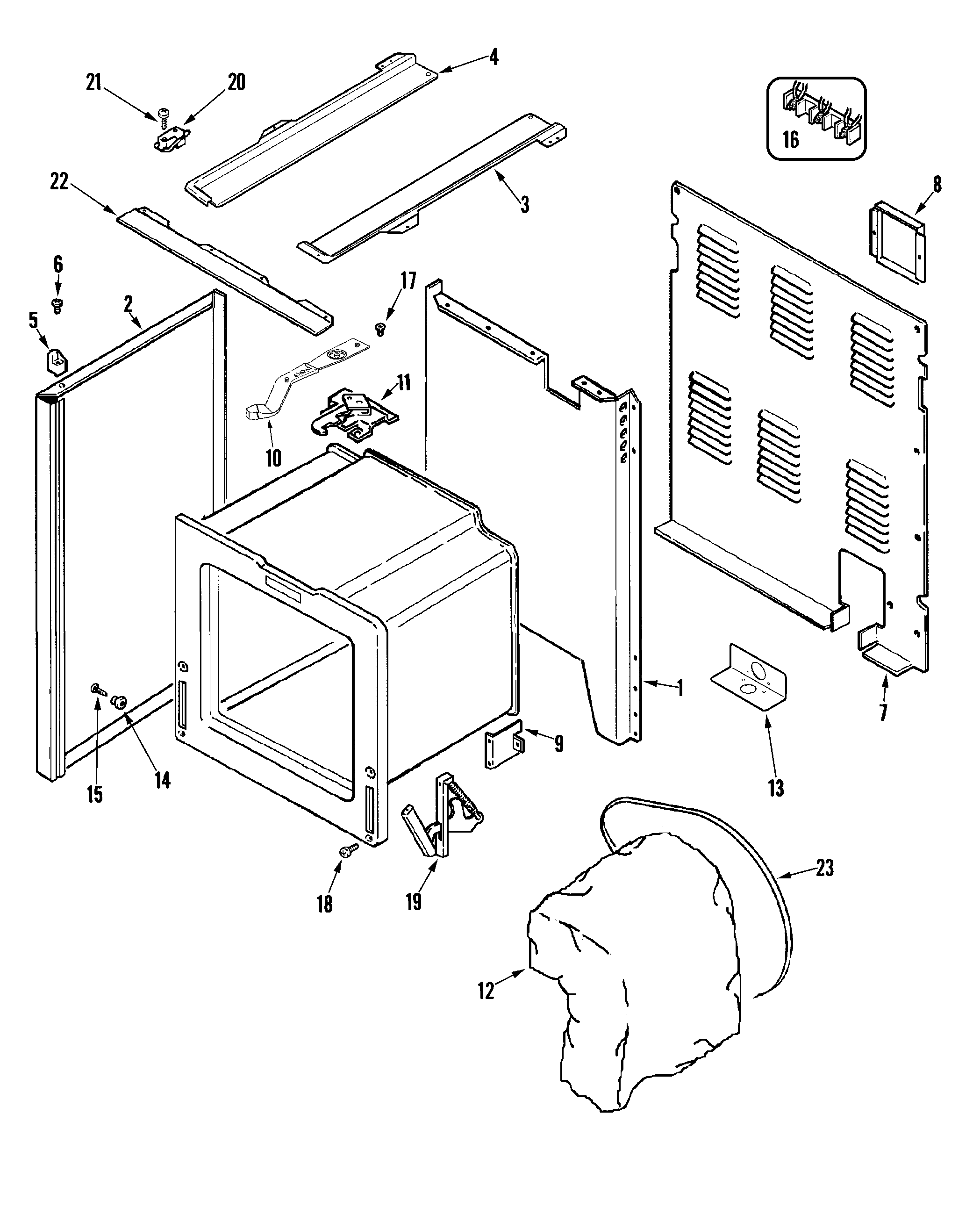

Body diagram

Terminal block

Part #7401P039-60

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces 7401P039-60. Substitute parts can look different from the original.
BEST SELLER
$34.10 |
15% OFF Phone Price : $40.10
In Stock
Range Surface Element Control Switch 7403P238-60
#6A

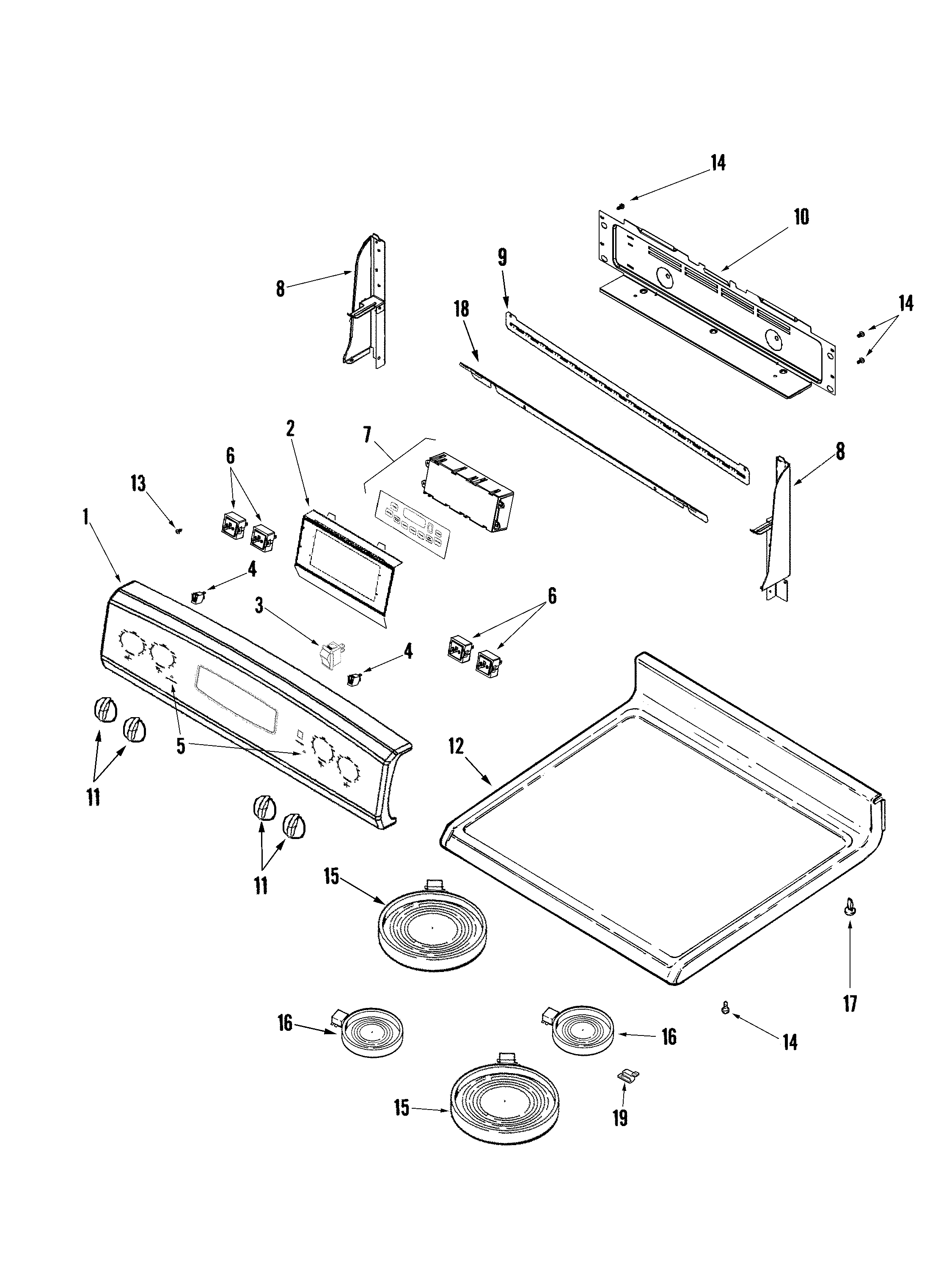

Control panel/top assembly diagram

Range surface element control switch

Part #7403P238-60

Replaced by #WP7403P238-60

?
Manufacturer substitution
This part replaces 7403P238-60. Substitute parts can look different from the original.
BEST SELLER
$50.39 |
11% OFF Phone Price : $56.39
In Stock
Range Surface Element Control Switch 7403P239-60
#6B

Control panel/top assembly diagram

Range surface element control switch

Part #7403P239-60

Replaced by #WP7403P239-60

?
Manufacturer substitution
This part replaces 7403P239-60. Substitute parts can look different from the original.
BEST SELLER
$47.96 |
11% OFF Phone Price : $53.96
In Stock
Bake Element 74003039
#3

Oven/base diagram

Bake element

Part #74003039

Replaced by #WP74010750

?
Manufacturer substitution
This part replaces 74003039. Substitute parts can look different from the original.
BEST SELLER
$36.89 |
14% OFF Phone Price : $42.89
In Stock
Range Dual Surface Burner Control Switch 74003122
#6

Control panel/top assembly diagram

Range dual surface burner control switch

Part #74003122

Replaced by #WP74003122

?
Manufacturer substitution
This part replaces 74003122. Substitute parts can look different from the original.
$64.79 |
8% OFF Phone Price : $70.79
In Stock
Screw Element 74002979
#3D

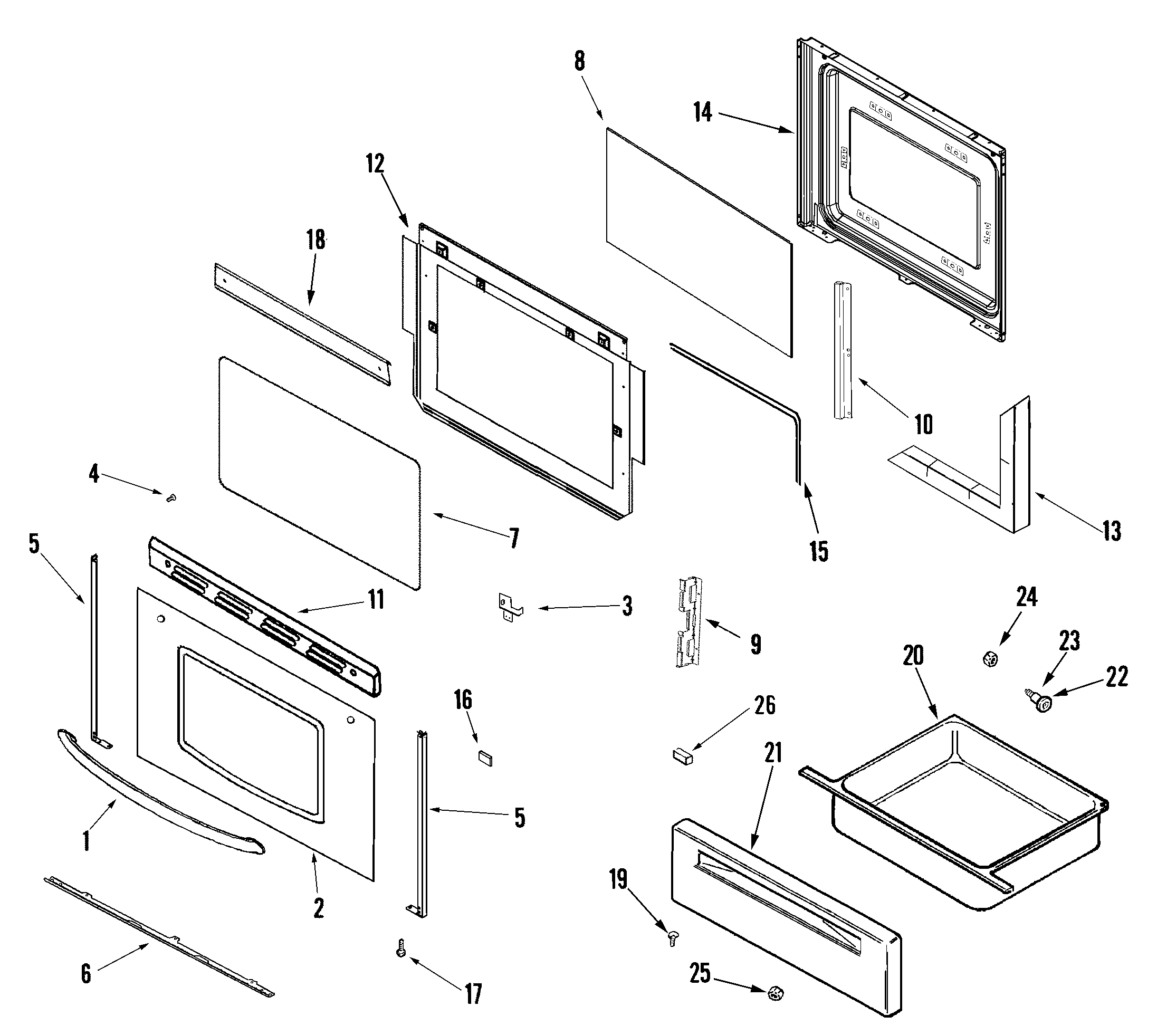

Door/drawer (series 15) diagram

Screw element

Part #74002979

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 74002979. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Oven Broiler Element 74003041
#2

Oven/base diagram

Oven broiler element

Part #74003041

Replaced by #WPW10310249

?
Manufacturer substitution
This part replaces 74003041. Substitute parts can look different from the original.
$74.22 |
7% OFF Phone Price : $80.22
In Stock
Range Radiant Surface Element 74009743
#15A

Control panel/top assembly diagram

Range radiant surface element

Part #74009743

Replaced by #W10823715

?
Manufacturer substitution
This part replaces 74009743. Substitute parts can look different from the original.
$129.91 |
8% OFF Phone Price : $141.91
In Stock
Screw 74001530
Screw

Part #74001530

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 74001530. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
