Model # HDR-XR350V Official Sony camcorder

Here are the diagrams and repair parts for Official Sony HDR-XR350V camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

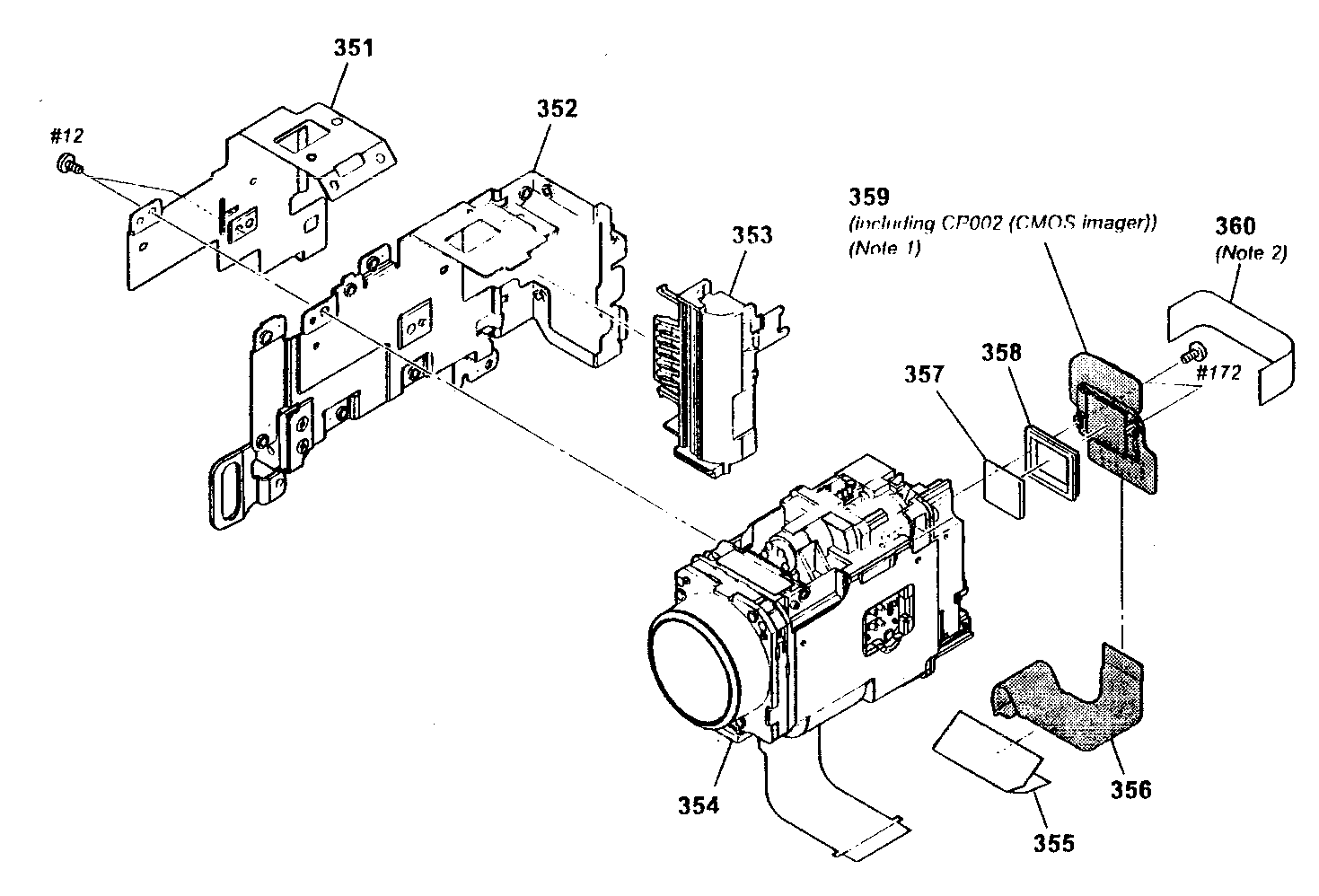

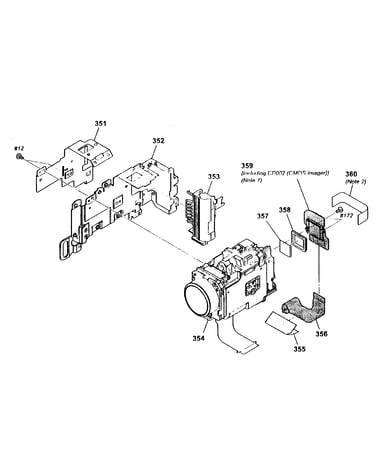

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 122 parts  |
Frame,hdd 417420901
#109

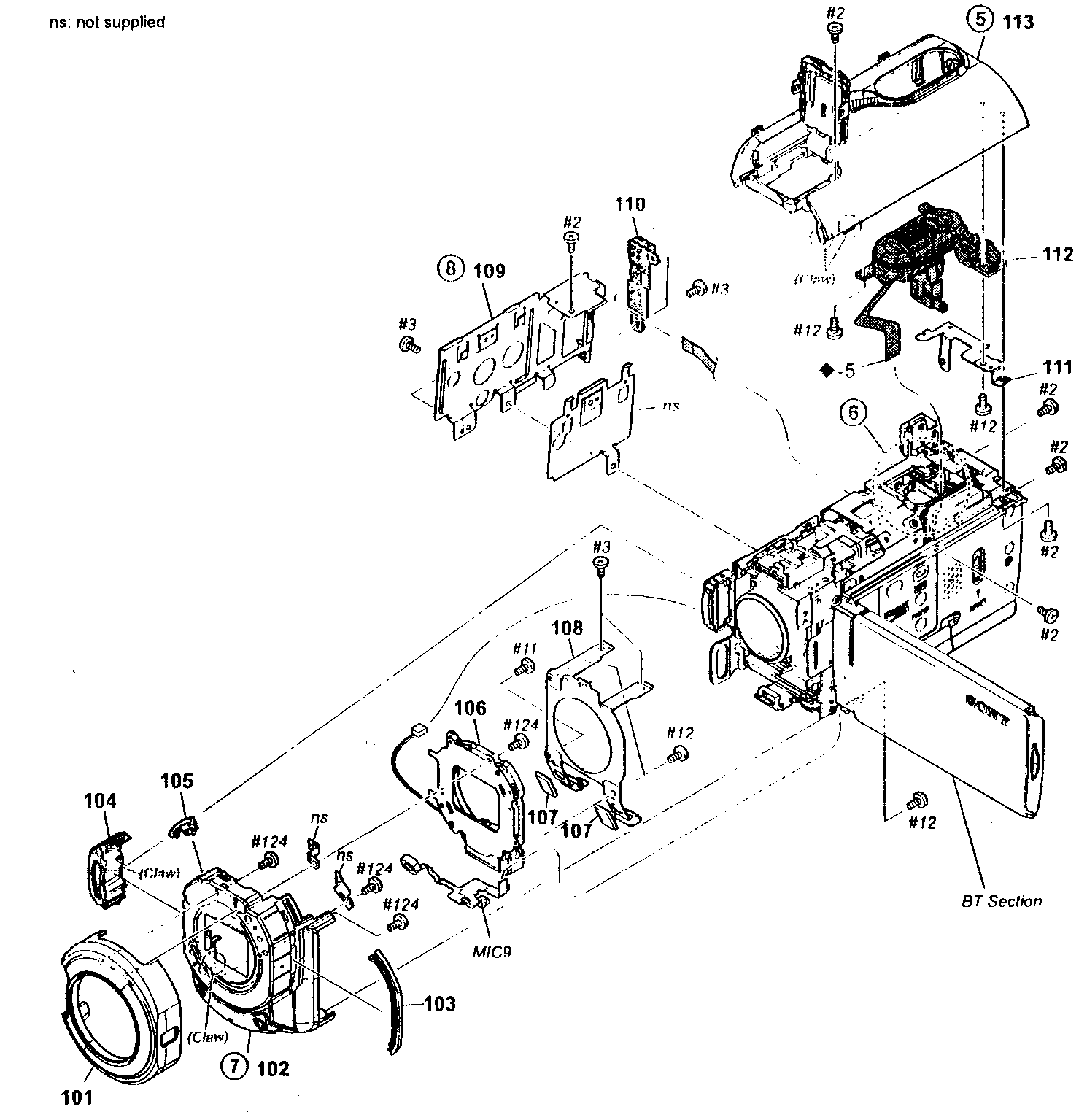

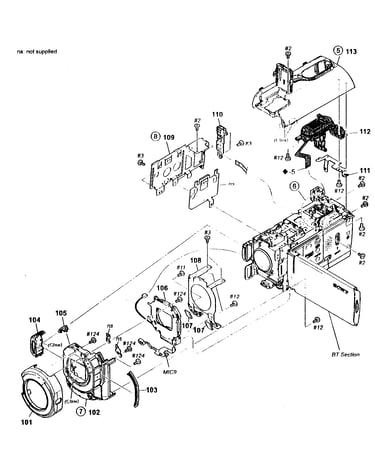

Front assy diagram

Frame,hdd

Part #417420901

Replaced by #417420901

?
Manufacturer substitution
This part replaces 417420901. Substitute parts can look different from the original.
$8.26
In Stock
Pcb,ms-430 A1769638A
#258

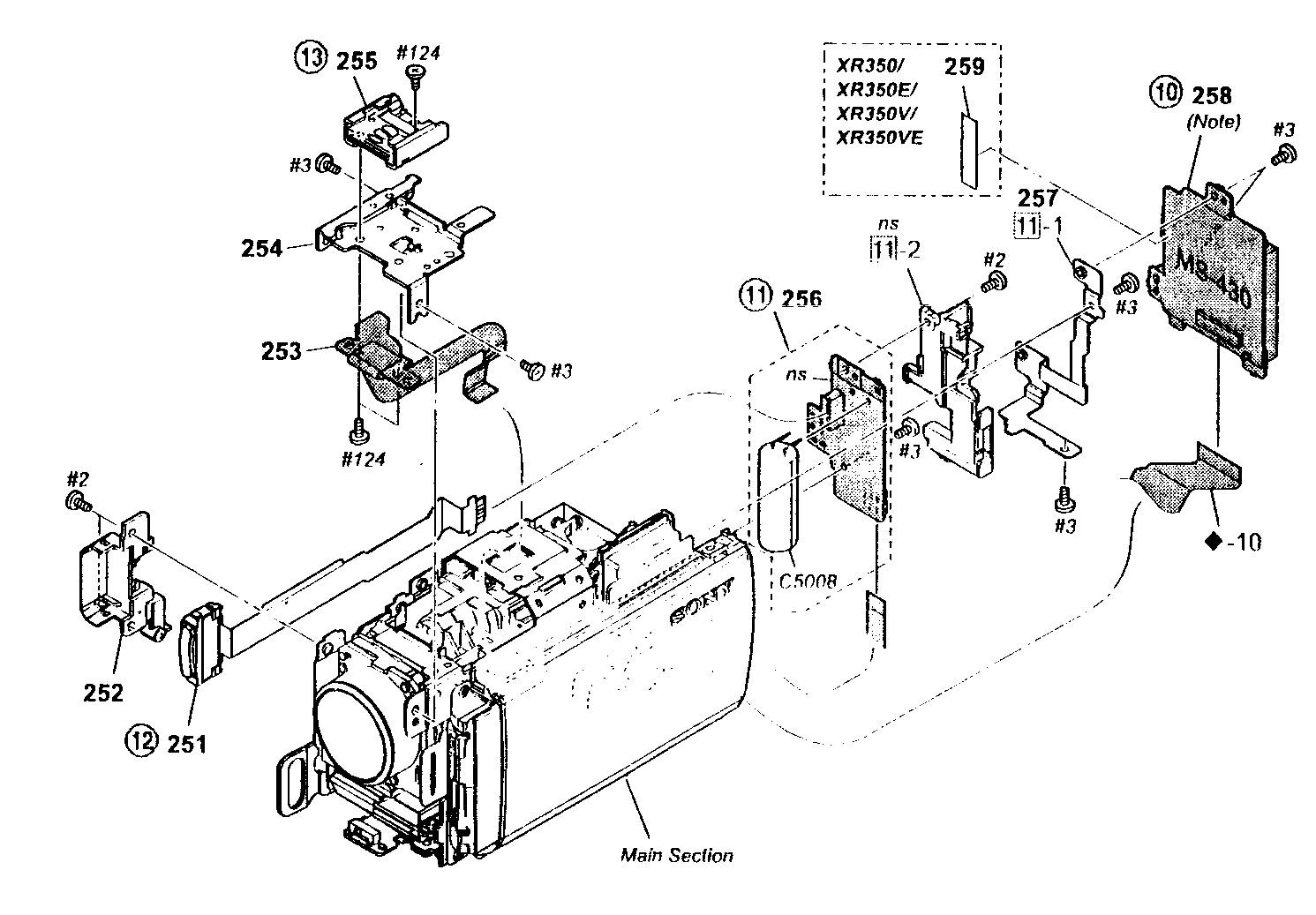

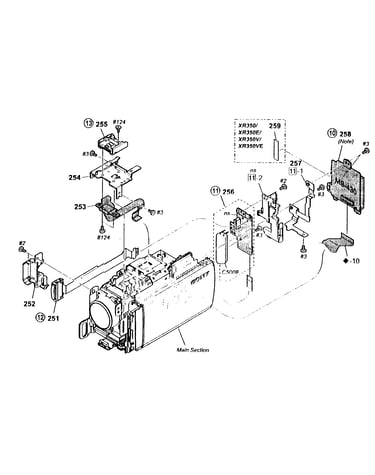

Top assy diagram

Pcb,ms-430

Part #A1769638A

Replaced by #A1769638A

?
Manufacturer substitution
This part replaces A1769638A. Substitute parts can look different from the original.
$120.64
In Stock
Flex Clamp 416645101
#466

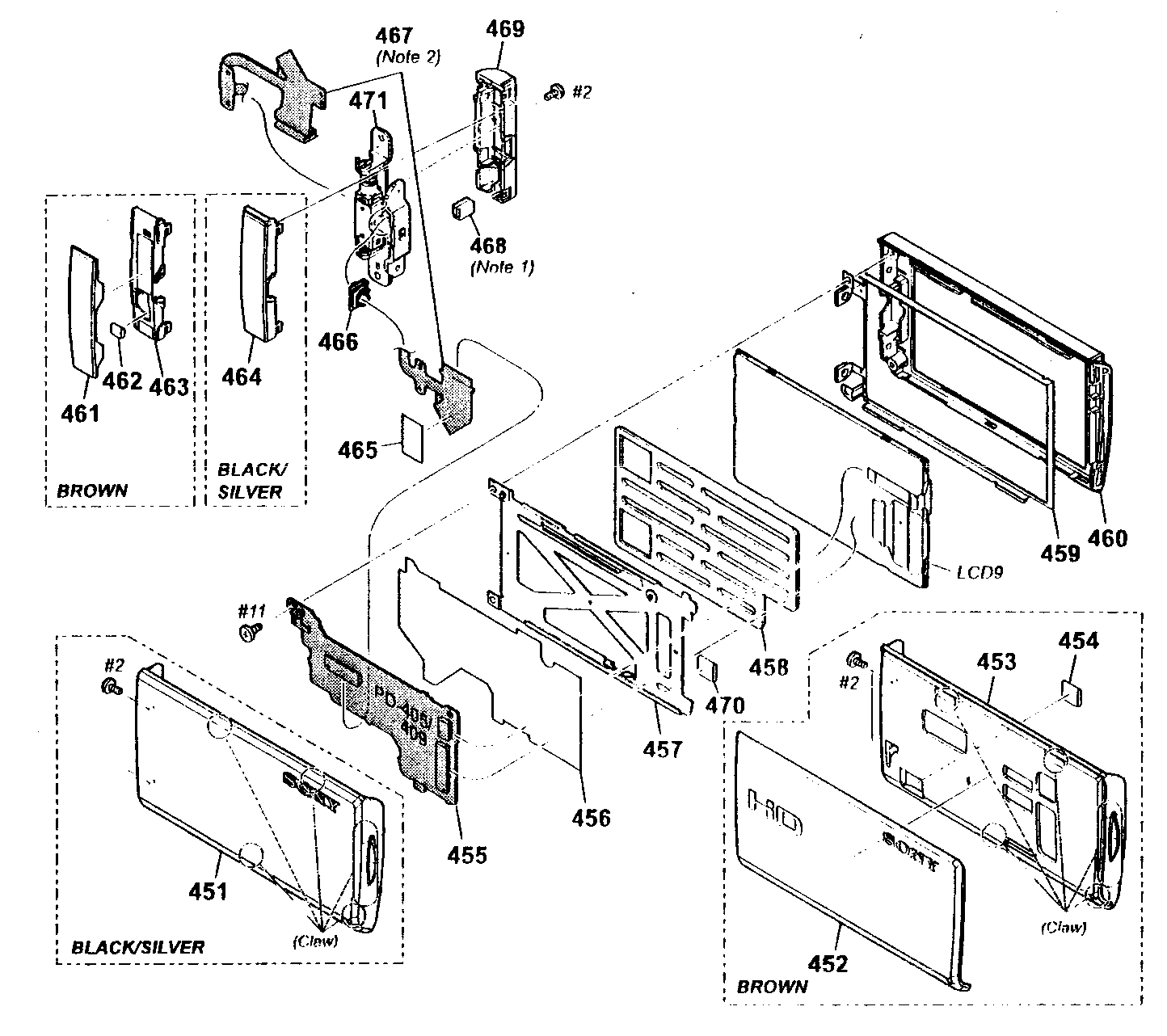

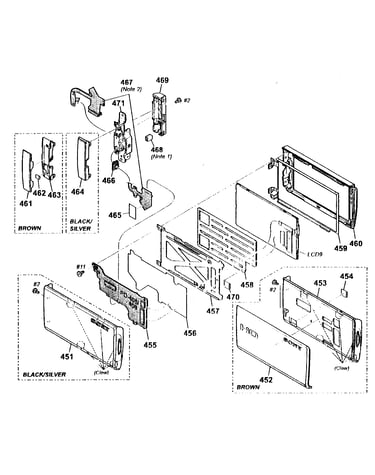

Lcd assy diagram

Flex clamp

Part #416645101

Replaced by #416645101

?
Manufacturer substitution
This part replaces 416645101. Substitute parts can look different from the original.
$8.26
In Stock
Sheet 417508501
#409

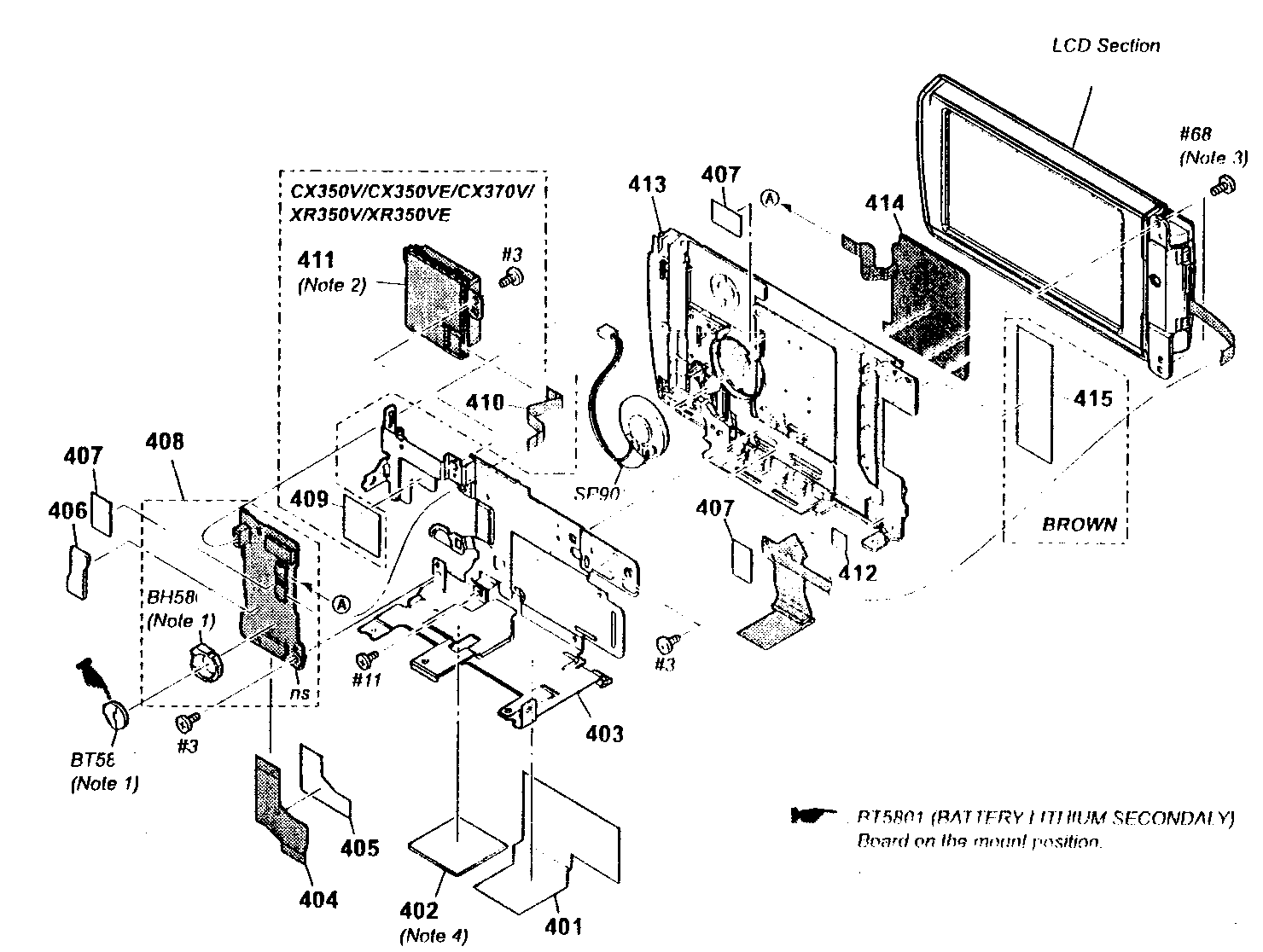

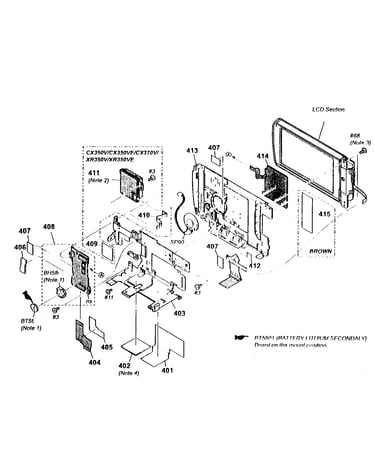

Right cabinet diagram

Sheet

Part #417508501

Replaced by #417508501

?
Manufacturer substitution
This part replaces 417508501. Substitute parts can look different from the original.
$11.90
In Stock
Sheet 418349201
#406

Right cabinet diagram

Sheet

Part #418349201

Replaced by #418349201

?
Manufacturer substitution
This part replaces 418349201. Substitute parts can look different from the original.
This item is not returnable
$3.63
In Stock
Pcb,flex 188029411
#311

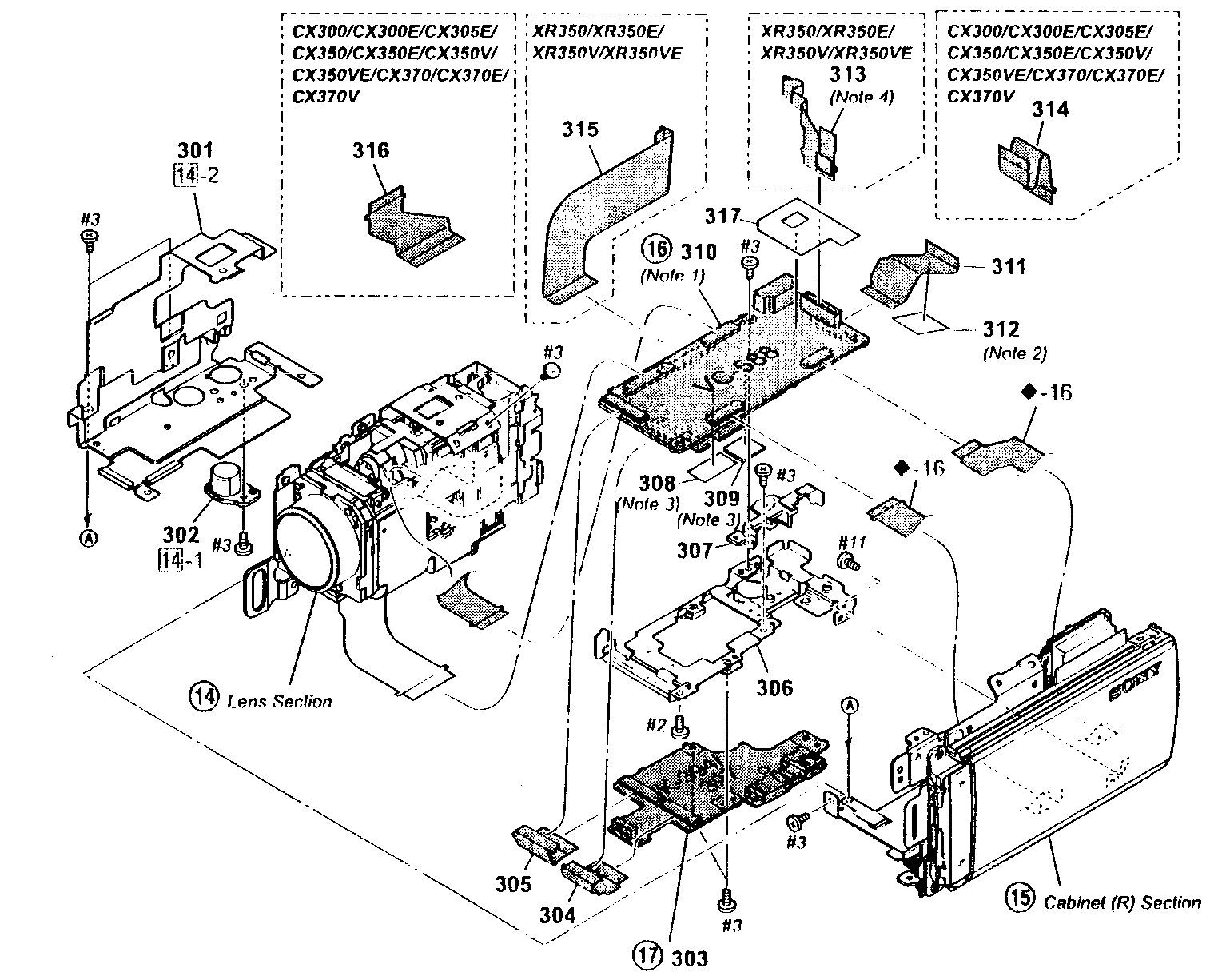

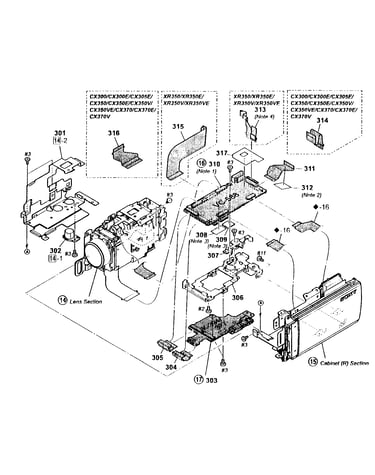

Main assy diagram

Pcb,flex

Part #188029411

Replaced by #188029411

?
Manufacturer substitution
This part replaces 188029411. Substitute parts can look different from the original.
This item is not returnable
$6.49
In Stock
A/v Cable 183464611
#NI

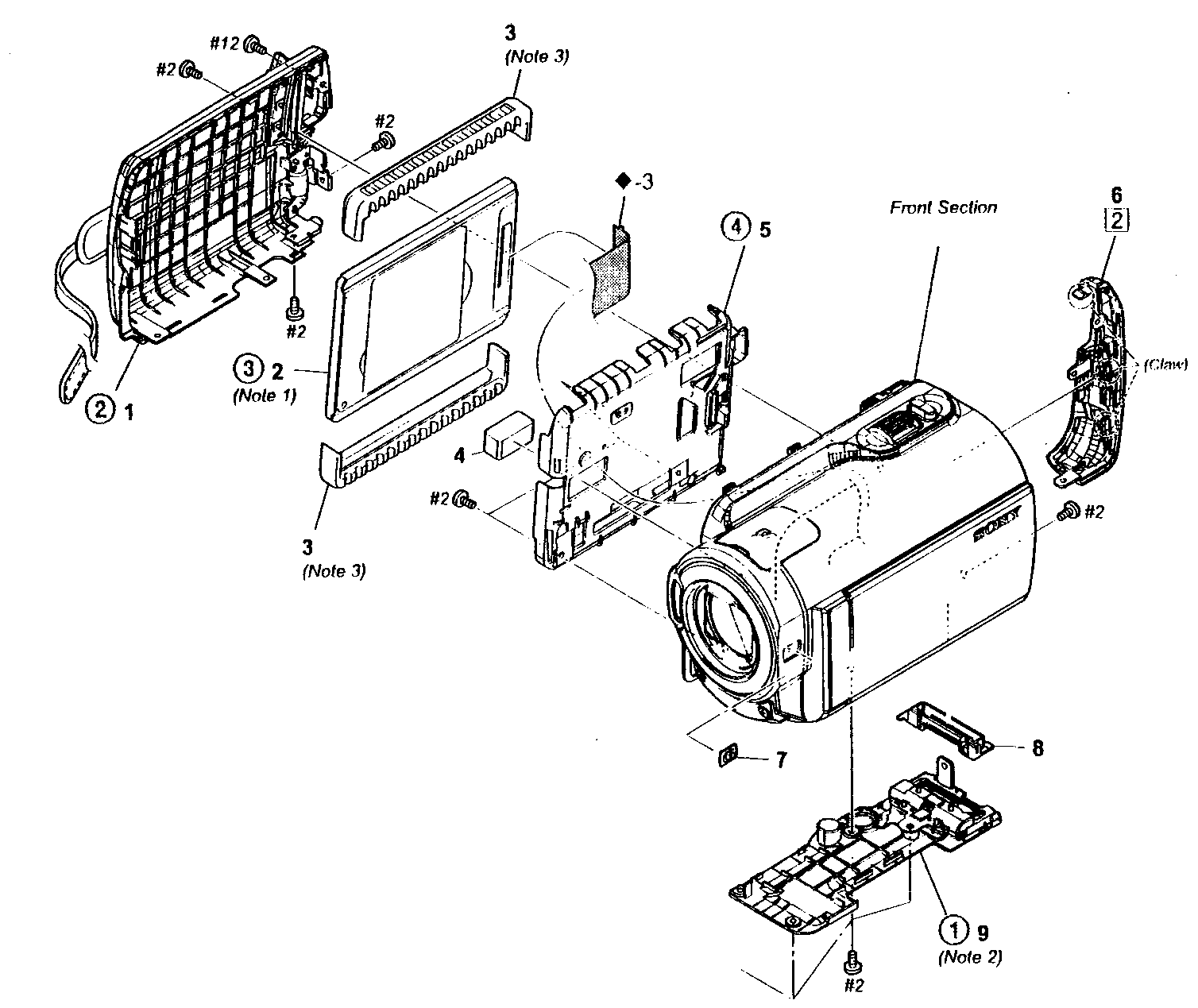

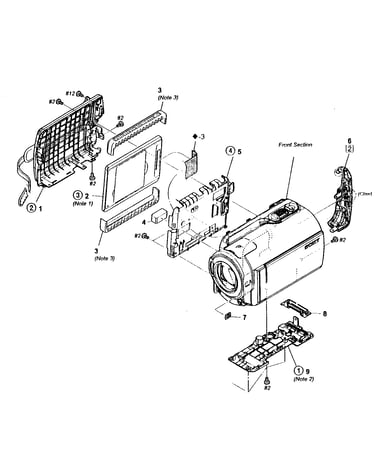

Cabinet assy diagram

A/v cable

Part #183464611

Replaced by #183464611

?
Manufacturer substitution
This part replaces 183464611. Substitute parts can look different from the original.
$43.03
In Stock
A/v Cable 182315661
#NI

Cabinet assy diagram

A/v cable

Part #182315661

Replaced by #183820511

?
Manufacturer substitution
This part replaces 182315661. Substitute parts can look different from the original.
$21.83
In Stock
Cushion 418040701
#470

Lcd assy diagram

Cushion

Part #418040701

Replaced by #418040701

?
Manufacturer substitution
This part replaces 418040701. Substitute parts can look different from the original.
This item is not returnable
$2.30
In Stock
Panel Assembly X25463791
#205

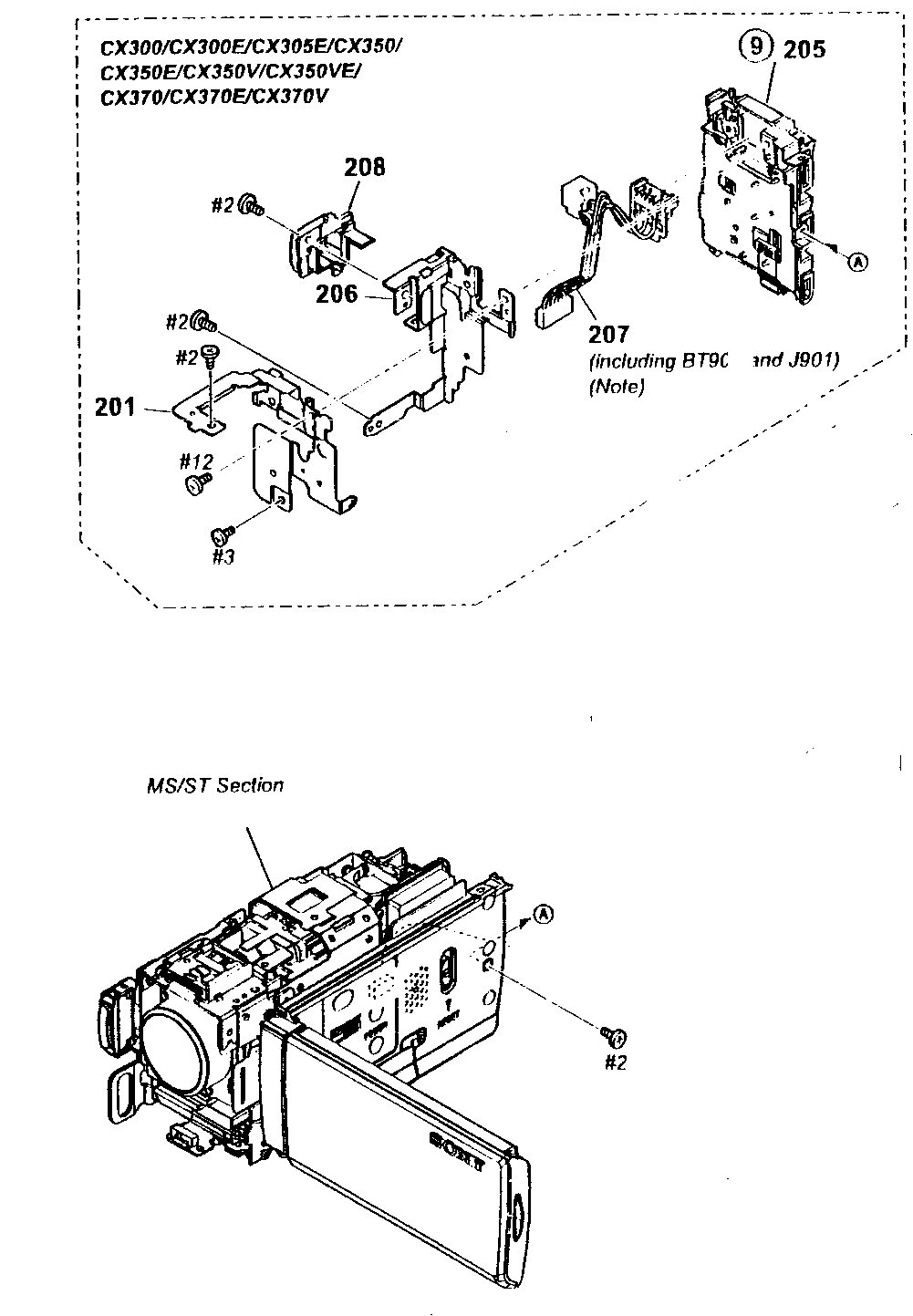

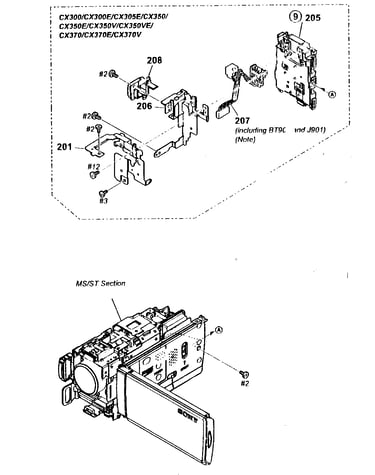

Back assy diagram

Panel assembly

Part #X25463791

Replaced by #X25463791

?
Manufacturer substitution
This part replaces X25463791. Substitute parts can look different from the original.
$18.10
In Stock
