Model # 21758890 Official Craftsman 7.5-hp outboard motor

Here are the diagrams and repair parts for Official Craftsman 21758890 7.5-hp outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

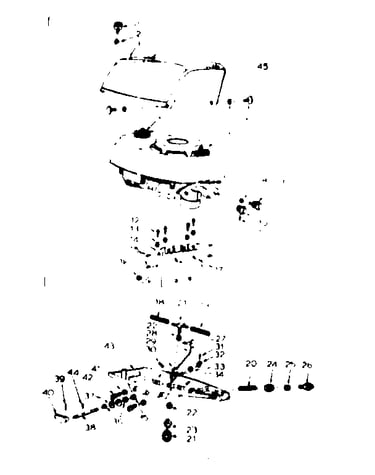

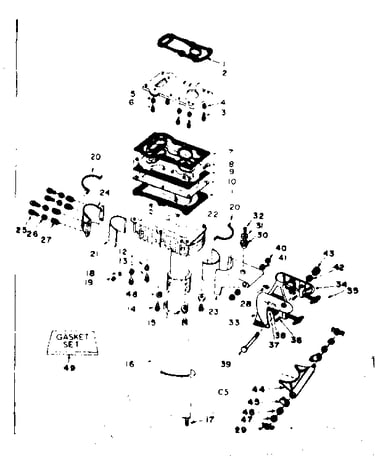

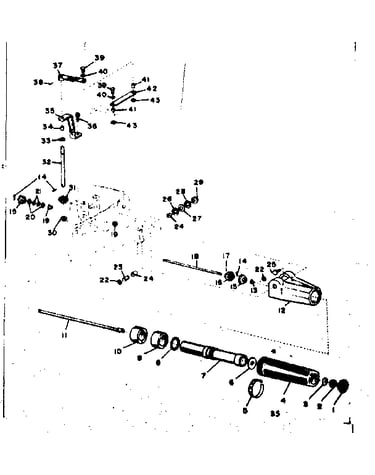

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 285 parts  |
Gasket 631028
#25

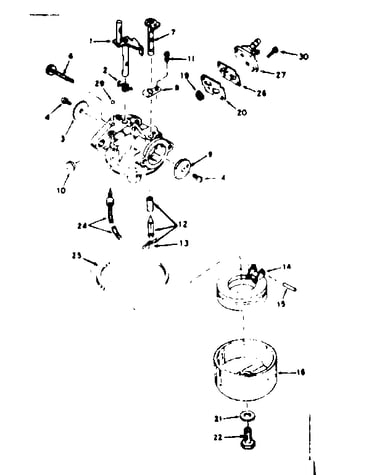

Carburetor assembly diagram

Gasket

Part #631028

The manufacturer no longer makes this part, and there's no substitute part

Fuel Line 29774
#56

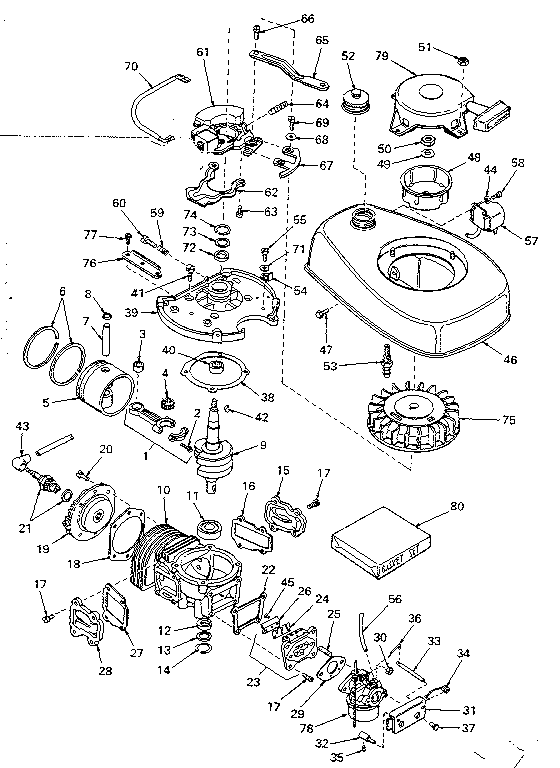

Engine assembly no. 640-03b diagram

Fuel line

Part #29774

The manufacturer no longer makes this part, and there's no substitute part

Float 631023
#14

Carburetor assembly diagram

Float

Part #631023

The manufacturer no longer makes this part, and there's no substitute part

Clip 631022
#13

Carburetor assembly diagram

Clip

Part #631022

The manufacturer no longer makes this part, and there's no substitute part

Seal 510105
#12

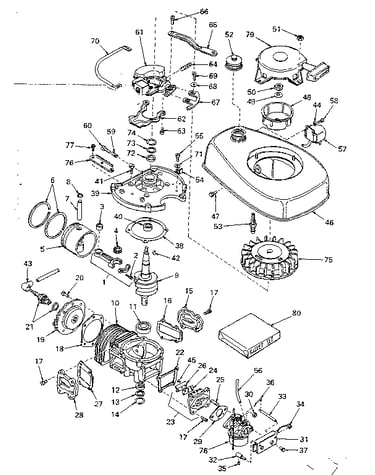

Engine assembly no. 640-03b diagram

Seal

Part #510105

The manufacturer no longer makes this part, and there's no substitute part

Seal 510242
#72

Engine assembly no. 640-03b diagram

Seal

Part #510242

The manufacturer no longer makes this part, and there's no substitute part

Spring 510109
#14

Engine assembly no. 640-03b diagram

Spring

Part #510109

The manufacturer no longer makes this part, and there's no substitute part

Spring 590412
#5

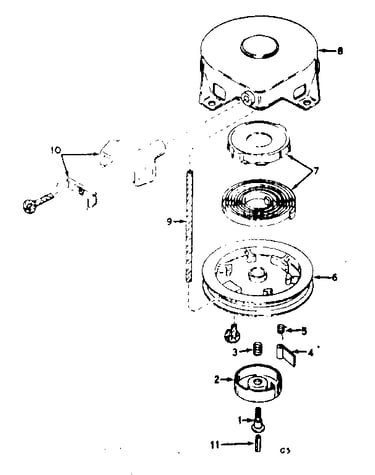

Rewind starter assembly no. 590420 diagram

Spring

Part #590412

The manufacturer no longer makes this part, and there's no substitute part

Retainer 510106
#13

Engine assembly no. 640-03b diagram

Retainer

Part #510106

The manufacturer no longer makes this part, and there's no substitute part

Roll Pin 7058
#28

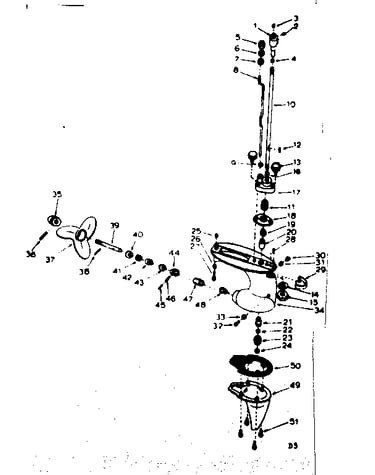

Gear housing assembly diagram

Roll pin

Part #7058

The manufacturer no longer makes this part, and there's no substitute part
