Gas Water Heater

Model # 5-100-NGRT7 Official Ace gas water heater

Here are the diagrams and repair parts for Official Ace 5-100-NGRT7 gas water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Water Heater Thermocouple 9000283
#14

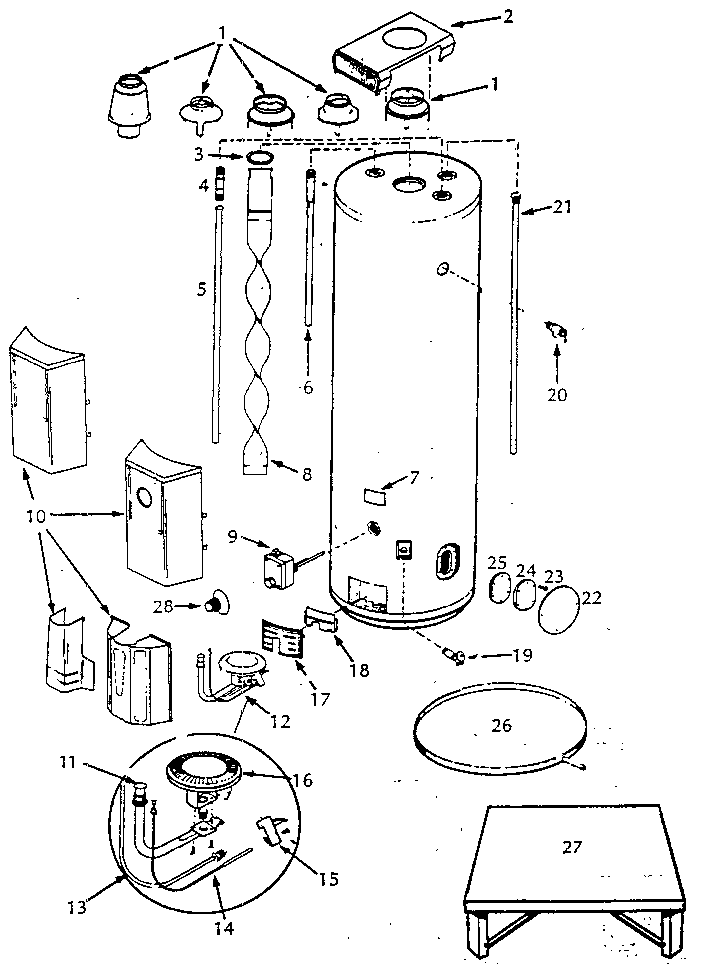

Round gas diagram

Water heater thermocouple

Part #9000283

The manufacturer no longer makes this part, and there's no substitute part

Flue Baffle 9001484
#8A

Round gas diagram

Flue baffle

Part #9001484

$23.49
In Stock
Door 9000369
#18

Round gas diagram

Door

Part #9000369

This item is not returnable
$2.49
In Stock
Access Bolt 9000928
#23

Round gas diagram

Access bolt

Part #9000928

This item is not returnable
$4.99
In Stock
Access 9000927
#24

Round gas diagram

Access

Part #9000927

This item is not returnable
$4.99
In Stock
Access Cover 9001764
#22

Round gas diagram

Access cover

Part #9001764

This item is not returnable
$5.99
In Stock
Outer Door 9000454
#17

Round gas diagram

Outer door

Part #9000454

$18.49
In Stock
Dip Tube 9001837
#5

Round gas diagram

Dip tube

Part #9001837

Replaced by #9001644

?
Manufacturer substitution
This part replaces 9001837. Substitute parts can look different from the original.
$7.99
In Stock
Pilot Assembly 9000285
#15

Round gas diagram

Pilot assembly

Part #9000285

Replaced by #9000285-15

?
Manufacturer substitution
This part replaces 9000285. Substitute parts can look different from the original.
$25.81
In Stock
Water Heater Vent Draft Hood (replaces 183853-000, 2190144, 9003499) 9000274
#1

Round gas diagram

Water heater vent draft hood (replaces 183853-000, 2190144, 9003499)

Part #9000274

Replaced by #100108368

?
Manufacturer substitution
This part replaces 9000274. Substitute parts can look different from the original.
$36.67
In Stock
