Generac
Gas Pressure Washer

Model # 9728-0 Official Generac pressure washer

Here are the diagrams and repair parts for Official Generac 9728-0 pressure washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

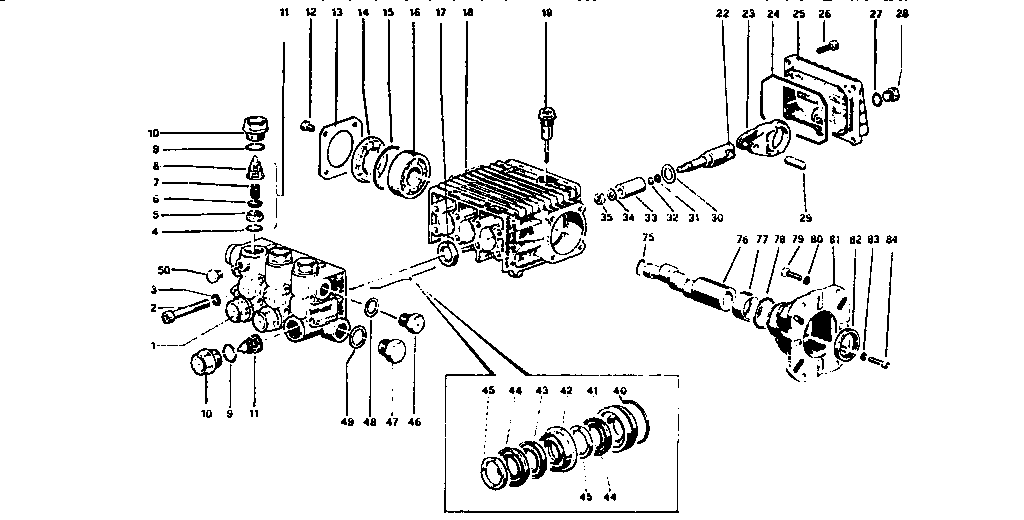

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 262 parts  |

Adapter Guard 100517GS

#NI

All parts diagram

Adapter guard

Part #100517GS

Replaced by #6190

?
Manufacturer substitution
This part replaces 100517GS. Substitute parts can look different from the original.
$24.09
20% OFF Phone Price : $30.09
In Stock
Adaptor-quic 100518GS

#NI

All parts diagram

Adaptor-quic

Part #100518GS

Replaced by #312981GS

?
Manufacturer substitution
This part replaces 100518GS. Substitute parts can look different from the original.
$43.27
12% OFF Phone Price : $49.27
In Stock
Element 73111
#13

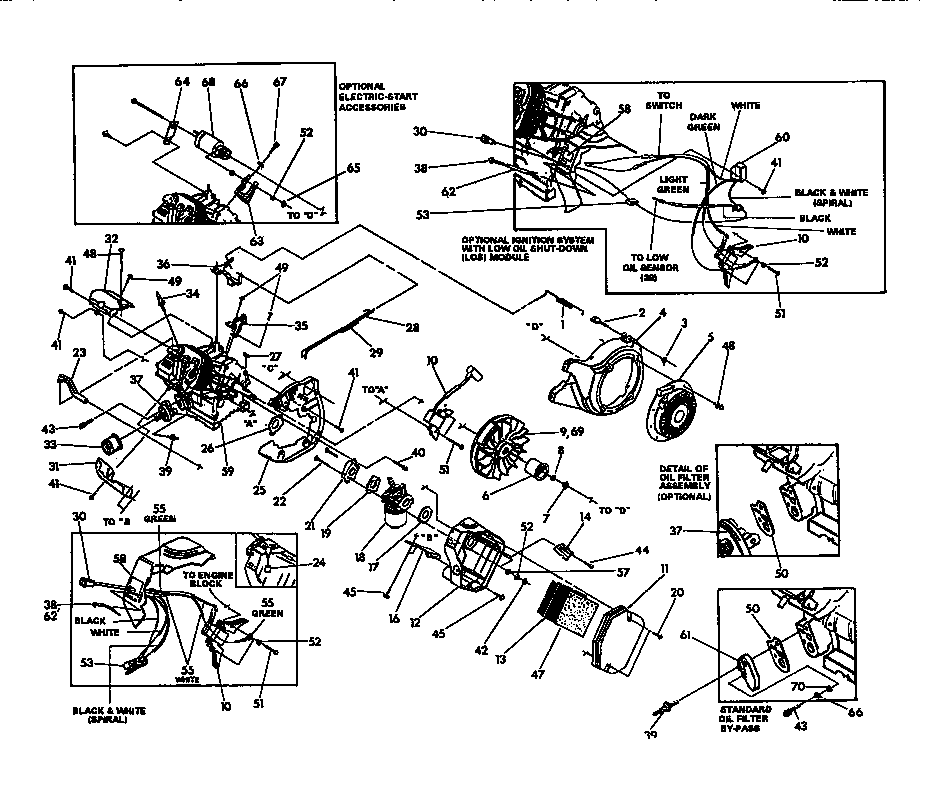

Flywheel and ring gear assembly diagram

Element

Part #73111

Replaced by #073111S

?
Manufacturer substitution
This part replaces 73111. Substitute parts can look different from the original.
This item is not returnable
$27.32
18% OFF Phone Price : $33.32
In Stock
Push Rod 88396B
#34

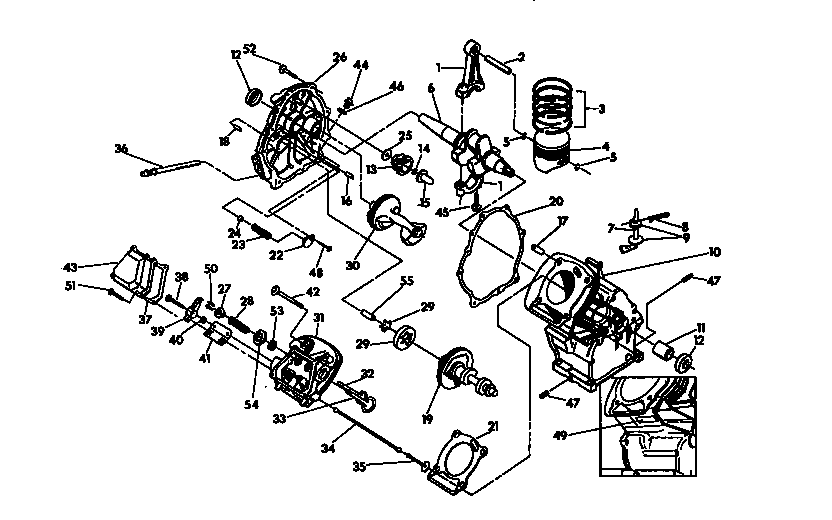

Long block diagram

Push rod

Part #88396B

Replaced by #0D9853B

?
Manufacturer substitution
This part replaces 88396B. Substitute parts can look different from the original.
In Stock
Head Gasket 73142
#21

Long block diagram

Head gasket

Part #73142

Replaced by #021713B

?
Manufacturer substitution
This part replaces 73142. Substitute parts can look different from the original.
This item is not returnable
$6.78
13% OFF Phone Price : $7.78
In Stock
Cleaner 81646
#47

Flywheel and ring gear assembly diagram

Cleaner

Part #81646

Replaced by #G081646

?
Manufacturer substitution
This part replaces 81646. Substitute parts can look different from the original.
This item is not returnable
In Stock
Hose-4000psi 100514GS

#(NI)

All parts diagram

Hose-4000psi

Part #100514GS

Replaced by #6483

?
Manufacturer substitution
This part replaces 100514GS. Substitute parts can look different from the original.
$210.89
5% OFF Phone Price : $222.89
In Stock
Screen 83083
#19

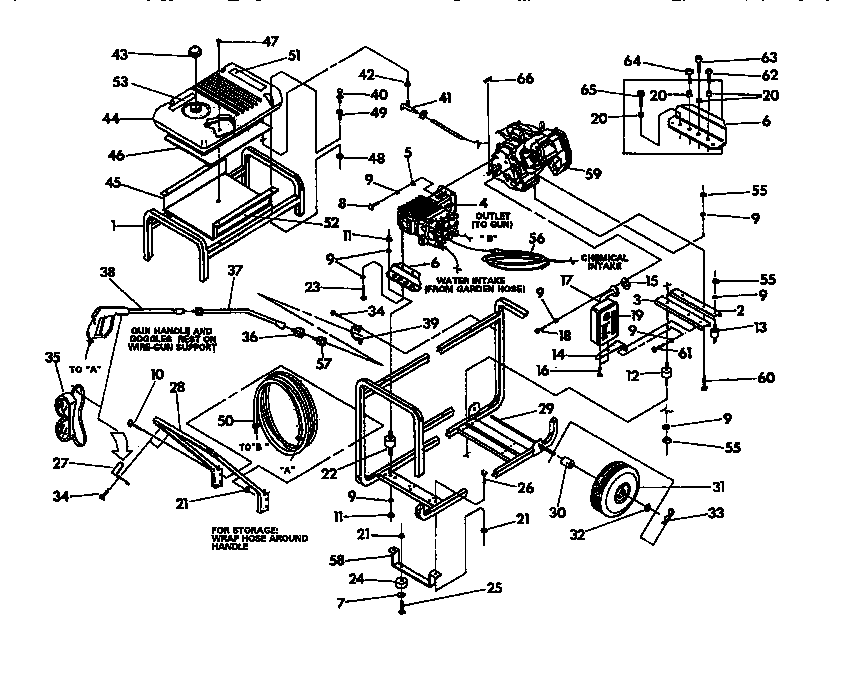

Main frame diagram

Screen

Part #83083

Replaced by #83083GS

?
Manufacturer substitution
This part replaces 83083. Substitute parts can look different from the original.
This item is not returnable
$13.49
13% OFF Phone Price : $15.49
In Stock
Arm Gasket 71987
#37

Long block diagram

Arm gasket

Part #71987

Replaced by #0C3150A

?
Manufacturer substitution
This part replaces 71987. Substitute parts can look different from the original.
$21.64
22% OFF Phone Price : $27.64
In Stock
Cap Screw 22142
#61

Main frame diagram

Cap screw

Part #22142

The manufacturer no longer makes this part, and there's no substitute part
