Universal/Multiflex (Frigidaire)
Chest Freezer

Model # MFC09M3FW1 Official Universal/Multiflex (Frigidaire) freezer - 5995296927

Here are the diagrams and repair parts for Official Universal/Multiflex (Frigidaire) MFC09M3FW1 freezer - 5995296927, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Filter Drier 216099900
#4

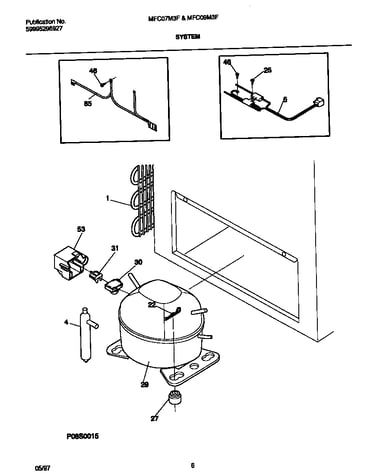

System diagram

Filter drier

Part #216099900

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216099900. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Grille Screw 131168200
#71

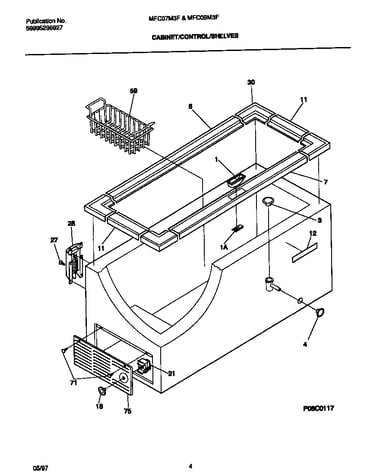

Cabinet/control/shelves diagram

Grille screw

Part #131168200

Replaced by #131168200

?
Manufacturer substitution
This part replaces 131168200. Substitute parts can look different from the original.
BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Basket 216078600
#59

Cabinet/control/shelves diagram

Basket

Part #216078600

Replaced by #216848200

?
Manufacturer substitution
This part replaces 216078600. Substitute parts can look different from the original.
$40.43 |
13% OFF Phone Price : $46.43
In Stock
Freezer Door Gasket 216480901
#1

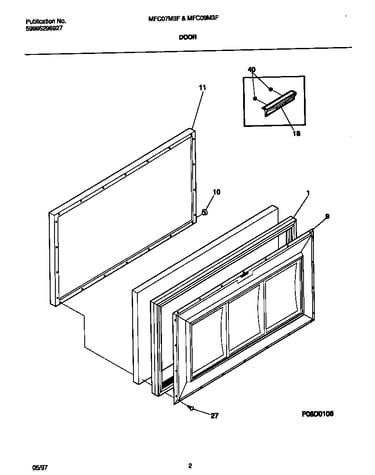

Door diagram

Freezer door gasket

Part #216480901

Replaced by #216480911

?
Manufacturer substitution
This part replaces 216480901. Substitute parts can look different from the original.
$139.91 |
8% OFF Phone Price : $151.91
In Stock
Refrigerator Evaporator Cover Screw 08037851
#46

System diagram

Refrigerator evaporator cover screw

Part #08037851

This item is not returnable
$3.51
In Stock
Grommet 5308002681
#27

System diagram

Grommet

Part #5308002681

Replaced by #216498900

?
Manufacturer substitution
This part replaces 5308002681. Substitute parts can look different from the original.
This item is not returnable
$13.39 |
13% OFF Phone Price : $15.39
In Stock
Compressor 5303925442
#29

System diagram

Compressor

Part #5303925442

Replaced by #5304443412

?
Manufacturer substitution
This part replaces 5303925442. Substitute parts can look different from the original.
$620.55
In Stock
Crosley Freezer Lid Gasket (replaces 216481003, 216481011, 3018999, 3200692, 3201115, 5300301163, 5300301164, 5304400866, F114263, F114263-1, F122447-1, F122447-2, F126493, F129788, F129789, F301163, F301164, R000901010) 216481001
#1

Door diagram

Crosley freezer lid gasket (replaces 216481003, 216481011, 3018999, 3200692, 3201115, 5300301163, 5300301164, 5304400866, f114263, f114263-1, f122447-1, f122447-2, f126493, f129788, f129789, f301163, f301164, r000901010)

Part #216481001

$144.01 |
8% OFF Phone Price : $156.01
In Stock
Freezer Inner Door Panel Rivet 5303212828
#27

Door diagram

Freezer inner door panel rivet

Part #5303212828

$19.49 |
9% OFF Phone Price : $21.49
In Stock
Screw Hwh #2 216337700
#27

Cabinet/control/shelves diagram

Screw hwh #2

Part #216337700

Replaced by #216337701

?
Manufacturer substitution
This part replaces 216337700. Substitute parts can look different from the original.
$13.26
In Stock
