Model # 580328172 Official Craftsman portable ac generator

Here are the diagrams and repair parts for Official Craftsman 580328172 portable ac generator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |
Fuse Holder 32300
#26

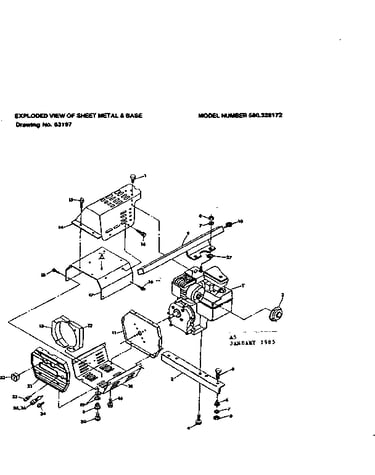

Complete engine and brackets diagram

Fuse holder

Part #32300

Replaced by #191302GS

?
Manufacturer substitution
This part replaces 32300. Substitute parts can look different from the original.
$26.43
In Stock
Binding Post 25367
#24

Complete engine and brackets diagram

Binding post

Part #25367

Replaced by #25367GS

?
Manufacturer substitution
This part replaces 25367. Substitute parts can look different from the original.
$31.71
In Stock
Housing 22694
#2

Stator assembly diagram

Housing

Part #22694

Replaced by #22694GS

?
Manufacturer substitution
This part replaces 22694. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Lock Washer 22129
Lock washer

Part #22129

The manufacturer no longer makes this part, and there's no substitute part

Washer 58886
#8

Stator assembly diagram

Washer

Part #58886

Replaced by #58886GS

?
Manufacturer substitution
This part replaces 58886. Substitute parts can look different from the original.
$10.86
In Stock
Screw 59635
#15

Complete engine and brackets diagram

Screw

Part #59635

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 22142
#6

Complete engine and brackets diagram

Cap screw

Part #22142

The manufacturer no longer makes this part, and there's no substitute part

Plug 46476
#10

Complete engine and brackets diagram

Plug

Part #46476

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 22097
#16

Stator assembly diagram

Lock washer

Part #22097

The manufacturer no longer makes this part, and there's no substitute part

Kit Decal 63130-B

#NI

All parts diagram

Kit decal

Part #63130-B

The manufacturer no longer makes this part, and there's no substitute part
