Model # WF210ANW/XAA-02 Official Samsung washer

Here are the diagrams and repair parts for Official Samsung WF210ANW-XAA-02 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

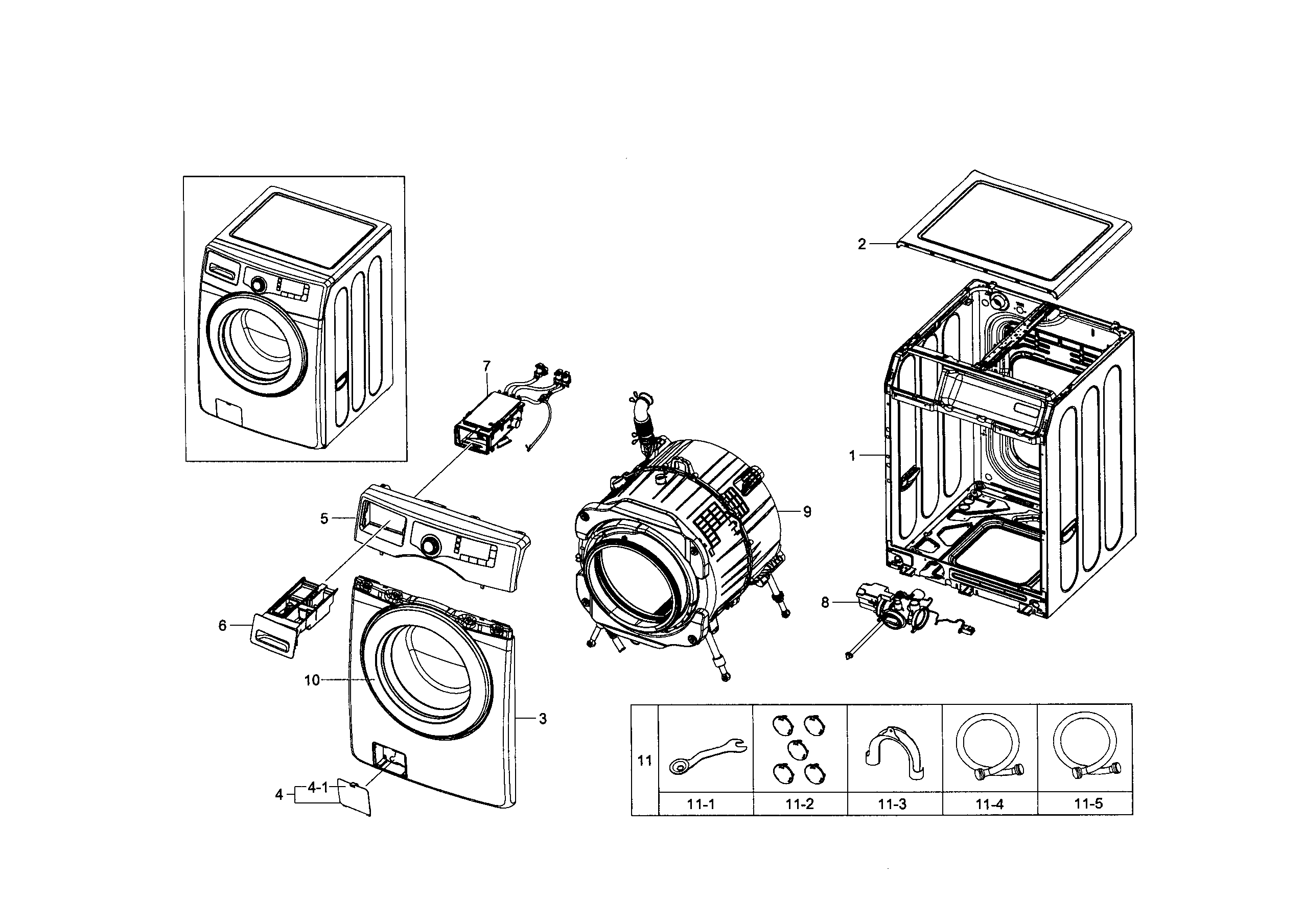

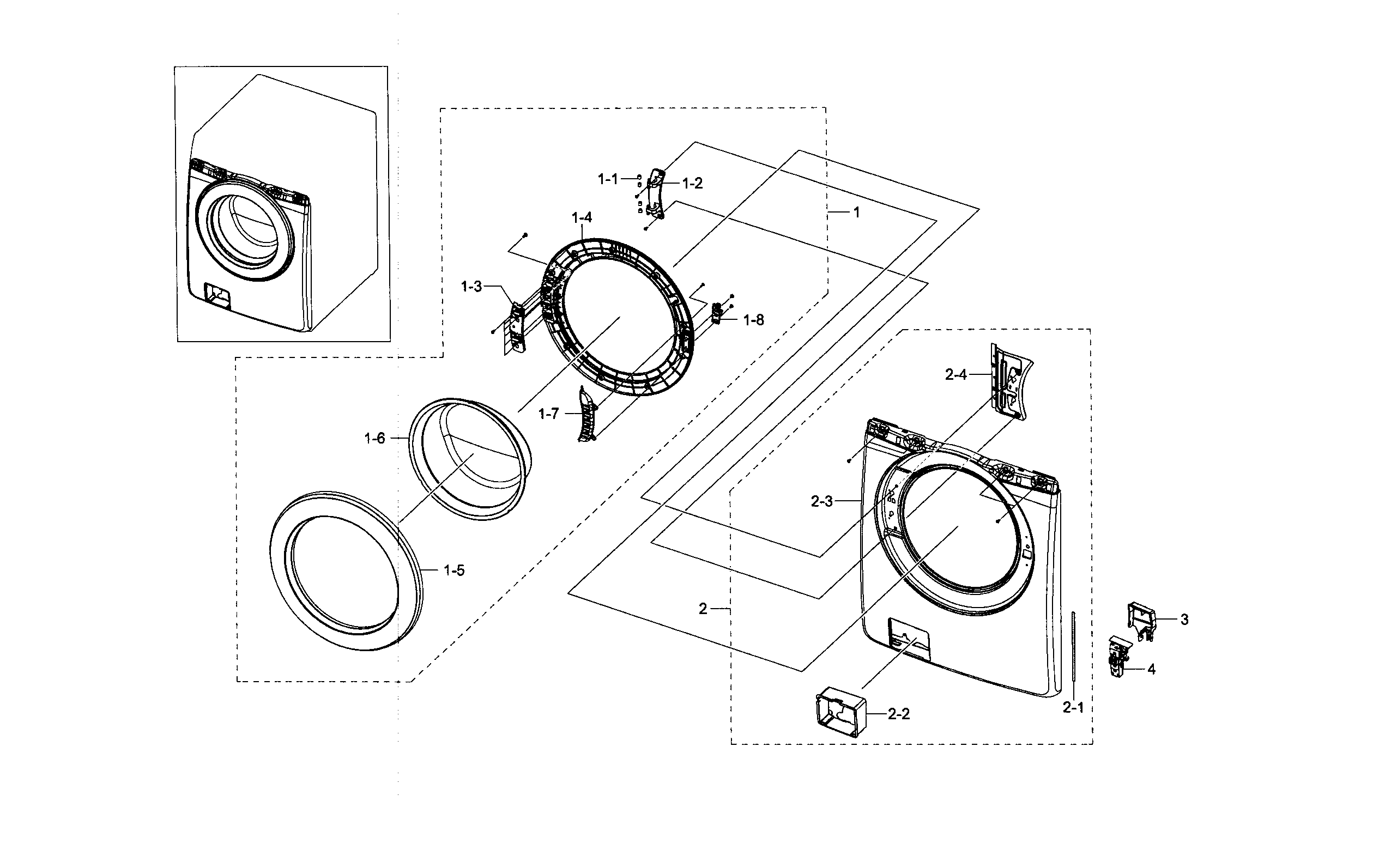

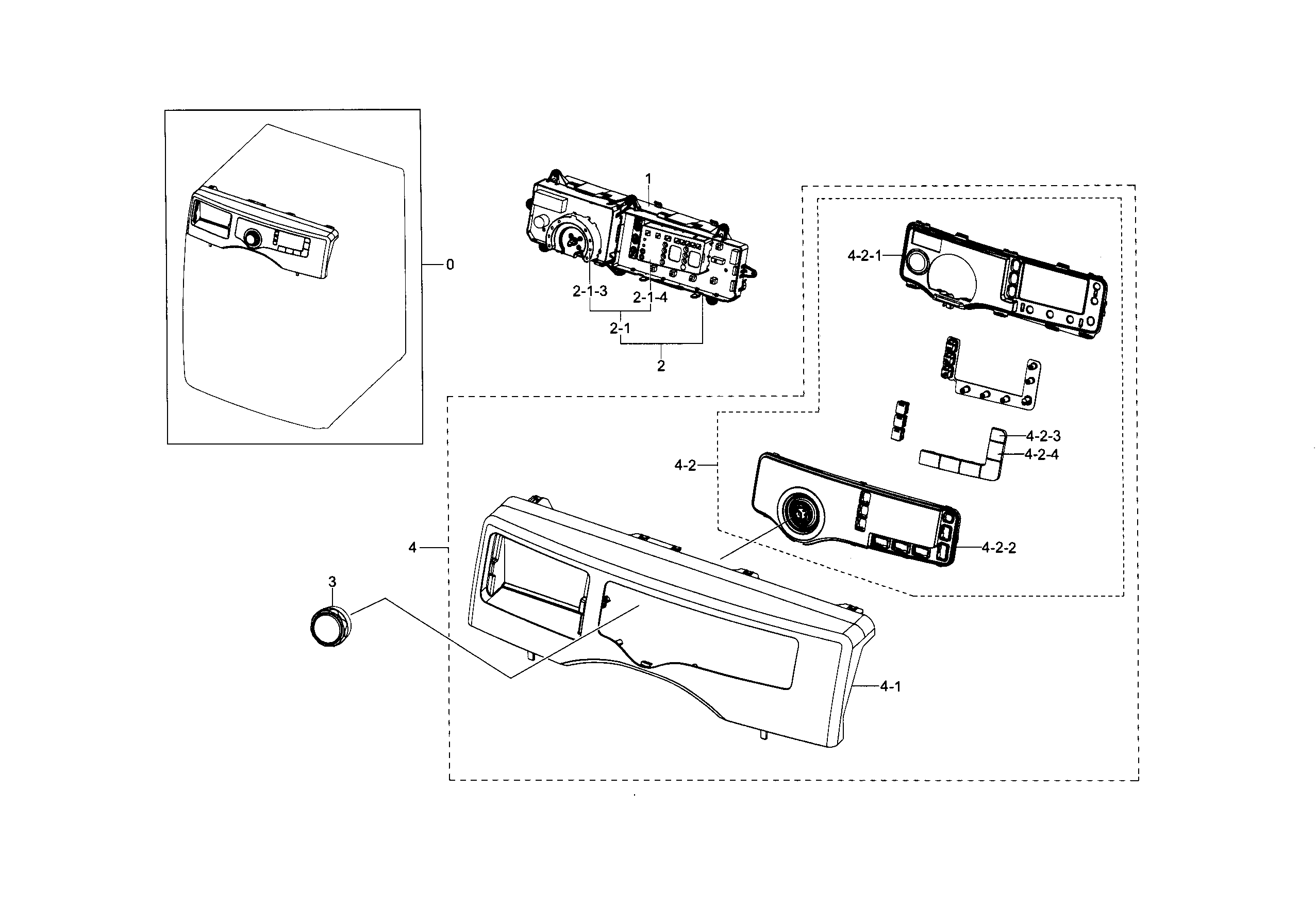

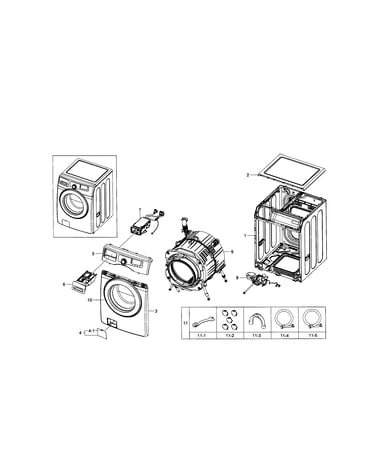

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 147 parts  |

Washer Bolt (replaces Dc60-40138a) DC97-02412A
#6

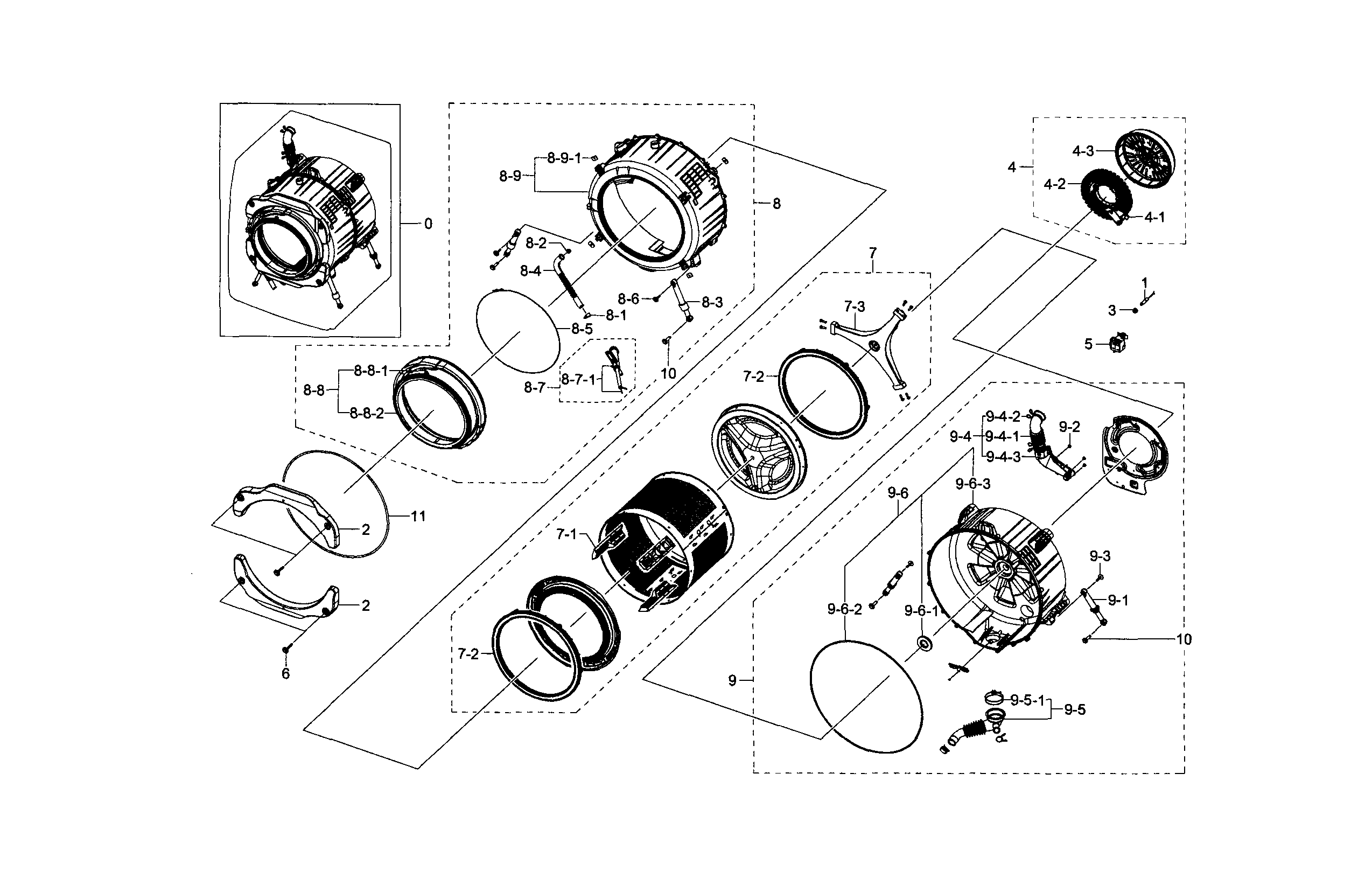

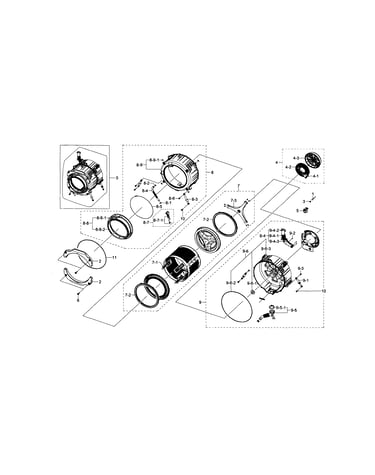

Tub & drum diagram

Washer bolt (replaces dc60-40138a)

Part #DC97-02412A

BEST SELLER
$12.71
14% OFF Phone Price : $14.71
In Stock
Kenmore Washer Drive Motor (replaces Dc31-00111b, Dc97-19994c) DC31-00111A
#4-2

Tub & drum diagram

Kenmore washer drive motor (replaces dc31-00111b, dc97-19994c)

Part #DC31-00111A

BEST SELLER
$203.76
6% OFF Phone Price : $215.76
In Stock
Washer Motor Rotor Position Sensor DC31-00098A
#4-1

Tub & drum diagram

Washer motor rotor position sensor

Part #DC31-00098A

BEST SELLER
$59.00
9% OFF Phone Price : $65.00
In Stock
Washer Nut DC61-00201A
#8-91

Tub & drum diagram

Washer nut

Part #DC61-00201A

BEST SELLER
This item is not returnable
$3.64
22% OFF Phone Price : $4.64
In Stock
Washer Detergent Dispenser DC97-17022B
#2

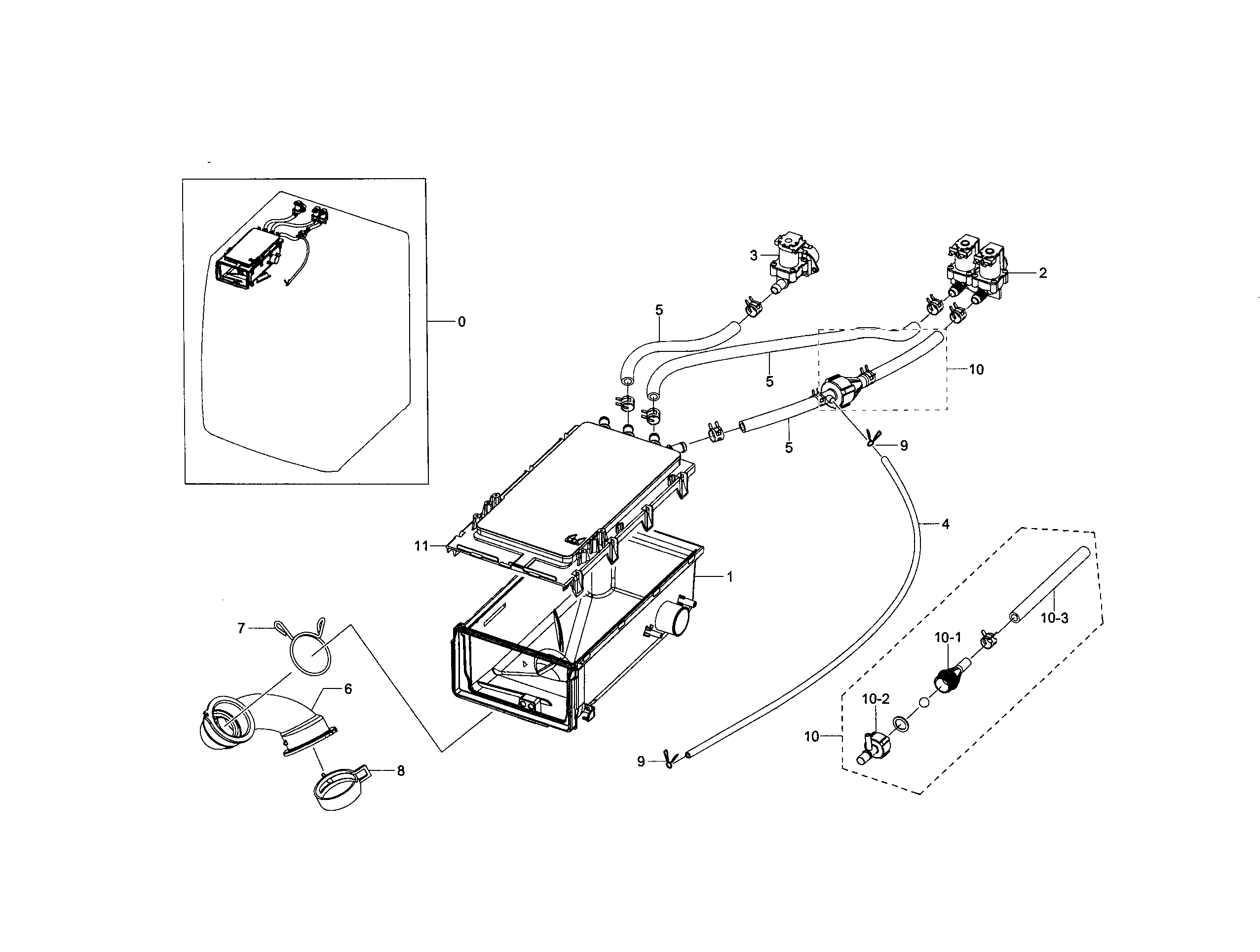

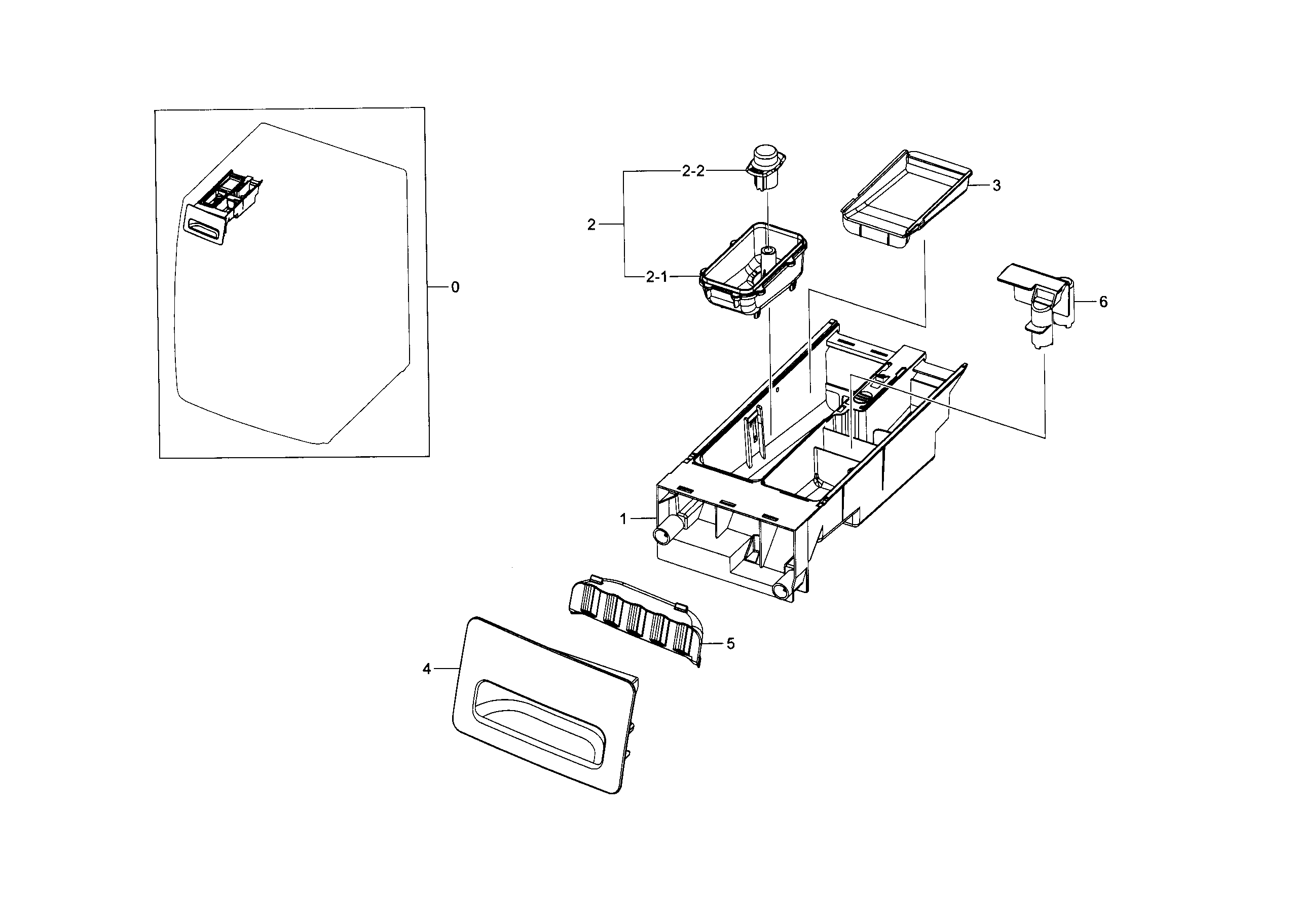

Drawer diagram

Washer detergent dispenser

Part #DC97-17022B

BEST SELLER
This item is not returnable
$16.00
11% OFF Phone Price : $18.00
In Stock
Kenmore Washer Motor Rotor DC31-00112A
#4-3

Tub & drum diagram

Kenmore washer motor rotor

Part #DC31-00112A

BEST SELLER
$158.68
7% OFF Phone Price : $170.68
In Stock
Washer Drain Hose (replaces Dc67-00330d) DC97-12534E
#16

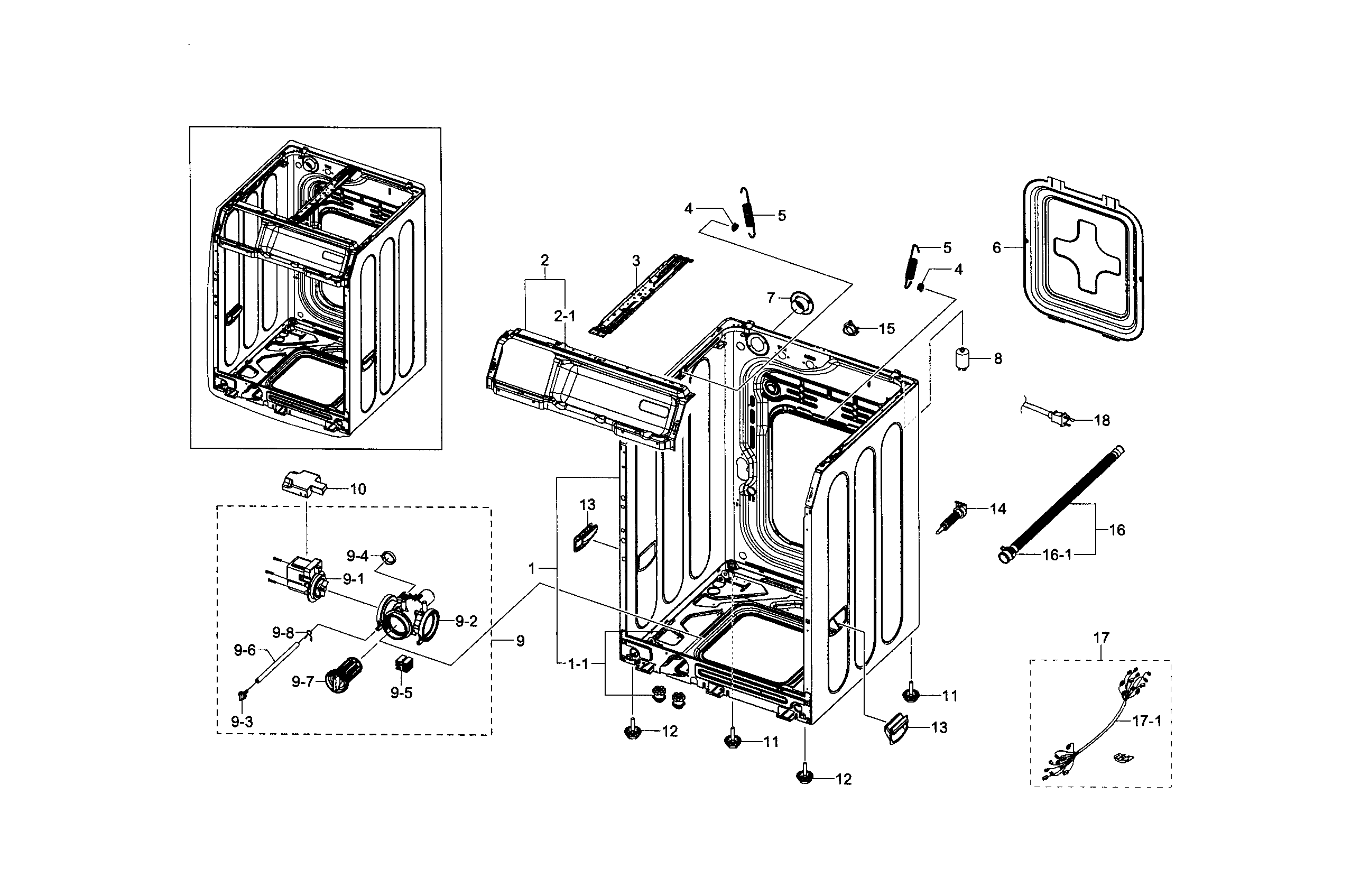

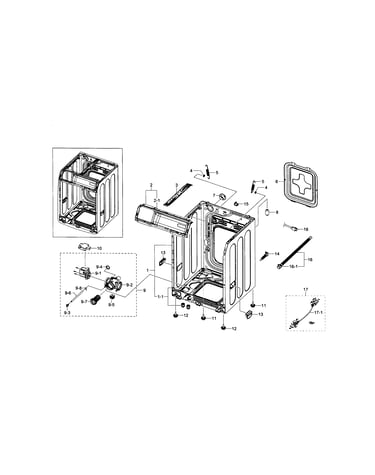

Frame & cover diagram

Washer drain hose (replaces dc67-00330d)

Part #DC97-12534E

BEST SELLER
$49.47
11% OFF Phone Price : $55.47
Back Order
Washer Door Boot DC64-00802B
#8-82

Tub & drum diagram

Washer door boot

Part #DC64-00802B

$120.30
9% OFF Phone Price : $132.30
In Stock
Washer Drain Pump Filter Drain Hose Plug DC61-10673A
#9-3

Frame & cover diagram

Washer drain pump filter drain hose plug

Part #DC61-10673A

This item is not returnable
In Stock
Kenmore Washer Suspension Spring Bracket DC61-02432A
#4

Frame & cover diagram

Kenmore washer suspension spring bracket

Part #DC61-02432A

This item is not returnable
In Stock
