Model # 56423230150 Official LXI clock radio

Here are the diagrams and repair parts for Official LXI 56423230150 clock radio, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |
Cord 141-2-340T-03000
#23

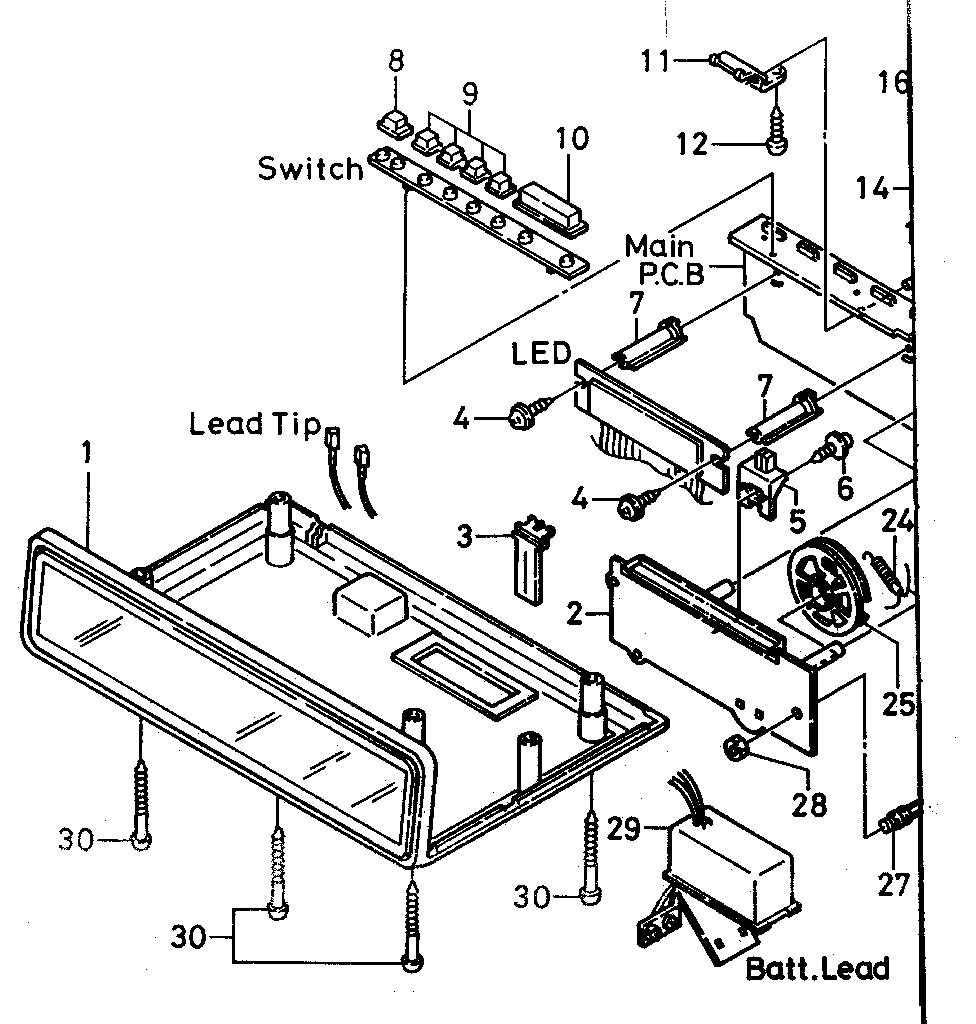

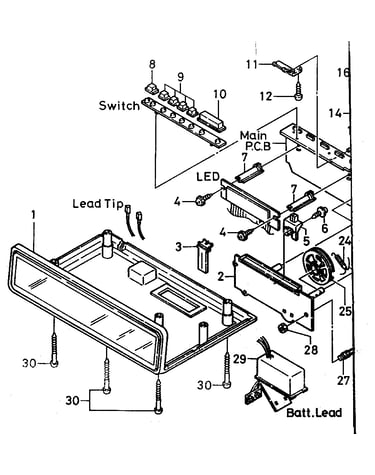

Cabinet diagram

Cord

Part #141-2-340T-03000

Replaced by #141-2-340T-03000

?
Manufacturer substitution
This part replaces 141-2-340T-03000. Substitute parts can look different from the original.
This item is not returnable
$2.99
In Stock
Holder 141-2-331T-04600
#29

Cabinet diagram

Holder

Part #141-2-331T-04600

Replaced by #141-2-331T-04600

?
Manufacturer substitution
This part replaces 141-2-331T-04600. Substitute parts can look different from the original.
This item is not returnable
$4.49
In Stock
Bracket 141-2-363T-04702
#22

Cabinet diagram

Bracket

Part #141-2-363T-04702

Replaced by #141-2-363T-04702

?
Manufacturer substitution
This part replaces 141-2-363T-04702. Substitute parts can look different from the original.
This item is not returnable
$3.49
In Stock
Knob 141-2-163T-82500
#26

Cabinet diagram

Knob

Part #141-2-163T-82500

The manufacturer no longer makes this part, and there's no substitute part

Spring 123-2-481R-00600
#24

Cabinet diagram

Spring

Part #123-2-481R-00600

The manufacturer no longer makes this part, and there's no substitute part

Tuning Shaft 141-0-566T-12500
#27

Cabinet diagram

Tuning shaft

Part #141-0-566T-12500

The manufacturer no longer makes this part, and there's no substitute part

(a-32) Lug, Motor (a31) Mtg. (not A Service Part) N/P
(a-32) lug, motor (a31) mtg. (not a service part)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Pan Head Tapping Screw JBN-2-SXX3-1OXZ1
#15

Cabinet diagram

Pan head tapping screw

Part #JBN-2-SXX3-1OXZ1

The manufacturer no longer makes this part, and there's no substitute part

Knob 141-2-164T-29000
#14

Cabinet diagram

Knob

Part #141-2-164T-29000

The manufacturer no longer makes this part, and there's no substitute part

Button 141-2-161T-95700
#10

Cabinet diagram

Button

Part #141-2-161T-95700

The manufacturer no longer makes this part, and there's no substitute part
