Craftsman
Power Sander

Model # 315116301 Official Craftsman detail sander

Here are the diagrams and repair parts for Official Craftsman 315116301 detail sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

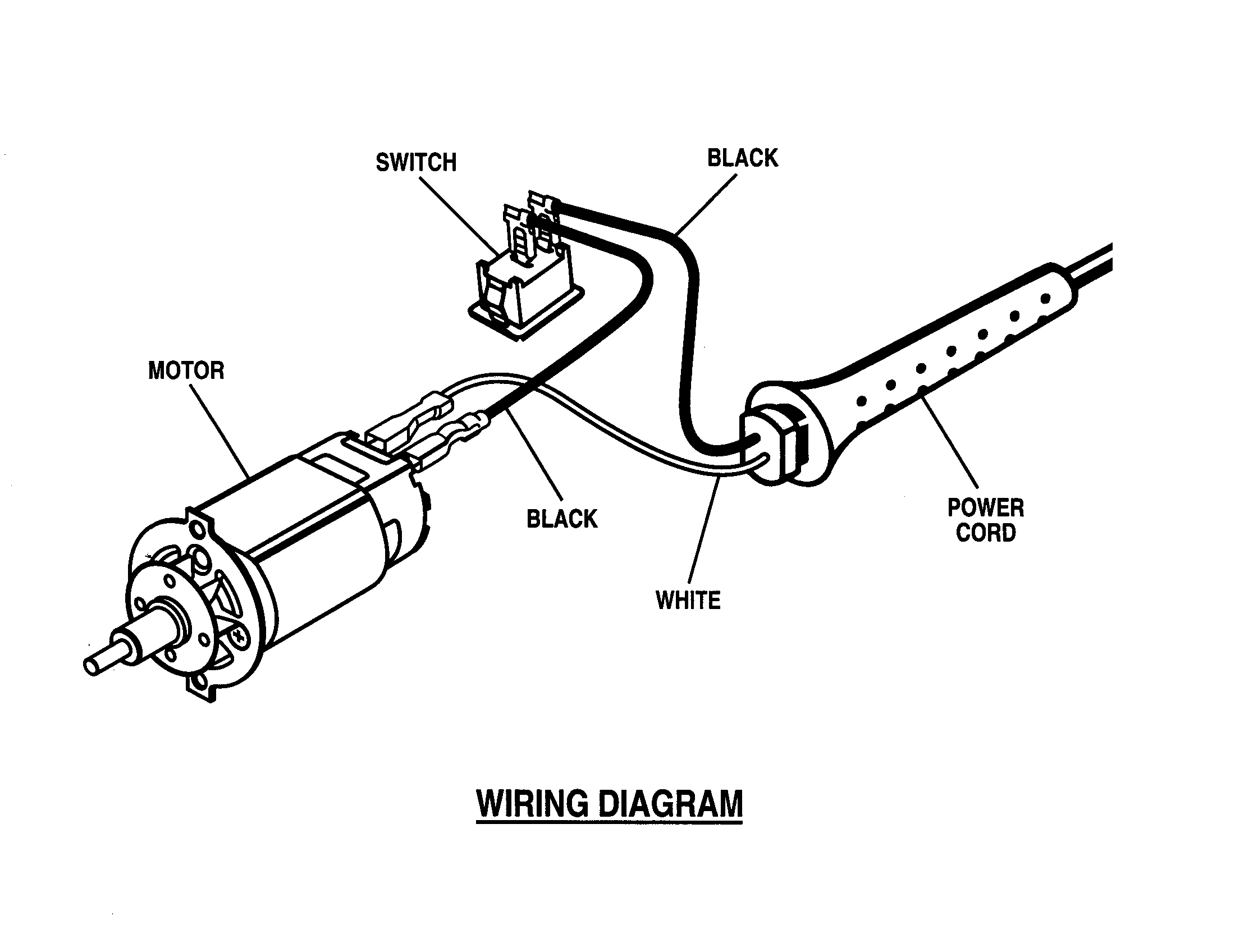

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |
Motor Assembly 975905-001
#9

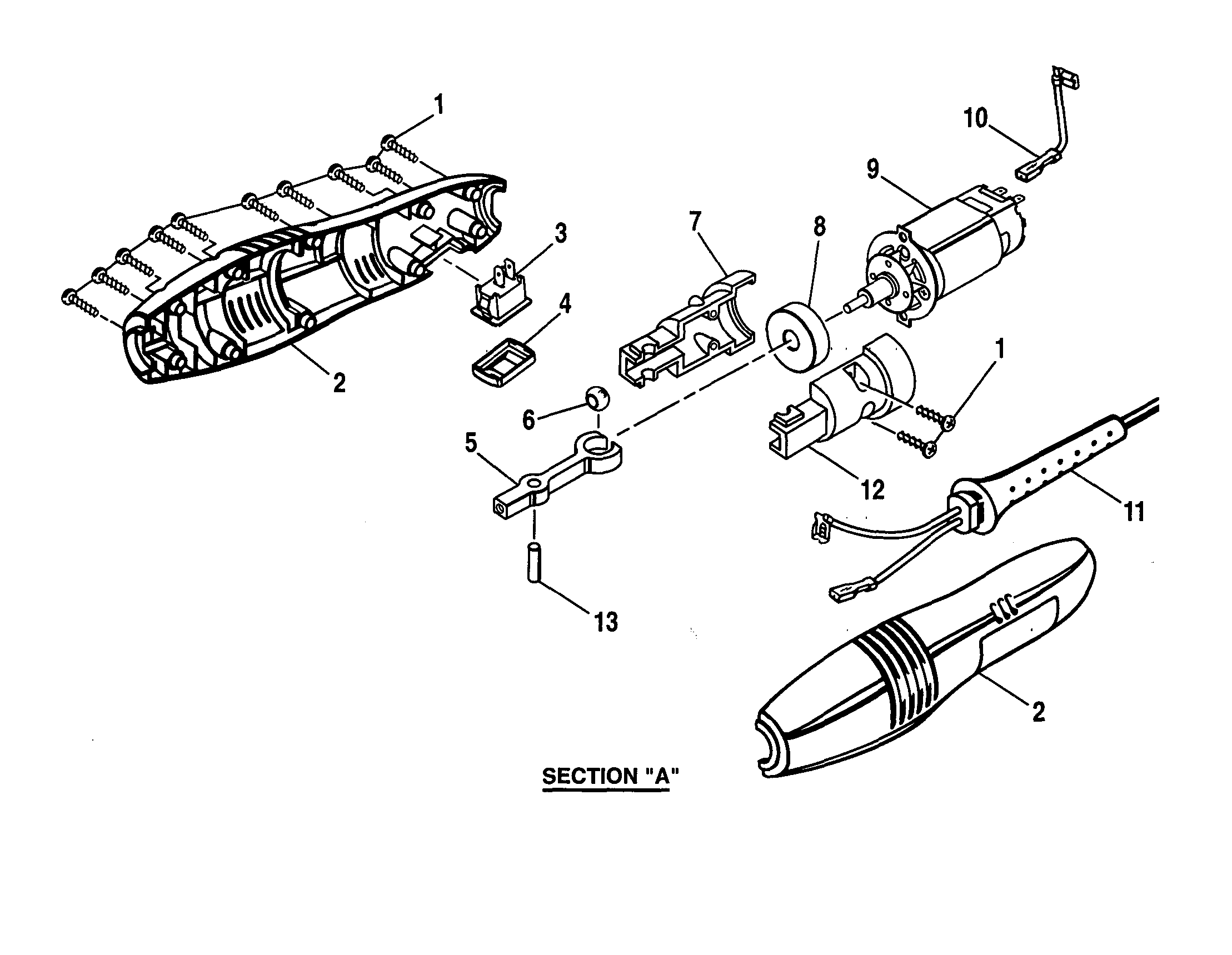

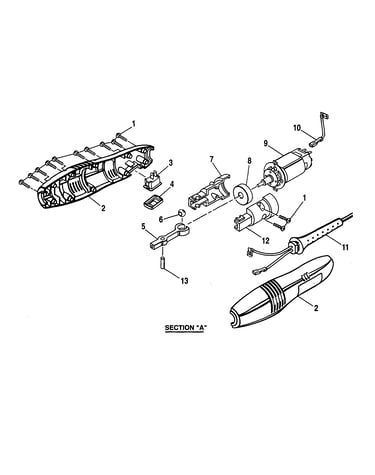

Motor assembly diagram

Motor assembly

Part #975905-001

The manufacturer no longer makes this part, and there's no substitute part

Washer 979860-001
#5

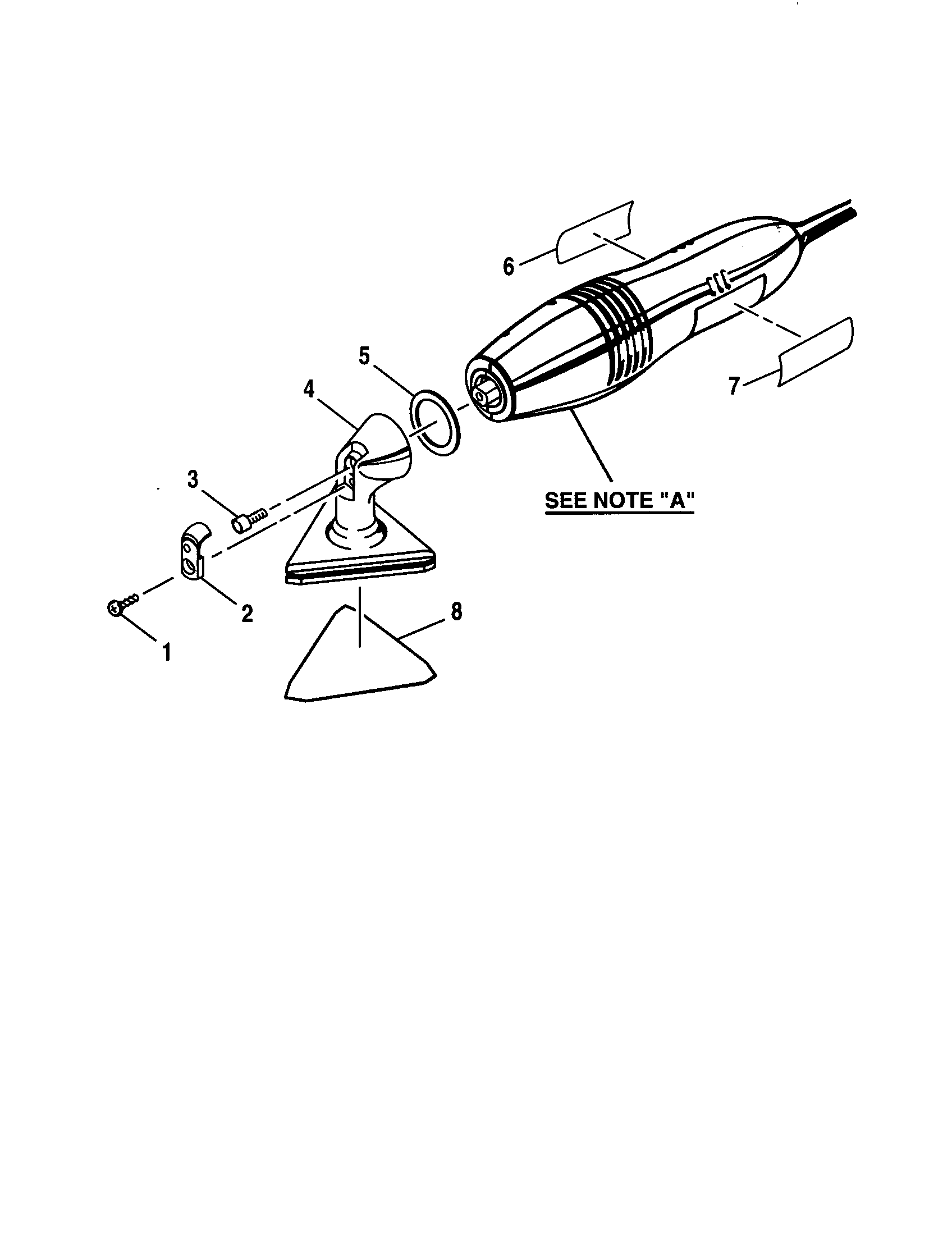

Craftsman detail sander diagram

Washer

Part #979860-001

The manufacturer no longer makes this part, and there's no substitute part

Switch 972453-002
#3

Motor assembly diagram

Switch

Part #972453-002

The manufacturer no longer makes this part, and there's no substitute part

Housing 972227-001
#2

Motor assembly diagram

Housing

Part #972227-001

The manufacturer no longer makes this part, and there's no substitute part

Arm Cover 975626-001
#12

Motor assembly diagram

Arm cover

Part #975626-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 612284-003
#3

Craftsman detail sander diagram

Screw

Part #612284-003

The manufacturer no longer makes this part, and there's no substitute part

Switch Cover 971443-001
#4

Motor assembly diagram

Switch cover

Part #971443-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 990908-009
#1

Motor assembly diagram

Screw

Part #990908-009

The manufacturer no longer makes this part, and there's no substitute part

Logo Plate 975868-001
#7

Craftsman detail sander diagram

Logo plate

Part #975868-001

The manufacturer no longer makes this part, and there's no substitute part

Foot W/pad 972055-001
#4

Craftsman detail sander diagram

Foot w/pad

Part #972055-001

The manufacturer no longer makes this part, and there's no substitute part
