Model # 315117270 Official Craftsman sander

Here are the diagrams and repair parts for Official Craftsman 315117270 sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

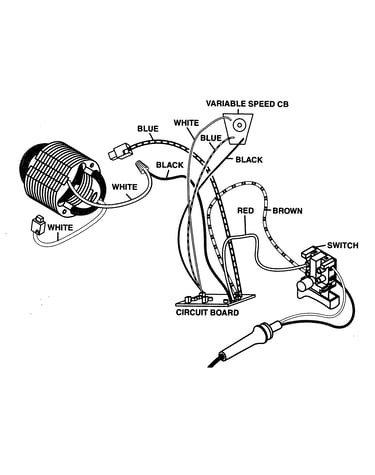

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Sander Backing Pad 900720001
#9

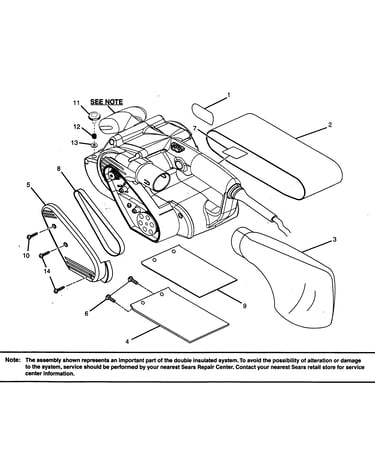

Housing assy diagram

Sander backing pad

Part #900720001

The manufacturer no longer makes this part, and there's no substitute part

Pulley 610316001
#47

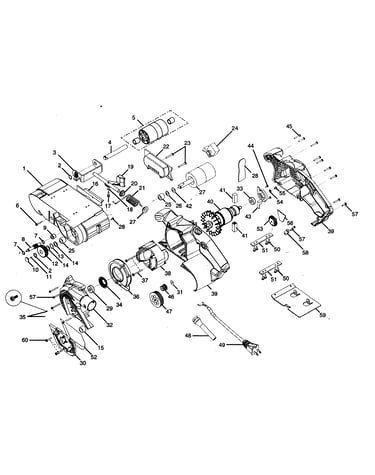

Motor assy diagram

Pulley

Part #610316001

The manufacturer no longer makes this part, and there's no substitute part

Sander Tracking Knob 590481001
#11

Housing assy diagram

Sander tracking knob

Part #590481001

The manufacturer no longer makes this part, and there's no substitute part

Flange 690707001
#9

Motor assy diagram

Flange

Part #690707001

The manufacturer no longer makes this part, and there's no substitute part

Sander Drive Roller Felt Seal 900721001
#26

Motor assy diagram

Sander drive roller felt seal

Part #900721001

The manufacturer no longer makes this part, and there's no substitute part

Shaft 620230001
#4

Motor assy diagram

Shaft

Part #620230001

The manufacturer no longer makes this part, and there's no substitute part

Screw 6620805
#57

Motor assy diagram

Screw

Part #6620805

The manufacturer no longer makes this part, and there's no substitute part

Washer 680436003
#31

Motor assy diagram

Washer

Part #680436003

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly 280010017
#28

Motor assy diagram

Pcb assembly

Part #280010017

The manufacturer no longer makes this part, and there's no substitute part

Spring 690725001
#12

Housing assy diagram

Spring

Part #690725001

The manufacturer no longer makes this part, and there's no substitute part
