Model # ERG1200 Official Eagle River generator

Here are the diagrams and repair parts for Official Eagle River ERG1200 generator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

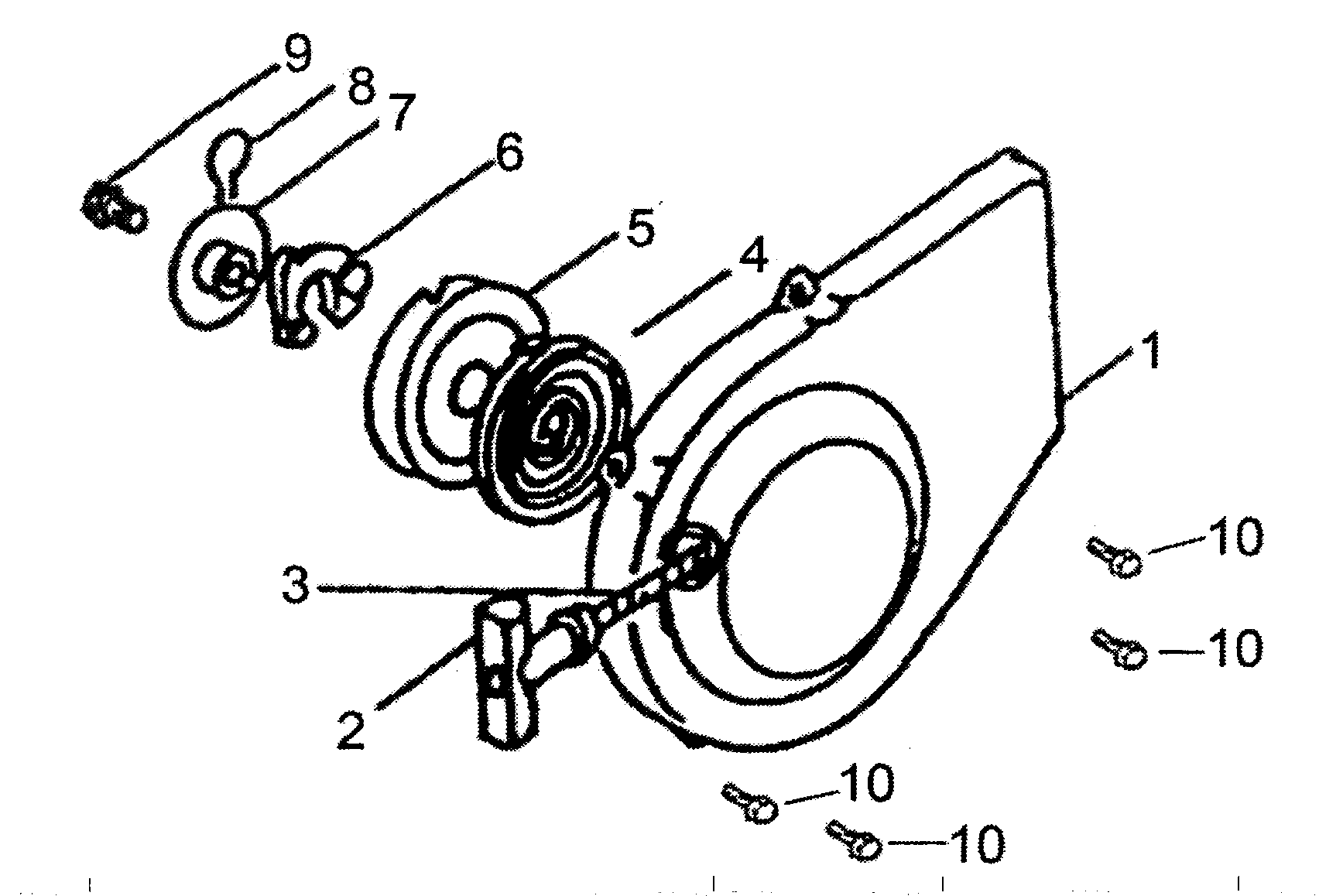

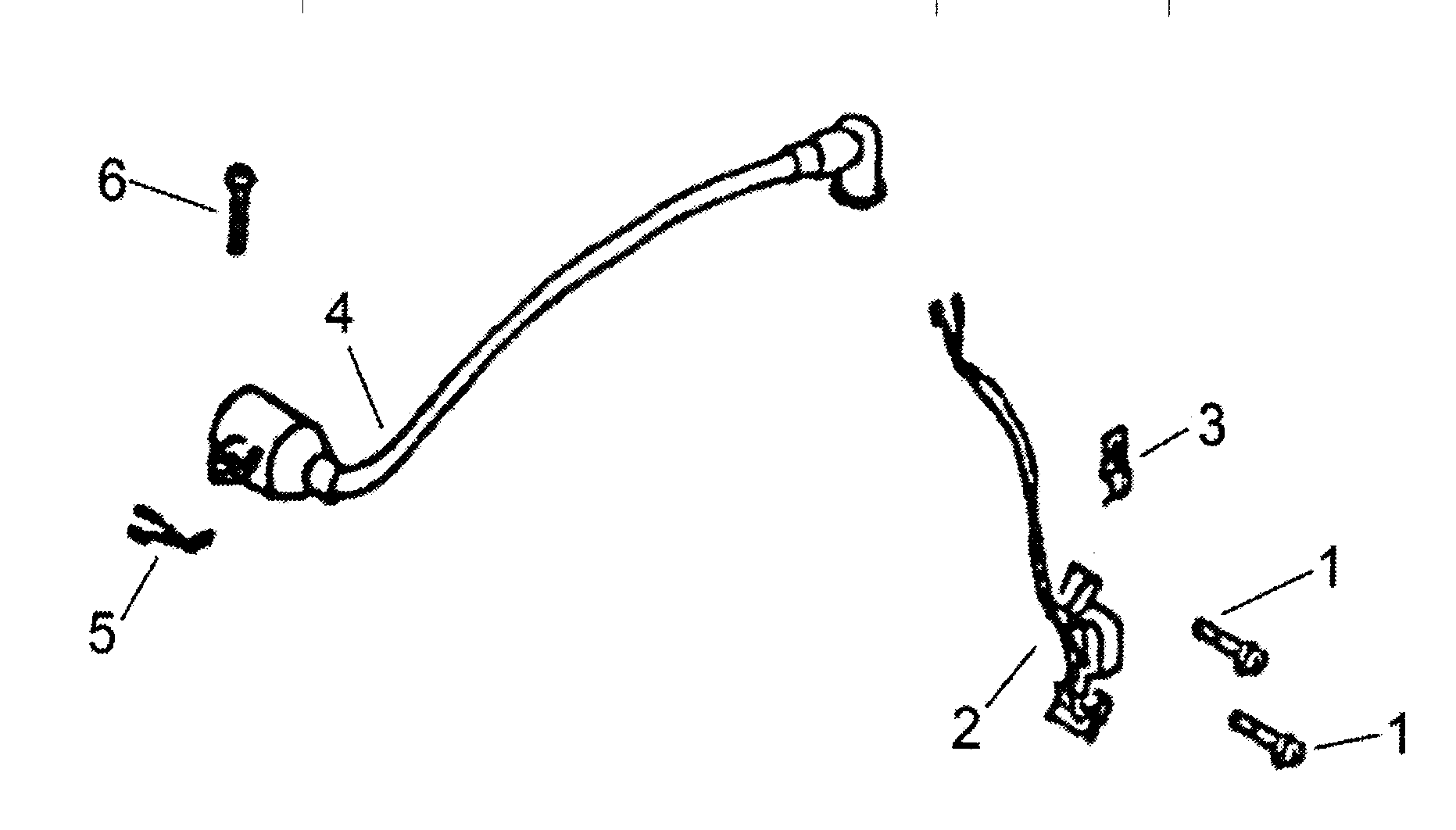

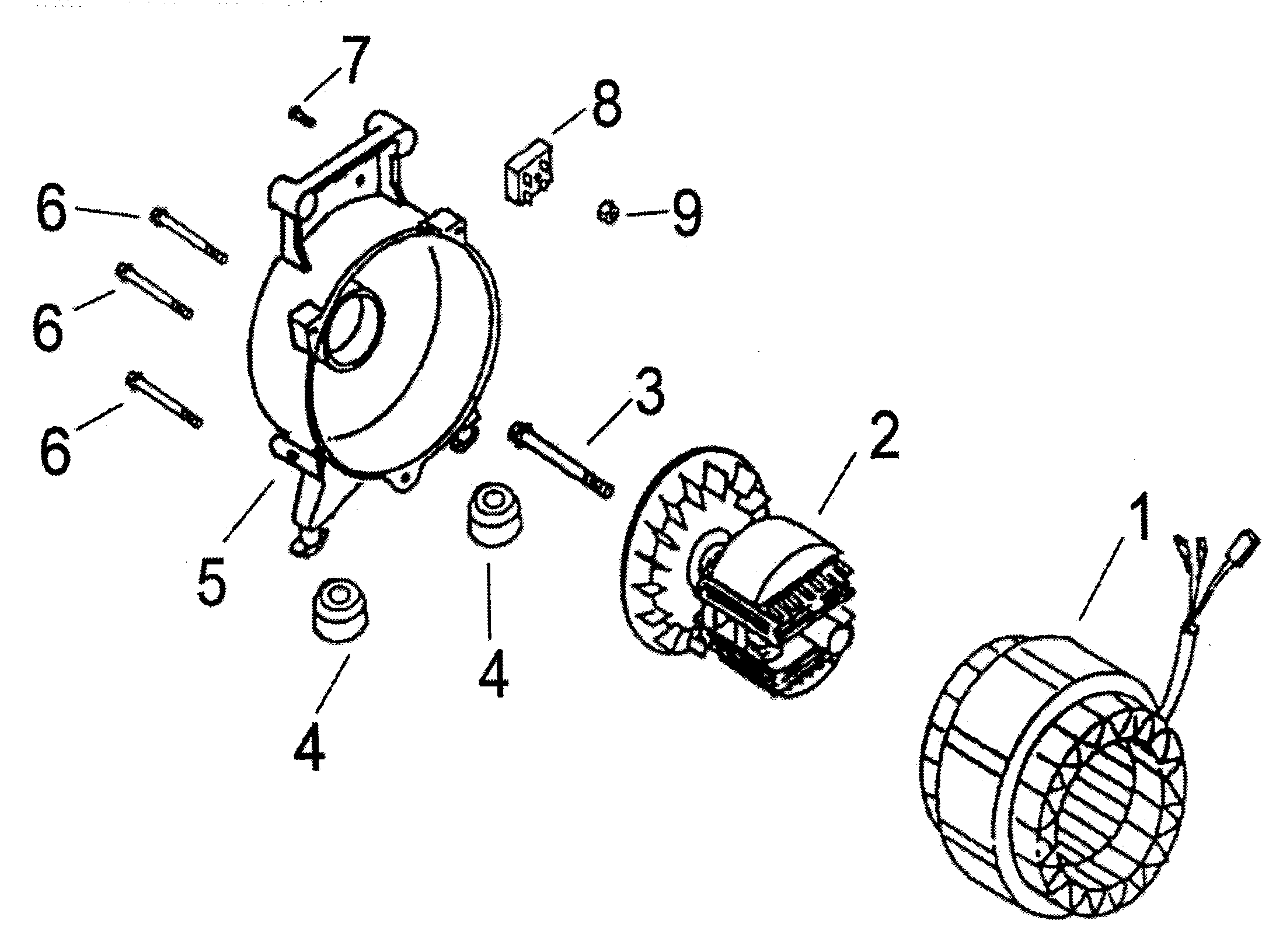

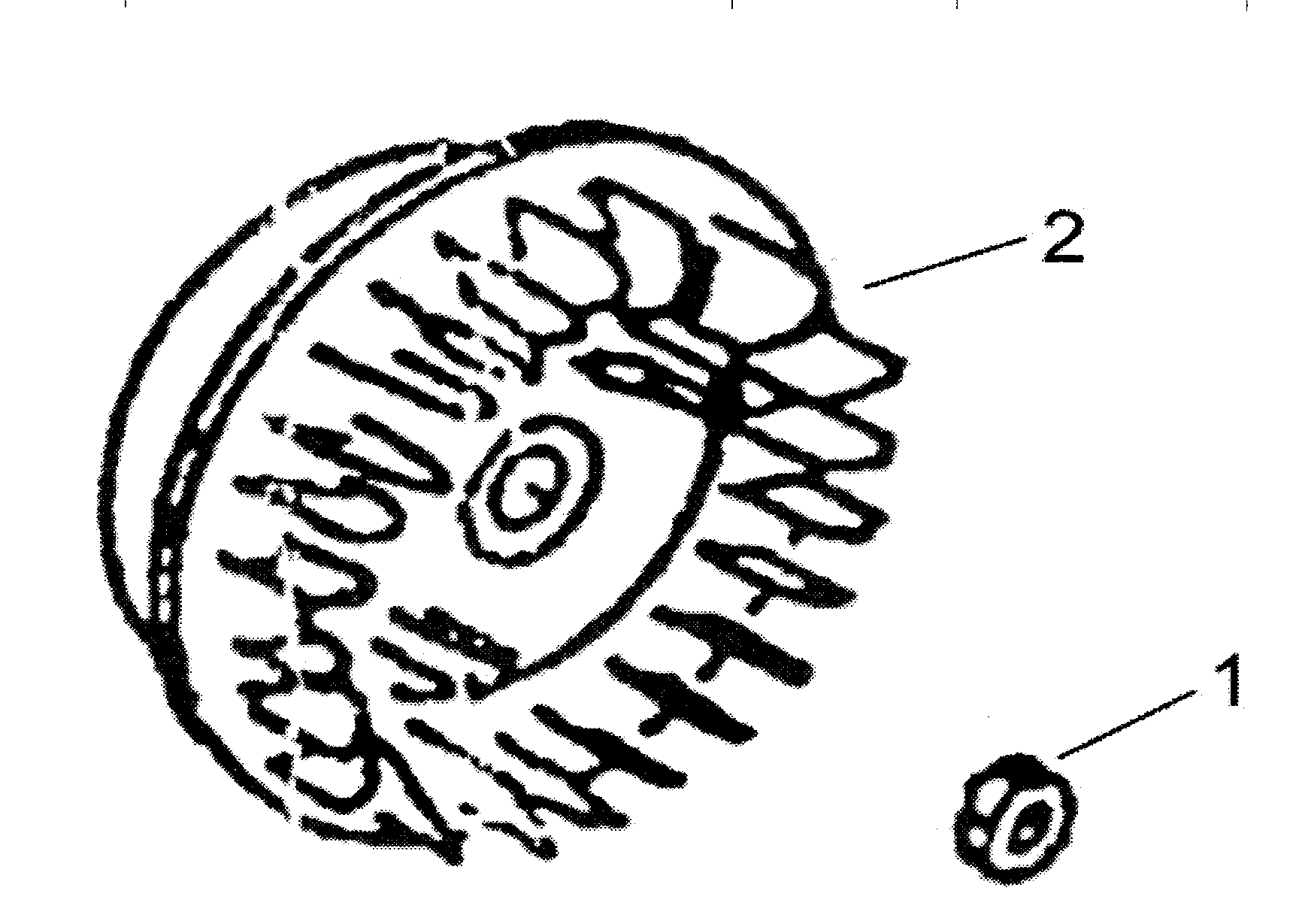

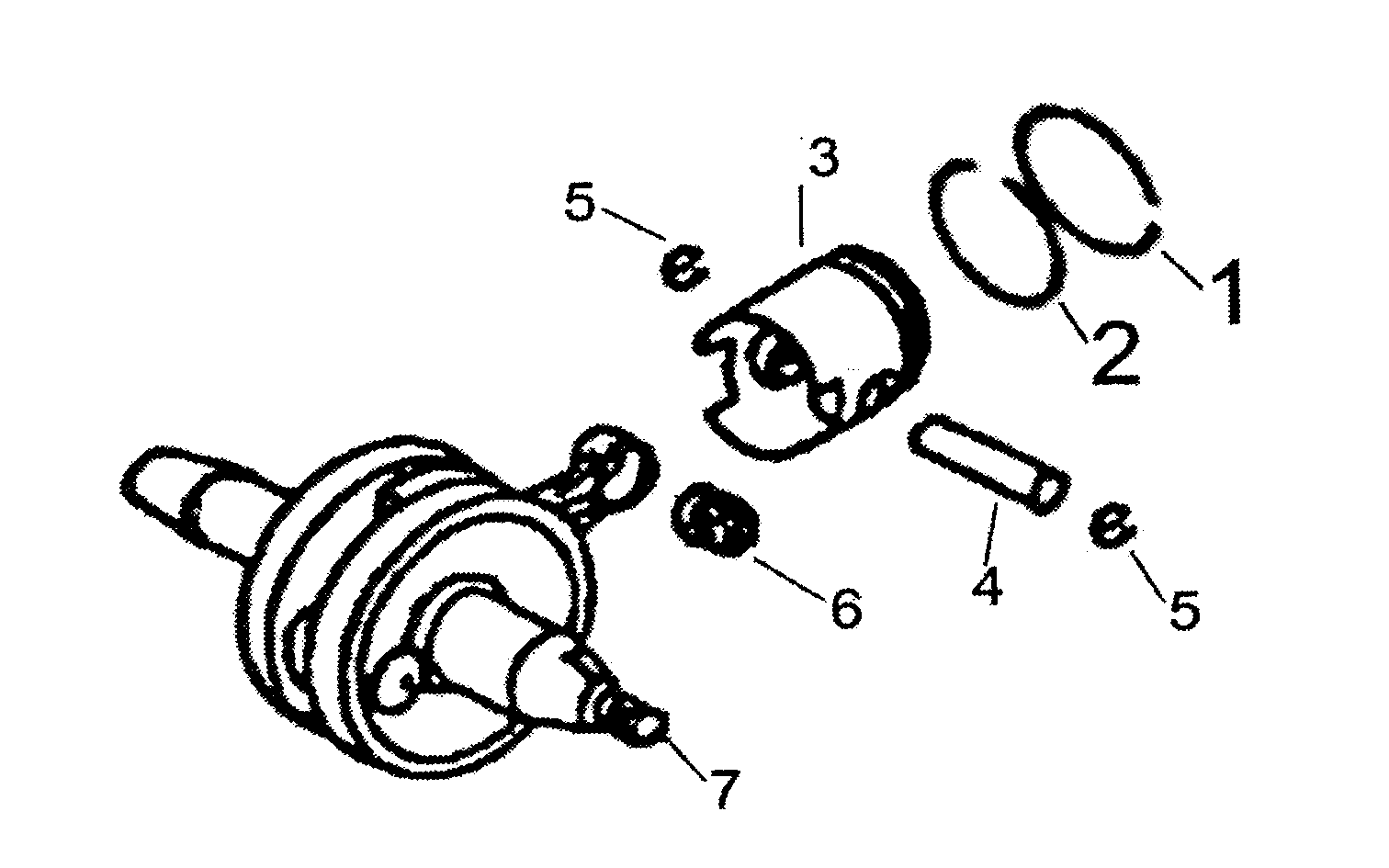

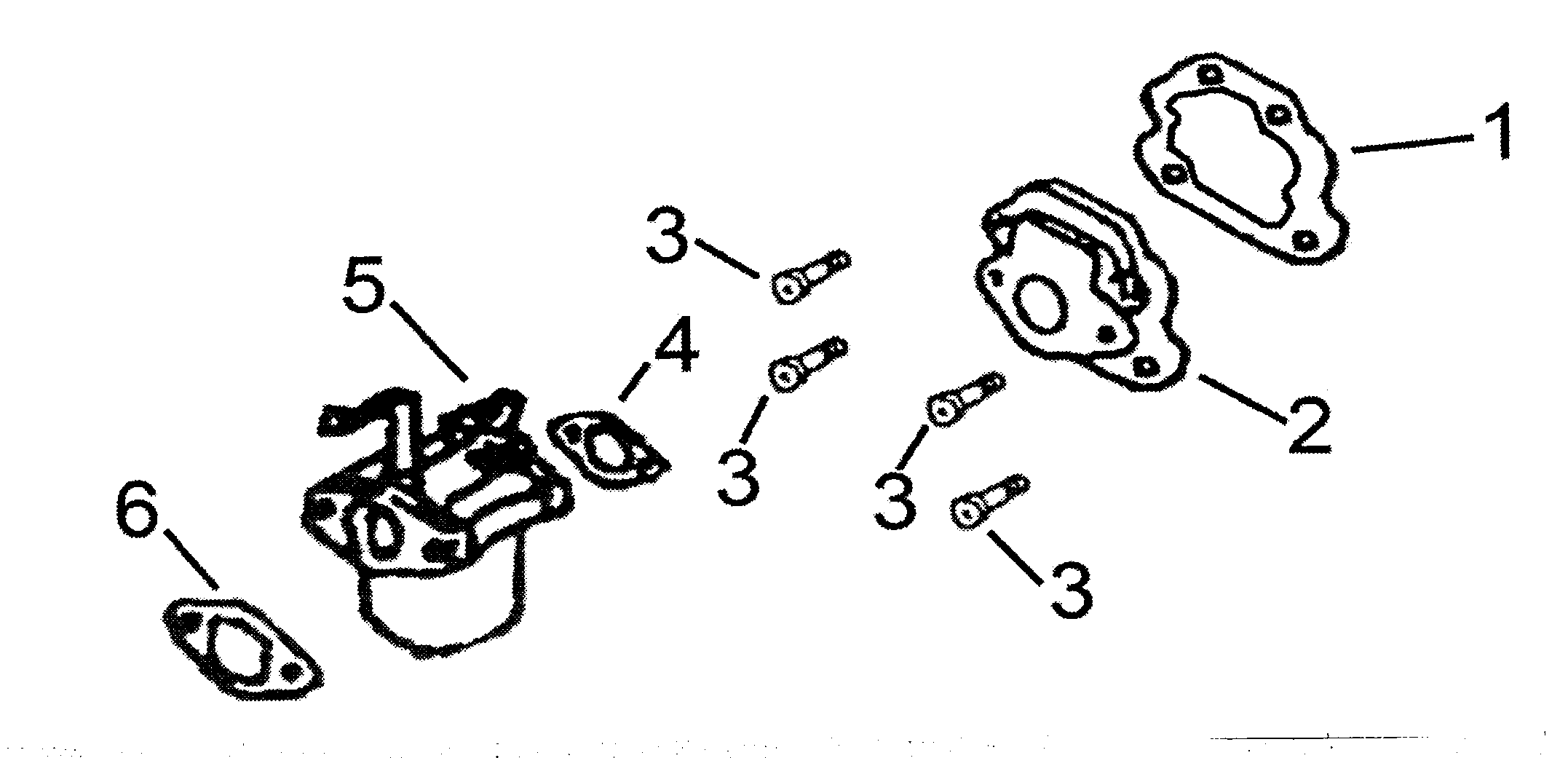

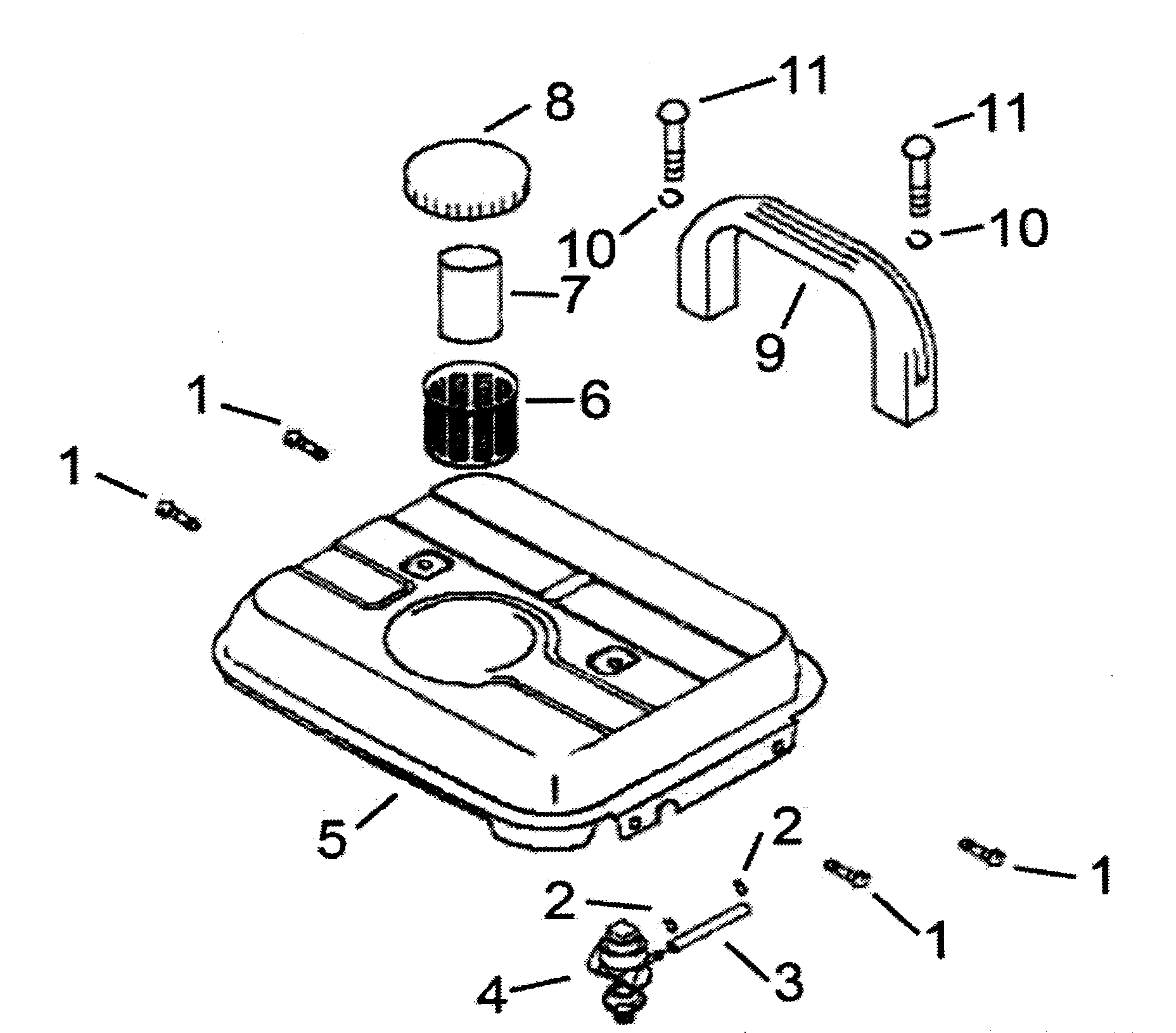

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 116 parts |

#15

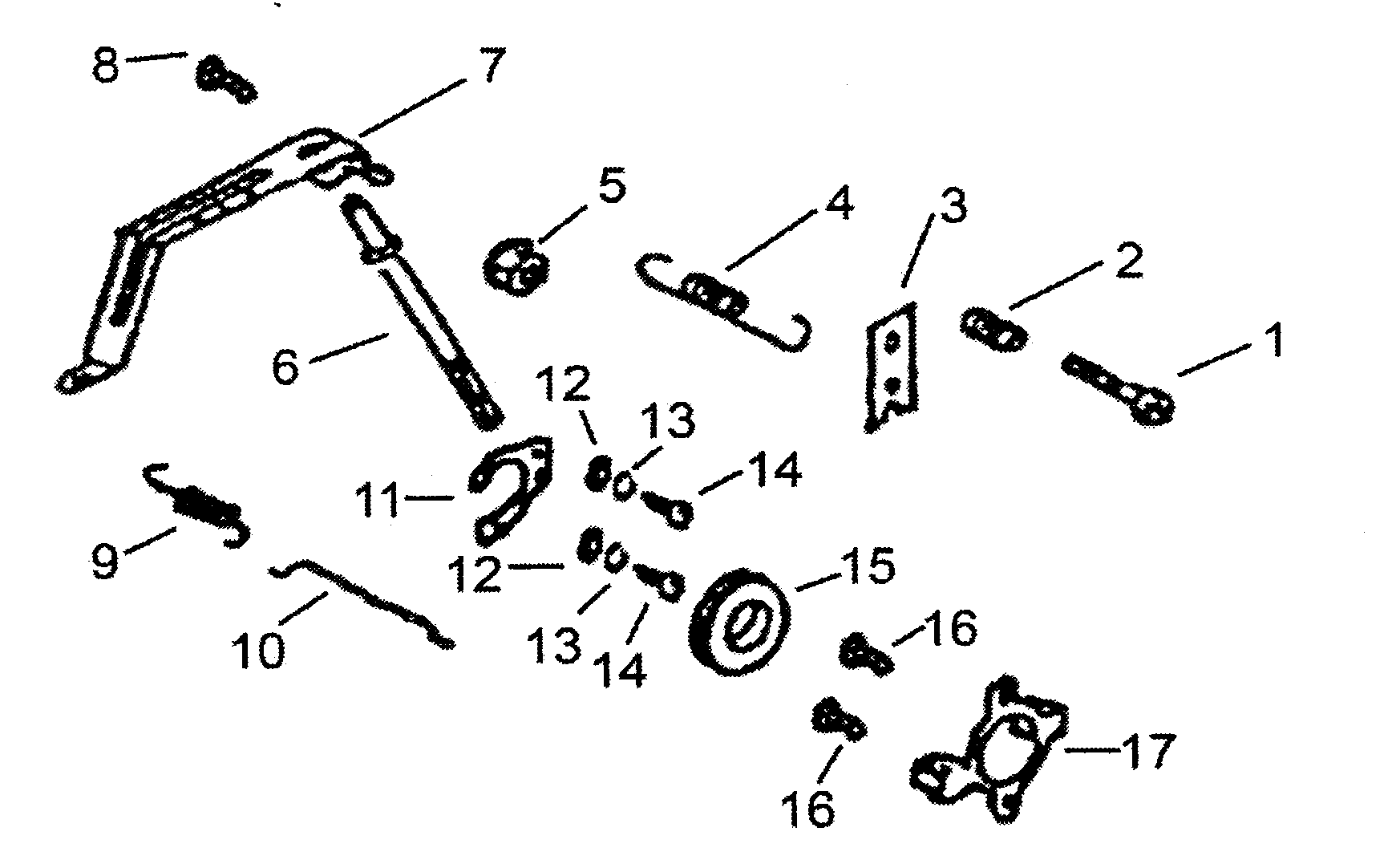

Control arm diagram

Slip spring

Part #APG3004A-H-15-EG

The manufacturer no longer makes this part, and there's no substitute part

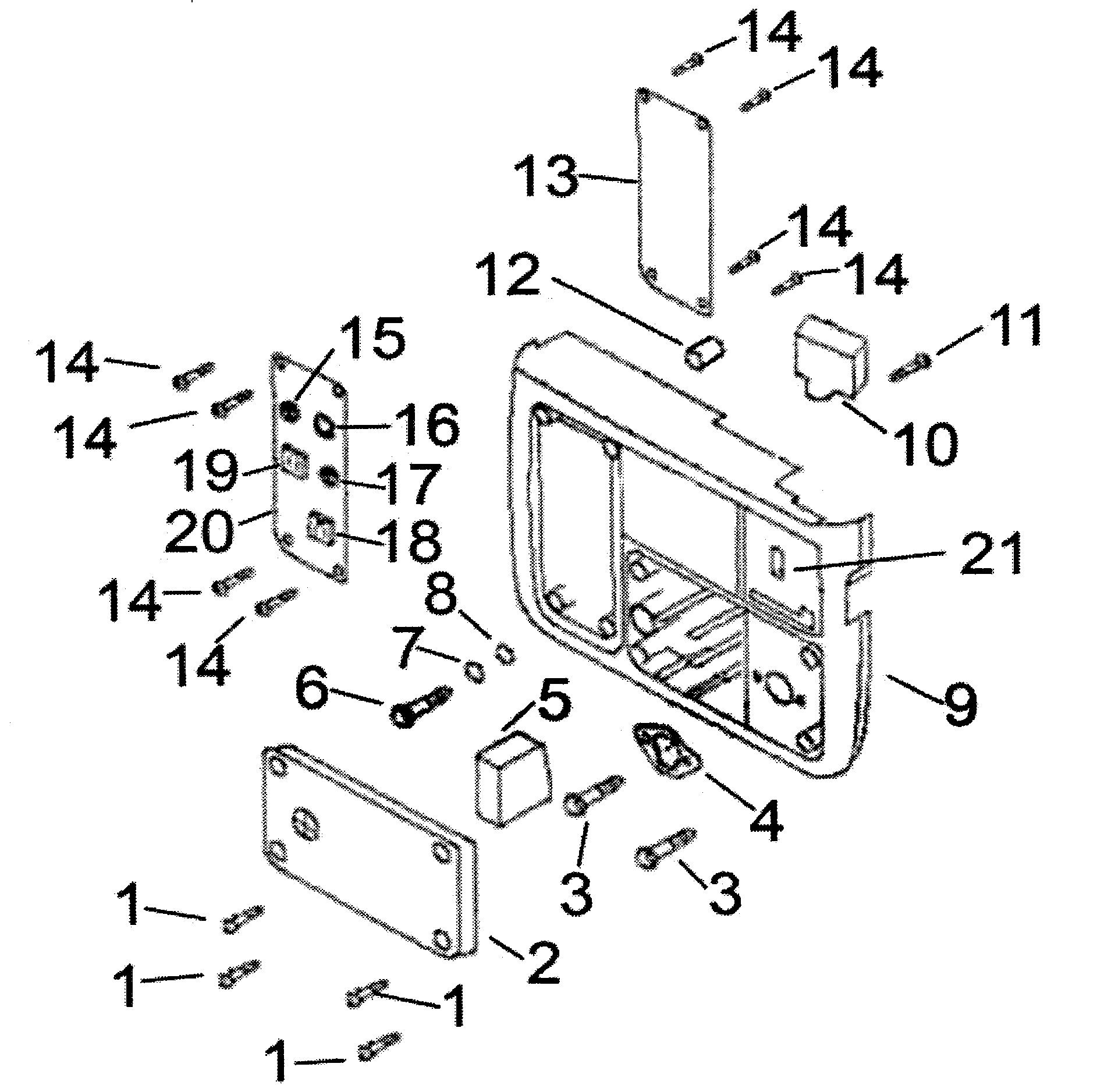

Air filter diagram

Air filter

Part #APG3004A-K-05-EG

The manufacturer no longer makes this part, and there's no substitute part

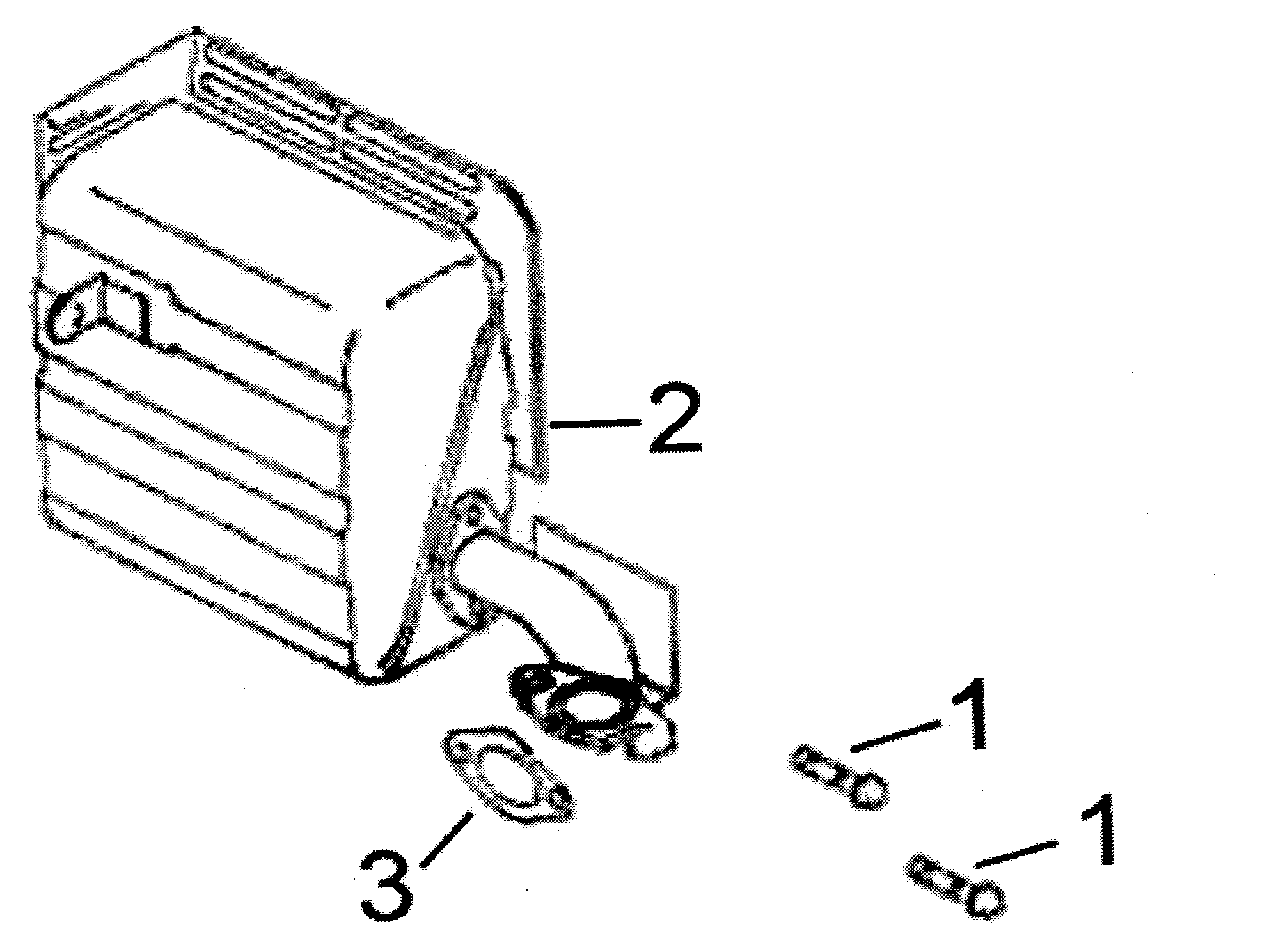

Muffler diagram

Complete muffler

Part #APG3004A-I-02-EG

The manufacturer no longer makes this part, and there's no substitute part

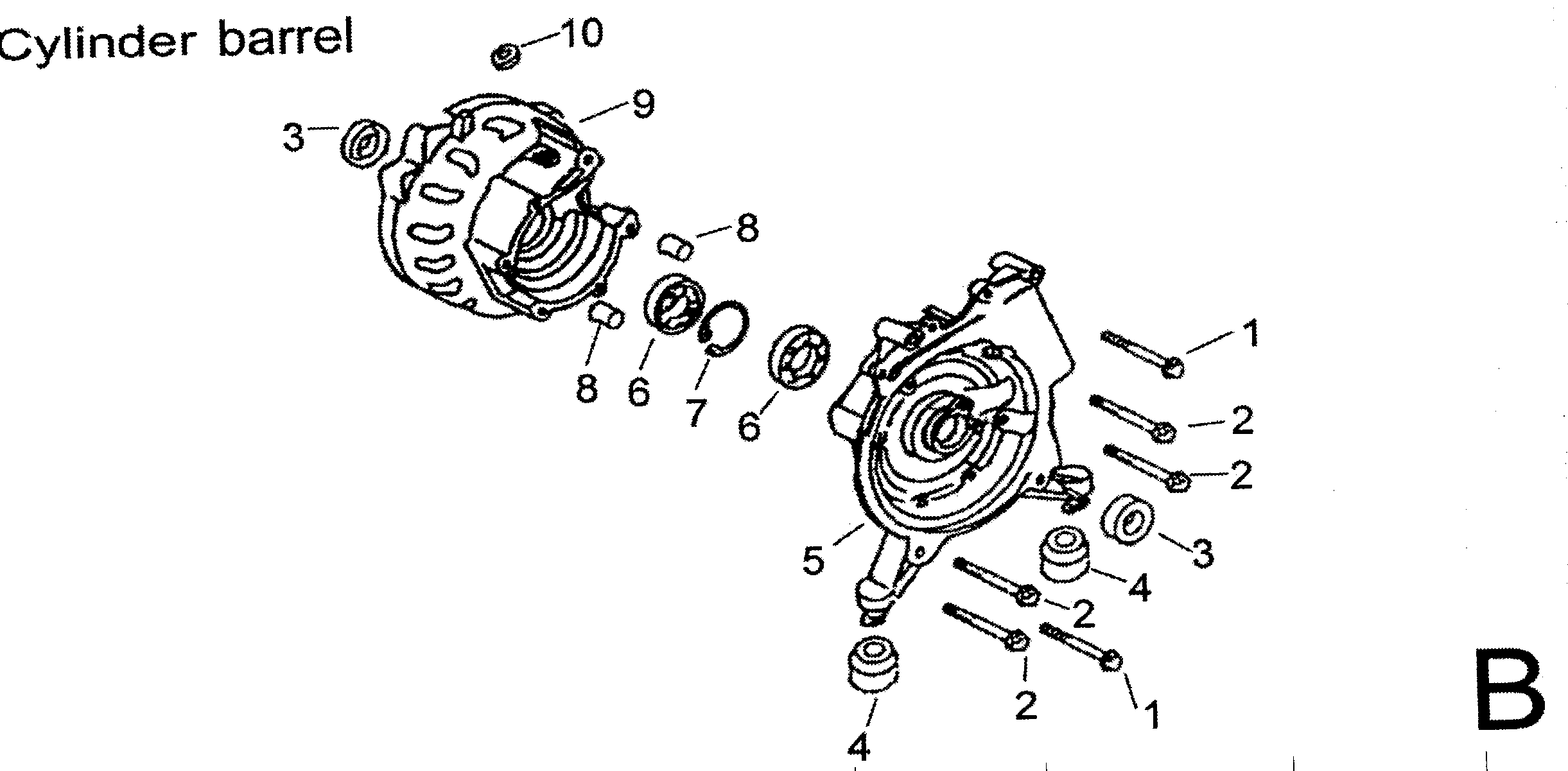

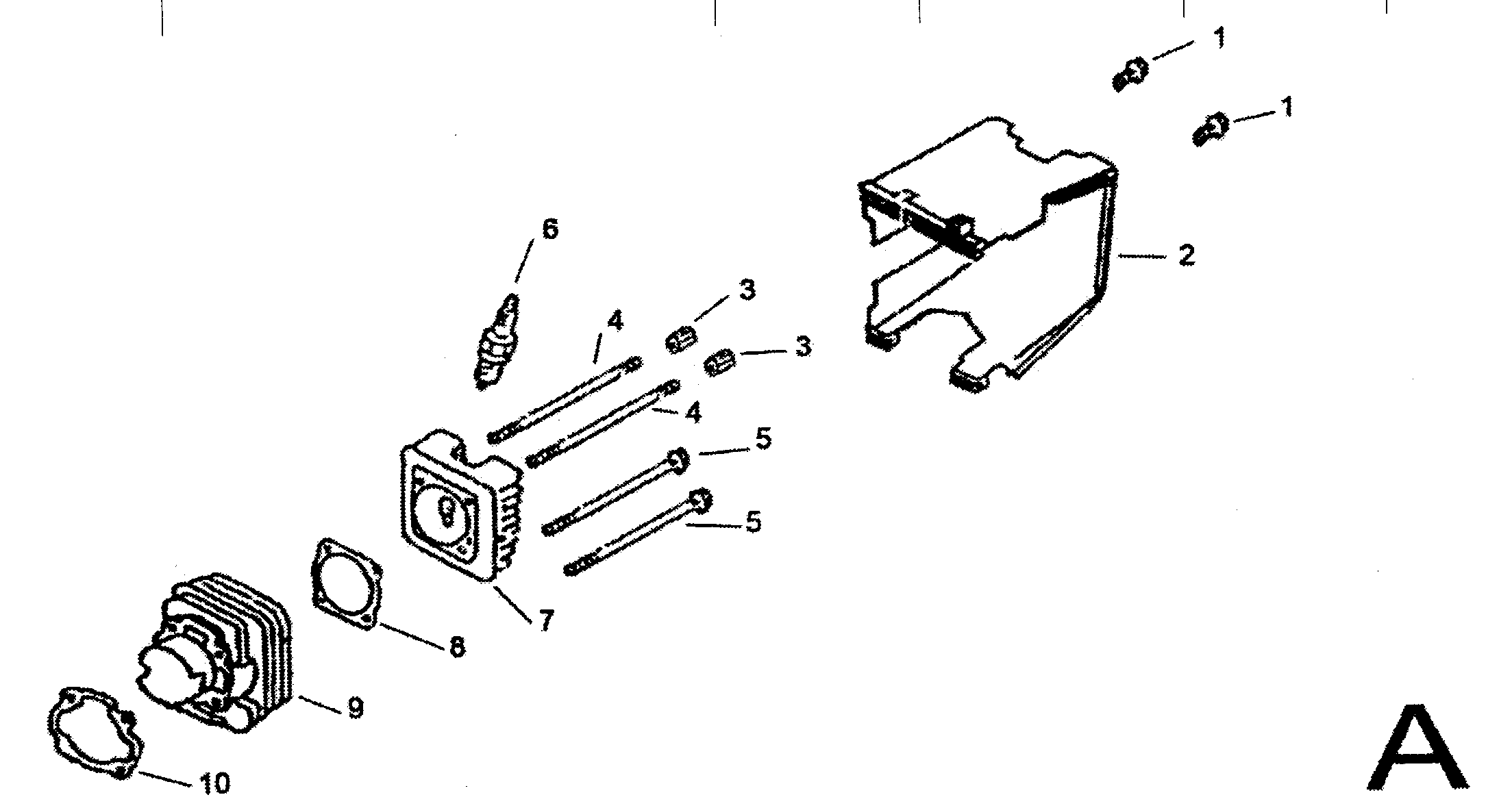

Cylinder diagram

Lawn & garden equipment bolt

Part #APG3004A-A-04EG

The manufacturer no longer makes this part, and there's no substitute part

Cylinder diagram

Cylinder liner

Part #APG3004A-A-09EG

The manufacturer no longer makes this part, and there's no substitute part

#11

Control arm diagram

Fork regulator

Part #APG3004A-H-11-EG

The manufacturer no longer makes this part, and there's no substitute part

#17

Control arm diagram

Stand

Part #APG3004A-H-17-EG

The manufacturer no longer makes this part, and there's no substitute part

Cylinder diagram

Air shroud

Part #APG3004A-A-02EG

The manufacturer no longer makes this part, and there's no substitute part

Cylinder diagram

Lawn & garden equipment bolt

Part #APG3004A-A-01EG

The manufacturer no longer makes this part, and there's no substitute part

Cylinder diagram

Nut

Part #APG3004A-A-03EG

The manufacturer no longer makes this part, and there's no substitute part
