Model # 31517432 Official Craftsman double insulated router with dust pickup

Here are the diagrams and repair parts for Official Craftsman 31517432 double insulated router with dust pickup, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |

Screw 622931-007
#4

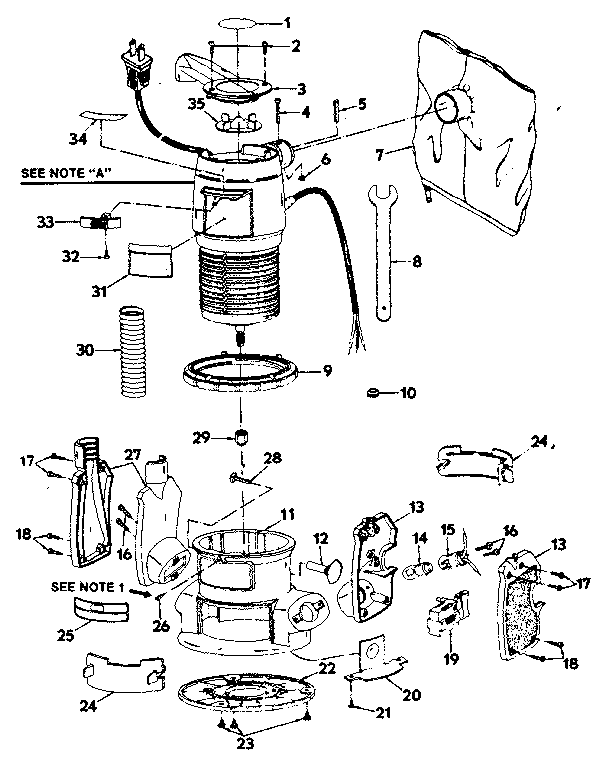

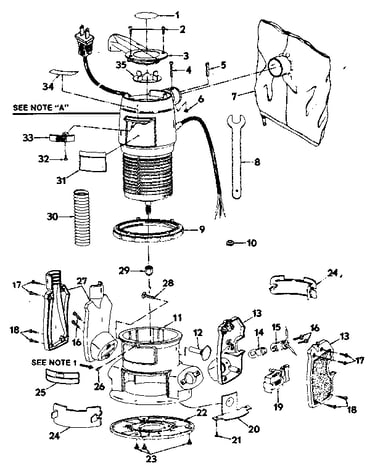

Base assembly diagram

Screw

Part #622931-007

The manufacturer no longer makes this part, and there's no substitute part

Sub-base 612191-004
#22

Base assembly diagram

Sub-base

Part #612191-004

The manufacturer no longer makes this part, and there's no substitute part

Roll Pin 941401-824
#5

Base assembly diagram

Roll pin

Part #941401-824

The manufacturer no longer makes this part, and there's no substitute part

Cord 990500-009
#7

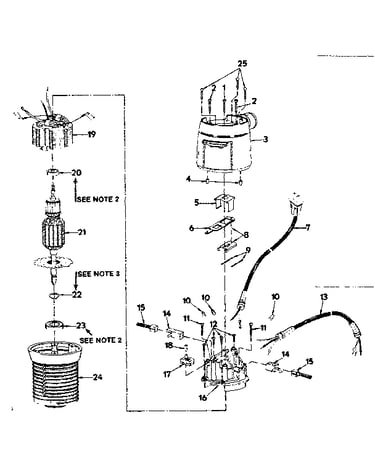

Motor assembly diagram

Cord

Part #990500-009

The manufacturer no longer makes this part, and there's no substitute part

Dust Bag 610993-001
#7

Base assembly diagram

Dust bag

Part #610993-001

The manufacturer no longer makes this part, and there's no substitute part

P Hdl Assy 611457-000
#13

Base assembly diagram

P hdl assy

Part #611457-000

The manufacturer no longer makes this part, and there's no substitute part

Screw 616081-013
#2

Base assembly diagram

Screw

Part #616081-013

The manufacturer no longer makes this part, and there's no substitute part

Retain Ring 622167-012
#22

Motor assembly diagram

Retain ring

Part #622167-012

The manufacturer no longer makes this part, and there's no substitute part

End Cap 612886-004
#3

Motor assembly diagram

End cap

Part #612886-004

The manufacturer no longer makes this part, and there's no substitute part

Screw 606066-002
#16

Base assembly diagram

Screw

Part #606066-002

The manufacturer no longer makes this part, and there's no substitute part
