Model # 501885 Official Agri-Fab mow-n-vacuum

Here are the diagrams and repair parts for Official Agri-Fab 501885 mow-n-vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

Filters

Nuts

Washers

ALL PARTS

Showing 10 of 100 parts |

#18

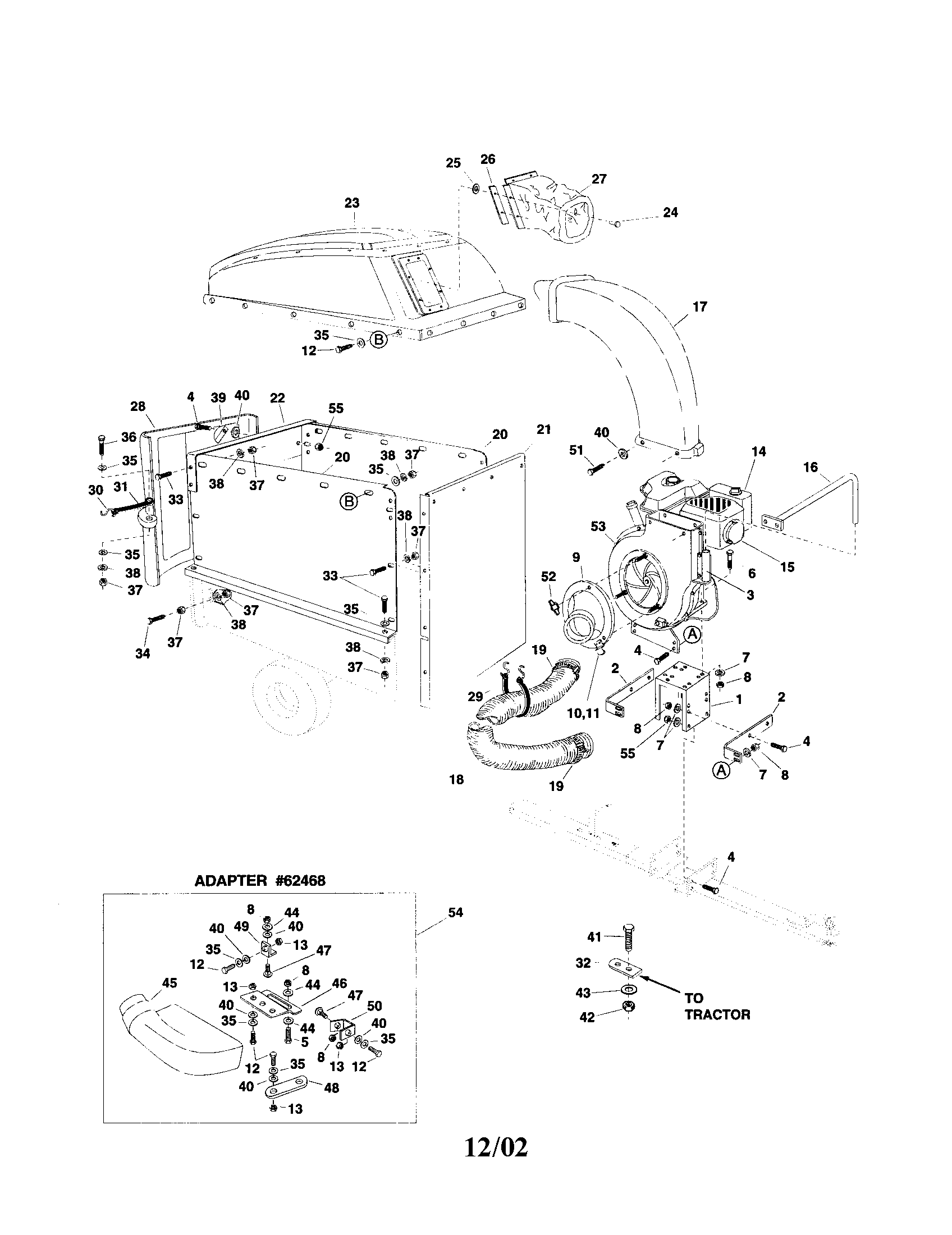

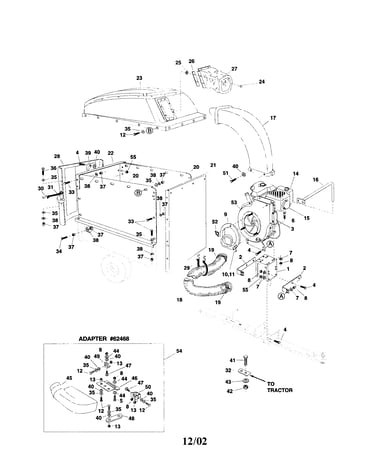

Engine base/hose/panels diagram

Hose 6 x 84

Part #43792

Replaced by #41882

$130.79 |

7% OFF Phone Price : $140.79

In Stock

Qty

Lawn Tractor Attachment Hitch Pin (replaces Af-43343) 43343

#24

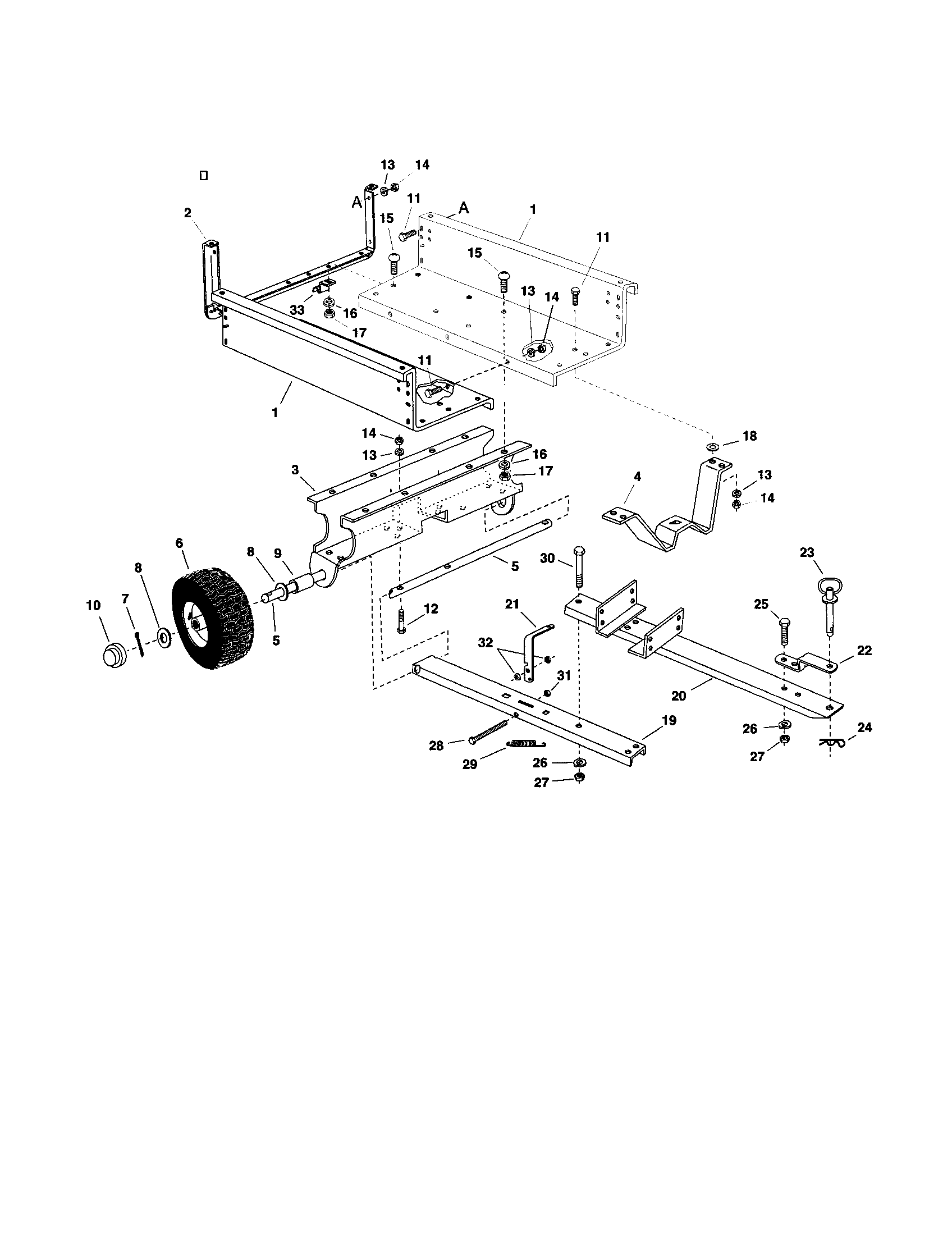

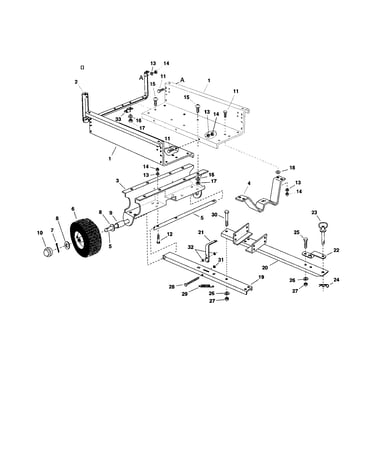

Cart body diagram

Lawn tractor attachment hitch pin (replaces af-43343)

Part #43343

This item is not returnable

$2.16

In Stock

Qty

Cart body diagram

Wheel

Part #46272

Replaced by #42159G

$75.84 |

6% OFF Phone Price : $80.84

In Stock

Qty

#27

Engine base/hose/panels diagram

Chipper/shredder discharge boot

Part #48133

$35.89 |

12% OFF Phone Price : $40.89

In Stock

Qty

Lawn & garden equipment lock washer, 3/8-in

Part #43003

This item is not returnable

$2.49 |

29% OFF Phone Price : $3.49

In Stock

Qty

Lawn Tractor Lawn Vacuum Attachment Snap Switch (replaces 925-3166) 725-3166

#13

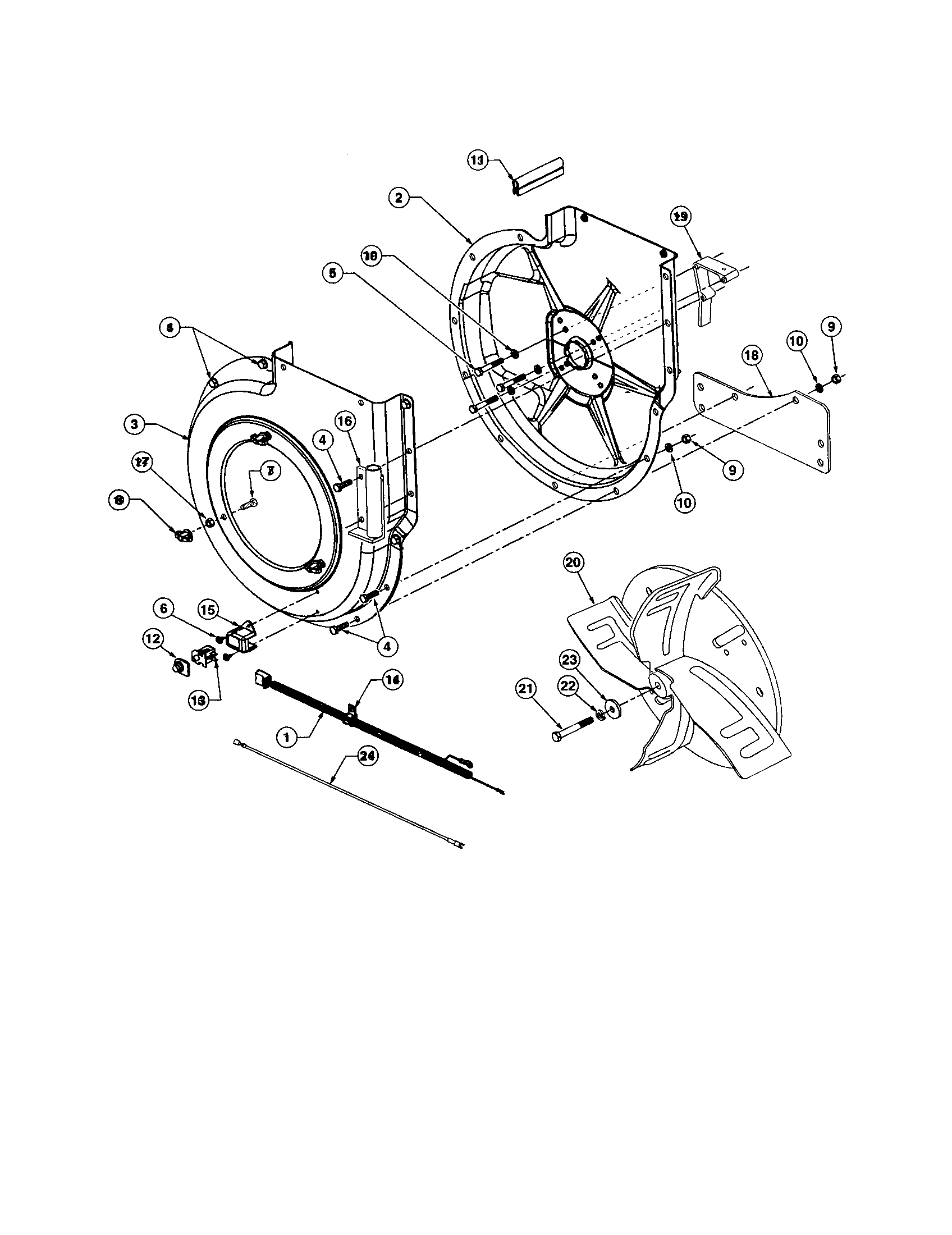

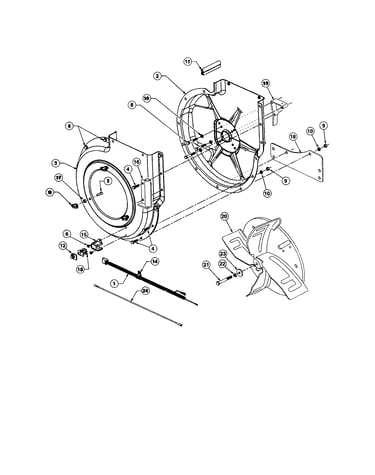

Impeller housing assembly diagram

Lawn tractor lawn vacuum attachment snap switch (replaces 925-3166)

Part #725-3166

This item is not returnable

$9.83 |

9% OFF Phone Price : $10.83

In Stock

Qty

Lawn & Garden Equipment Carriage Bolt, 5/16-18 X 3/4-in 43080

#47

Engine base/hose/panels diagram

Lawn & garden equipment carriage bolt, 5/16-18 x 3/4-in

Part #43080

This item is not returnable

$2.49 |

29% OFF Phone Price : $3.49

In Stock

Qty

Lawn & garden equipment lock washer

Part #43086

This item is not returnable

$2.16

In Stock

Qty

Lawn Tractor Lawn Vacuum Attachment Deck Adapter 43830

#45

Engine base/hose/panels diagram

Lawn tractor lawn vacuum attachment deck adapter

Part #43830

$66.85 |

7% OFF Phone Price : $71.85

In Stock

Qty

Lawn tractor attachment hex lock nut, 5/16-in

Part #43064

This item is not returnable

$2.49 |

29% OFF Phone Price : $3.49

In Stock

Qty
