Model # 58CLA12010120 Official Carrier furnace

Here are the diagrams and repair parts for Official Carrier 58CLA12010120 furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Capactr Run P291-0503
#33

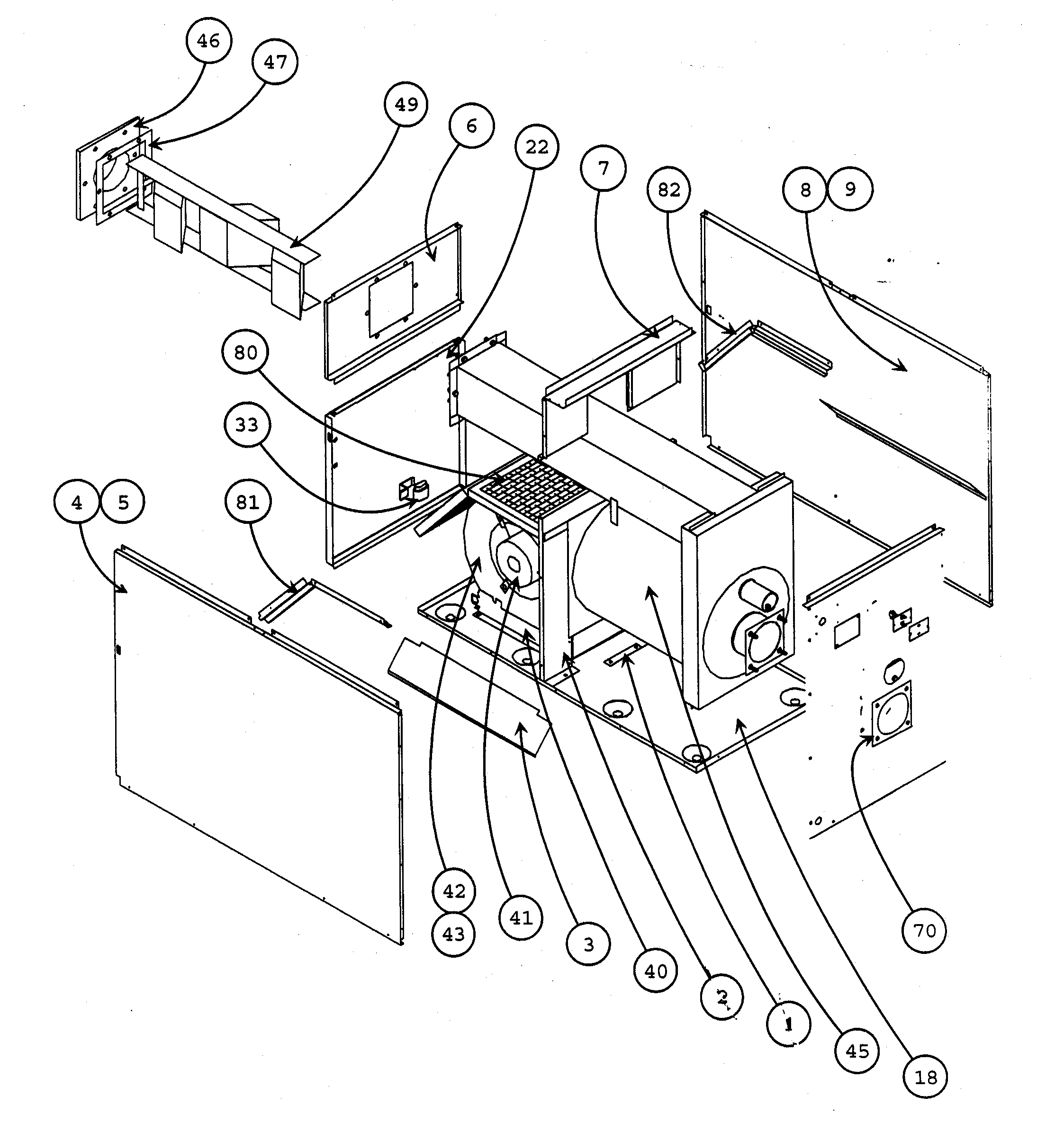

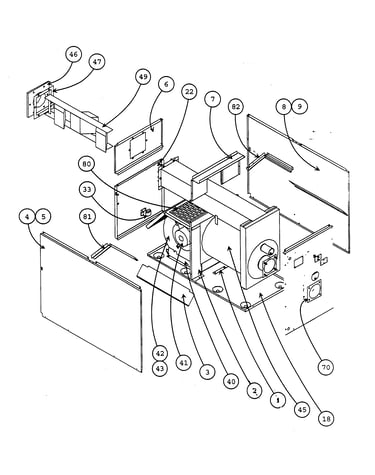

Cabinet assy 1 diagram

Capactr run

Part #P291-0503

Replaced by #12005

?
Manufacturer substitution
This part replaces P291-0503. Substitute parts can look different from the original.
$16.12 |
11% OFF Phone Price : $18.12
In Stock
Prot Relay HH11AZ070
Prot relay

Part #HH11AZ070

$199.65
In Stock
Motor Mnt B01889
#41A

Cabinet assy 1 diagram

Motor mnt

Part #B01889

$137.16
In Stock
Control R02R003
#34

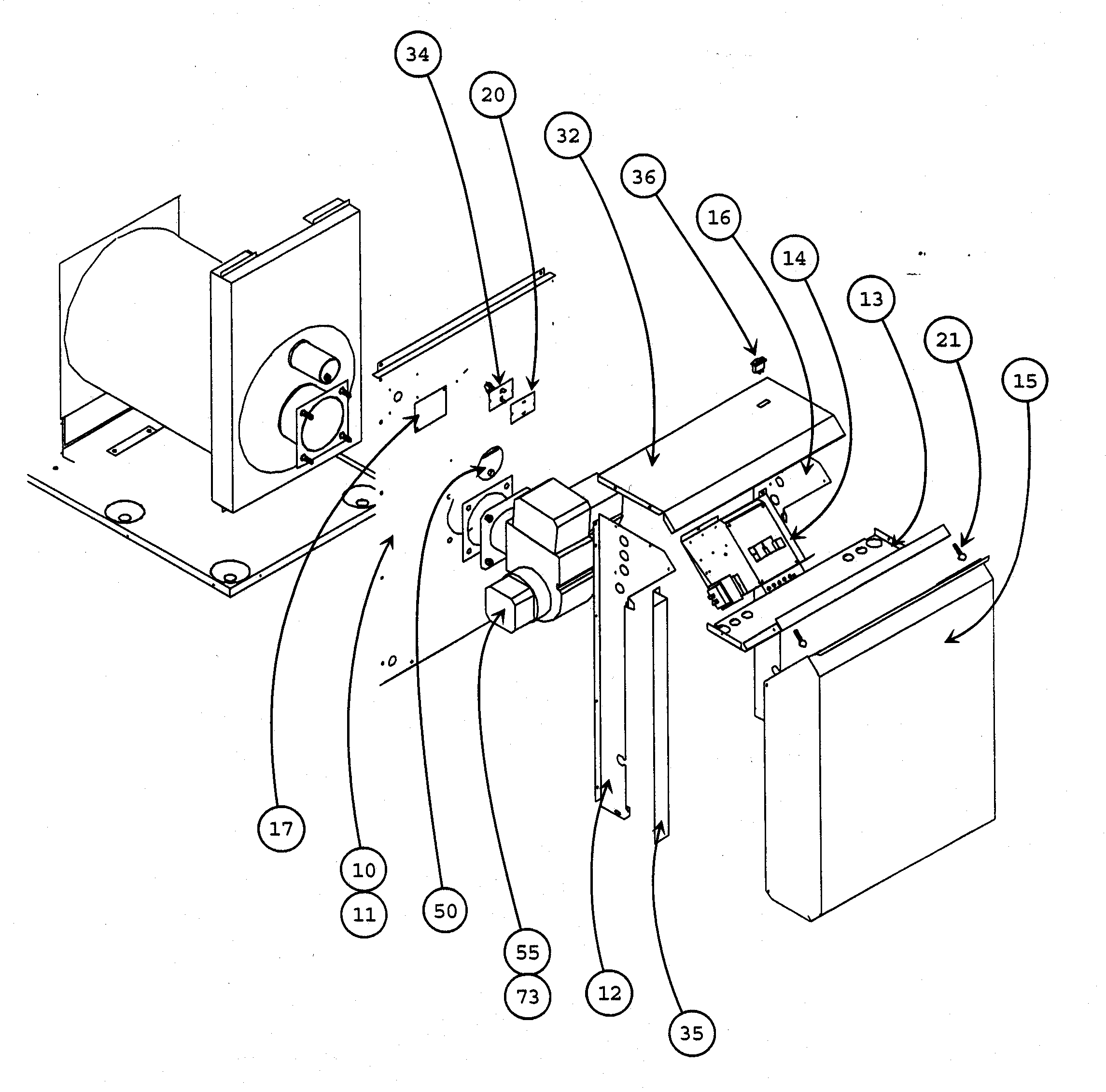

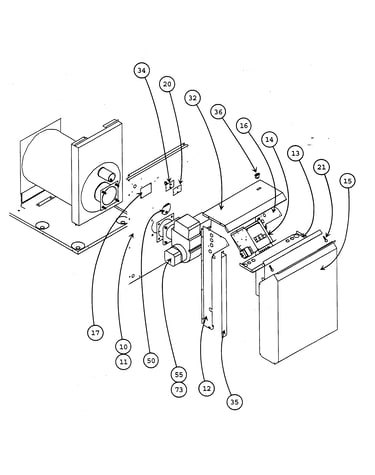

Cabinet assy 2 diagram

Control

Part #R02R003

$36.76
In Stock
Gasket B00205
#47

Cabinet assy 1 diagram

Gasket

Part #B00205

$43.69
In Stock
Wheel 2999U
Wheel

Part #2999U

$42.86
In Stock
Harness B01662
#39

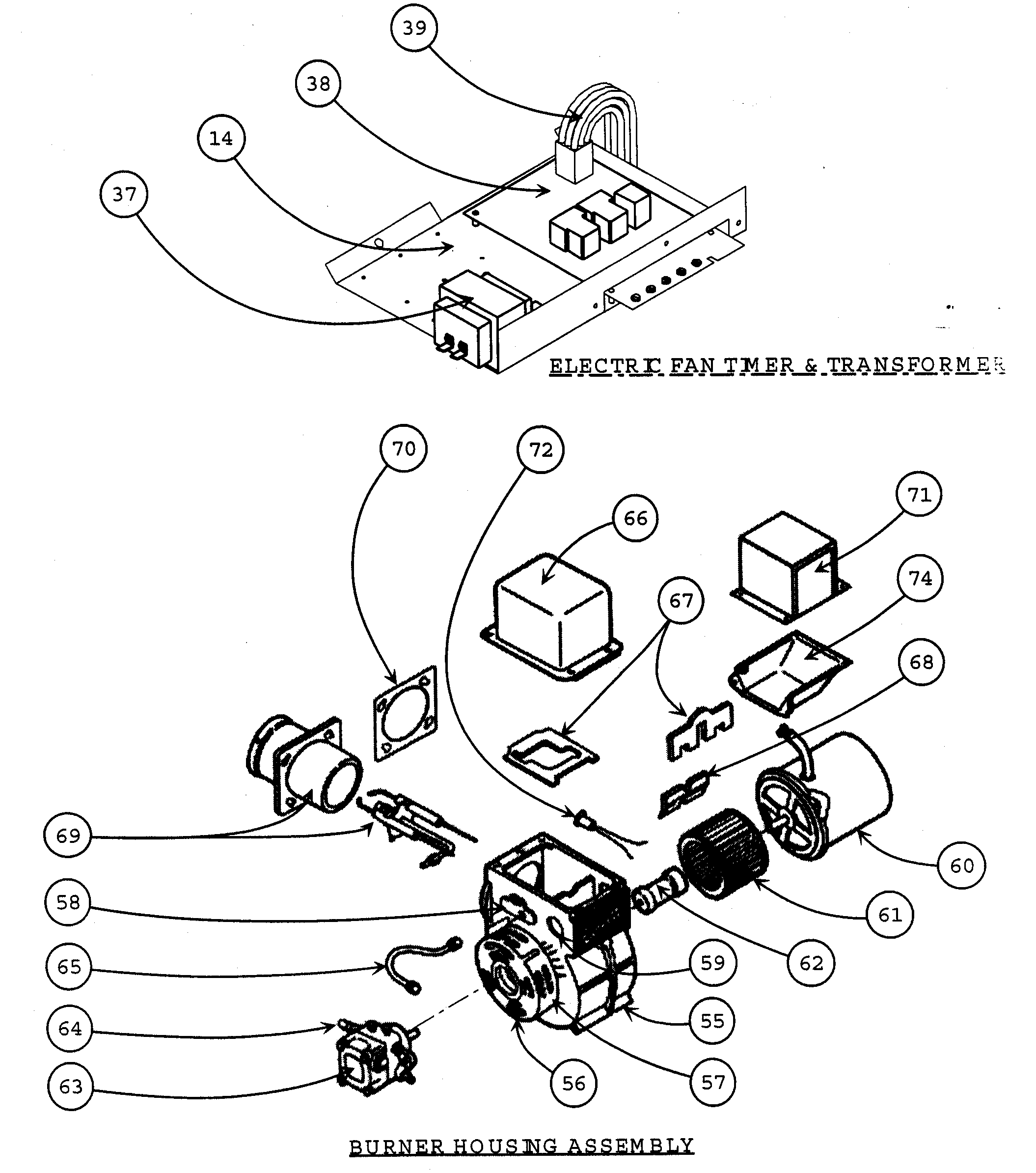

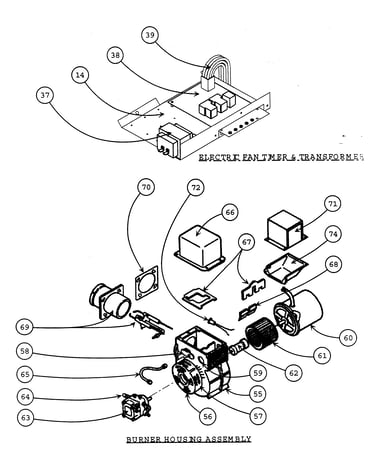

Electric fan timer/transformer/burner housing assy diagram

Harness

Part #B01662

$54.71
In Stock
Cover B01747
#46

Cabinet assy 1 diagram

Cover

Part #B01747

$105.51
In Stock
Hvac Equipment Oil Burner Electrode Kit 5780
#69C

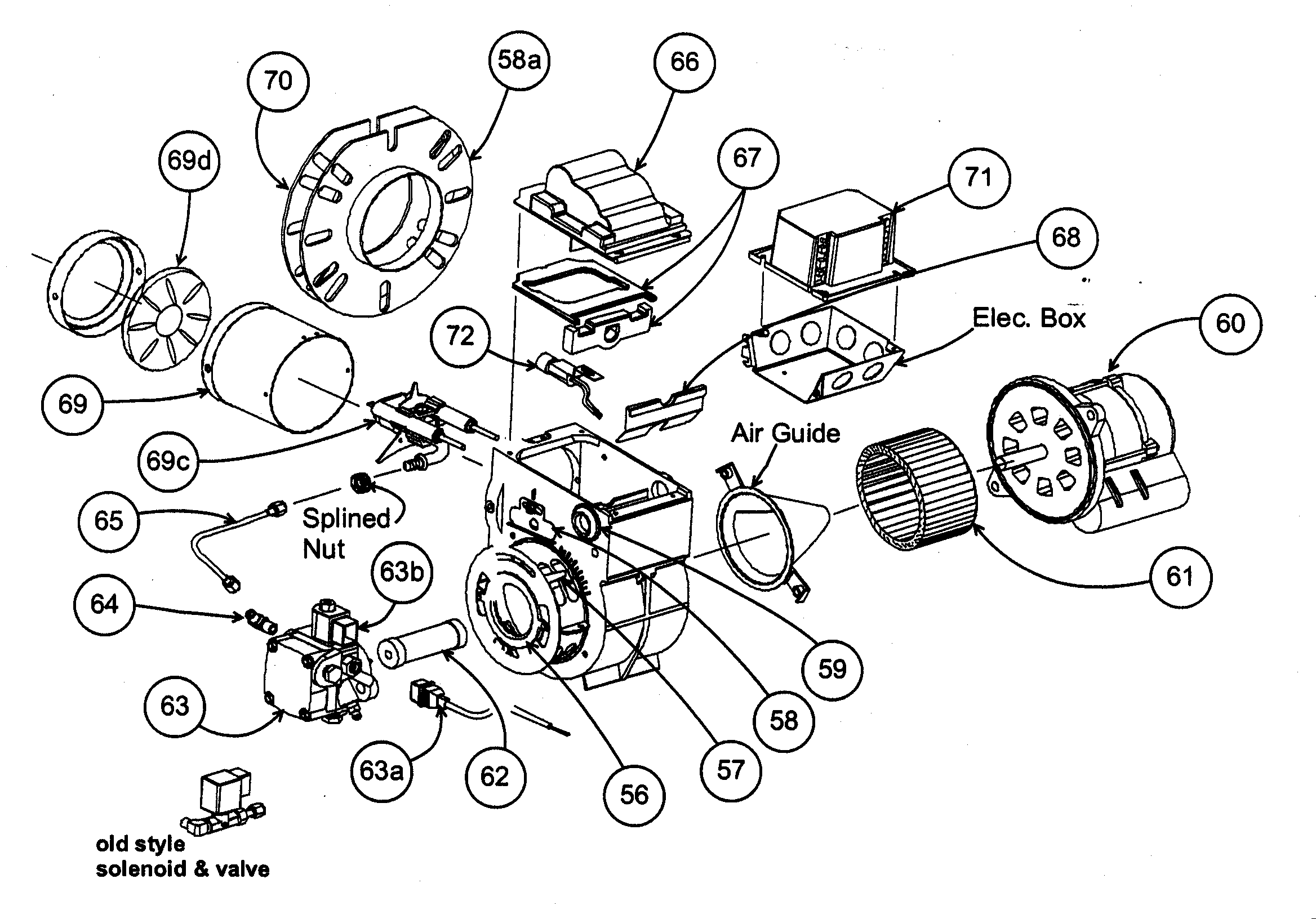

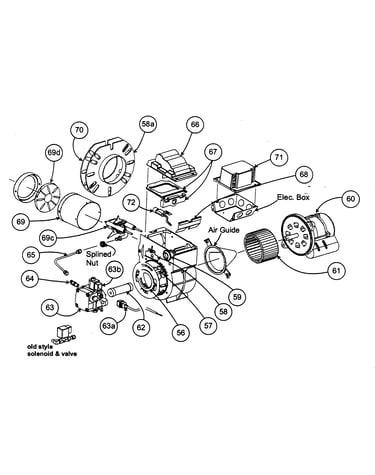

Burner assy diagram

Hvac equipment oil burner electrode kit

Part #5780

$44.37
In Stock
Hvac Equipment Connector Tube Assembly 5636
Hvac equipment connector tube assembly

Part #5636

$12.60
In Stock
