Model # HBD-N890W Official Sony dvd receiver

Here are the diagrams and repair parts for Official Sony HBD-N890W dvd receiver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

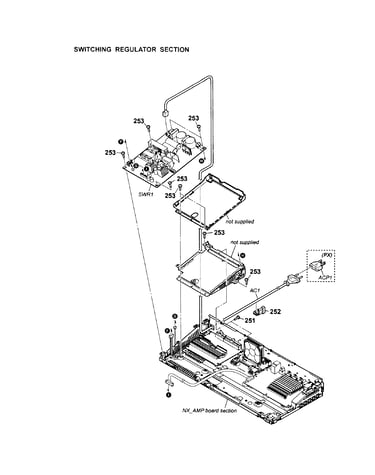

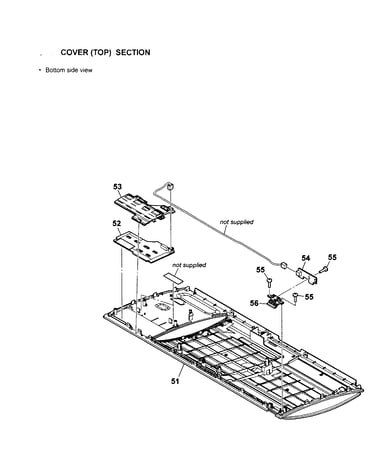

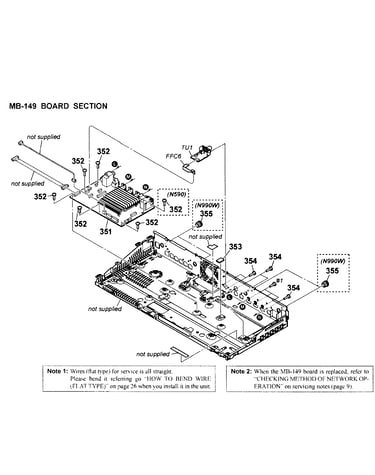

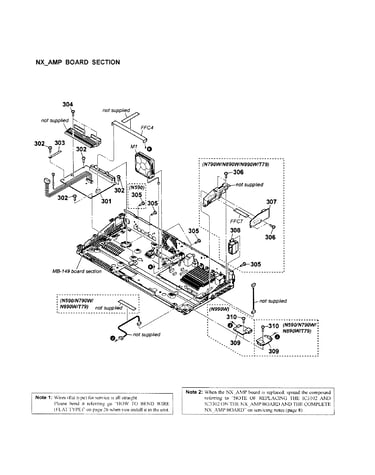

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Home Theater System Fm Antenna 179318441
#NI

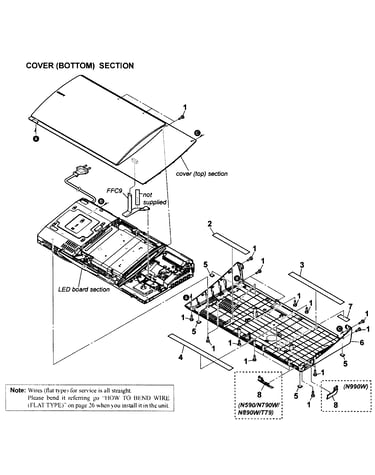

Cover bottom diagram

Home theater system fm antenna

Part #179318441

The manufacturer no longer makes this part, and there's no substitute part

Cover 429833151
#6

Cover bottom diagram

Cover

Part #429833151

Replaced by #429833151

?
Manufacturer substitution
This part replaces 429833151. Substitute parts can look different from the original.
$46.96
In Stock
Flat Cable 182799661
#FFC3

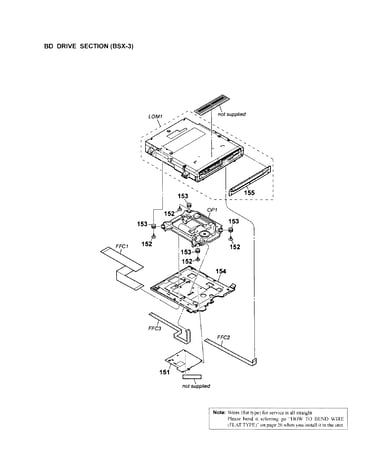

Bd drive diagram

Flat cable

Part #182799661

Replaced by #182799661

?
Manufacturer substitution
This part replaces 182799661. Substitute parts can look different from the original.
This item is not returnable
$3.93
In Stock
Foot 429559001
#5

Cover bottom diagram

Foot

Part #429559001

Replaced by #429559001

?
Manufacturer substitution
This part replaces 429559001. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Led Pcb A1850448A
#101

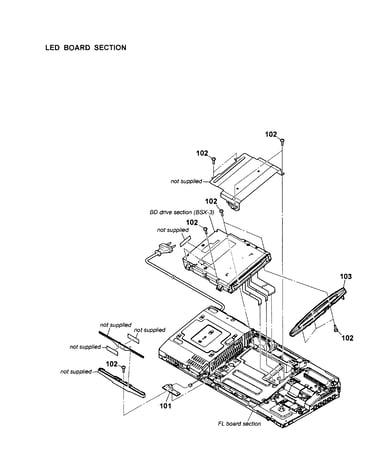

Led pcb diagram

Led pcb

Part #A1850448A

Replaced by #A1850448A

?
Manufacturer substitution
This part replaces A1850448A. Substitute parts can look different from the original.
$23.27
In Stock
Flat Cable 182830261
#FFC2

Bd drive diagram

Flat cable

Part #182830261

Replaced by #182830261

?
Manufacturer substitution
This part replaces 182830261. Substitute parts can look different from the original.
$13.43
In Stock
Screw 307733191
Screw

Part #307733191

Replaced by #307733191

?
Manufacturer substitution
This part replaces 307733191. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Wire Flat, 182833961
#FFC8

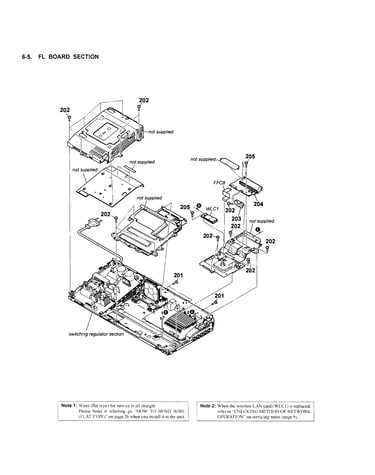

Fl pcb diagram

Wire flat,

Part #182833961

Replaced by #182833961

?
Manufacturer substitution
This part replaces 182833961. Substitute parts can look different from the original.
$13.63
In Stock
Fuse 3.15a 152313531
#NI

Cover bottom diagram

Fuse 3.15a

Part #152313531

Replaced by #152313531

?
Manufacturer substitution
This part replaces 152313531. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Deck,i-pod A1797336A
#NI

Cover bottom diagram

Deck,i-pod

Part #A1797336A

The manufacturer no longer makes this part, and there's no substitute part
