Model # LA800AXD2 Official White-Westinghouse 27" washer - 5995241972

Here are the diagrams and repair parts for Official White-Westinghouse LA800AXD2 27" washer - 5995241972, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

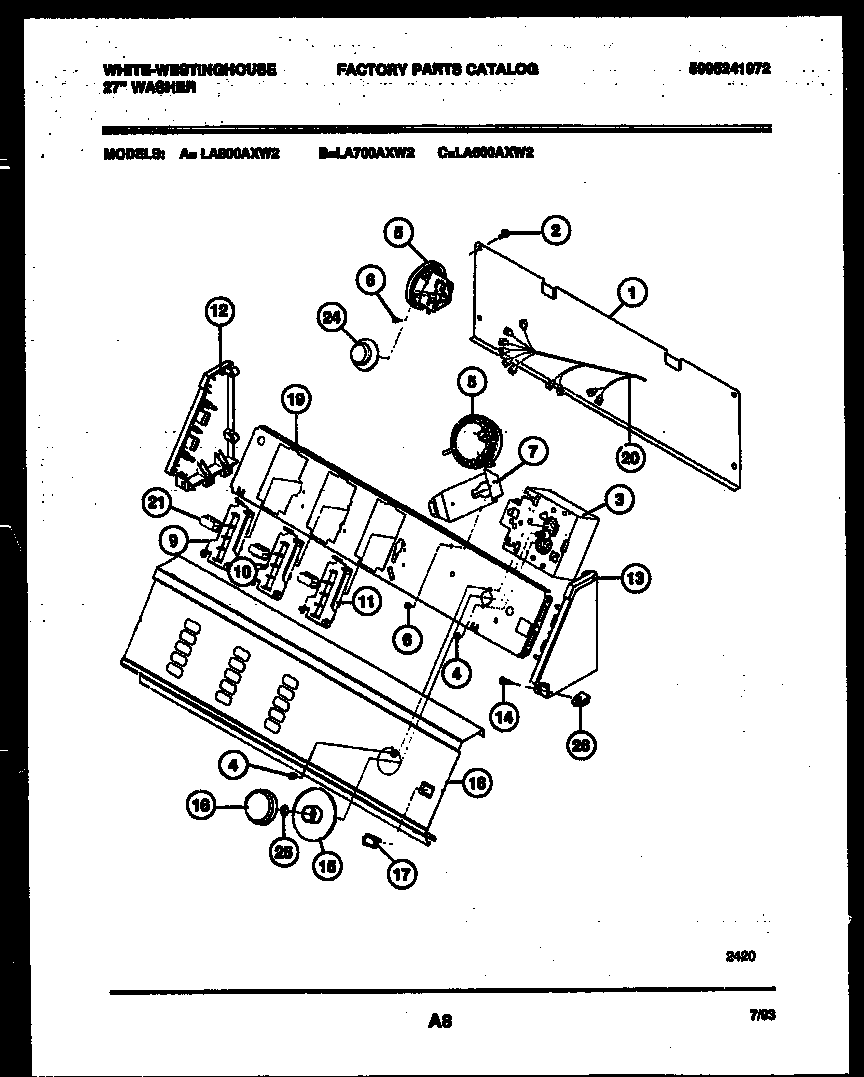

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 164 parts  |

Belt 3204418
#28

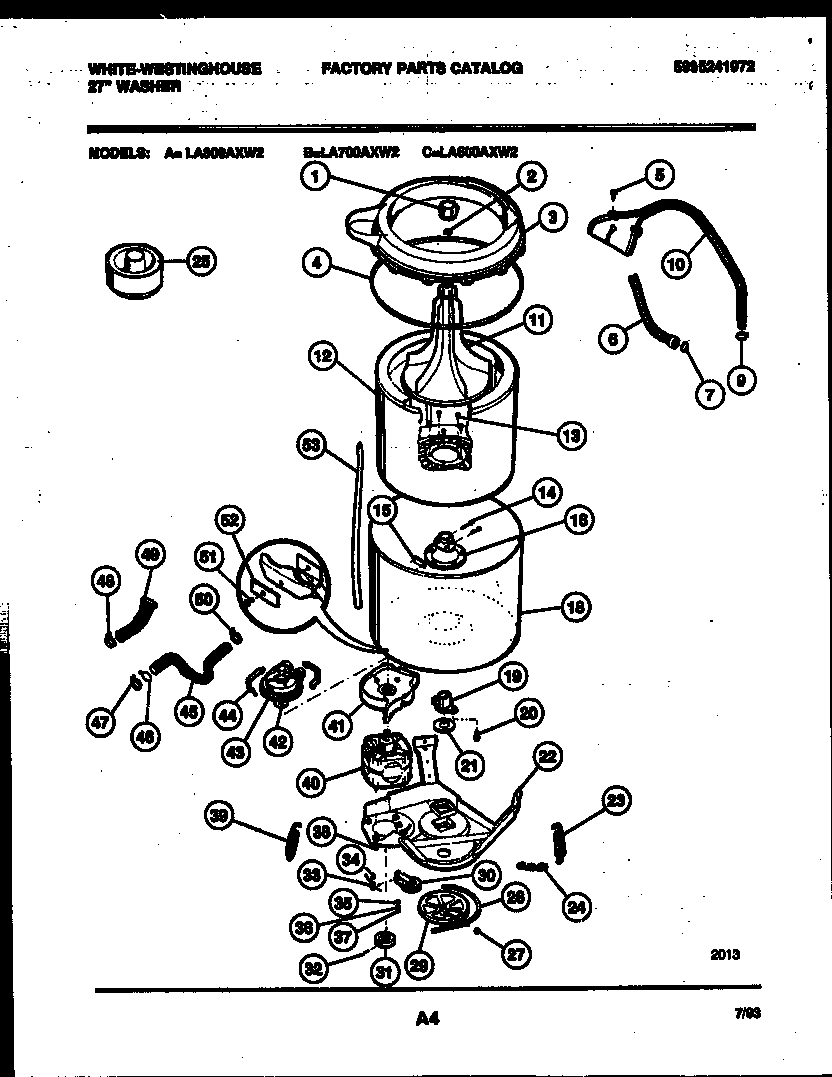

Tub detail diagram

Belt

Part #3204418

Replaced by #134511600

?
Manufacturer substitution
This part replaces 3204418. Substitute parts can look different from the original.
BEST SELLER
$20.17
23% OFF Phone Price : $26.17
In Stock
Electrolux Washer Tub Seal Assembly 5303279394
#26

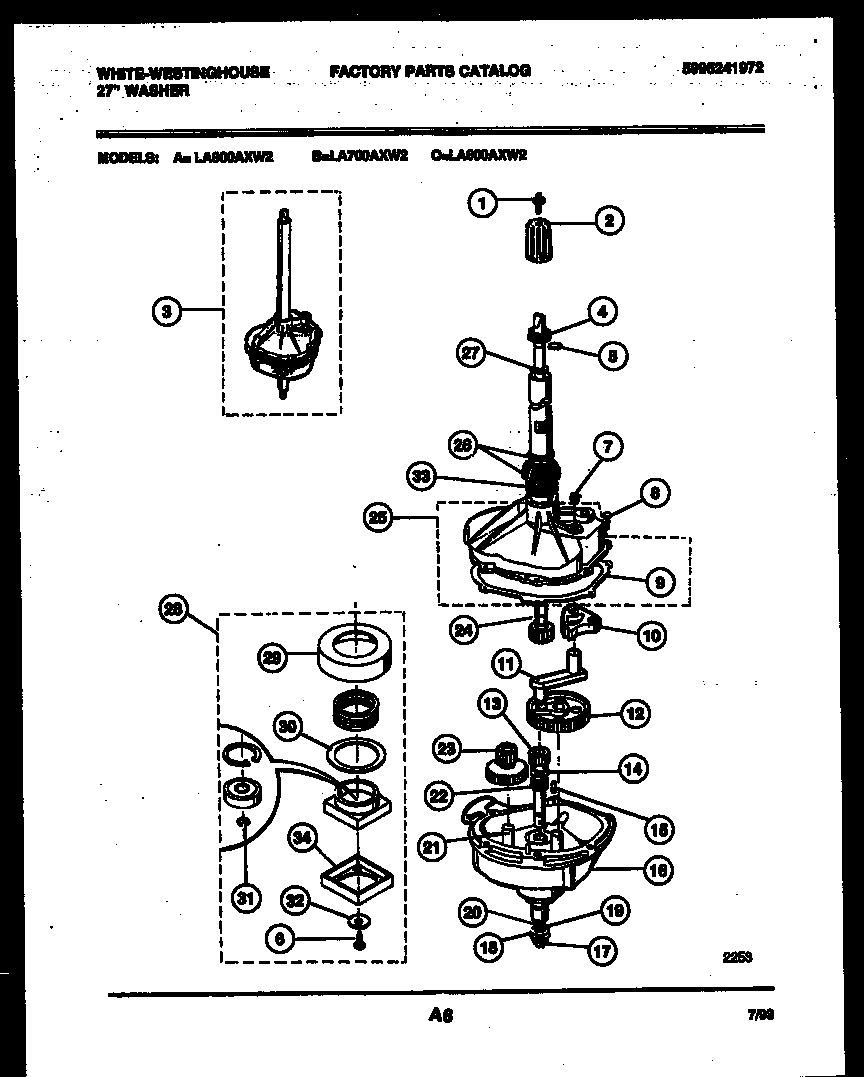

Transmission parts diagram

Electrolux washer tub seal assembly

Part #5303279394

The manufacturer no longer makes this part, and there's no substitute part

Screw 5308027517
#14

Tub detail diagram

Screw

Part #5308027517

Replaced by #137539500

?
Manufacturer substitution
This part replaces 5308027517. Substitute parts can look different from the original.
BEST SELLER
$15.24
12% OFF Phone Price : $17.24
In Stock
Trunnion 5303283294
#16

Tub detail diagram

Trunnion

Part #5303283294

Replaced by #131545101

?
Manufacturer substitution
This part replaces 5303283294. Substitute parts can look different from the original.
BEST SELLER
$102.42
10% OFF Phone Price : $114.42
In Stock
Drive Hub 3204462
#2

Transmission parts diagram

Drive hub

Part #3204462

Replaced by #134418700

?
Manufacturer substitution
This part replaces 3204462. Substitute parts can look different from the original.
$64.24
9% OFF Phone Price : $70.24
In Stock
Gearcase Mec 5308057580
#3

Transmission parts diagram

Gearcase mec

Part #5308057580

Replaced by #134735700

?
Manufacturer substitution
This part replaces 5308057580. Substitute parts can look different from the original.
$533.70
$12.00 OFF Phone Price : $545.70
In Stock
Washer Valve 5303207418
#33

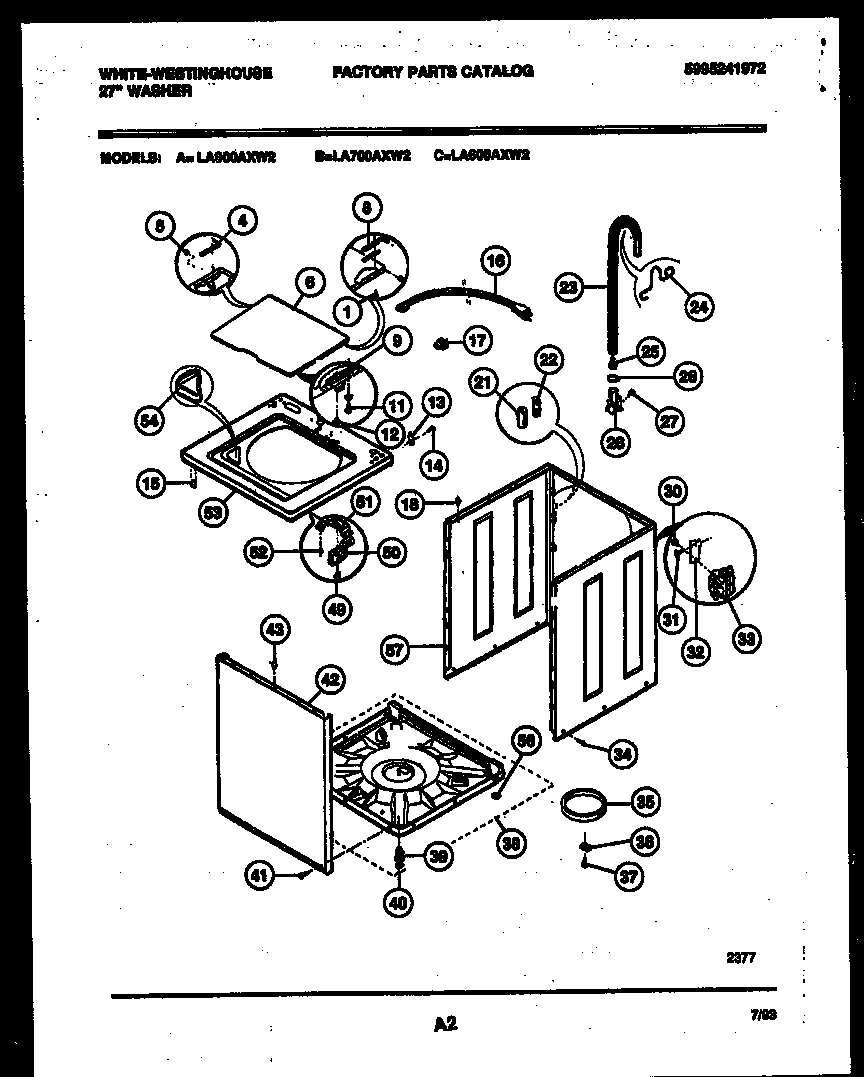

Cabinet parts diagram

Washer valve

Part #5303207418

Replaced by #134190200

?
Manufacturer substitution
This part replaces 5303207418. Substitute parts can look different from the original.
$125.33
9% OFF Phone Price : $137.33
In Stock
Electrolux Washing Machine Washer (replaces 000132835, 08002401, 132835000, 132835-000, 3161289, 5303161410, F000132835, F132835, F132835000, F132835-000, Q000440115, Q440115) 5308002401
#21

Tub detail diagram

Electrolux washing machine washer (replaces 000132835, 08002401, 132835000, 132835-000, 3161289, 5303161410, f000132835, f132835, f132835000, f132835-000, q000440115, q440115)

Part #5308002401

$20.89
22% OFF Phone Price : $26.89
In Stock
Foot 5303272067
#39

Cabinet parts diagram

Foot

Part #5303272067

Replaced by #134548800

?
Manufacturer substitution
This part replaces 5303272067. Substitute parts can look different from the original.
This item is not returnable
$14.57
12% OFF Phone Price : $16.57
In Stock
Clamp 3204457
#48

Tub detail diagram

Clamp

Part #3204457

Replaced by #131306234

?
Manufacturer substitution
This part replaces 3204457. Substitute parts can look different from the original.
$36.29
14% OFF Phone Price : $42.29
In Stock
