Model # 40QAQ048300 Official Carrier split-system air conditioner

Here are the diagrams and repair parts for Official Carrier 40QAQ048300 split-system air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

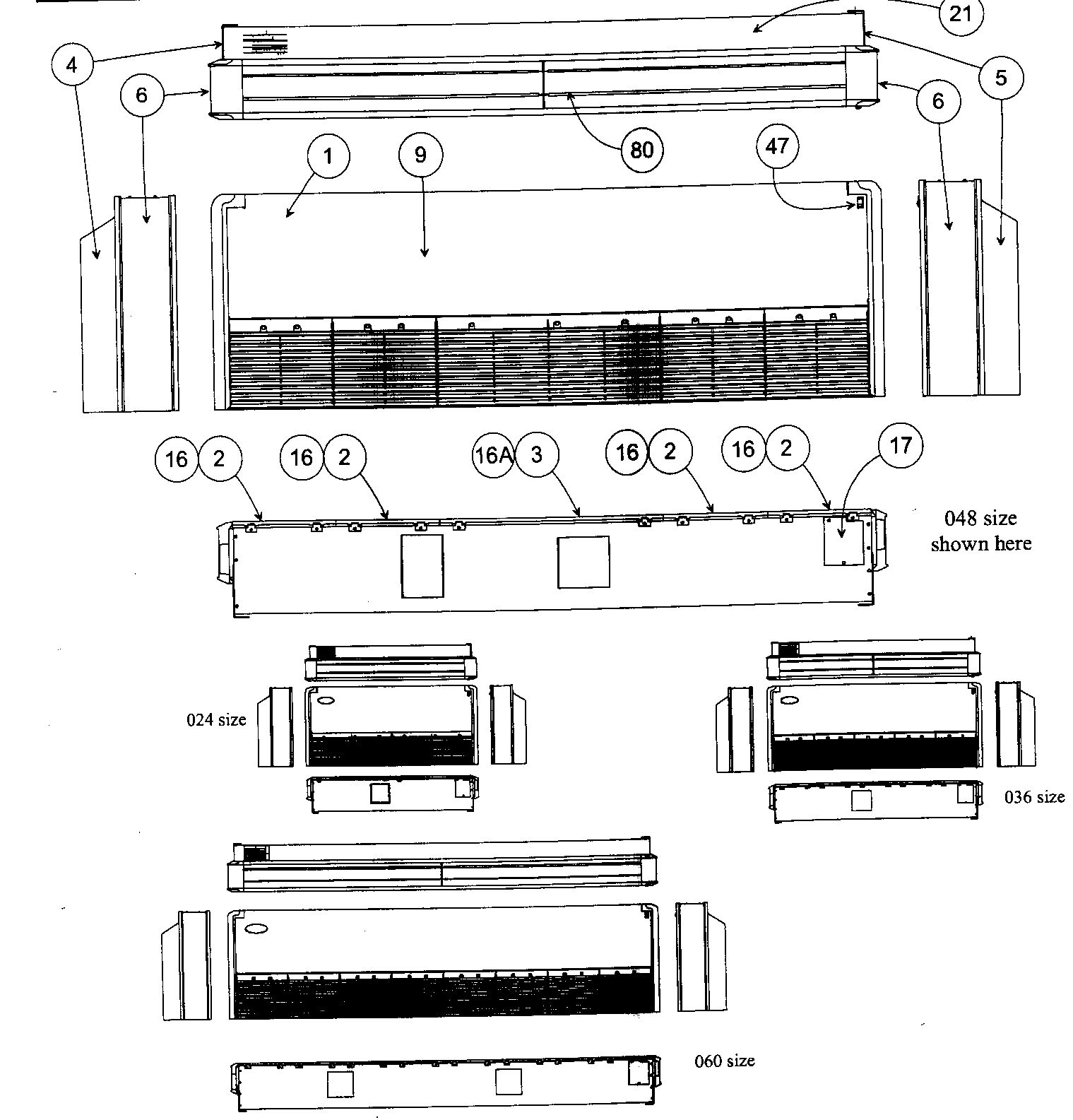

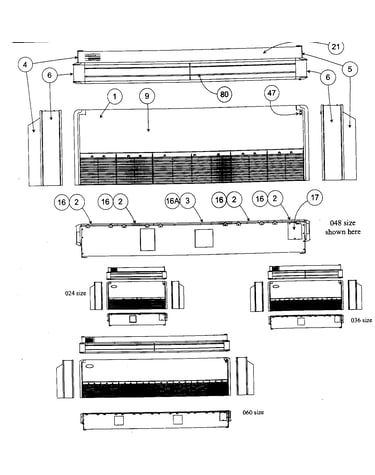

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Capacitor P291-0504
#68

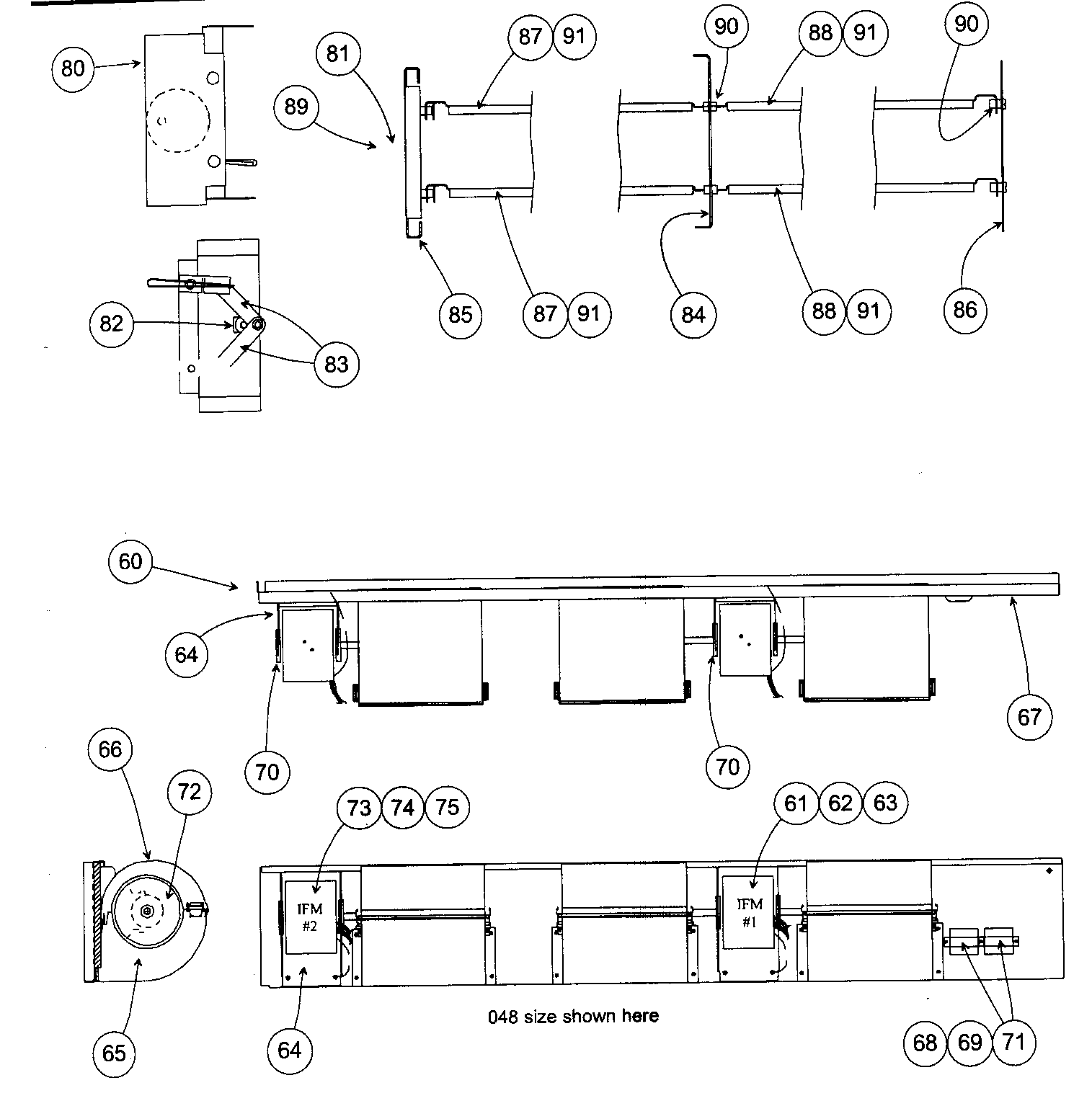

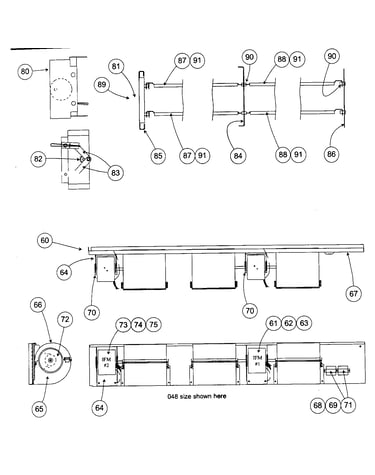

Baffle assy diagram

Capacitor

Part #P291-0504

$12.20
In Stock
Motor HF38AE208
#81

Baffle assy diagram

Motor

Part #HF38AE208

$174.34
In Stock
Bracket 40QA500061
#15

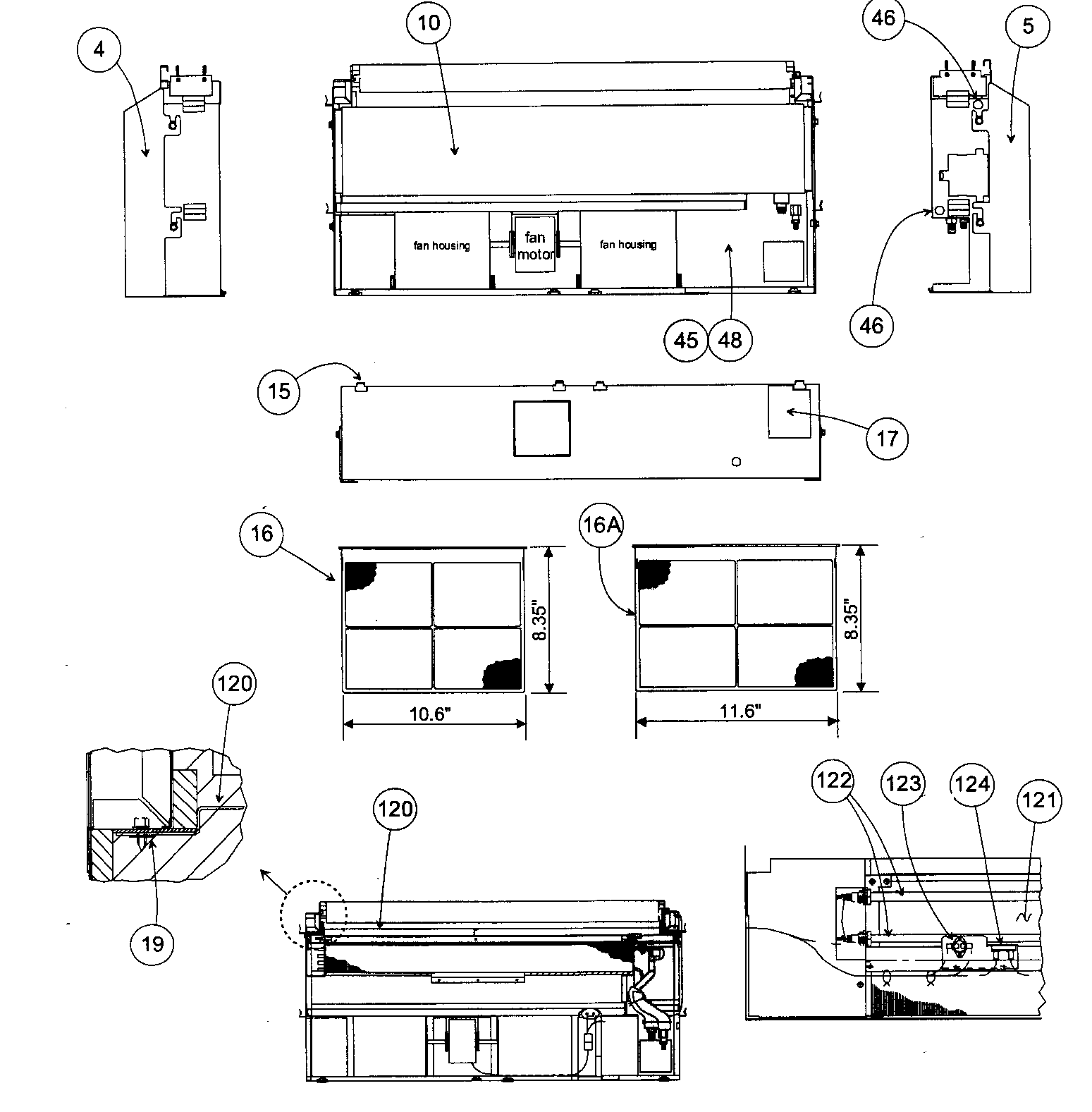

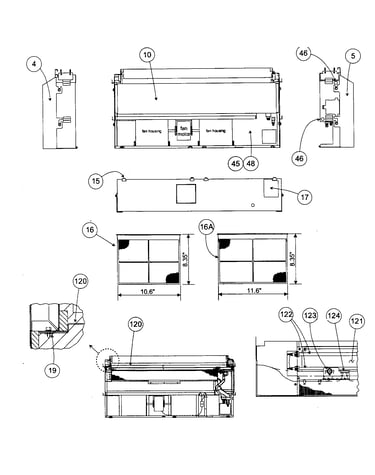

Filter assy diagram

Bracket

Part #40QA500061

$117.06
In Stock
Suction DE08DA401
#108

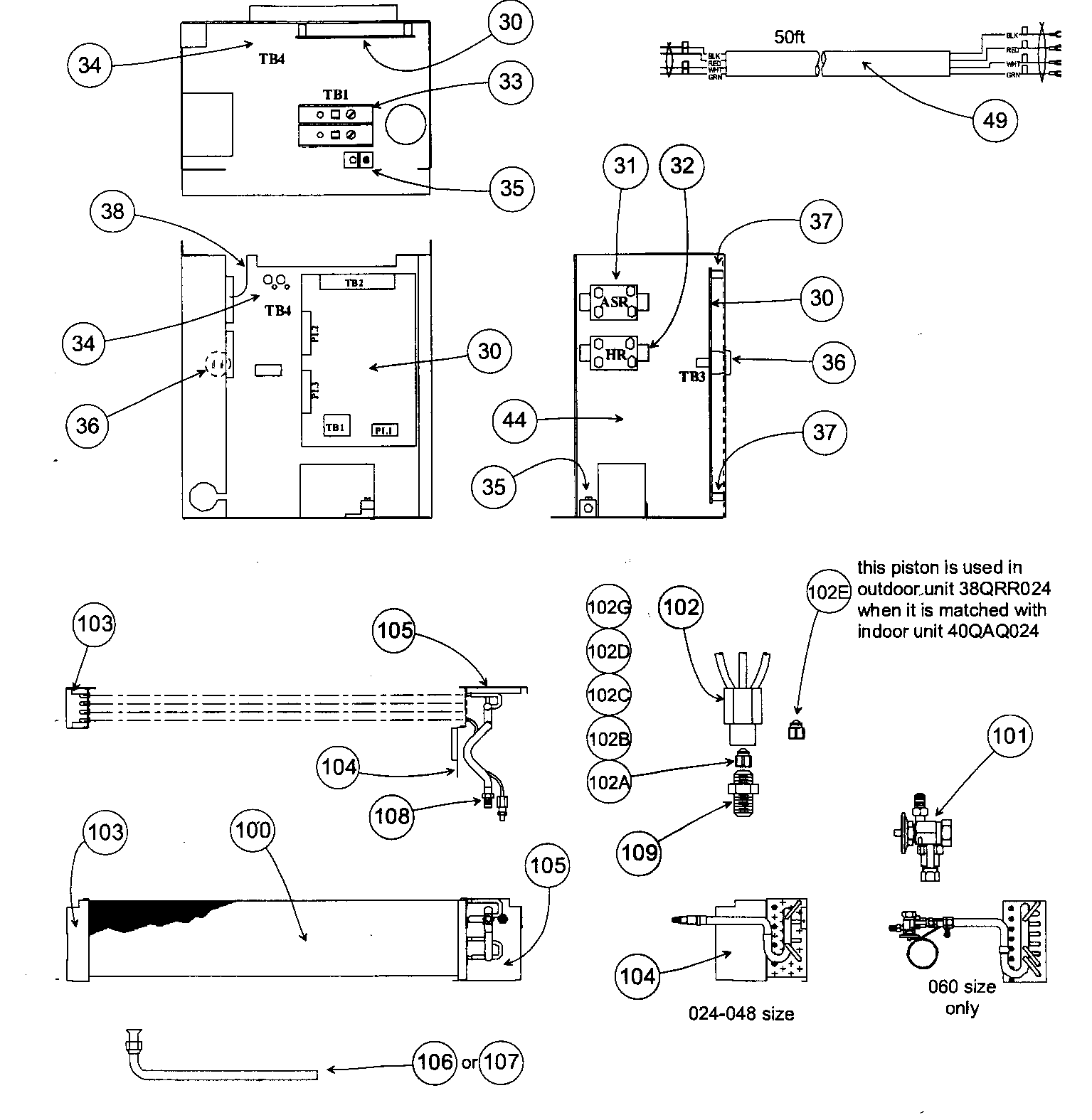

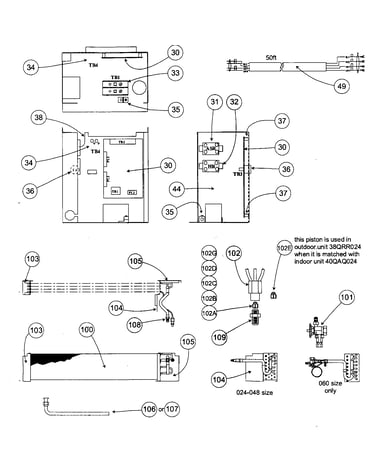

Coil control assy diagram

Suction

Part #DE08DA401

$33.31
In Stock
Cap EA52PL001
#109

Coil control assy diagram

Cap

Part #EA52PL001

$35.58
In Stock
Connector HY90AZ021
#35

Coil control assy diagram

Connector

Part #HY90AZ021

This item is not returnable
$6.40
In Stock
Motor HC29DE208
#74

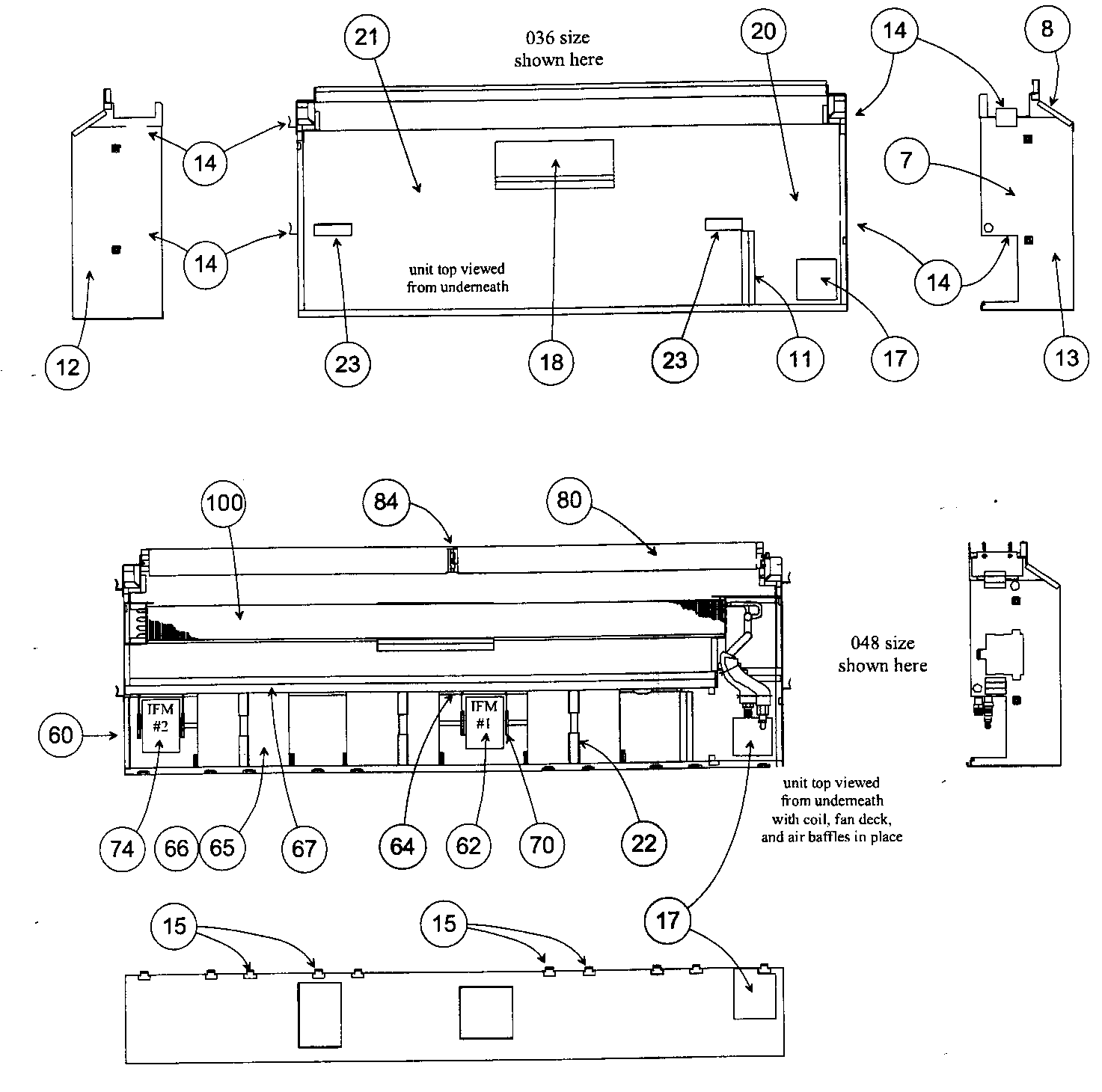

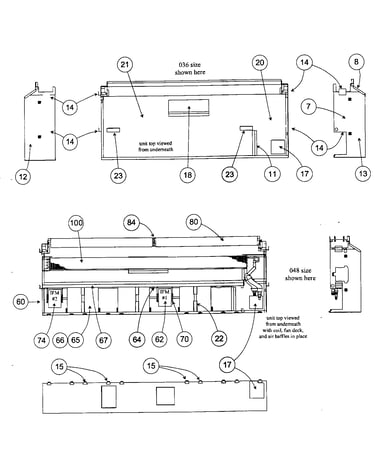

Top view diagram

Motor

Part #HC29DE208

$410.63
In Stock
Scroll,top 40QA500319
#66

Top view diagram

Scroll,top

Part #40QA500319

$296.93
In Stock
Switch HH18HB031
#40

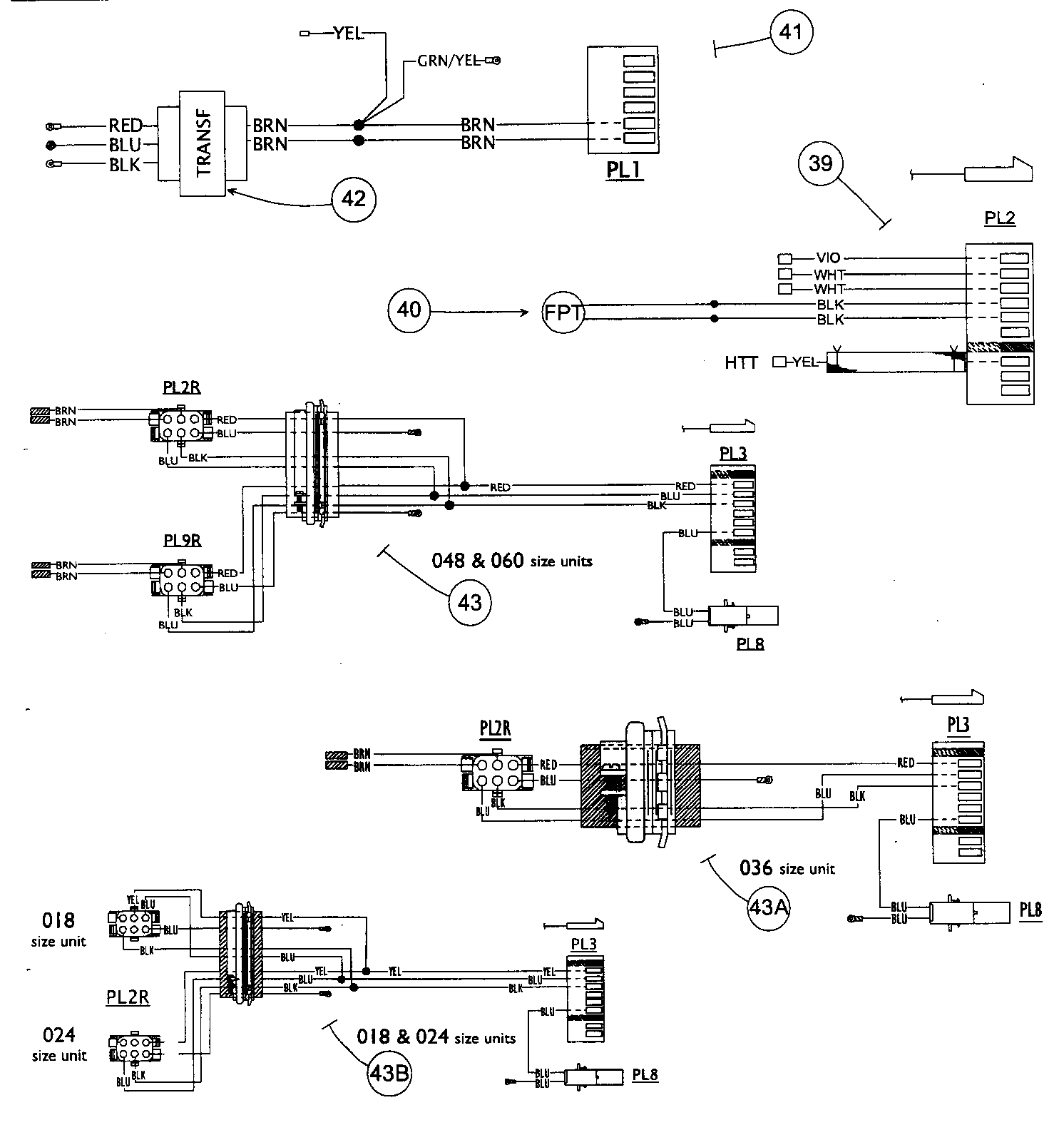

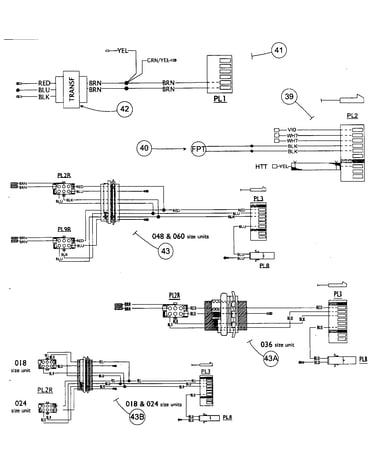

Wiring diagram diagram

Switch

Part #HH18HB031

$70.20
In Stock
Plug Assembly 40QA400692
#41

Wiring diagram diagram

Plug assembly

Part #40QA400692

$693.80
In Stock
