Craftsman
Power Drill

Model # 315101141 Official Craftsman rear handle drill

Here are the diagrams and repair parts for Official Craftsman 315101141 rear handle drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

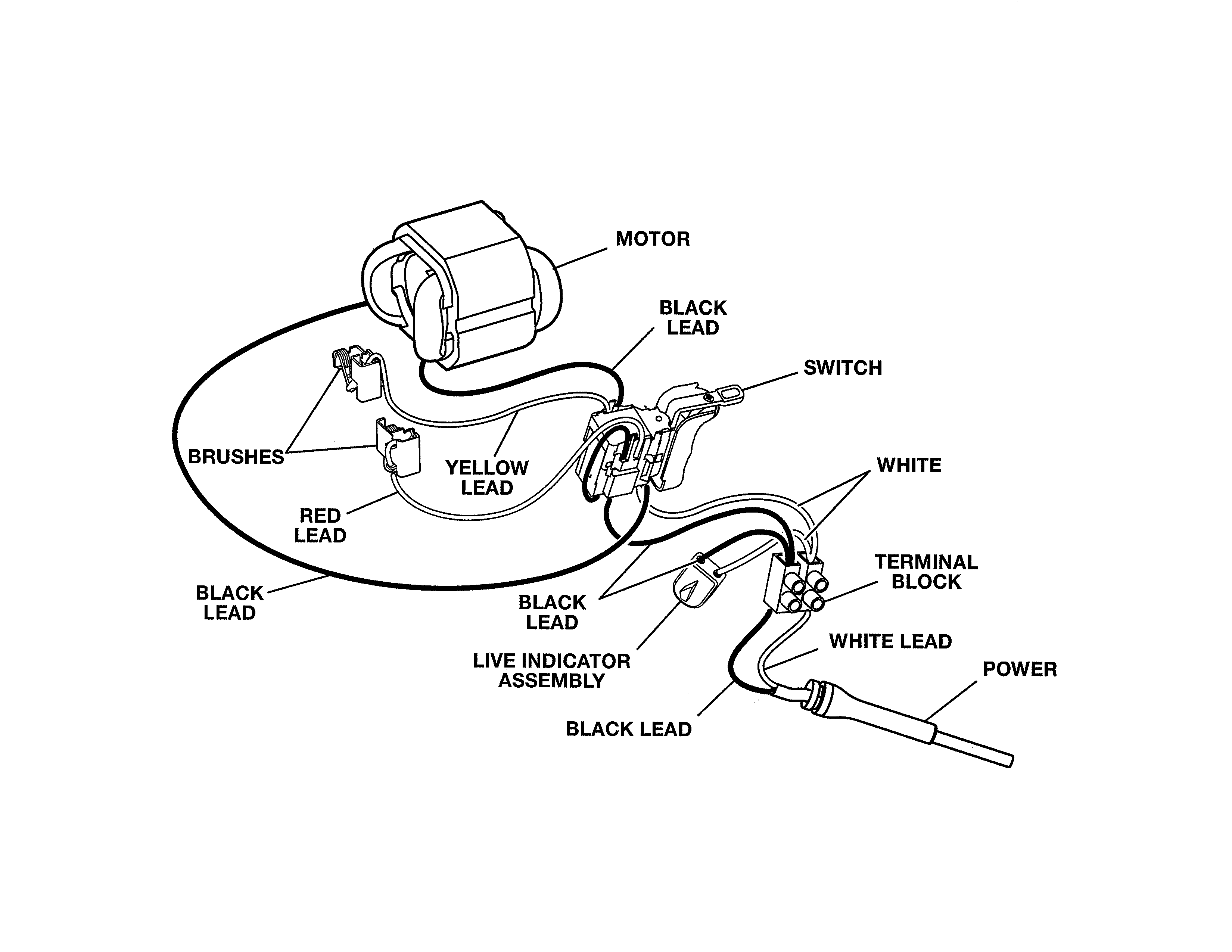

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |
Washer 690606001
#9

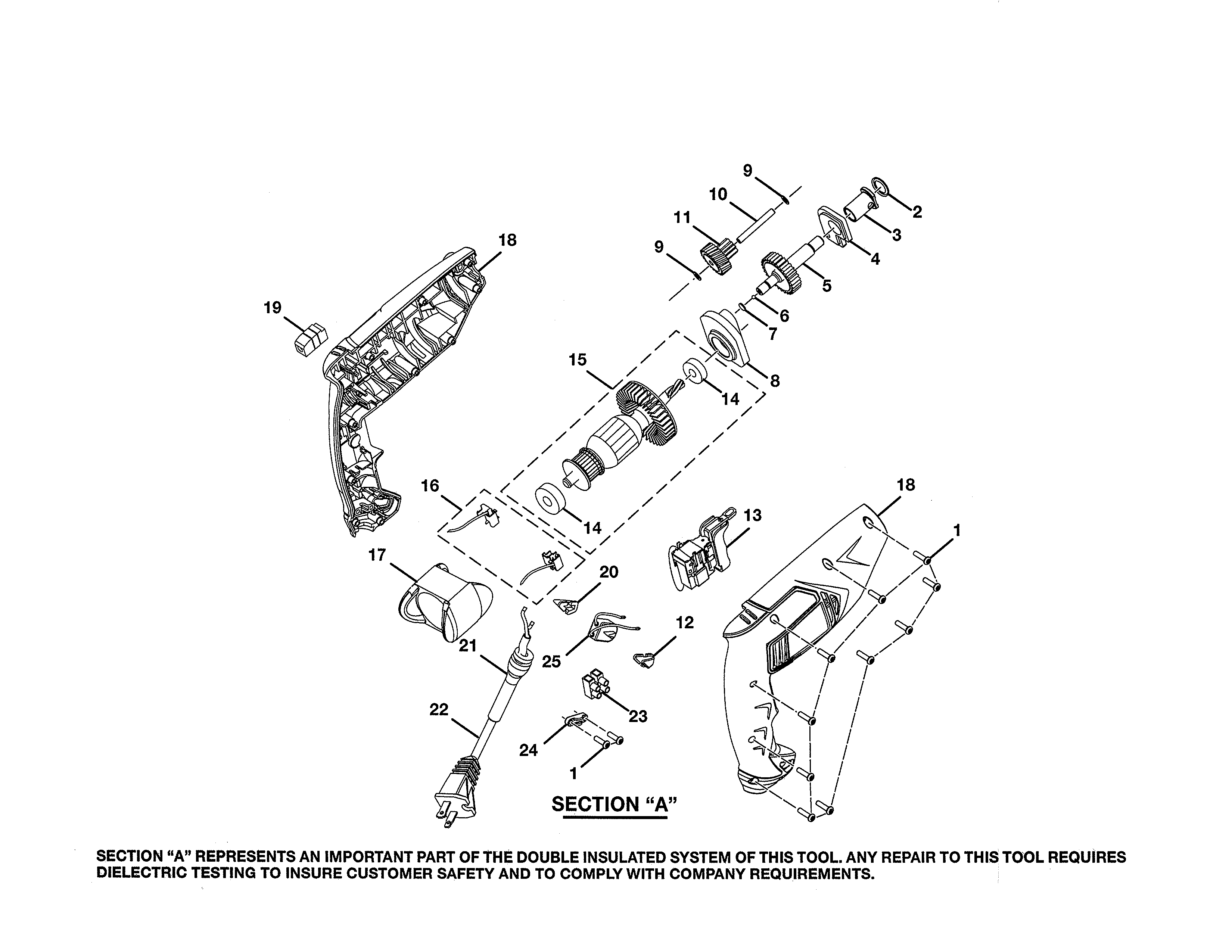

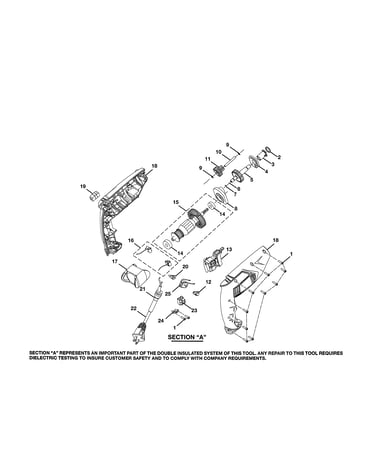

Armature/gear/power cord diagram

Washer

Part #690606001

The manufacturer no longer makes this part, and there's no substitute part

Case 300912234
#4

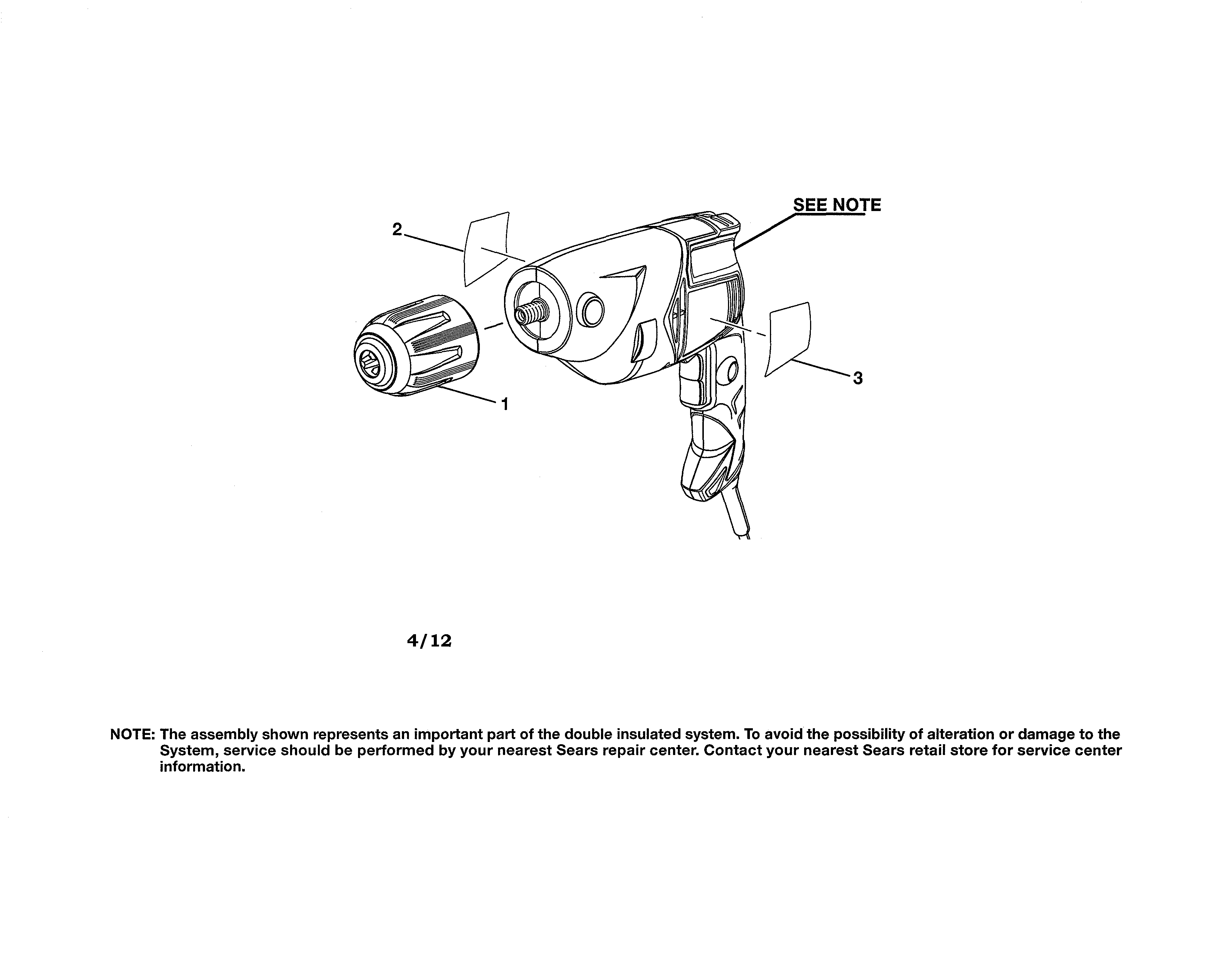

Chuck/labels/carrying case diagram

Case

Part #300912234

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Power Cord Strain Relief 590924001
#24

Armature/gear/power cord diagram

Power tool power cord strain relief

Part #590924001

The manufacturer no longer makes this part, and there's no substitute part

Plate 671708001
#4

Armature/gear/power cord diagram

Plate

Part #671708001

The manufacturer no longer makes this part, and there's no substitute part

Right Lens 513314001
#12

Armature/gear/power cord diagram

Right lens

Part #513314001

The manufacturer no longer makes this part, and there's no substitute part

Ball 6861701
#6

Armature/gear/power cord diagram

Ball

Part #6861701

The manufacturer no longer makes this part, and there's no substitute part

Receptacle 290061072
#25

Armature/gear/power cord diagram

Receptacle

Part #290061072

The manufacturer no longer makes this part, and there's no substitute part

Drill Terminal Block 690331001
#23

Armature/gear/power cord diagram

Drill terminal block

Part #690331001

The manufacturer no longer makes this part, and there's no substitute part

Logo Label 940005055
#3

Chuck/labels/carrying case diagram

Logo label

Part #940005055

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 201117002
#18

Armature/gear/power cord diagram

Housing assembly

Part #201117002

The manufacturer no longer makes this part, and there's no substitute part
