Craftsman
Gas Walk-Behind Mower

Model # 917370430 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917370430 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 226 parts  |
Husqvarna Lawn Mower 22-in Deck 3-in-1 Blade 421825
#47

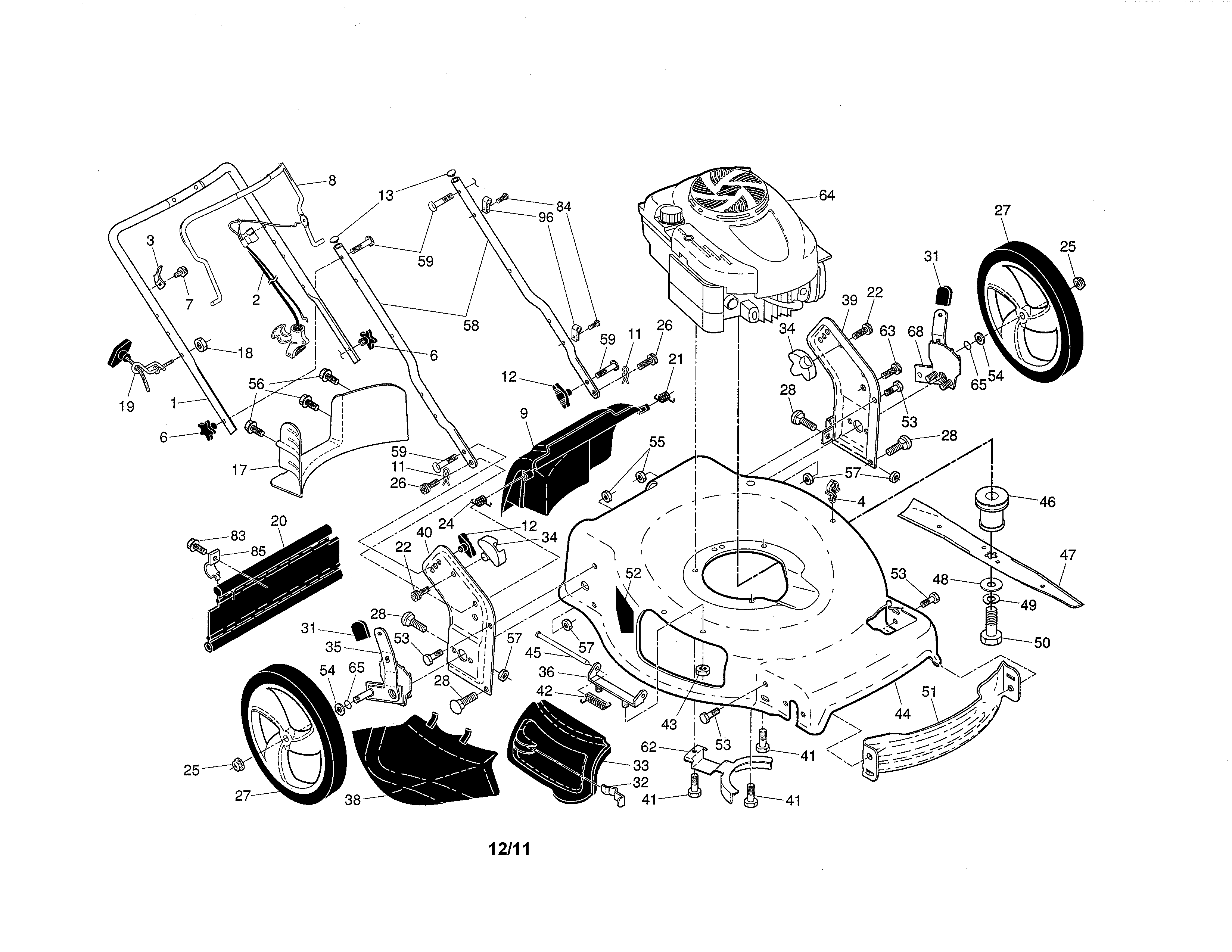

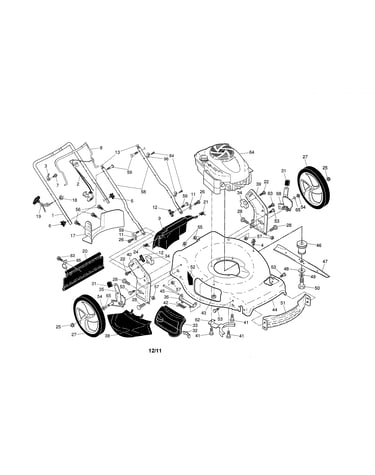

Engine/housing/handle diagram

Husqvarna lawn mower 22-in deck 3-in-1 blade

Part #421825

BEST SELLER

Get free shipping with Automatic Reorder

$14.87 |
12% OFF Phone Price : $16.87
In Stock
Lawn & Garden Equipment Nut 409148
#29

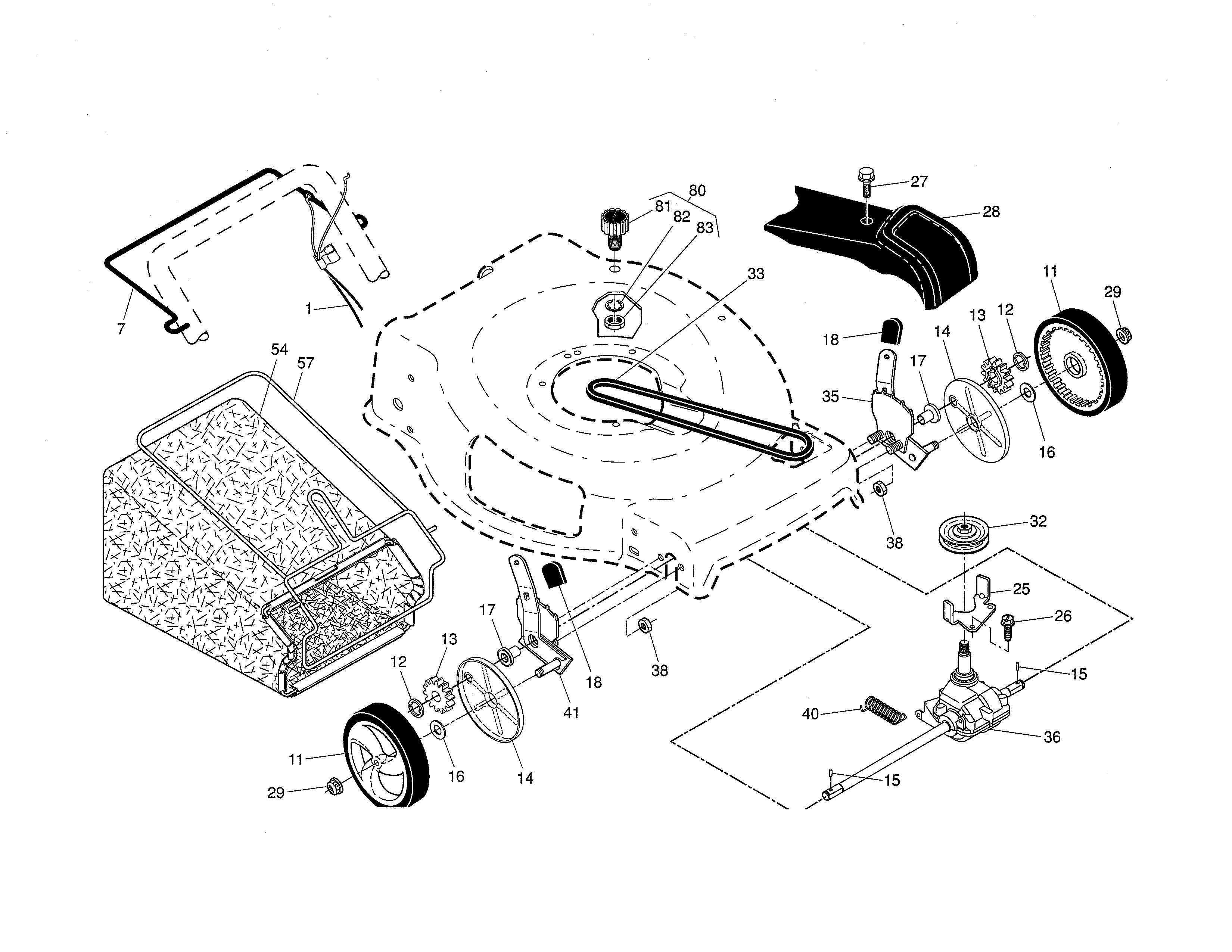

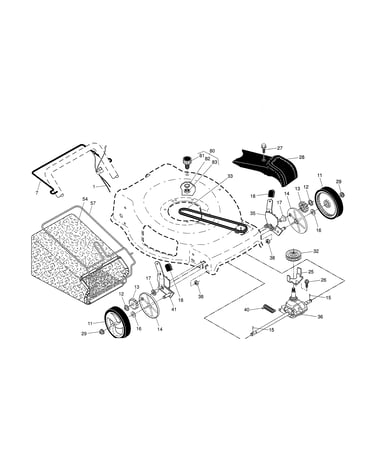

Drive control/gear case/wheels diagram

Lawn & garden equipment nut

Part #409148

Replaced by #532409149

?
Manufacturer substitution
This part replaces 409148. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Mower Hex Flange Nut 409149
#25

Engine/housing/handle diagram

Lawn mower hex flange nut

Part #409149

Replaced by #532409149

?
Manufacturer substitution
This part replaces 409149. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Blade Adapter 421782
#46

Engine/housing/handle diagram

Blade adapter

Part #421782

Replaced by #581473301

?
Manufacturer substitution
This part replaces 421782. Substitute parts can look different from the original.
BEST SELLER
$18.99 |
10% OFF Phone Price : $20.99
In Stock
Lawn Mower Rear Skirt (replaces 532429157) 429157
#20

Engine/housing/handle diagram

Lawn mower rear skirt (replaces 532429157)

Part #429157

BEST SELLER
$12.63 |
14% OFF Phone Price : $14.63
In Stock
Lawn Mower Wheel Dust Cover 189403
#14

Drive control/gear case/wheels diagram

Lawn mower wheel dust cover

Part #189403

Replaced by #581840401

?
Manufacturer substitution
This part replaces 189403. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lawn & Garden Equipment Screw 851084
#50

Engine/housing/handle diagram

Lawn & garden equipment screw

Part #851084

Replaced by #532435345

?
Manufacturer substitution
This part replaces 851084. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.49 |
22% OFF Phone Price : $4.49
In Stock
Lawn & Garden Equipment Washer (replaces 532851074, 5328510-74) 851074
#48

Engine/housing/handle diagram

Lawn & garden equipment washer (replaces 532851074, 5328510-74)

Part #851074

BEST SELLER
This item is not returnable
$2.79 |
26% OFF Phone Price : $3.79
In Stock
Lawn Mower Height Adjuster Knob 701037
Lawn mower height adjuster knob

Part #701037

Replaced by #532701037

?
Manufacturer substitution
This part replaces 701037. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Lawn Mower Height Adjuster, Right (replaces 408018, 409098, 409109, 431145, 438462, 581497903) 581497908
#41

Drive control/gear case/wheels diagram

Lawn mower height adjuster, right (replaces 408018, 409098, 409109, 431145, 438462, 581497903)

Part #581497908

BEST SELLER
$25.32 |
19% OFF Phone Price : $31.32
In Stock
