Kenmore Elite
Bottom-Mount Refrigerator

Model # 79578043310 Official Kenmore Elite refrigerator

Here are the diagrams and repair parts for Official Kenmore Elite 79578043310 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 113 parts  |
Refrigerator Filter Dryer 5851JA2007A
#317A

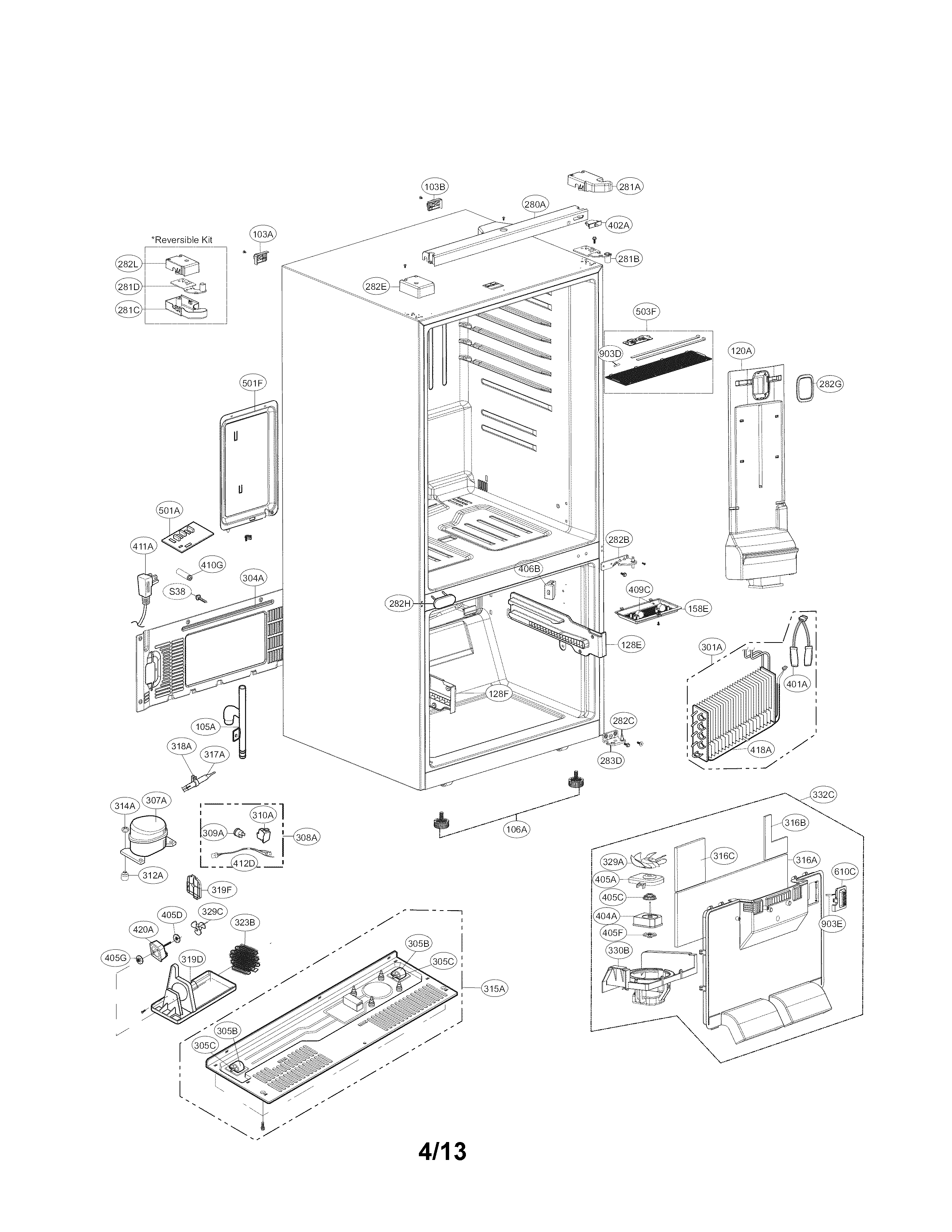

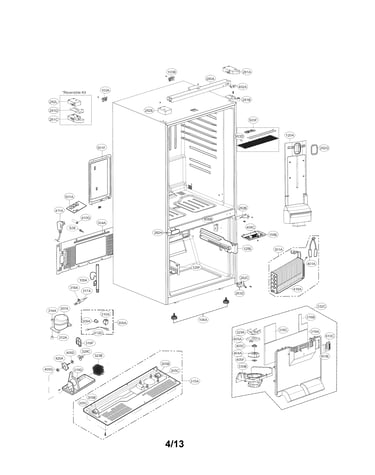

Case parts diagram

Refrigerator filter dryer

Part #5851JA2007A

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces 5851JA2007A. Substitute parts can look different from the original.
BEST SELLER
$65.17 |
8% OFF Phone Price : $71.17
In Stock
Refrigerator Door Switch 6600JB1010K
#406B

Case parts diagram

Refrigerator door switch

Part #6600JB1010K

Replaced by #6600JB1010A

?
Manufacturer substitution
This part replaces 6600JB1010K. Substitute parts can look different from the original.
BEST SELLER
$21.71 |
22% OFF Phone Price : $27.71
In Stock
Refrigerator Ice Maker Assembly AEQ72909603
#600A

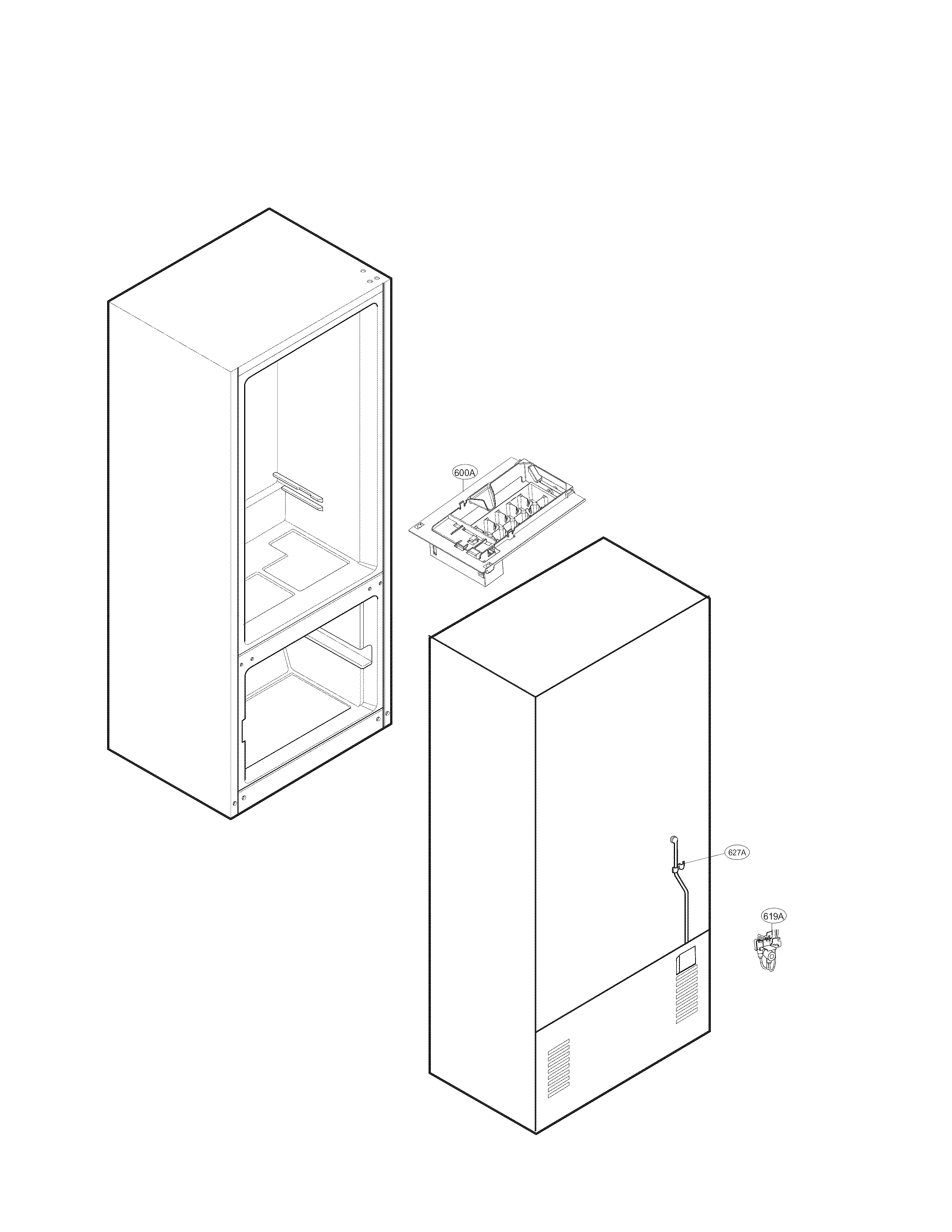

Ice maker parts diagram

Refrigerator ice maker assembly

Part #AEQ72909603

BEST SELLER
$180.89 |
6% OFF Phone Price : $192.89
In Stock
Refrigerator Door Bin MAN62749601
#241C

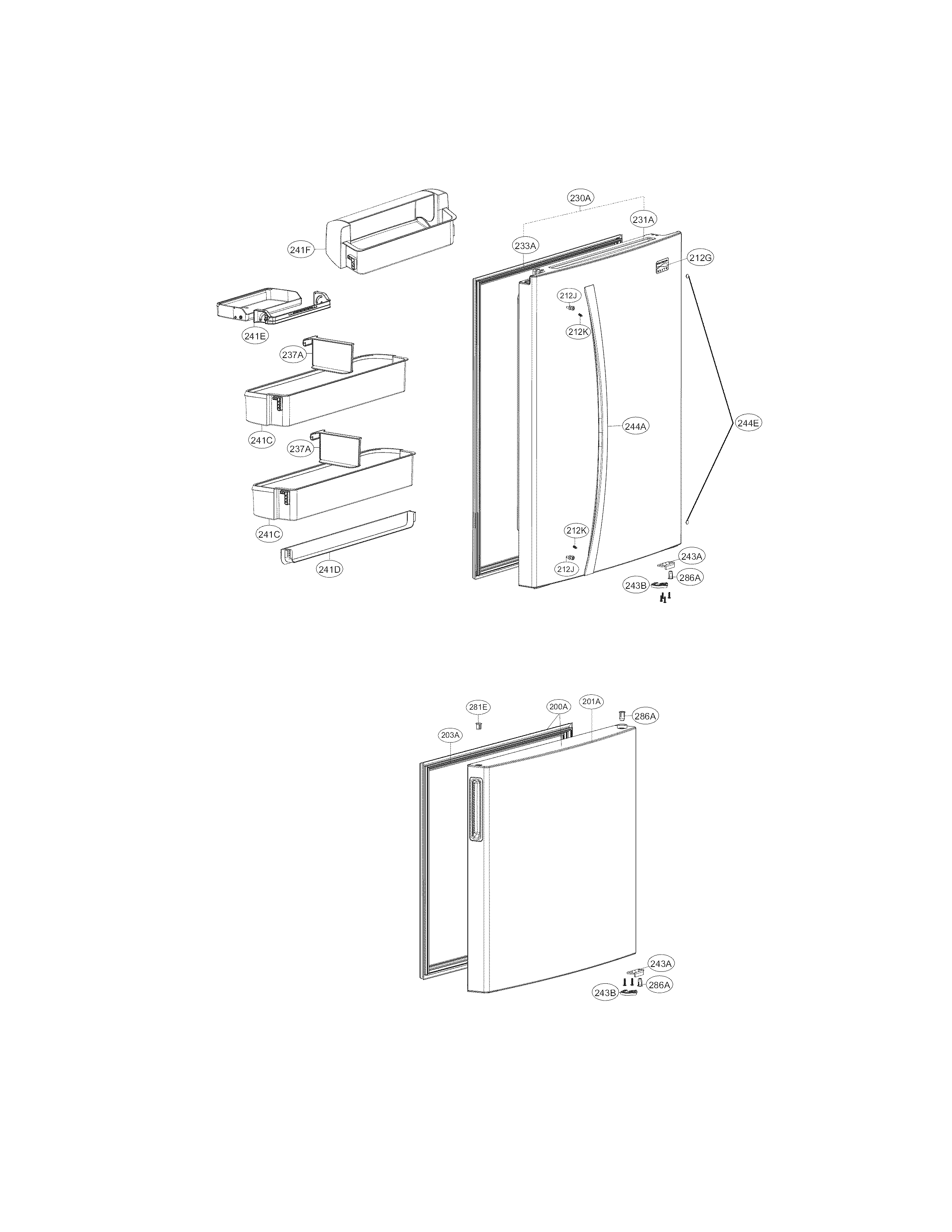

Door parts diagram

Refrigerator door bin

Part #MAN62749601

BEST SELLER
$81.17 |
7% OFF Phone Price : $87.17
In Stock
Refrigerator Door Hinge Bushing 4984JJ3003A
#286A

Door parts diagram

Refrigerator door hinge bushing

Part #4984JJ3003A

BEST SELLER
$11.40 |
15% OFF Phone Price : $13.40
In Stock
Refrigerator Compressor TCA33414101
#307A

Case parts diagram

Refrigerator compressor

Part #TCA33414101

Replaced by #TCA35931726

?
Manufacturer substitution
This part replaces TCA33414101. Substitute parts can look different from the original.
BEST SELLER
$215.36 |
5% OFF Phone Price : $227.36
In Stock
Refrigerator Crisper Drawer Cover Frame ACQ86594201
#154A

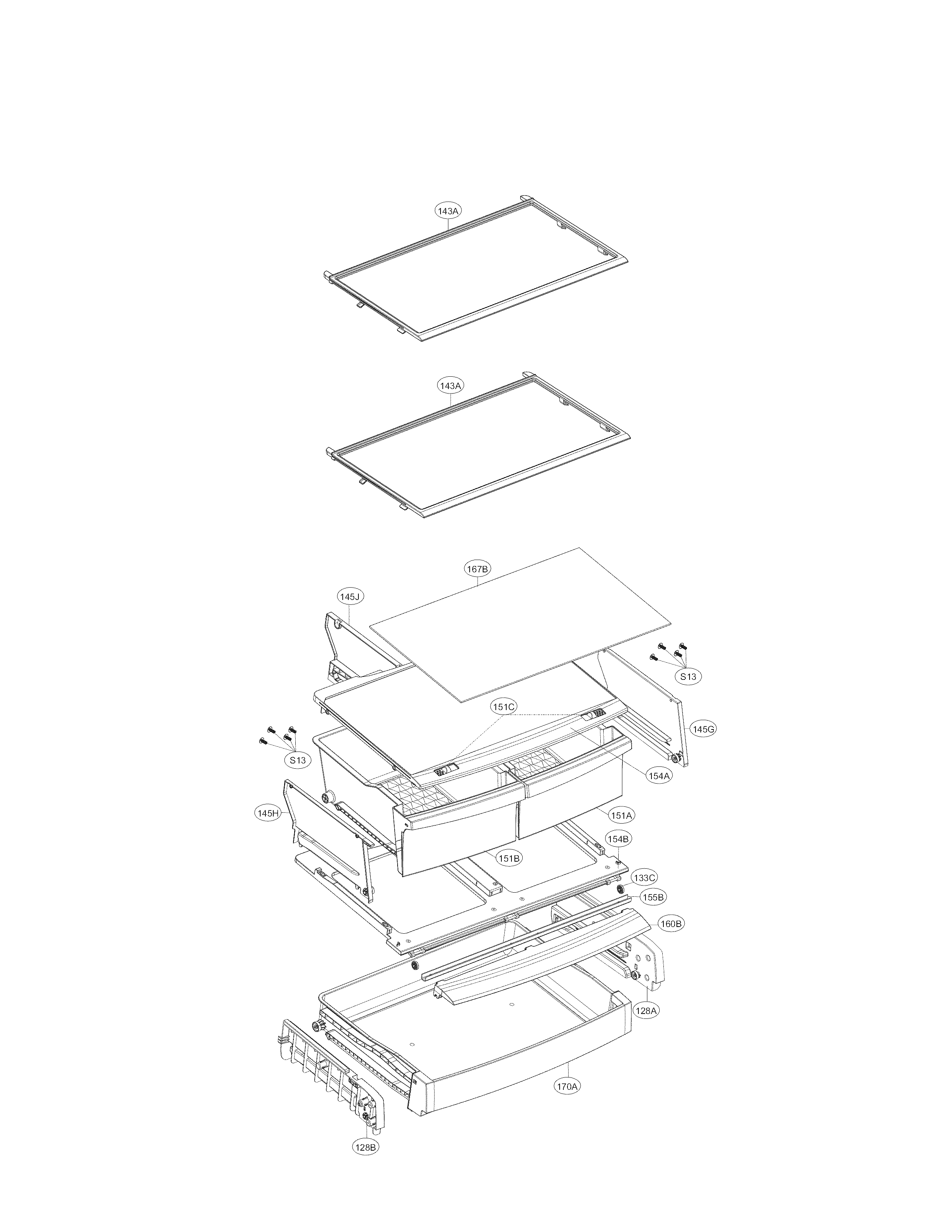

Refrigerator parts diagram

Refrigerator crisper drawer cover frame

Part #ACQ86594201

BEST SELLER
$94.51 |
6% OFF Phone Price : $100.51
In Stock
Refrigerator Compressor Mount Retainer Clip (replaces 4620ja3015e, Mjb61877901) 4620JA3015A
#314A

Case parts diagram

Refrigerator compressor mount retainer clip (replaces 4620ja3015e, mjb61877901)

Part #4620JA3015A

BEST SELLER
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Refrigerator Defrost Sensor Assembly (replaces 6615jb2005x) 6615JB2005N
#401A

Case parts diagram

Refrigerator defrost sensor assembly (replaces 6615jb2005x)

Part #6615JB2005N

BEST SELLER
$33.29 |
15% OFF Phone Price : $39.29
In Stock
Refrigerator Glass Shelf MHL61952320
#167B

Refrigerator parts diagram

Refrigerator glass shelf

Part #MHL61952320

Replaced by #MHL61952330

?
Manufacturer substitution
This part replaces MHL61952320. Substitute parts can look different from the original.
BEST SELLER
$80.03 |
7% OFF Phone Price : $86.03
In Stock
