Model # 13R232-0003-F1 Official Briggs & Stratton engine

Here are the diagrams and repair parts for Official Briggs & Stratton 13R232-0003-F1 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

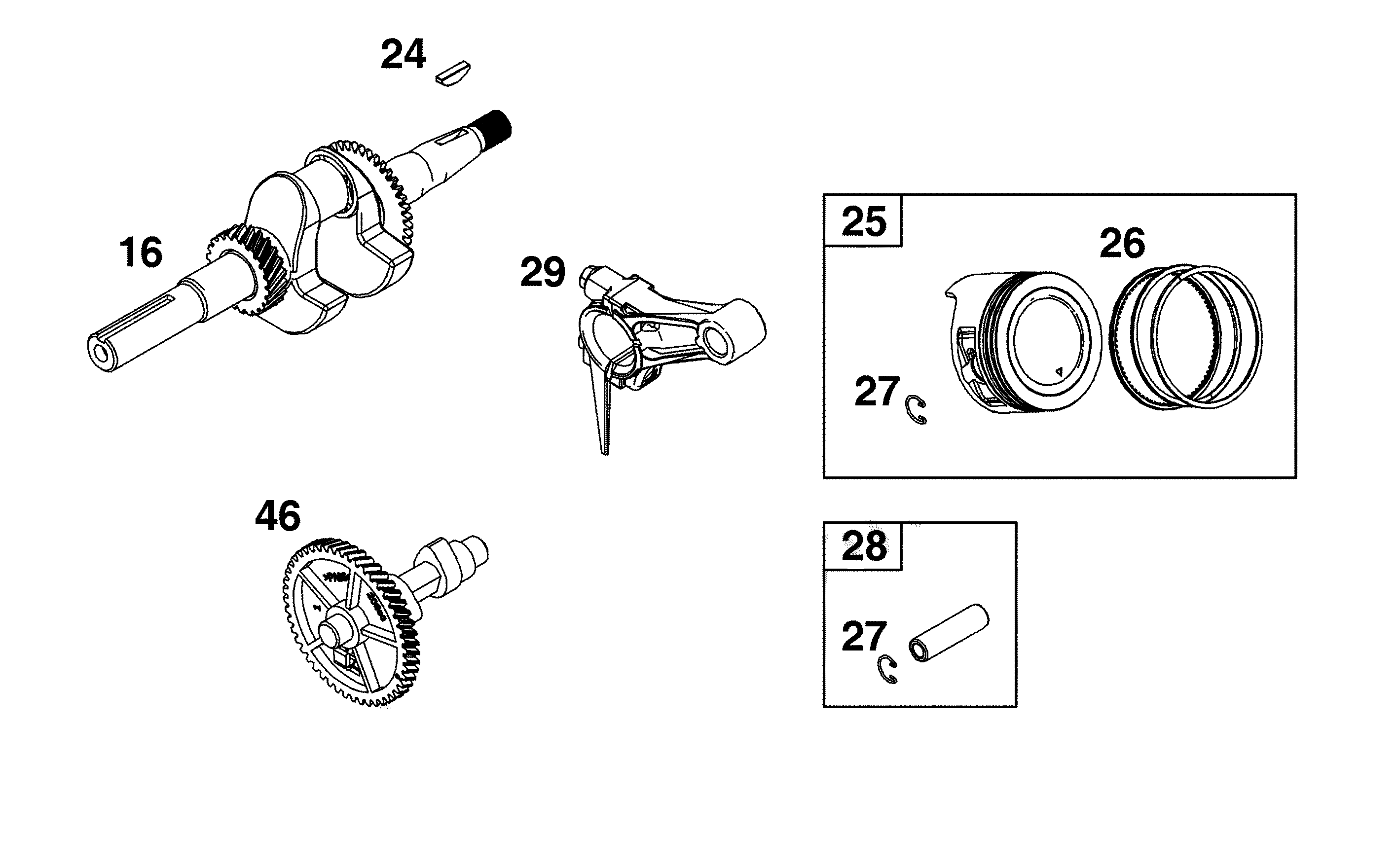

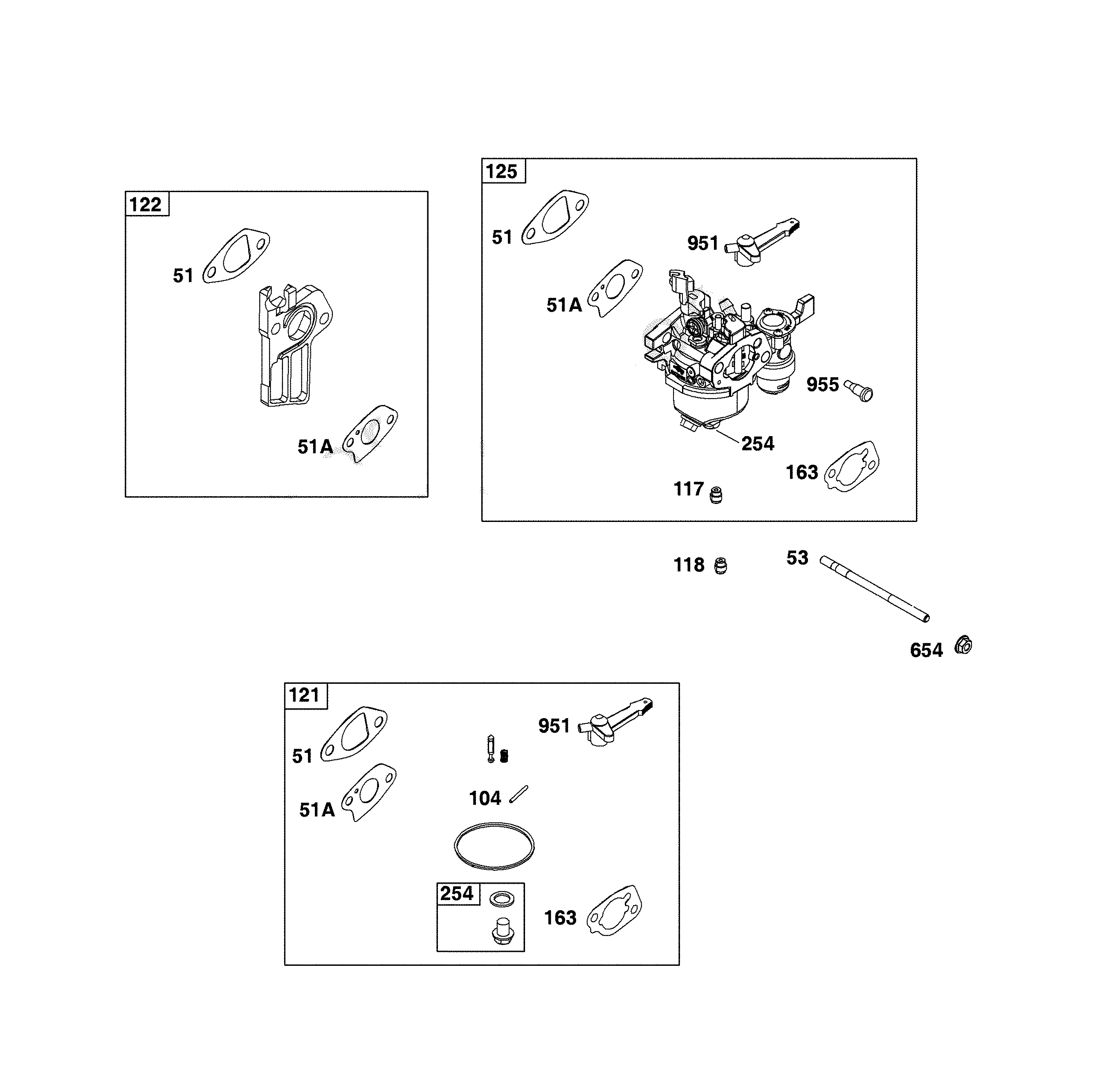

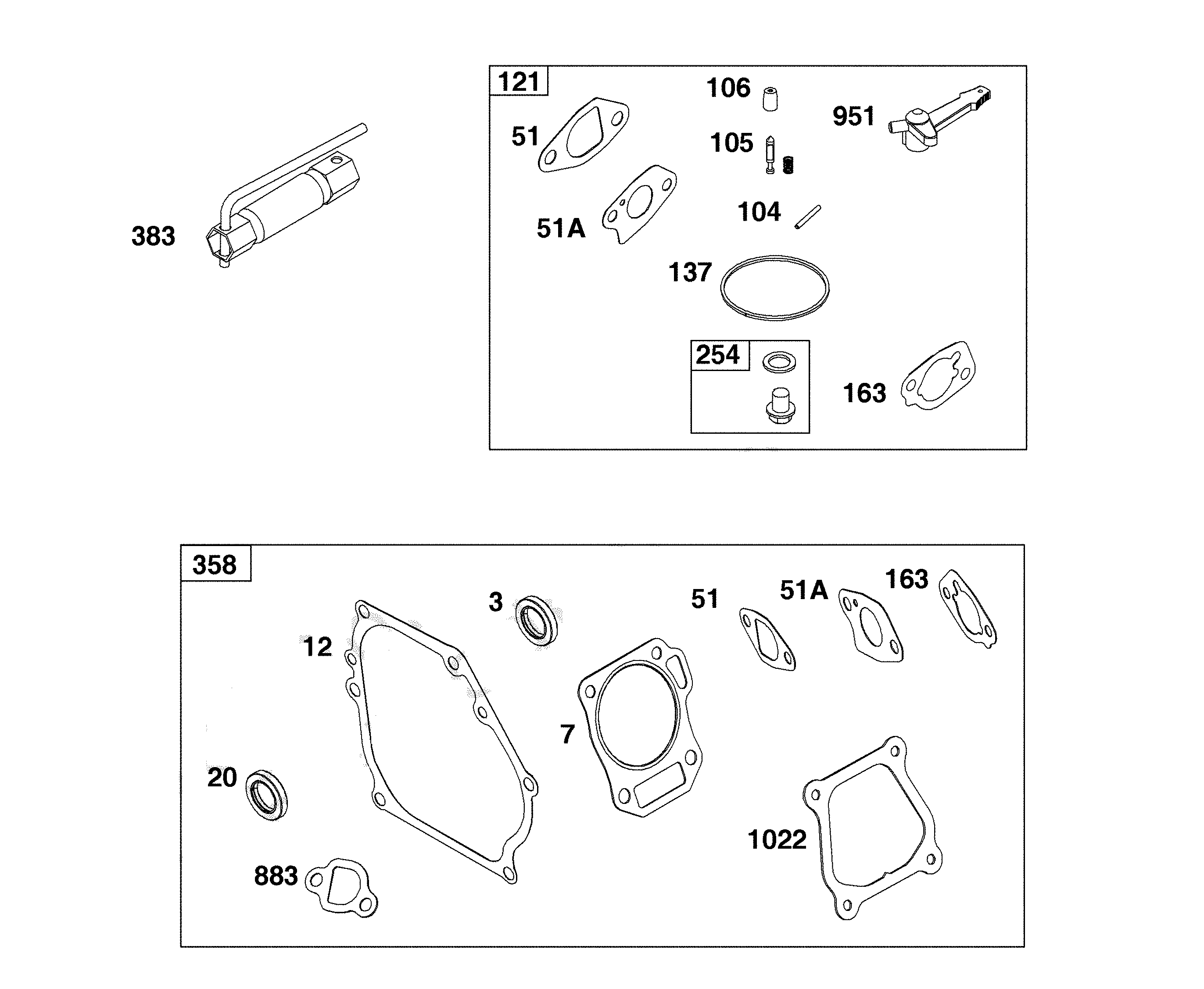

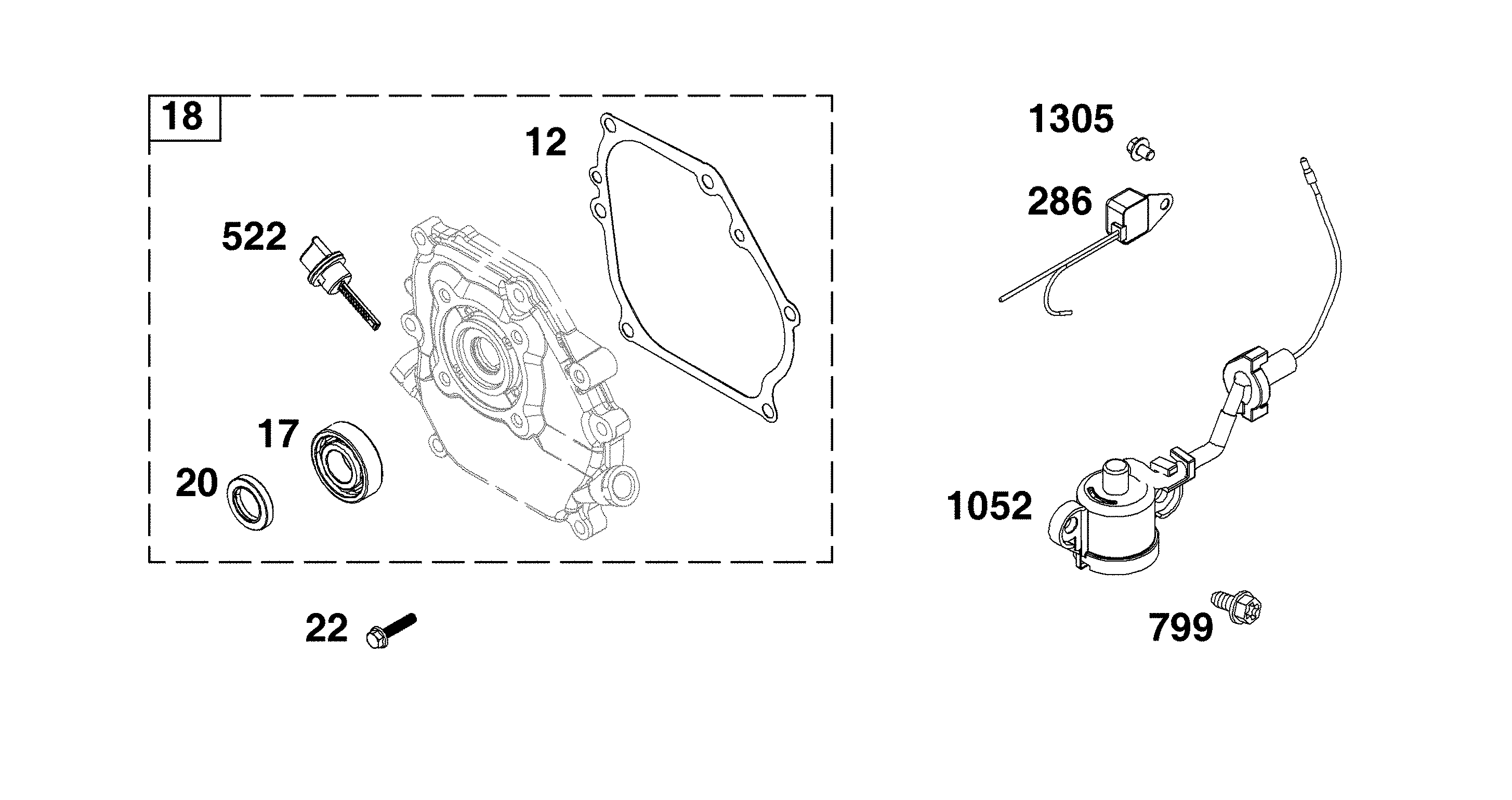

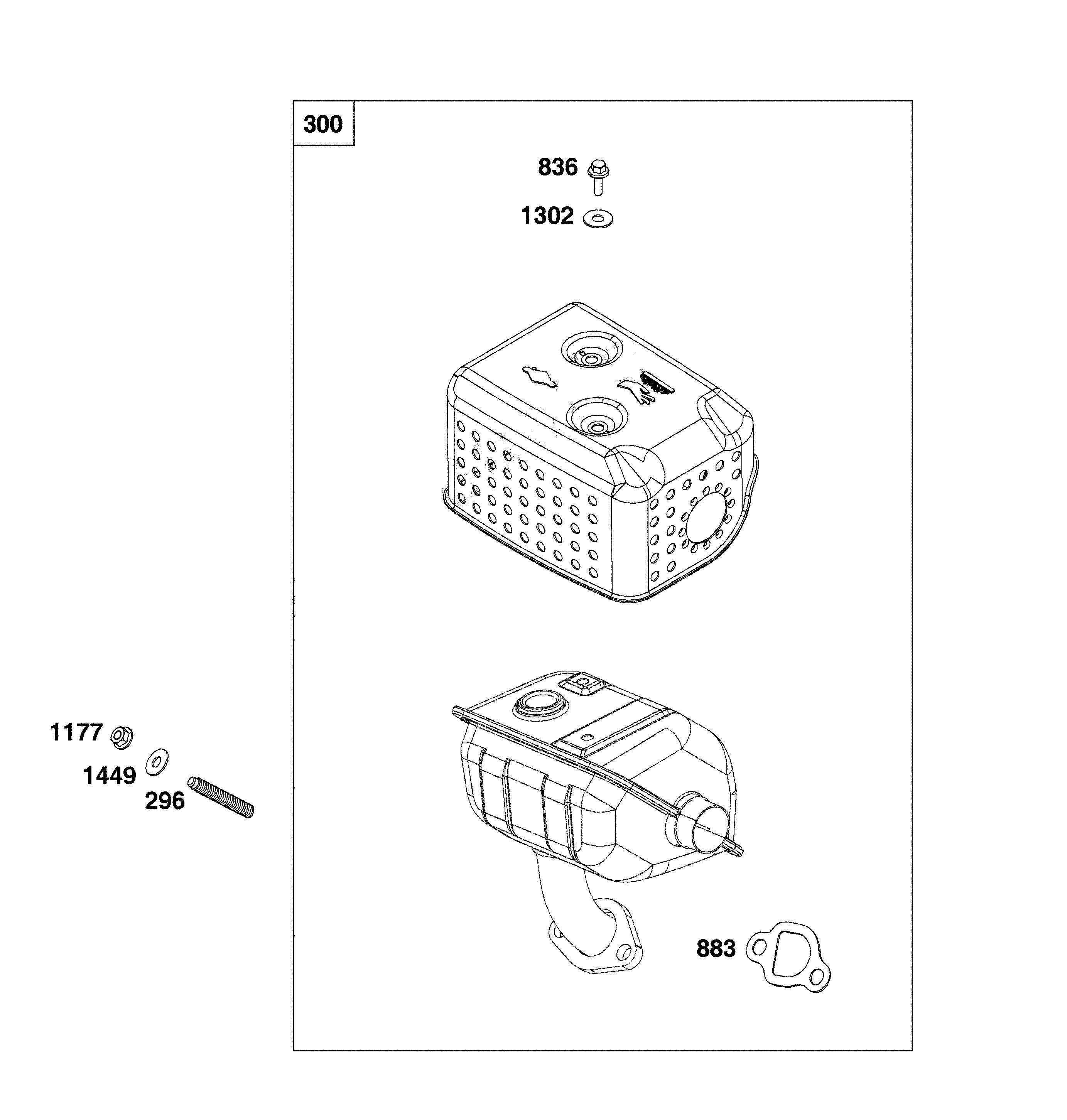

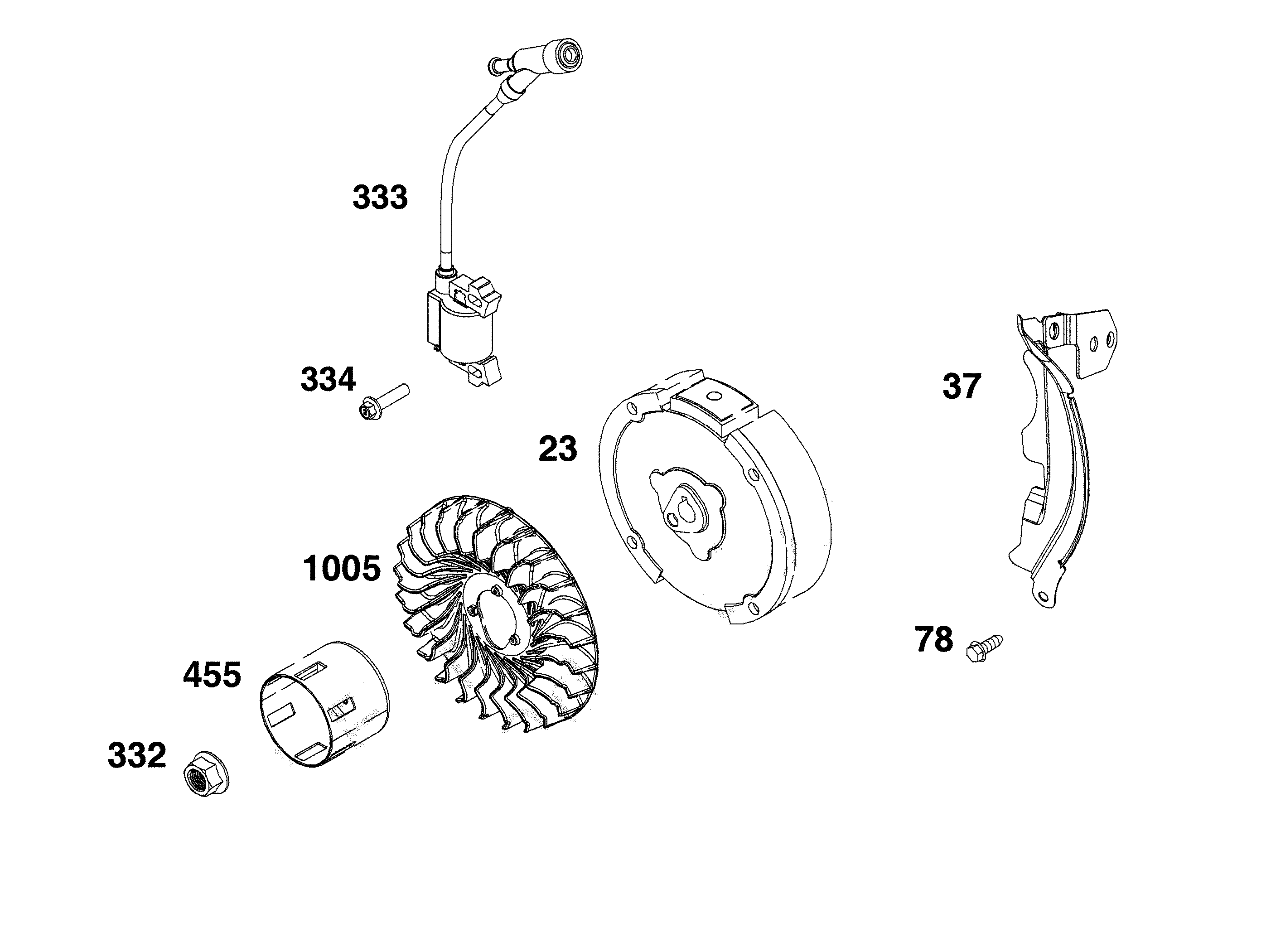

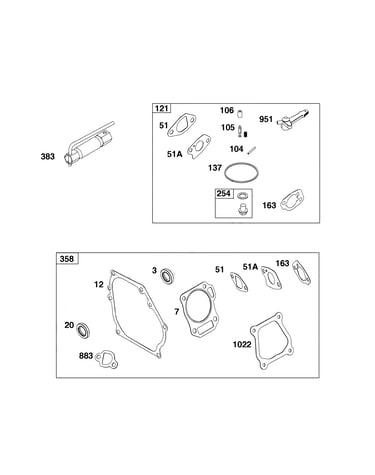

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Lawn & Garden Equipment Engine Fuel Line (replaces 1734994sm, 327290ma, 691050, 7012638yp, 7032016yp, 7032956yp, 7041996yp, 7076272yp, 7077351yp, 791866, 798512, 809322, 809499) 791766
#187

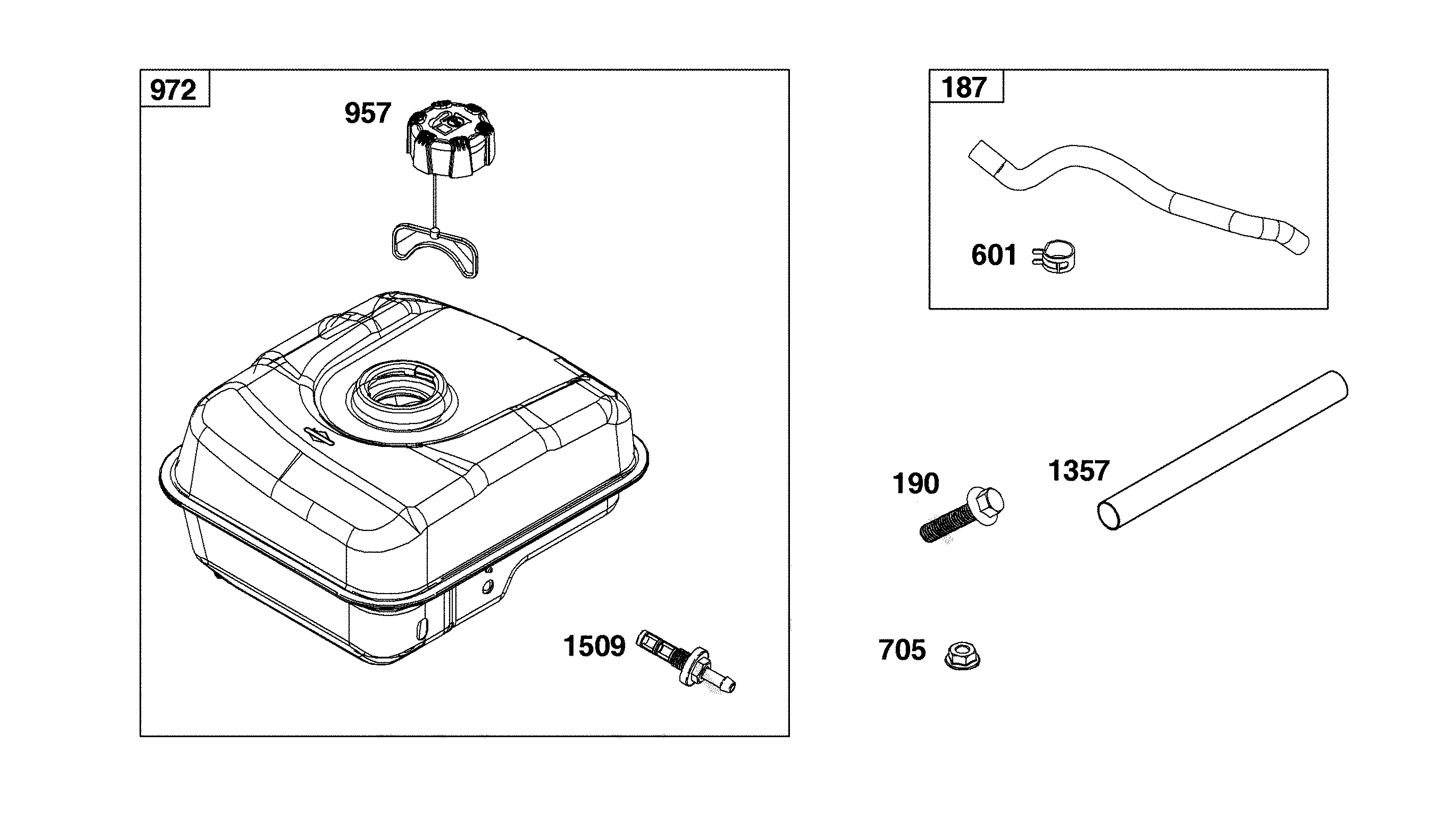

Fuel supply diagram

Lawn & garden equipment engine fuel line (replaces 1734994sm, 327290ma, 691050, 7012638yp, 7032016yp, 7032956yp, 7041996yp, 7076272yp, 7077351yp, 791866, 798512, 809322, 809499)

Part #791766

BEST SELLER
$9.59 |
9% OFF Phone Price : $10.59
In Stock
Lawn & Garden Equipment Engine Recoil Starter Rope (replaces 693449, Bs-693389) 693389
#58

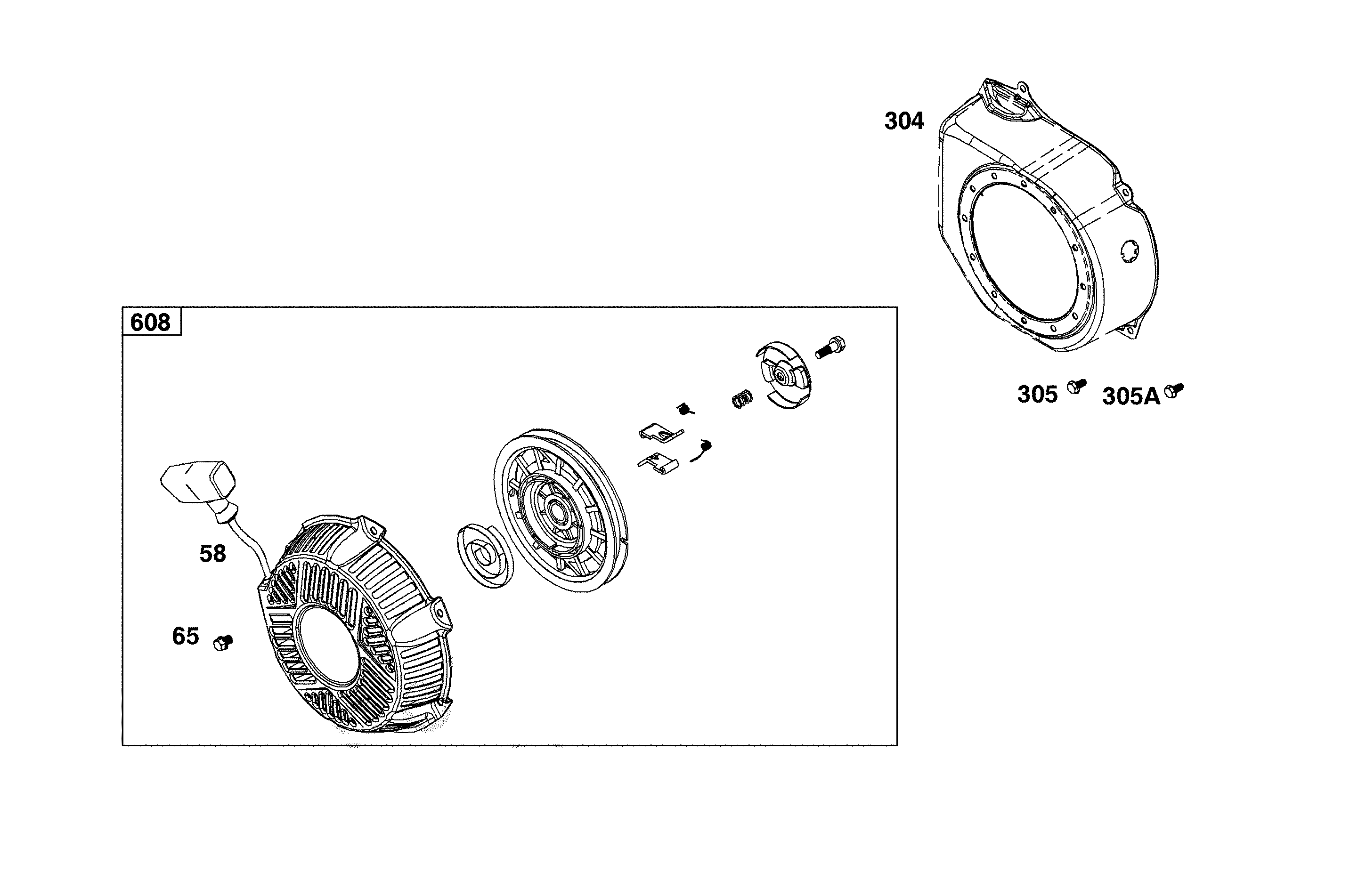

Blower housing diagram

Lawn & garden equipment engine recoil starter rope (replaces 693449, bs-693389)

Part #693389

This item is not returnable
$11.71 |
15% OFF Phone Price : $13.71
In Stock
Seal-o Rng 590695
#176

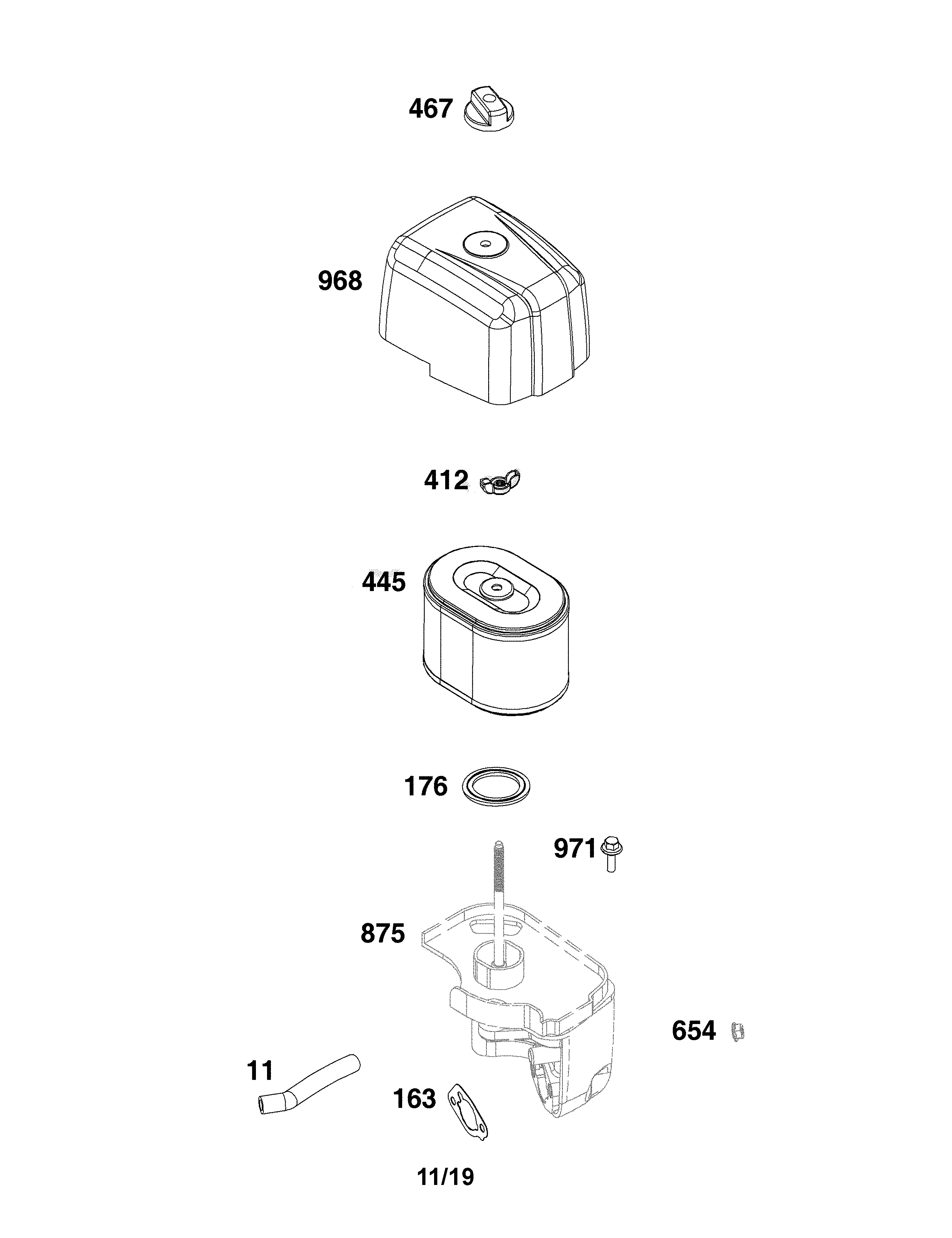

Air cleaner diagram

Seal-o rng

Part #590695

$10.60
In Stock
Valve Seal 590648
#868

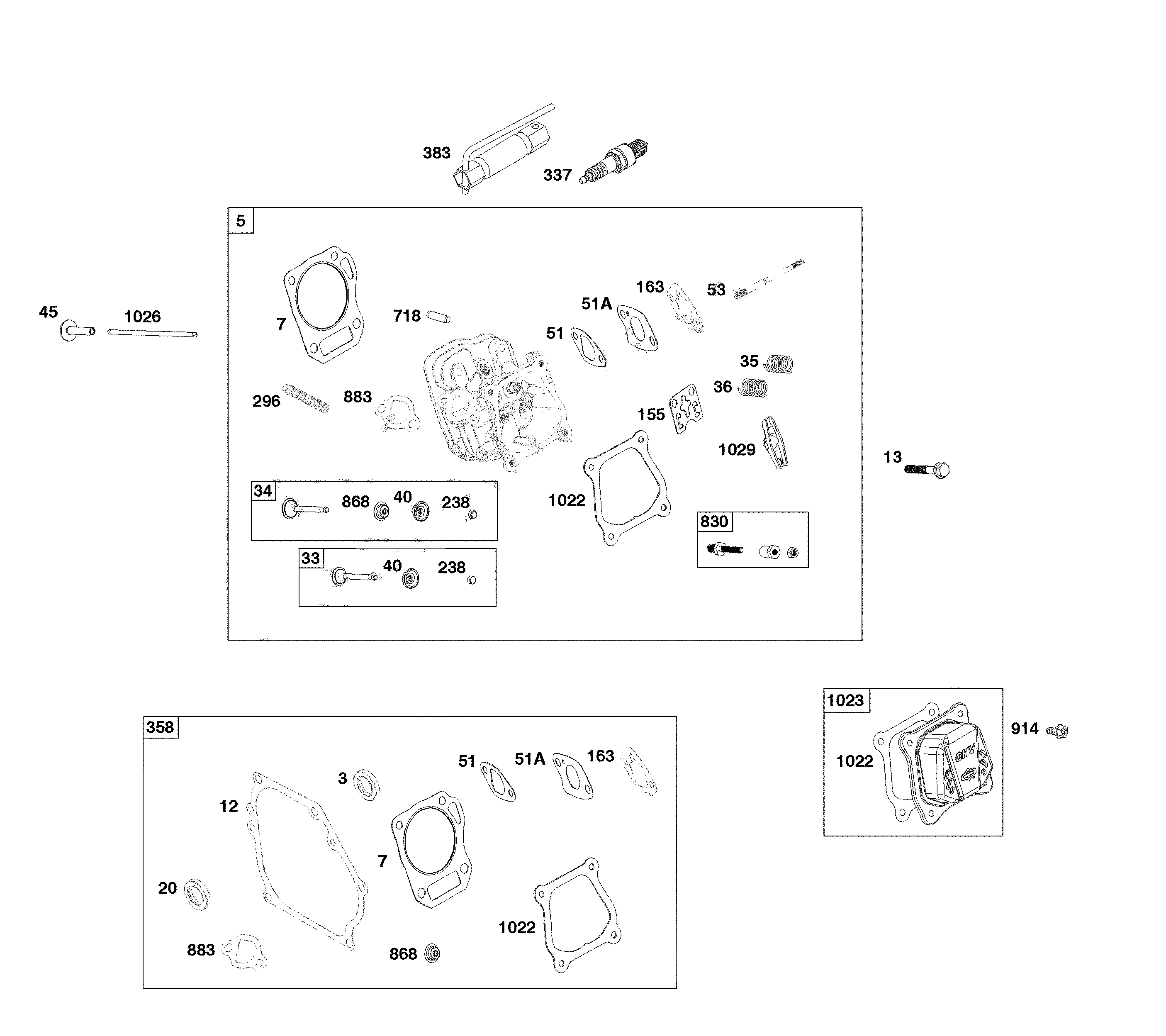

Cylinder head diagram

Valve seal

Part #590648

$24.00
In Stock
Briggs And Stratton Link-mechanical Gover 592866
#202

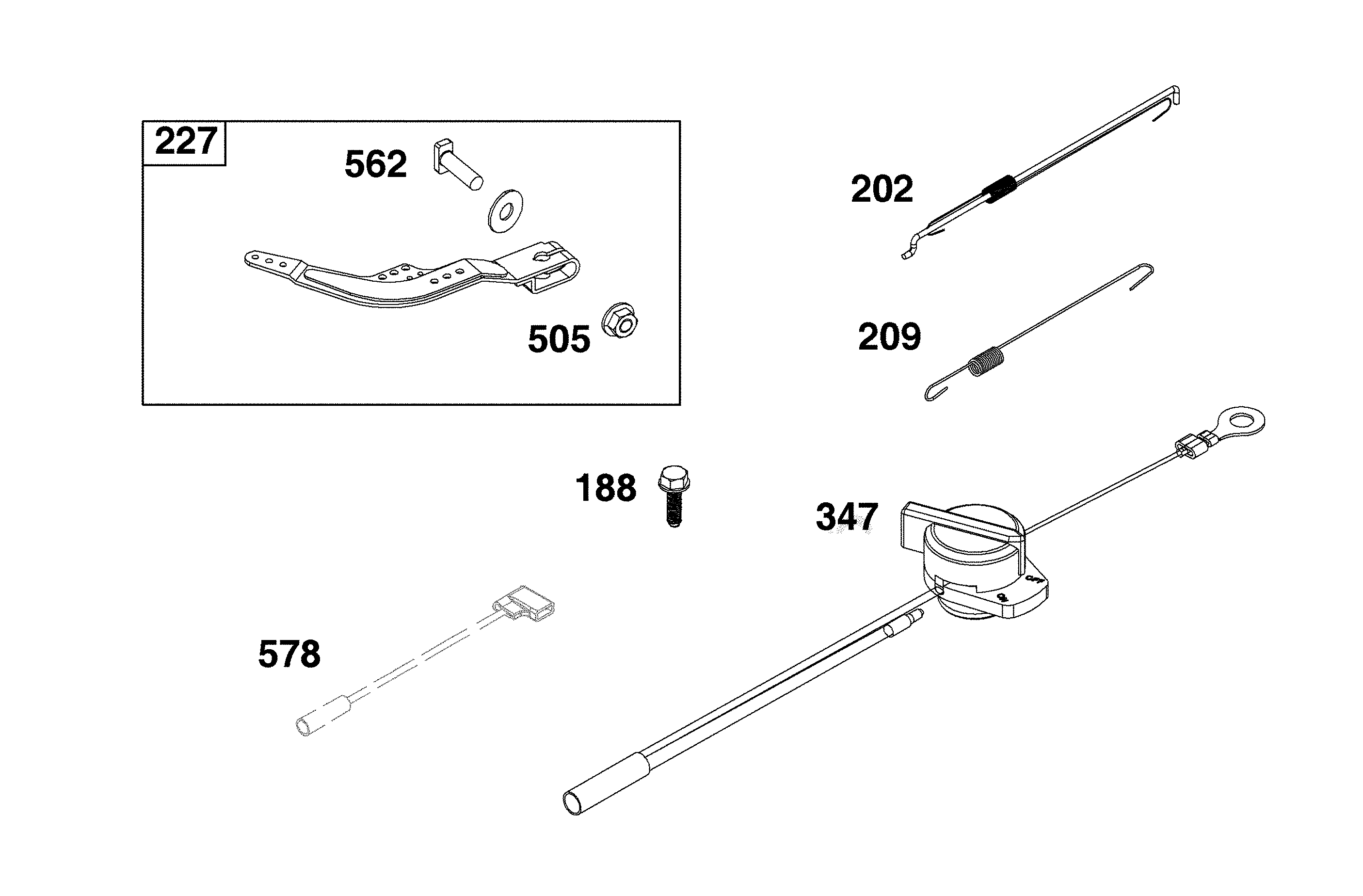

Controls diagram

Briggs and stratton link-mechanical gover

Part #592866

$15.80
In Stock
Nut 590697
#412

Air cleaner diagram

Nut

Part #590697

This item is not returnable
$6.66
In Stock
Lawn & Garden Equipment Engine Screw 590850
Lawn & garden equipment engine screw

Part #590850

This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Briggs & Stratton Screw 597078
#305A

Blower housing diagram

Briggs & stratton screw

Part #597078

This item is not returnable
$7.14
In Stock
Screw 590643
Screw

Part #590643

This item is not returnable
$7.40
In Stock
Lawn & Garden Equipment Engine Warning Decal 794467
#1319

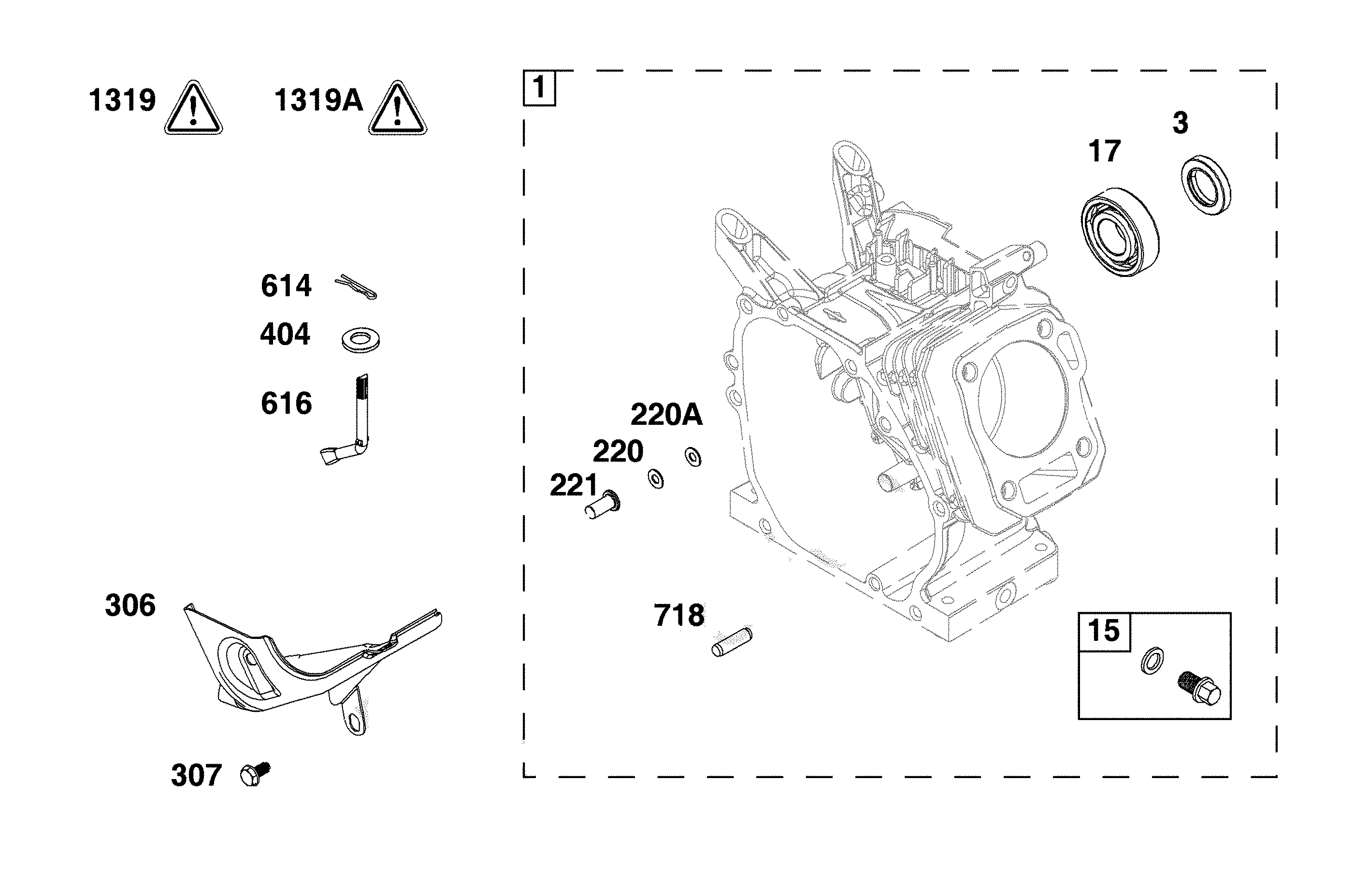

Cylinder diagram

Lawn & garden equipment engine warning decal

Part #794467

This item is not returnable
$30.40 |
16% OFF Phone Price : $36.40
In Stock
